TTGO ESP32-S2 ESP32-S-WOOR WIFI Wireless Module Type-C Connector Development Board

  • 149 kr
  • 134 kr

LILYGO® TTGO ESP32-S2 ESP32-S-WOOR WIFI Wireless Module Type-C Connector Development BoardProduct DescriptionHardware Specifications ChipsetESPRESSIF-ESP32

I lager.
Artikelnummer: 799
Dela
  • Information

LILYGO® TTGO ESP32-S2 ESP32-S-WOOR WIFI Wireless Module Type-C Connector Development Board

H433主图1

Product Description

Hardware Specifications
ChipsetESPRESSIF-ESP32-S2-WROOM
FLASH 4MB
PSRAM   8MB
SRAM 520 kB SRAM
ButtonBOOT,REST
USB to TTLCH340C
Modular interface SD card、UART、SPI、I2C、PWM、I2S、ADC
On-board clock32.768KHz crystal oscillator
Working voltage2.7V-3.6V
Working temperature range -40℃ ~ +85℃
Weight8g
Size70*30*4.6mm

Power Supply Specifications

Power Supply InputUSB 5V/1A
Charging current500mA
Battery Input 3.7-4.2V
USBType-C USB

Wi-Fi

StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m


Product Pin

ESP32-S1



Product Size

K%YD3O0VG7M3_EJE`]~9HGJ

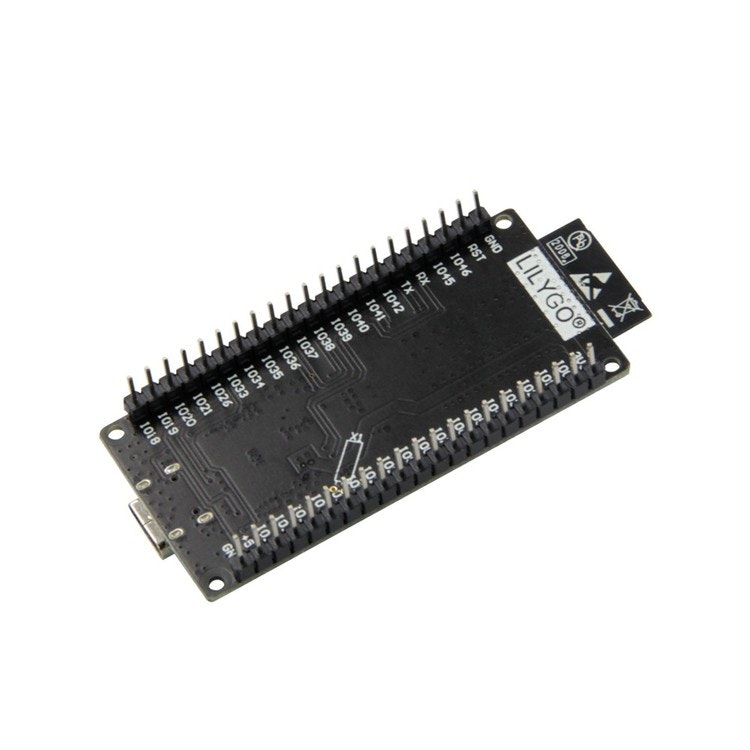

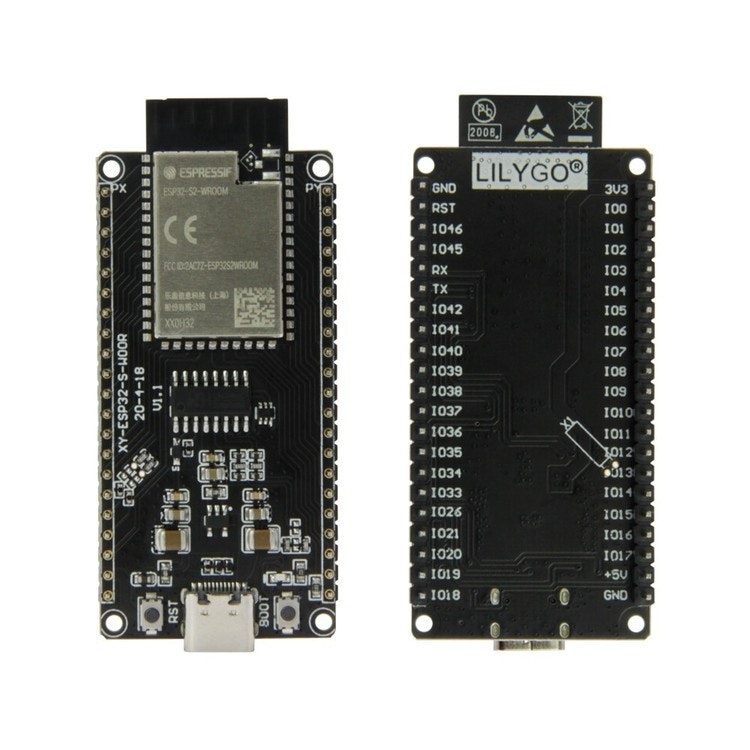

Product Detail

H433主图2H433主图3

Shipping List

1 X ESP32-S-WOOR Board

2 X Pin

H433主图7
