TTGO T-Solar 433MHz Solar Power Development Board

I lager.
Antal: 4

349 kr

Artikelnummer: SKUsolar637

LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna

LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna



Product Description

ChipsetASR6505
CPUSTM8L152
LoRaSX1262
Frequeccy Range150MHZ-960MHz
Maximum Power+21dBm constant RF output
RX Sensitivity’-140dBm
Embedded memorieFlash 64KB, SRAM 4KB. EEPROM 2KB
Peripherals30x configurable GPIOS,

1xIC, 2xUART, 1xSWIM: 1xSPL, 3xADC
RX mode Currrent<10mA
TX mode Curent<85mA@22dBm

<40mA@17dBm

<30mA@14dBm
Deep Sleep Mode Surrent<1uA Without RTC

<1.6uA With RTC
Temperature Storage:-55-125℃

Operating:40-85℃
HumidityStorage: 5-95%(Non-Condensing)

Operating: 10-95%(Non- Condensing)
Charging
Charging Current 780ma
Charging TP4056


Charging statusRed light on,Green light off
Voltage full stateRed light off,Green light on
UndervoltageRed light off,Green light off
 battery temperature is too high or too low stateRed light off,Green light off
no battery accessRed light off,Green light off
BAT terminated with 10u capacitor, no batteryFlashing red light(T=1-4S),Green light on



More Information

https://github.com/Xinyuan-LilyGO/T-solar

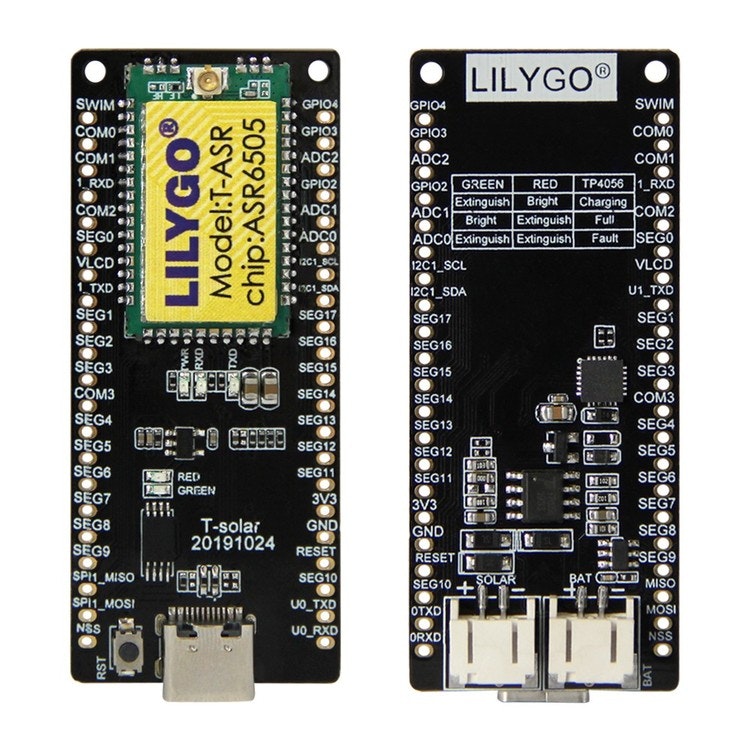

Pin Diagram:



LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna



Product Function

The solar power supply interface is reserved on the board, which can be directly connected to the solar panel of 5.5~7.5V. With the lithium battery, the system can continue to operate until the battery is scrapped.



Product Detail

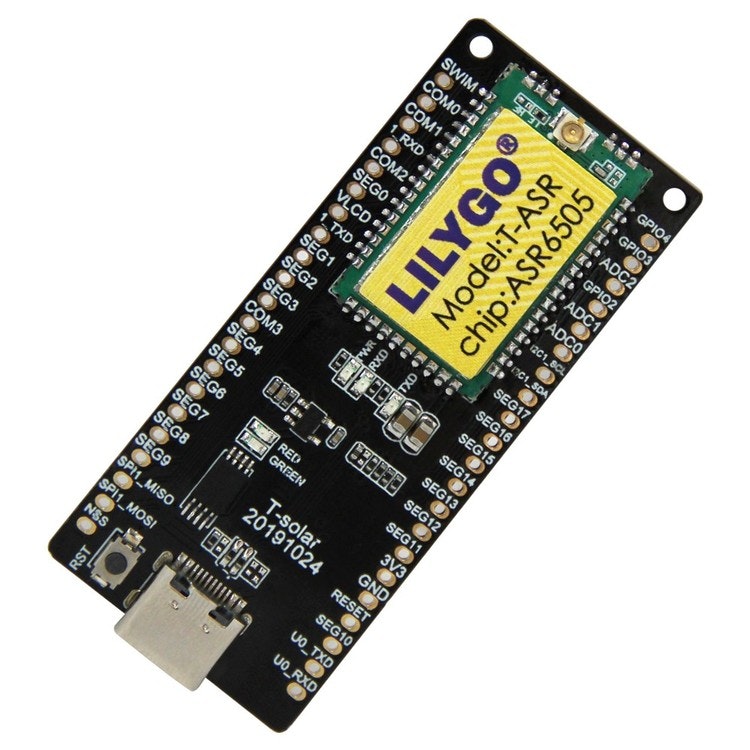

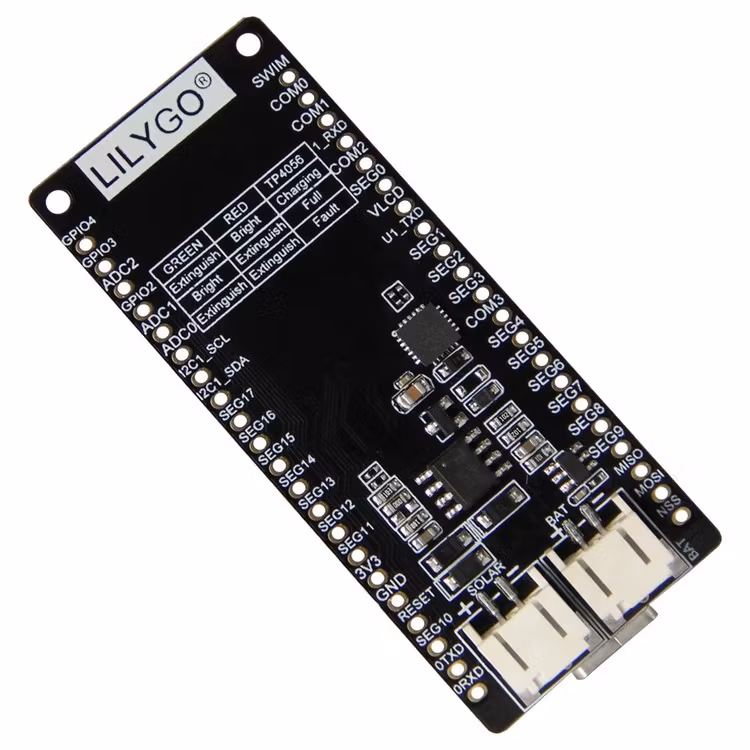

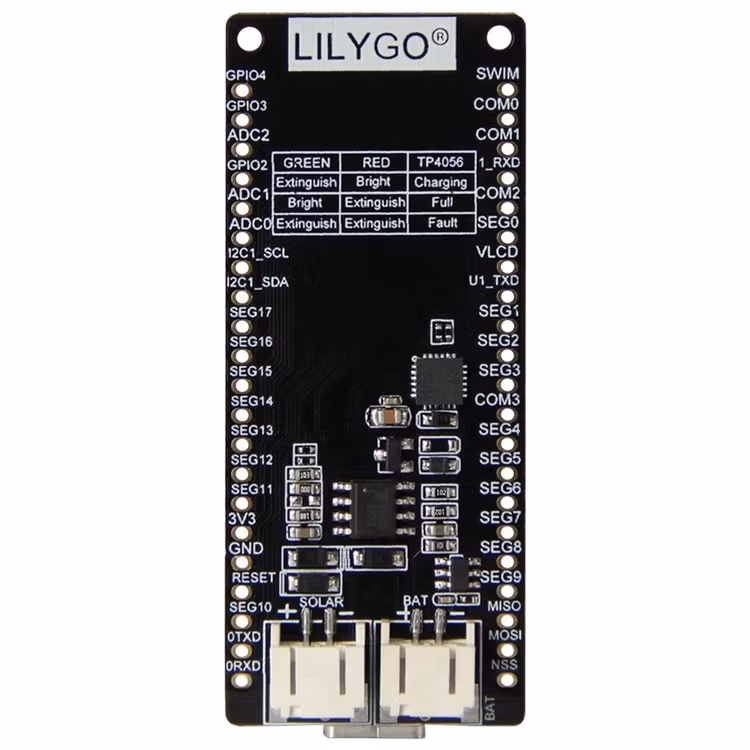

LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna

LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna

LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna

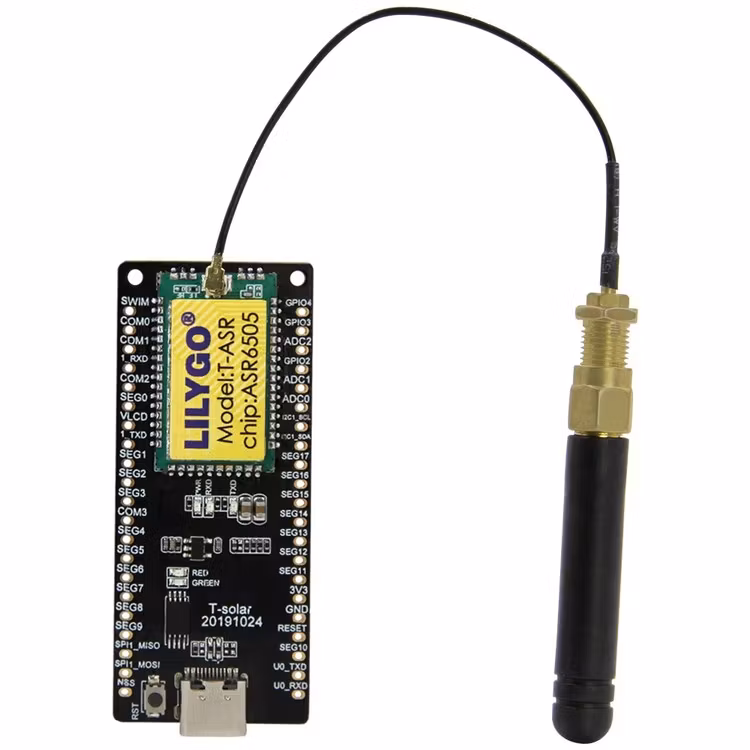

Product Display

LILYGO® TTGO T-Solar 433MHz Solar Power Development Board STM8L152 CPU SX1262 Lora With Antenna



Shipping List

1 X T-Solar 433MHz

1 X Antenna

2 X Power cable
