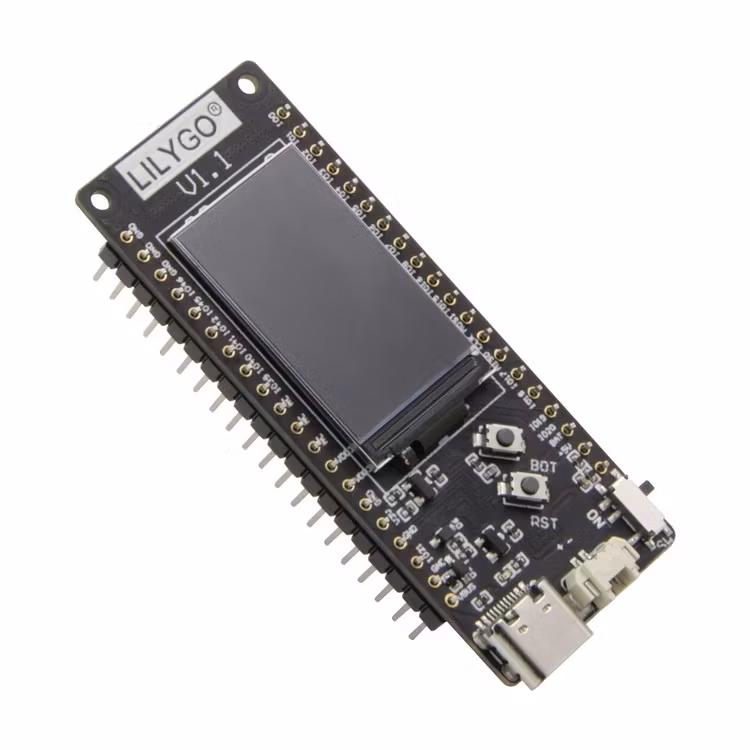

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 Inch LCD Display WIFI Wireless Module

  • 299 kr

LILYGO® TTGO T8 ESP32-S2 V1.1 With ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development BoardProduct DescriptionHardware

Produkten är tyvärr slut i lager. :(

Artikelnummer: 895
Dela
  • Information

LILYGO® TTGO T8 ESP32-S2 V1.1 With ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development Board

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development Board

Product Description

Hardware Specifications
ChipsetESPRESSIF-ESP32-S2
FLASH 4MB
PSRAM   8MB
SRAM 320 kB SRAM

ButtonPower Switch,Rest,Boot,Customize,SMD DPI Switch
External DeviceTF Card
USB to TTLCH340C
Modular interface SD card、UART、SPI、I2C、PWM、I2S、ADC
On-board clock32.768KHz crystal oscillator
Working voltage2.7V-3.6V
Working temperature range -40℃ ~ +85℃
Weight9g
Size65.48*26.02*5mm

Power Supply Specifications

Power Supply InputUSB 5V/1A
Charging current500mA
Battery Input 3.7-4.2V
JST Connector2Pin 1.25mm
USBType-C USB
Wi-Fi
StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m

Display
Screen


ST77789 / 1.14 Inch

More Information

https://github.com/Xinyuan-LilyGO/LilyGo-T-Display-S2



Product Pin

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development Board



Product Size

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development Board

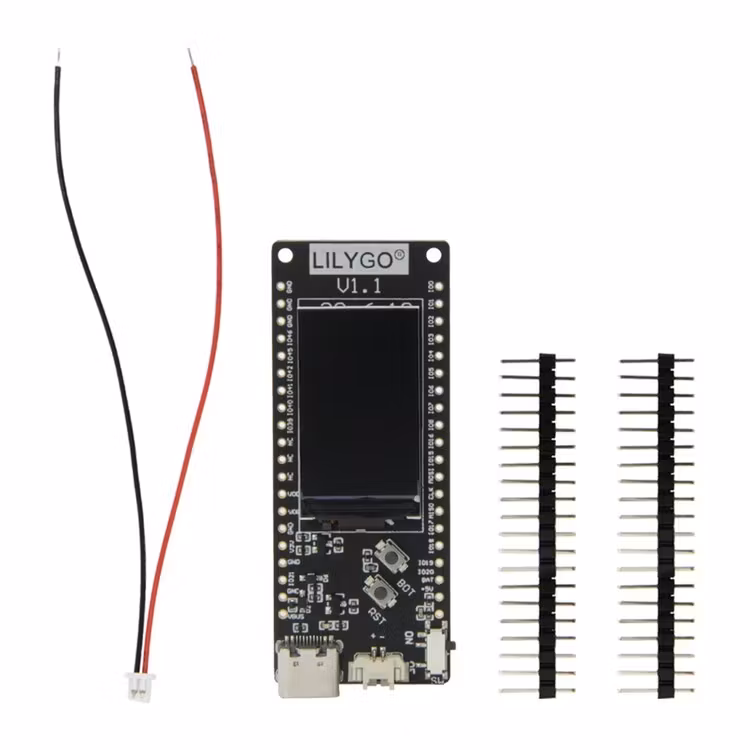

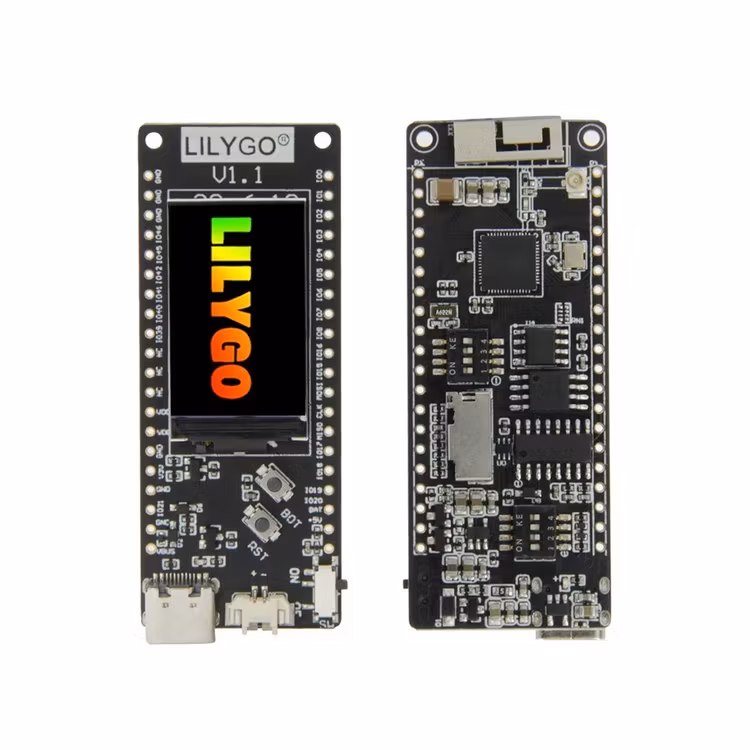

Product Detail

Note:The product does not solder pin headers by default, the pictures are only for reference

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development Board

LILYGO® TTGO T8 ESP32-S2 V1.1 ST77789 1.14 Inch LCD Display WIFI Wireless Module Type-c Connector TF Card Slot Development Board
