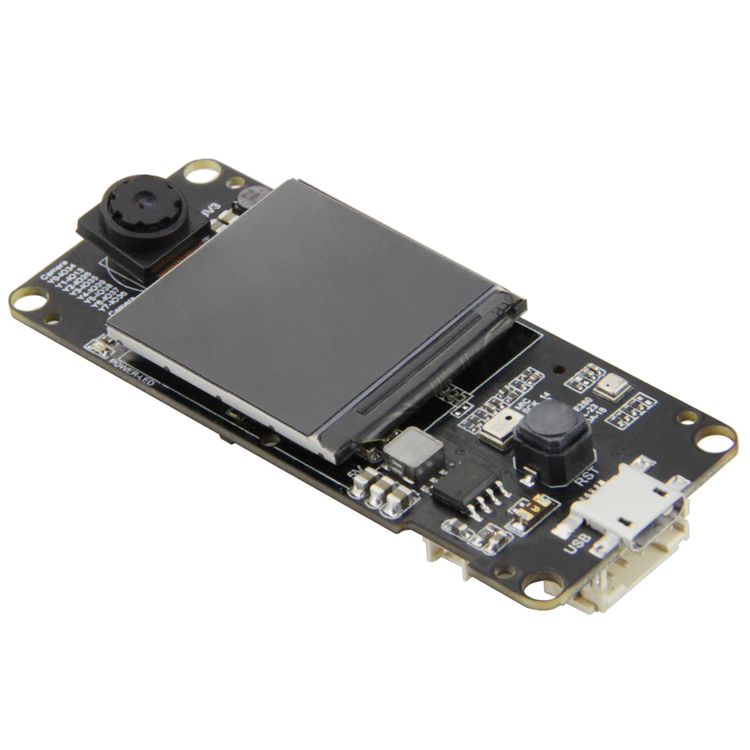

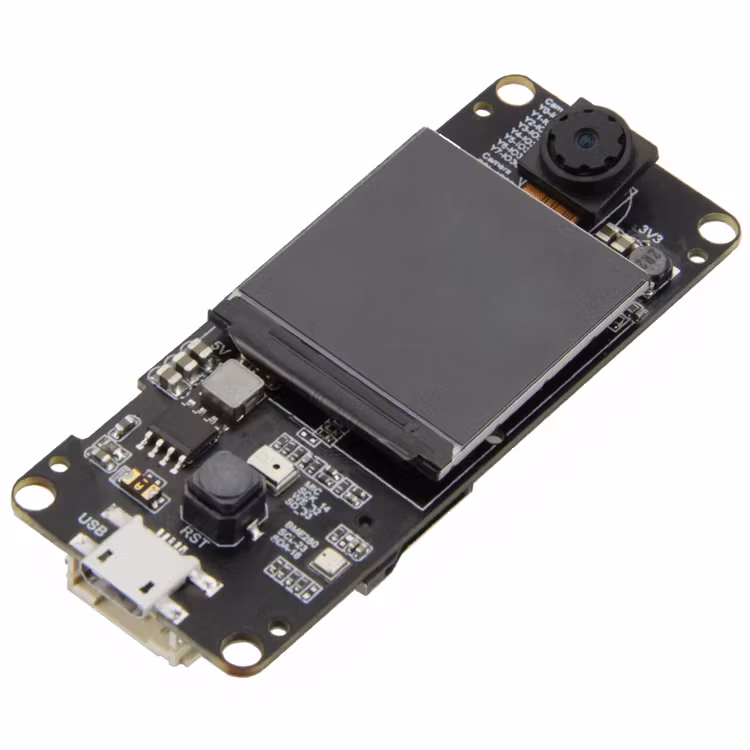

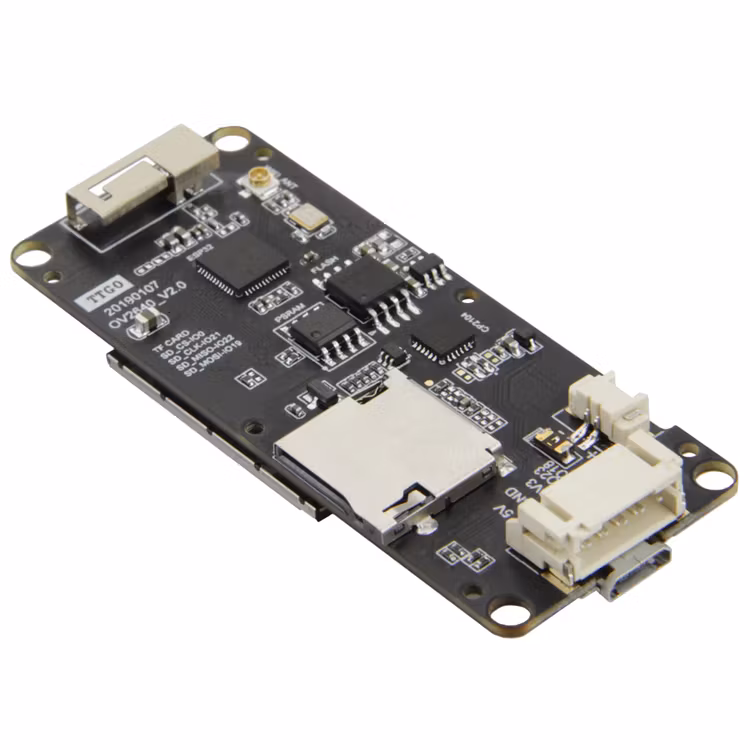

TTGO T-Camera Plus ESP32-DOWDQ6 8MB SPRAM Camera Module OV2640 1.3 Inch Display

I lager.
425 kr

400 kr


Artikelnummer: camIoT177

New IoT developing board with camera module OV2640 1.3 Inch Display and build in Wifi and Bluetooth with sensor BME280/humidity/pressure/temperature.


Data download link


Hardware Specifications
ChipsetESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash/SRAM, up to 4 x 16 MB
SRAM520 kB SRAM + 8MBytes External SPRAM
KEYreset
dispalyIPS Panel ST7789/1.3 Inch
Power indicator lampred
USB to TTLCP2104
CameraOV2640 2Megapixel
on-board clock40MHz crystal oscillator
working voltage2.3V-3.6V
working currentabout 160mA
working temperature range-40℃ ~ +85℃
size69.13*28.41*8.45mm
MicMSM261S4030H0
SDCardIntegrated external SD card slot
SensorBME280/humidity/pressure/temperature
Power management ChipIP5306
Power SupplyUSB 5V/1A
charging current1A
battery3.7V lithium battery
WIFIDescription
StandardFCC/CE/TELEC/KCC/SRRC/NCC
protocol802.11 b/g/n/e/i (802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
communication distance300m
BluetoothDescription
protocolmeet bluetooth v4.2BR/EDR and BLE standard
radio frequencywith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequencyCVSD&SBC audio frequency
Software specificationDescription
wifi ModeStation/SoftAP/SoftAP+Station/P2P
security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption TypeAES/RSA/ECC/SHA
firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS
