WIFI Bluetooth ESP32-WROOM-32D utvecklingskort

I lager.

169 kr

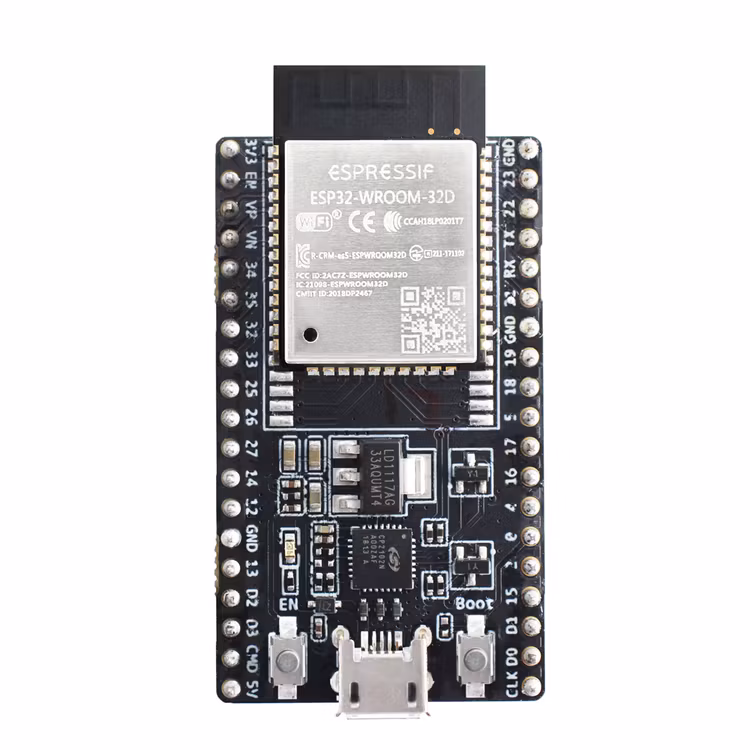

The processor core of the  ESP32 board is the ESP32-WROOM-32D module.

The ESP32-WROOM-32 is a universal Wi-Fi+BT+BLE MCU module, with powerful functions; can be used in low power sensor networks. The core of this module is the ESP32-D0WDQ6 chip, which is scalable and adaptive. The two CPU cores can be individually controlled.

The ESP32 integrates a wide range of peripherals including capacitive touch sensor, Hall sensor, low noise amplifiers, SD card and Ethernet interfaces, high speed SDIO/SPI, UART, I2S and I2C, etc.

It also integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi for a wide range of uses.

The ESP32 chip's sleep current is less than 5μA, suitable for battery-powered wearable electronics.

The module supports data rates up to 150 Mbps; antenna output power of 20 dBm for maximum wireless communication.

The ESP32 integrates a wide range of peripherals including capacitive touch sensor, Hall sensor, low noise amplifiers, SD card interfaces, Ethernet interfaces, high speed SDIO/SPI, UART, I2S and I2C, etc.

It also integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi for a wide range of uses.

The ESP32 chip's sleep current is less than 5μA, suitable for battery-powered wearable electronics.

The module supports data rates up to 150 Mbps; antenna output power of 20 dBm for maximum wireless communication.

Technical Details

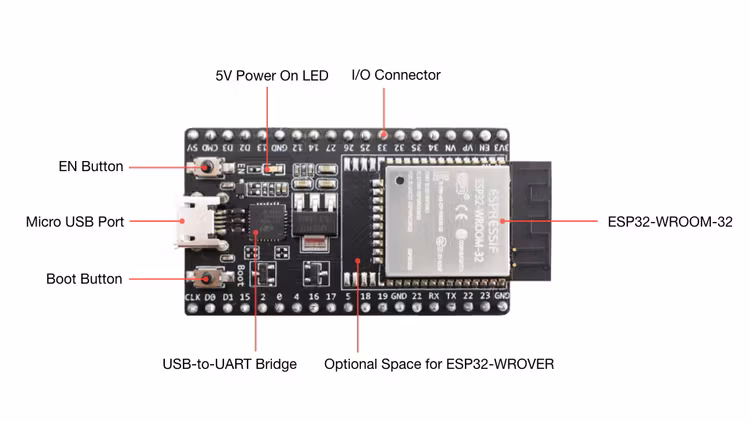

  • Microcontroller: ESP-WROOM-32 module
  • USB to Serial Port Chip: CP2102-GMR
  • Operating Voltage: DC 5V
  • Operating Current: 80mA (average)
  • Current Supply: 500mA (Minimum)
  • Operating Temperature Range: -40℃ ~ +85℃
  • WiFi mode: Station/SoftAP/SoftAP+Station/P2P
  • WiFi protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps
  • WiFi frequency range: 2.4 GHz ~ 2.5 GHz
  • Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards

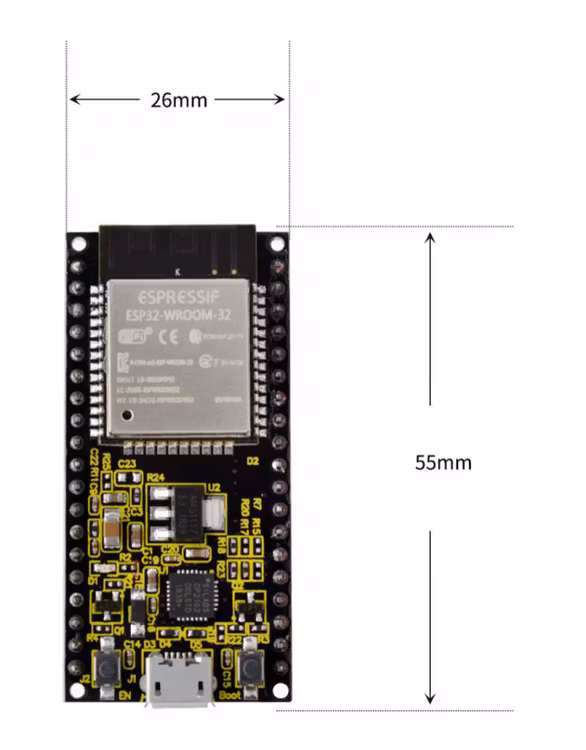

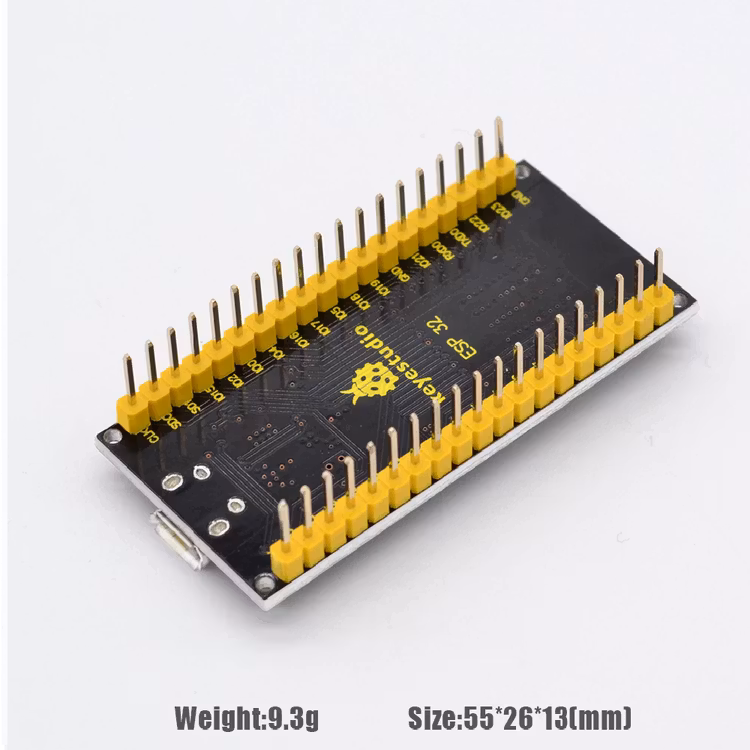

  • Dimensions: 55mm*26mm*13mm
  • Weight: 9.3g
