WiFi Ble ESP32 0.96 inch OLED development board WiFi Kit 32 for smart city

WiFi Ble ESP32 0.96 inch OLED development board WiFi Kit 32 for smart city

399 kr

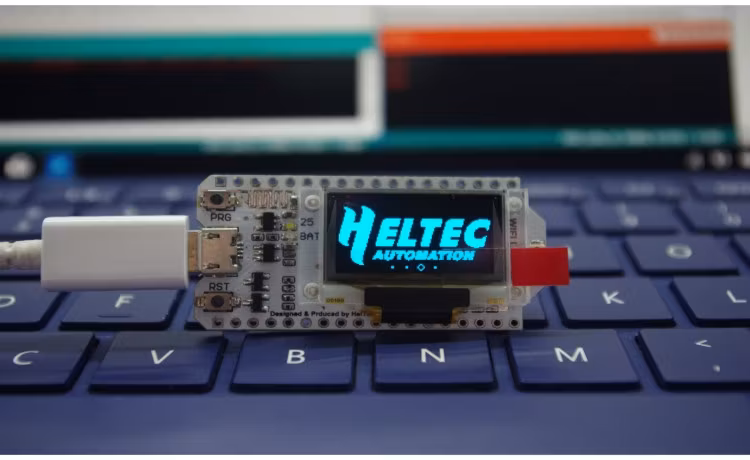

WiFi Kit 32 is a classic IoT dev-board designed & produced by Heltec Automation(TM), it’s a highly integrated product based on ESP32 (include Wi-Fi and BLE)

Lagersaldo: 1

Artikelnummer: SKU570

Dela

Information

WiFi Kit 32 is a classic IoT dev-board designed & produced by Heltec Automation(TM), it’s a highly integrated product based on ESP32 (include Wi-Fi and BLE), Li-Po battery management system, 0.96″ OLED are also included. It’s the best choice for smart cities, smart farms, smart home, and IoT makers.

WiFi Kit 32 is a part of the “Heltec ESP Arduino“ series, with the following features:

Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core);
Micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures;
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna;
Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Compatible with the Arduino development environment.

Technical Parameters

Source	Parameter
MCU	ESP32( 240MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520KB SRAM, Wi-Fi, dual-mode Bluetooth)
Hardware Resources	UART x 3; SPI x 2; I2C x 2; I2S x 1
	12 – bits ADC; 8 – bits DAC
	29 general GPIO
Display	0.96 inch 128*64 OLED display
FLASH	4MB(32M-bits) SPI FLASH
Interface	Micro USB x 1
Size	50.2 x 25.5 x 9.74 mm
USB to UART bridge	CP2102
Battery Type	3.7V Lithium (SH1.25 x 2 sockets)
Working Temperature Range	-40 ~ 85 ℃

Electrical characteristics

Electrical characteristics	Condition	Minimum	Typical	Maximum
Power Supply	USB Powered (≥500mA)	4.7V	5V	6V
	Lithium powered (≥250mA)	3.3V	3.7V	4.2V
	3.3V (Header) powered（≥150mA）	2.7V	3.3V	3.5V
	5V (Header) powered（≥500mA）	4.7V	5V	6V
Power consumption(mA)	WIFI Scan		115mA
Power consumption(mA)	WIFI AP		135mA
Output	3.3V Header Output			500mA
Output	5V Header output (USB powered only)		Equal to the input current

How to install

http://www.heltec.cn/wifi_kit_install/

Heltec ESP(ESP32 & ESP8266) framework (the basic of Heltec ESP series products Arduino running environment): https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series

Heltec ESP32 library (must work with Heltec ESP framework): https://github.com/HelTecAutomation/Heltec_ESP32

Diagram

https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/blob/master/PinoutDiagram/WIFI%20Kit%2032.pdf

https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/blob/master/SchematicDiagram/WIFI_Kit_32_Schematic_diagram.PDF

AutoCAD 2017 version drawding: docs.heltec.cn/download/WiFi_Kit.dwg
