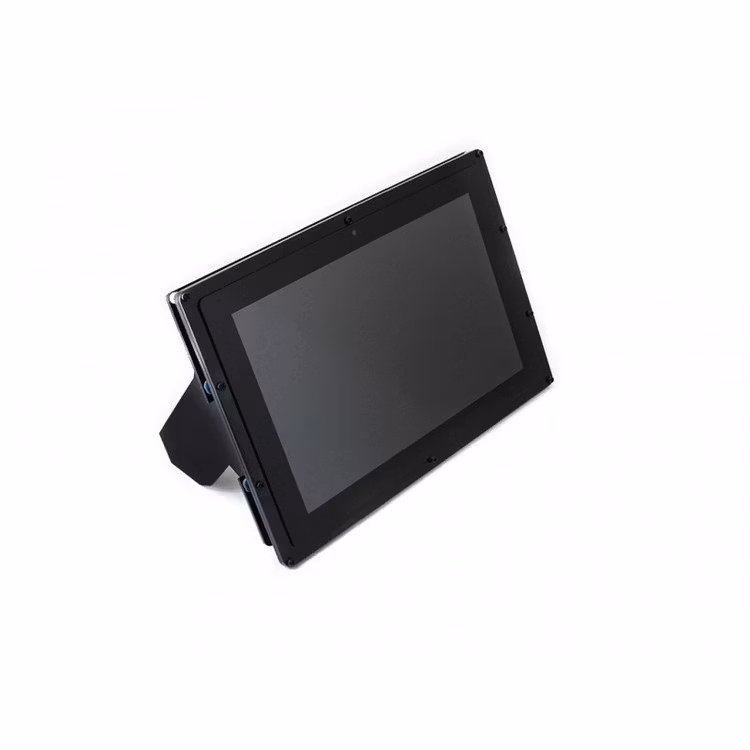

10.1inch HDMI LCD (with case), 1280×800, IPS

  • 1 799 kr

IPS, 1280x800, 10.1-inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi-Systems, Comes with EU plug power adapterThe LCD and Control BoardIPS scree

Produkten är tyvärr slut i lager. :(

Artikelnummer: 11769
Dela
  • Information

IPS, 1280x800, 10.1-inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi-Systems, Comes with EU plug power adapter

The LCD and Control Board

  • IPS screen,1280x800 hardware resolution
  • Toughened glass capacitive touch panel, 6H hardness
  • Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
    • When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
  • HDMI interface for displaying, USB interface for touch control
  • Supports 5-level backlight adjustment

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

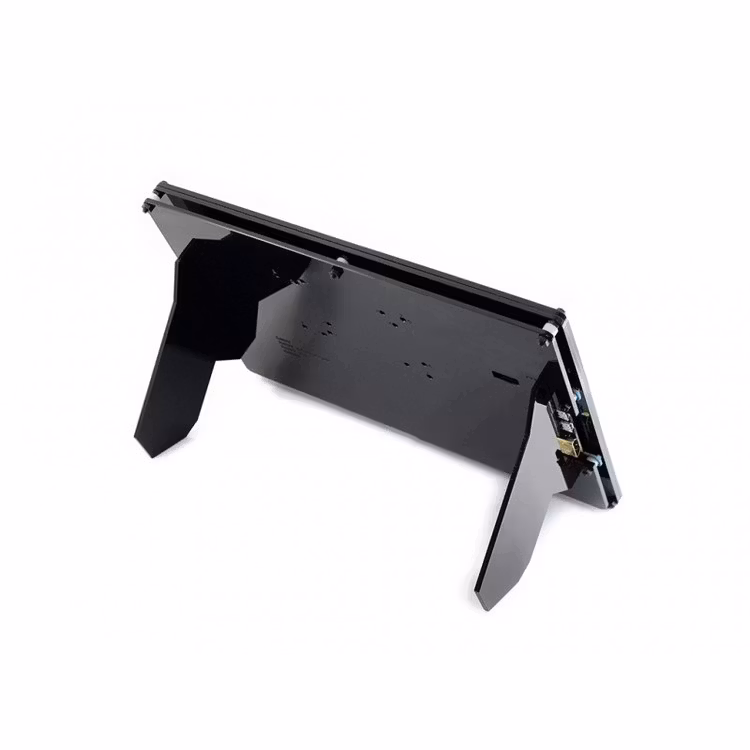

The Case

  • Material : high quality black Acrylic
  • Comes with back holder, 45° tilt angle
  • Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, BB Black, Banana Pi

Note: Raspberry Pi in the photos is NOT included.

External Dimension

10.1inch-HDMI-LCD-B-with-Holder-dimension

Development Resources

How to install: instruction

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(B)_(with_case)


Shipping list

Weight: 0.851 kg

  1. 10.1inch HDMI LCD (B) (with case) x1
  2. Back holder x1
  3. Spare screws x1
  4. HDMI cable x1
  5. HDMI to Micro HDMI Adapter x1
  6. USB type A plug to micro B plug cable x1
  7. Power adapter EU standard 5V/3A micro x1
  8. Quick start sheet x1
