Raspberry Pi 4 Computer Model B 4GB with 10.1 inch 1200x1920 HDMI IPS LCD Display

1 749 kr

Produkten är tyvärr slut i lager. :(

New product  1 749 kr

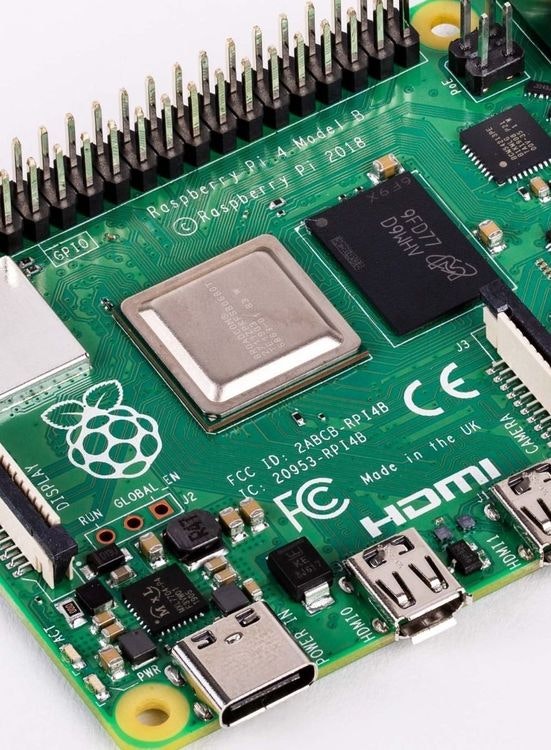

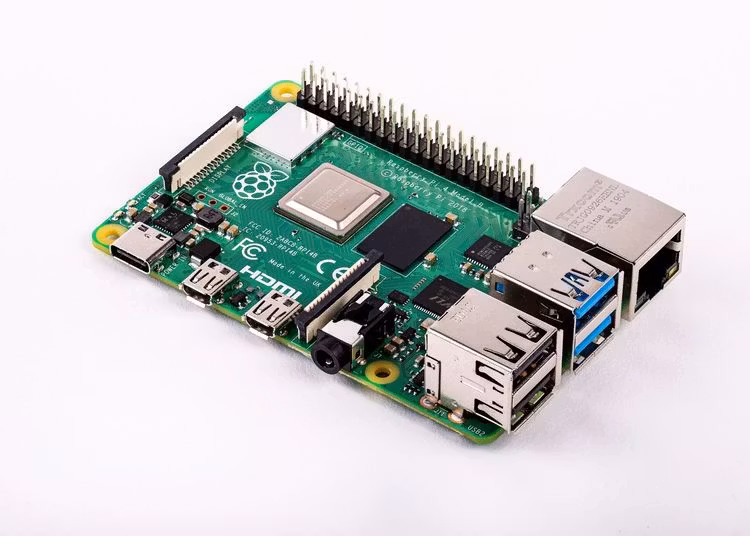

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+ while retaining backward compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability.

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Specification

  • Processor:   Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Memory:    1GB, 2GB or 4GB LPDDR4(depending on model)

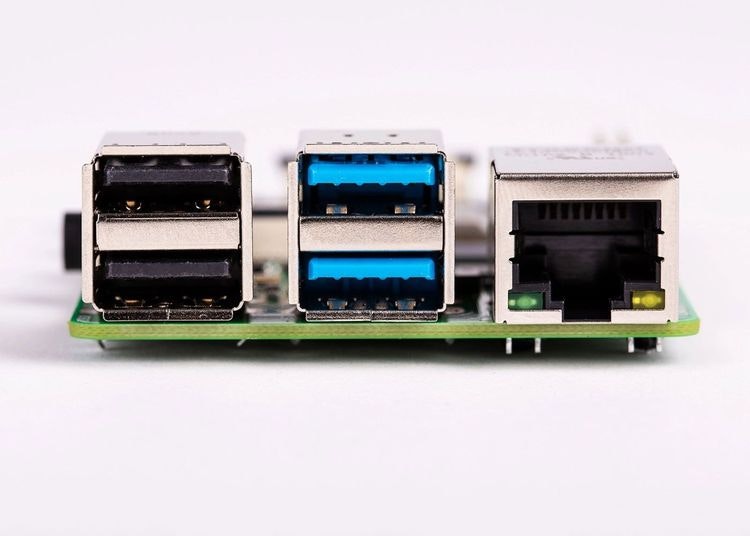

  • Connectivity:
    • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
    • LAN, Bluetooth 5.0, BLE
    • Gigabit Ethernet
    • 2 × USB 3.0 ports
    • 2 × USB 2.0 ports
  • GPIO:    Standard 40-pin GPIO header(fully backward-compatible with previous boards)
  • Video & Sound:
    • 2 × micro HDMI ports (up to 4Kp60 supported)
    • 2-lane MIPI DSI display port
    • 2-lane MIPI CSI camera port
    • 4-pole stereo audio and composite video port
  • Multimedia:
    • H.265 (4Kp60 decode)
    • H.264 (1080p60 decode, 1080p30 encode)
    • OpenGL ES, 3.0 graphics
  • SD card support:    Micro SD card slot for loading operating system and data storage
  • Input power:
    • 5V DC via USB-C connector (minimum 3A)
    • 5V DC via GPIO header (minimum 3A)
    • Power over Ethernet (PoE)–enabled(requires separate PoE HAT)
  • Environment:    Operating temperature 0–50ºC
  • Production lifetime:    The Raspberry Pi 4 Model B will remain in production until at least January 2026.

Hardware Overview

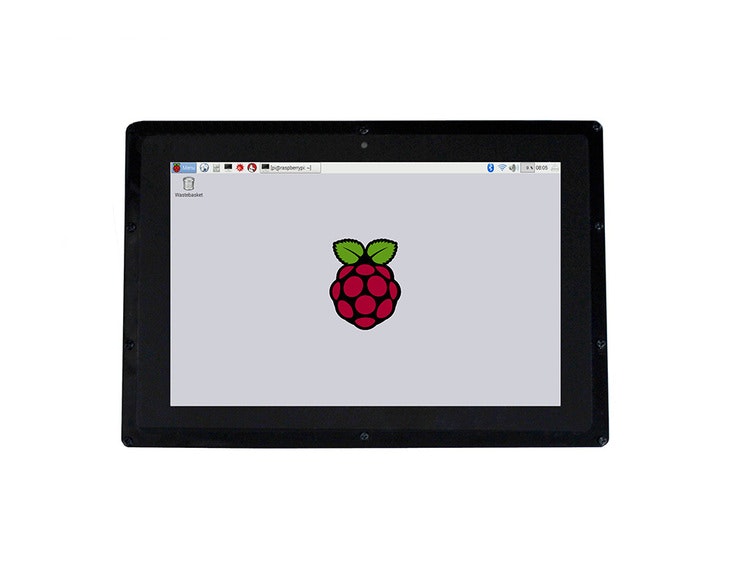

10.1 inch 1200x1920 HDMI IPS LCD Display

Features

  • Ultra-thin.
  • High viewing angle .
  • High resolution.

Here we offer you this high-resolution, ultra-wide viewing angle ISP HDMI display. Specifically, this display has a resolution of 1200*1920 and a viewing angle up to double 178 degrees. It is small and light, easy to carry. No need for drivers. We tested it with raspberry pi 3b/3b+ and windows10.

In addition, this display has a backlight-adjustable function that allows you to adjust the brightness using the buttons on the back.

For more detail about  assembly, please check the DOCUMENTS TAB.

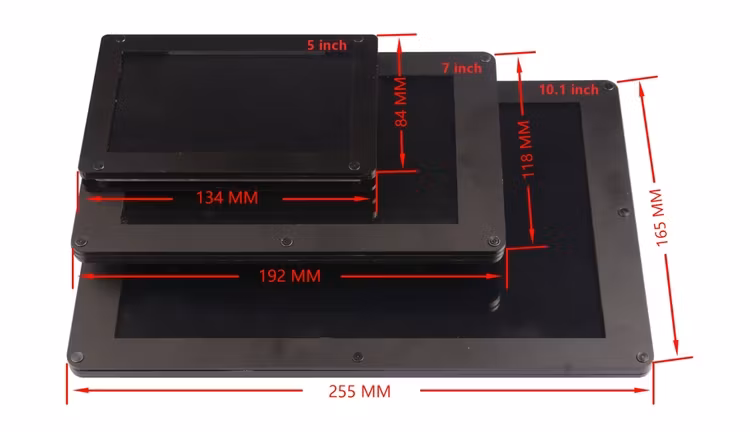

Dimension

10.1 inch

Resolution

1200x1920

Refresh Rate

60HZ

Panel Type

ISP panel (viewing angle double 178°)

Power

Micro usb standard interface

Working Current

5v  600mA

Support Platform

Paspberry Pi,Windows,etc. HDMI interface

Interface

HDMI2.0 (Compatible with HDMI1.4)

Frame Material

colorful acrylic plate

Attachment

HDMI2.0 cable, micro USB cable,Back bracket,raspberry pi mounting screws

Features

Ultra-thin, high viewing angle, high resolution

Other Functions

Backlight power switch, backlight brightness adjustment

Part List
Number
10.1 inch screen
1
HDMI2.0 cable
1
Micro USB cable
1
Back bracket
1
Raspberry pi mounting screws bag
1

ECCN/HTS

ECCN
ERA99
HSCODE
9013803010
USHSCODE
85312000

Part List:

1 x Raspberry Pi 4 Computer Model 4GB

1 x 10.1inch HDMI LCD (B) (with case) (for Europe), 1280×800, IPS

1 x Micro HDMI to HDMI Adapter

This is a micro HDMI(Type D) to HDMI(Type A) Adapter. It provides a more convenient way to use micro HDMI’s equipment.

Features

  • Without wire
  • Very small
  • Support HDMI 1.4

Specification:

  • HDMI version: 1.4
  • Color: black
  • Support 1440p/1080p/1080i/720p/480p
