2.9inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 296×128, Black / White, SPI

  • 299 kr

2.9inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 296×128 Pixels, Black / White, SPI Interface2.9" E-Paper Module For PicoPartial Refresh Support, Low

I lager.
Lagersaldo: 2
Artikelnummer: 19408
Dela

2.9inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 296×128 Pixels, Black / White, SPI Interface

2.9" E-Paper Module For Pico

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...



Size  2.9"


Resolution 296×128

Viewing Angle  >170°

Display Color  Black and White

Grey Scale 2

Communication SPI

Display Panel  E-paper


Experience Paper-like

Comfortably Reading  Eye Care, No Bluelight

Environment  Ambient Light Required

Display Type Passively Reflective

Power Consumption Ultra Low


Display Duration Persists without Power

Refreshing Partial Refresh Support

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE
3.3V/5V
GREY SCALE
2
INTERFACE
3-wire SPI, 4-wire SPI
PARTIAL REFRESH TIME
0.3s
OUTLINE DIMENSIONS
82.00 × 38.00mm
FULL REFRESH TIME
2s
DISPLAY SIZE
66.89 × 29.05mm
REFRESH POWER
26.4mW(typ.)
DOT PITCH
0.226 × 0.227mm
STANDBY CURRENT
<0.01uA (almost none)
RESOLUTION
296×128 pixels
VIEWING ANGLE
>170°
DISPLAY COLOR
black, white



Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

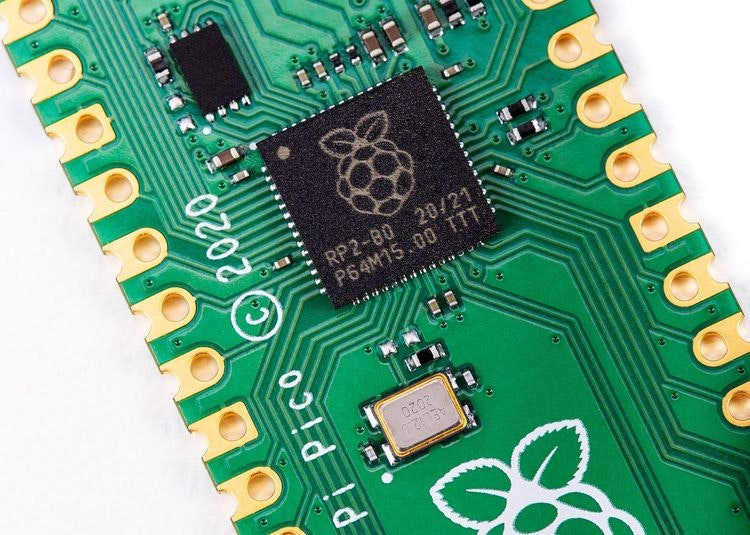

Raspberry Pi Pico Header Compatibility

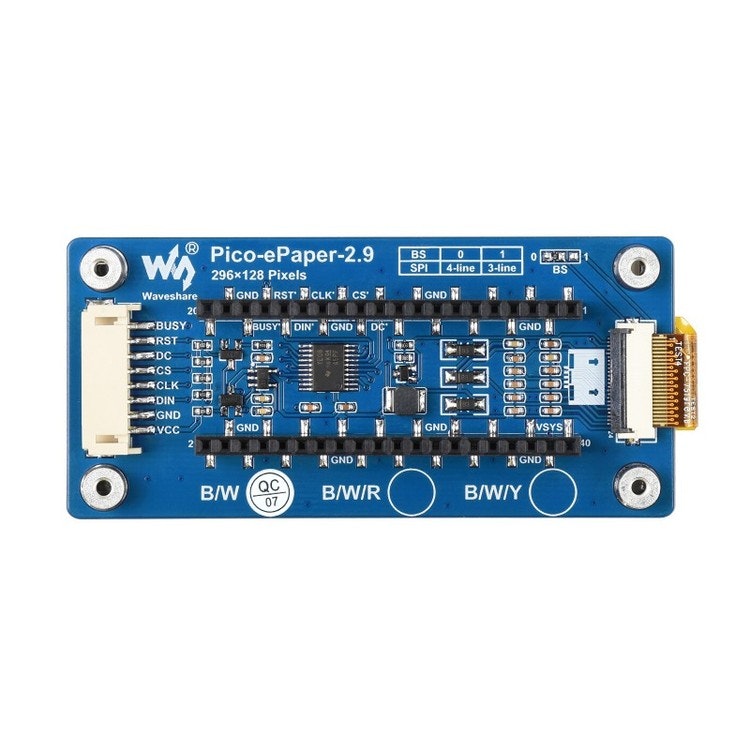

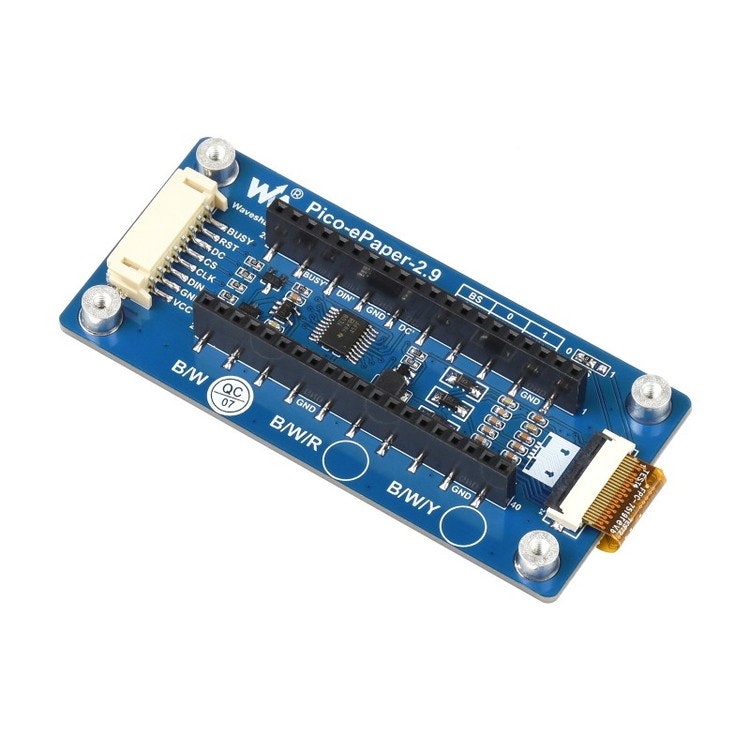

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Pinout Definition

Outline Dimensions

WIKI: Pico-ePaper-2.9

Shipping list

Weight: 0.04 kg

  1. Pico-ePaper-2.9 x1
  2. Standoff pack x1
