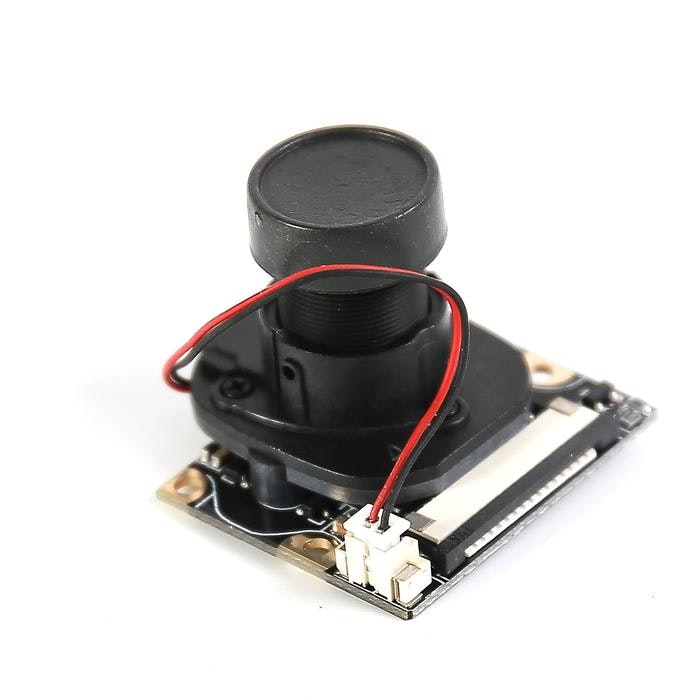

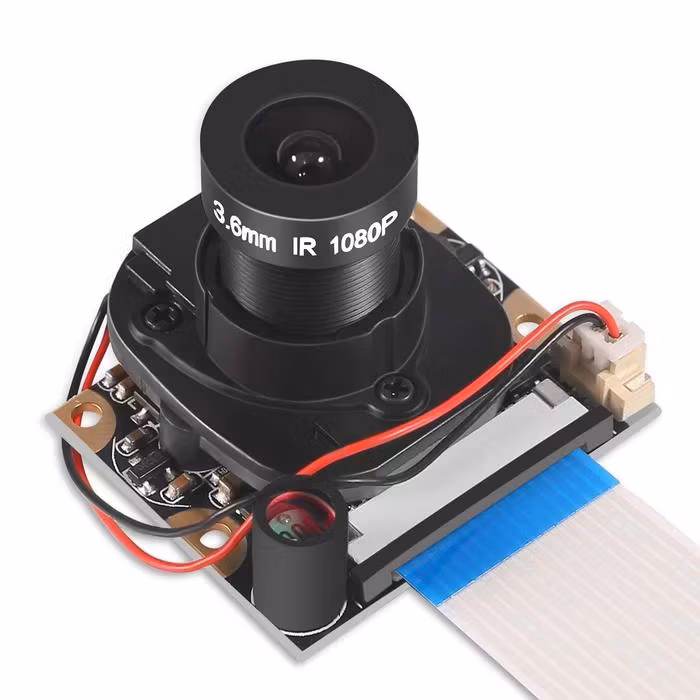

5MP CMOS Automatic IR-CUT Module Board Raspberry Pi Camera Module

I lager.

249 kr

Artikelnummer: 824

The sensor itself has a native resolution of 5 megapixel. Still picture resolution: 2592 x 1944, also supports 1080p30, 720p60 and 640x480p60/90 video.

This interface uses the dedicated CSI interface, via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.

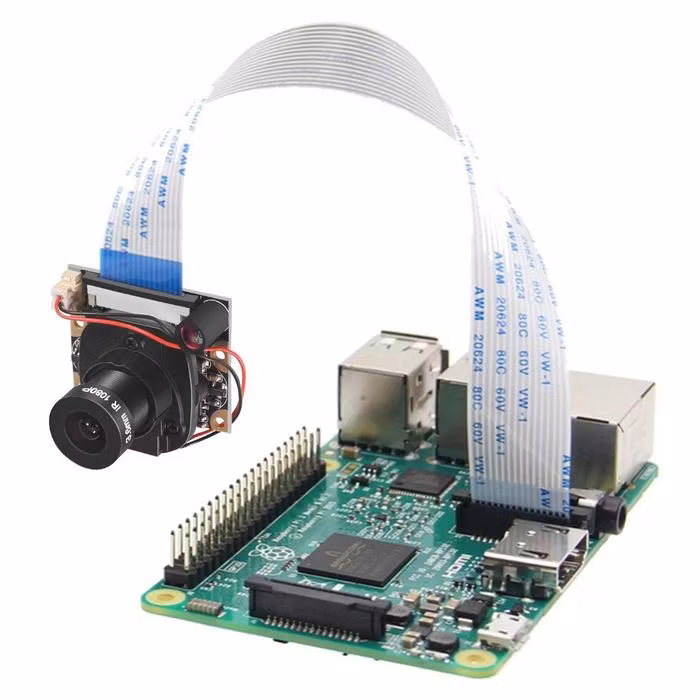

This bus travels along the ribbon cable that attaches the camera board to the Pi.

CCD size: 1/4 inch
Aperture(F): 1.8

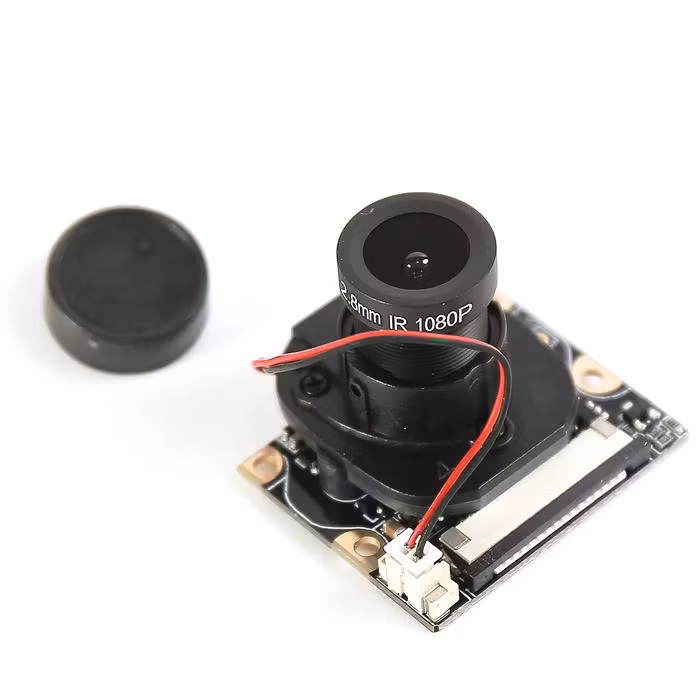

Focal Length: 3.6 mm (adjustable)
Field of View: 72 degrees
Preferred Sensor Resolution: 1080p
Dimension: 1.42inch x1.04inch x0.94inch
4 screw holes whiche are used for a fixed position
Support 3.3V power output

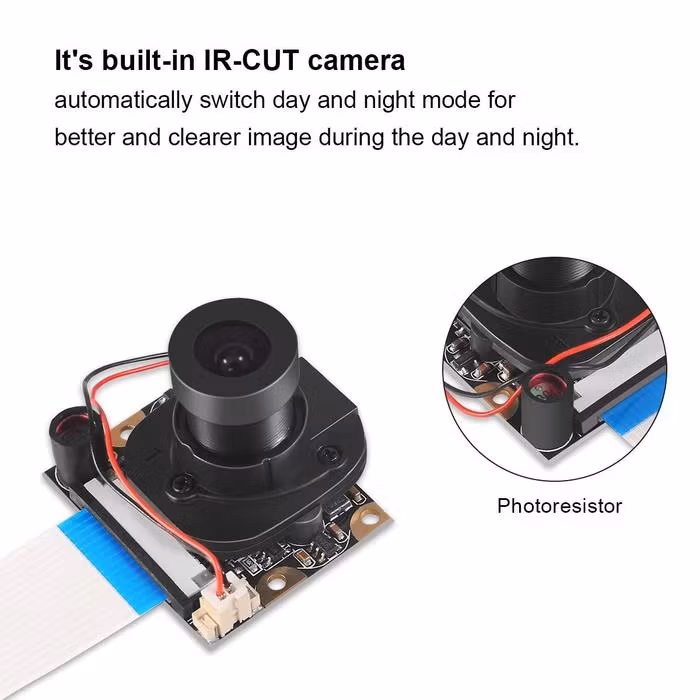

Supports connecting infrared LED or flash LED

Package Content:
1 x 5MP Camera Module Board
