ARM Debugger Programmer

  • 299 kr

JTAG/SWD Debugger Programmer with Micro USB InterfaceOverviewARM Debugger is a debugger and programmer which supports the most popular ARM core MCUs including :

I lager.
Lagersaldo: 3
Artikelnummer: 245
Dela

JTAG/SWD Debugger Programmer with Micro USB Interface

Overview

ARM Debugger is a debugger and programmer which supports the most popular ARM core MCUs including : ARM7/9/11, Cortex-M0/M3/M4, etc.

Specifications

  • Onboard self-recovery fuse, prevent any damage from short circuit
  • 3.3V output, make it easy to debug/program the code
  • Universal Micro USB interface
  • Protected by heat-shrink tube
  • Unique ID, supports multi devices to work together at the same time

Functionality and Performance

  • Debugging
    • Supports full-speed running, single step, breakpoints and so on. Check IO status, variable, etc.
    • Quick response through the USB2.0 interface
  • Programming
    • Programs FLASH ROM, EEPROM, AFR, etc.
    • High speed SWD programming through the USB2.0 interface

Supported Software

  • Keil MDK-ARM
  • IAR EWARM
  • J-Flash ARM
  • CoIDE
  • mikroC PRO for ARM
  • nRFgo Studio (Version 1.15 OR before)

Supported MCUs

All the MCUs with SWD interface of the following cores : ARM7, ARM9, ARM11, Cortex-M0, Cortex-M3, Cortex-M4

Development Resources

Wiki

Weight: 0.058 kg

  1. ARM Debugger unit x 1
  2. USB Type A Plug to Micro B Plug Cable x 1

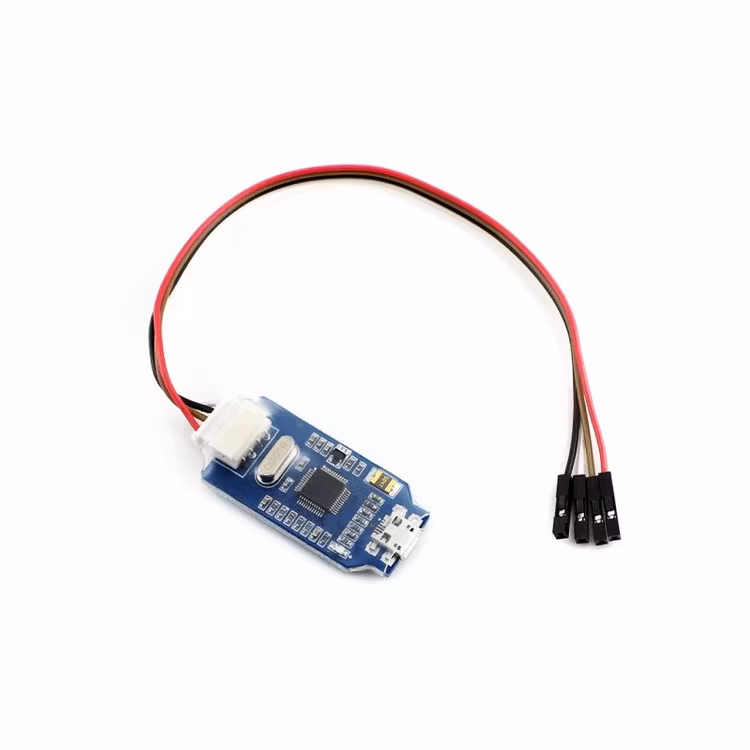

  3. 4-pin SWD wire x 1
  4. 4-pin jumper wire (2.0 to 2.54 pitch) x 1
