Camera Module for Raspberry Pi Zero - Without infra-red filter

I lager.
Antal: 6

285 kr

Artikelnummer: 651

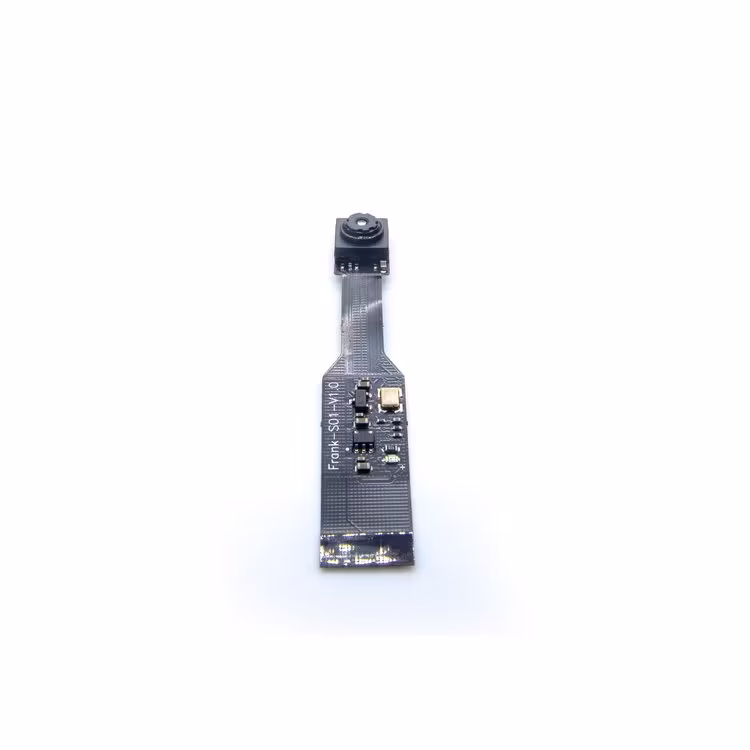

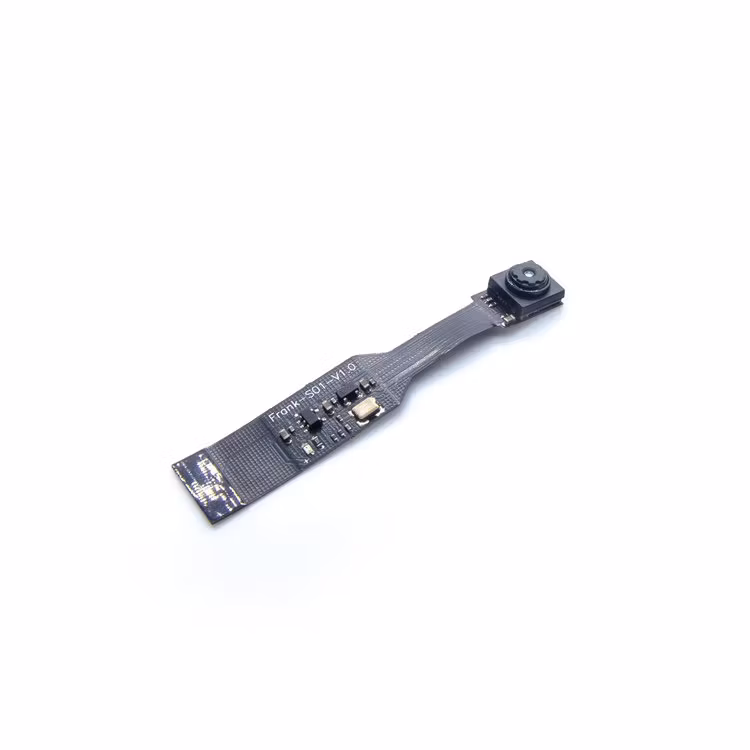

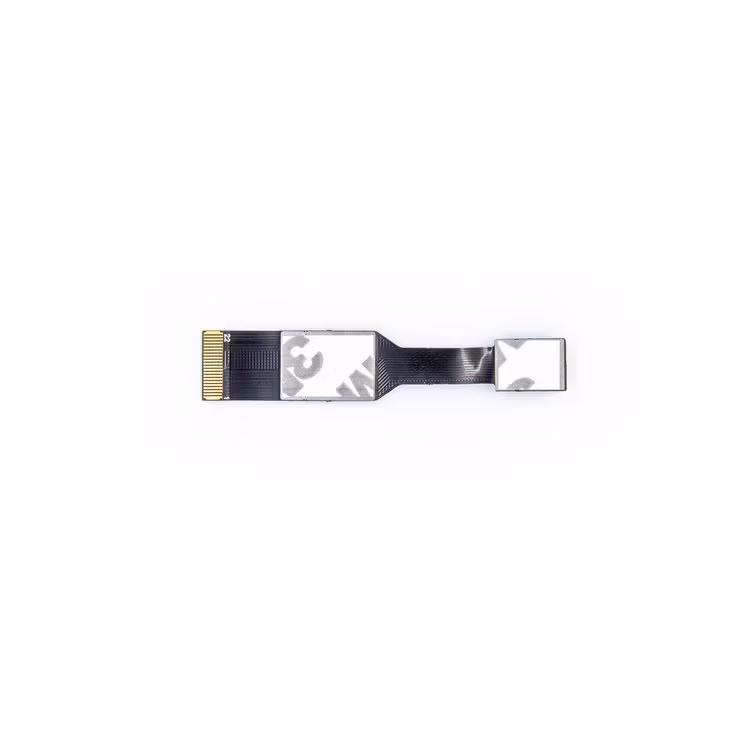

This is a teeny tiny camera module for the Raspberry Pi Zero (or Zero W). The sensor is 5MP! No adapters required! This camera will plug directly into the Raspberry Pi Zero (or ZeroW) camera port.

We supply adapter cable which will allow you to plug the ZeroCam into your existing Raspberry Pi 3 (or 2, or B+ or A+!)

Features

  • Sensor: OV5647, 5MP 2592x1944 pixels
  • Pin: 22
  • Peach: 0.5mm
  • AVDD: 2.7-3.3V (Typical2.8V)
  • DVDD: 1.45-1.8V
  • DOVDD: 1.7-3.3V
  • Lens Structure: 4P (650nm)
  • EFL: 3.52
  • FNO: 2.8
  • Output Format: YUV or RAW RGB
  • 1080p video at 30 FPS (or 60 FPS at 720p, 90 FPS at 480p)
  • F2.9 lens, 3.60 mm focal length53.50 degrees horizontal, 41.41 degrees vertical field of view
  • Approx. dimensions of circuit and camera: 60 x 11.4 x 5.1mm
