Gigabit Raspberry Pi PoE Splitter Gigabit USB Type C Power Over Ethernet IEEE 802.3af PoE Switch Extension

I lager.
Antal: 5
399 kr

375 kr

Artikelnummer: 767

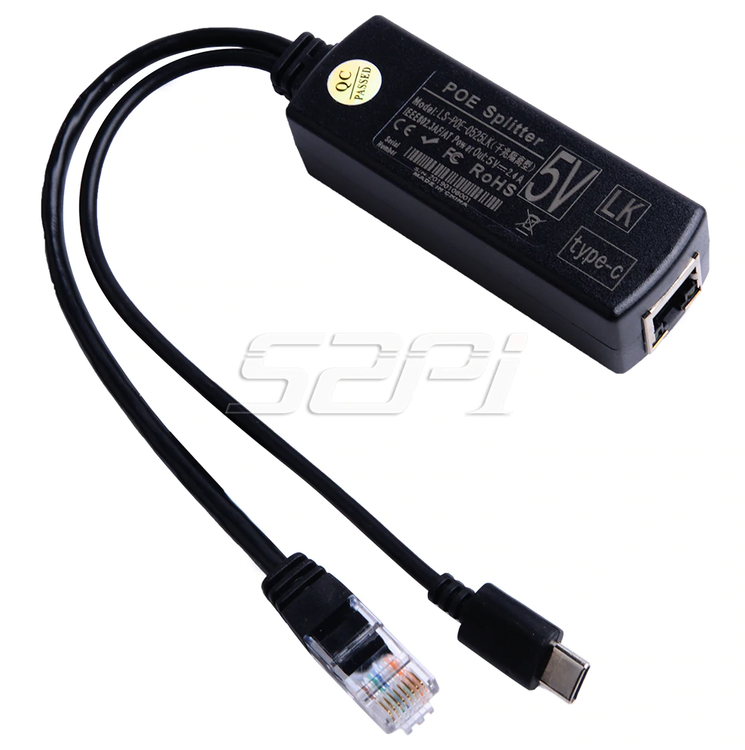

52Pi Gigabit Raspberry Pi PoE Splitter Gigabit USB Type C Power Over Ethernet IEEE 802.3af PoE Switch Extension.

PoE splitter can save USB adapter wall plugs, extend powerline to where your Ethernet cable reaches, and make full use of extra PoE ports by converting them to micro USB. It's a good companion for micro USB devices that needs Ethernet connection, or other micro USB devices that are away from the AC outlet. This item needs 802.3af compliant PoE Switches or injectors to work.

Note: The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

[Features]

  • Easy to assemble
  • Plug and play
  • PoE(Power over Ethernet) support

[Package includes]

  • 1 x 10/100/1000Mbps Active PoE Splitter
  • 1 x MicroUSB to USB-C convertor

[Technical Support]

https://wiki.52pi.com/index.php/Gigabit_USB-C_PoE_Splitter_SKU:P-0005

This type we sell also which works with Pi4

Gigabit(10/100/1000mbps) Active PoE Splitter for Raspberry Pi 4B

USB TYPE-C PUTOUT 5V 2.4A/12Watt Compliant with IEEE802.3af/802.3at With 2.5KV isolation

Note:
The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

RJ45 female INPUT Port:
Support the IEEE 802.3af/at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Specification:
Compliant with IEEE802.3af/at
Isolation: 2.5kV
Power Input:  DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: USB TYPE-C Power Plug
Data Transfer Rate:  10/100/1000 Mbps
Data Pin: RJ45 pin 12345678
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length:165mm
RJ45 Modular Plug cable length:155mm
Weight : 55g

Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃



Item Included:

 10/100/1000Mbps Active PoE Splitter(USB type-C Power Plug) x1
