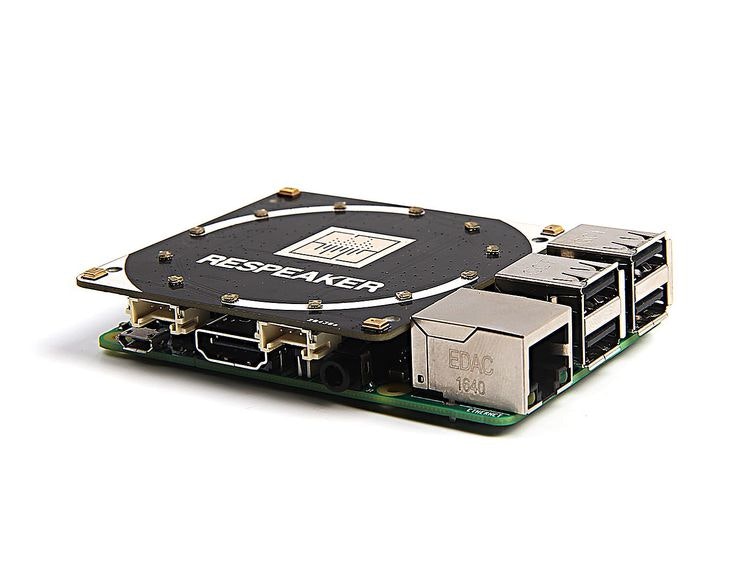

ReSpeaker 4-Mic Array for Raspberry Pi

  • 399 kr

ReSpeaker 4-Mic Array for Raspberry Pi is a 4 microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build

I lager.
Lagersaldo: 1
Artikelnummer: 388
Dela

ReSpeaker 4-Mic Array for Raspberry Pi is a 4 microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

Different from ReSpeaker 2-Mics Pi HAT, this board is developed based on AC108, a highly integrated quad-channel ADC with I2S/TDM output transition for high definition voice capture. Besides, this 4-Mics version provides a super cool LED ring, which contains 12 APA102 programmable LEDs. With that 4 microphones and the LED ring, Raspberry Pi would have ability to do VAD(Voice Activity Detection), estimate DOA(Direction of Arrival) and show the direction via LED ring, just like Amazon Echo or Google Home.

Note

  • Please note that the package does not contain Raspberry Pi.

  • Please note that there are no any audio output interfaces on ReSpeaker 4-Mic Array for Raspberry Pi. It is only for voice capture. And you could use the headphone jack on Raspberry Pi for audio output.

Here is a video from Parvinder Yadav, it teaches how to use ReSpeaker 4-Mic Array for Raspberry Pi to make google assistant. We really appreciate Parvinder's contribution to the community and hope this video can be a good help for you.

ReSpeaker 4-Mic Array for Raspberry Pi is a 4 microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

Different from ReSpeaker 2-Mics Pi HAT, this board is developed based on AC108, a highly integrated quad-channel ADC with I2S/TDM output transition for high definition voice capture. Besides, this 4-Mics version provides a super cool LED ring, which contains 12 APA102 programmable LEDs. With that 4 microphones and the LED ring, Raspberry Pi would have ability to do VAD(Voice Activity Detection), estimate DOA(Direction of Arrival) and show the direction via LED ring, just like Amazon Echo or Google Home.

Note

  • Please note that the package does not contain Raspberry Pi.

  • Please note that there are no any audio output interfaces on ReSpeaker 4-Mic Array for Raspberry Pi. It is only for voice capture. And you could use the headphone jack on Raspberry Pi for audio output.

Here is a video from Parvinder Yadav, it teaches how to use ReSpeaker 4-Mic Array for Raspberry Pi to make google assistant. We really appreciate Parvinder's contribution to the community and hope this video can be a good help for you.


Technical details
Dimensions
65mm x65mm x9mm
Weight
G.W 38g
Battery
Exclude
MIC
4 analog microphones
LED
12 APA102 programable RGB LEDs, connected to SPI interface
Raspberry Pi 40-Pin Headers
support Raspberry Pi Zero, Raspberry Pi 1 B+, Pi 2 B, Pi 3 B, Pi 3 B+
AC108
highly integrated quad-channel ADC with I2S/TDM output transition
Software Algorithm
VAD(Voice Activity Detection), DOA(Direction of Arrival) and KWS(Keyword Search)
Grove
2 Grove Interfaces
Voice Capture Distance
3 meters radius voice capture

Part List

ReSpeaker 4-Mic Array for Raspberry Pi
1

ECCN/HTS

ECCN
EAR99
HSCODE
8518900090
USHSCODE
90230000
UPC
841454120049


Documents

WIKI
