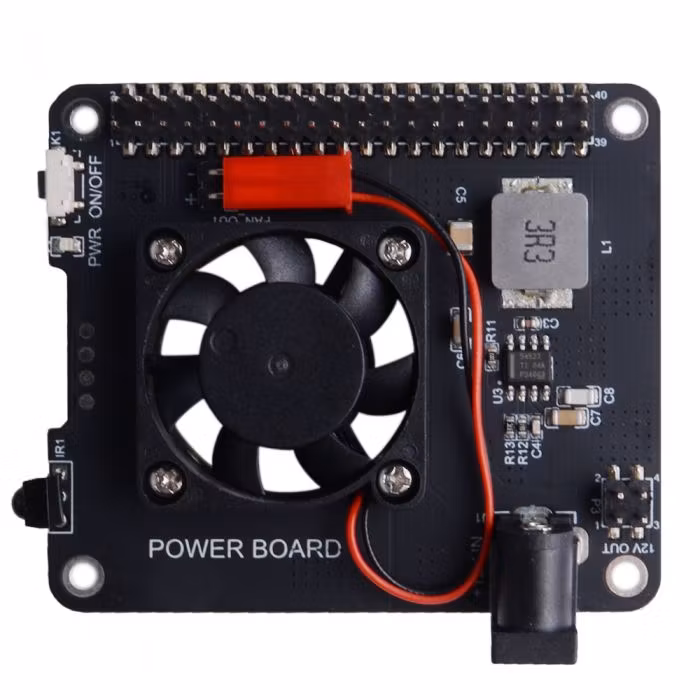

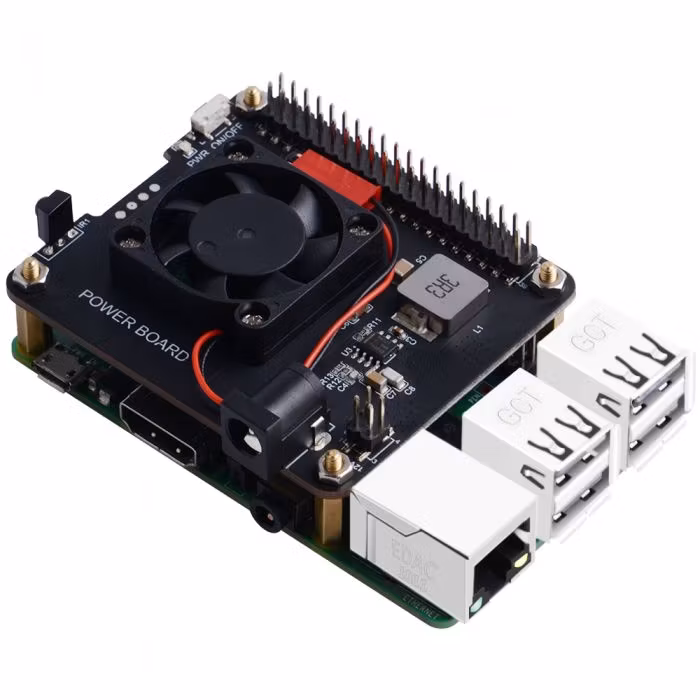

Raspberry Pi 4 4GB with DockerPi PowerBoard

I lager.

1 099 kr

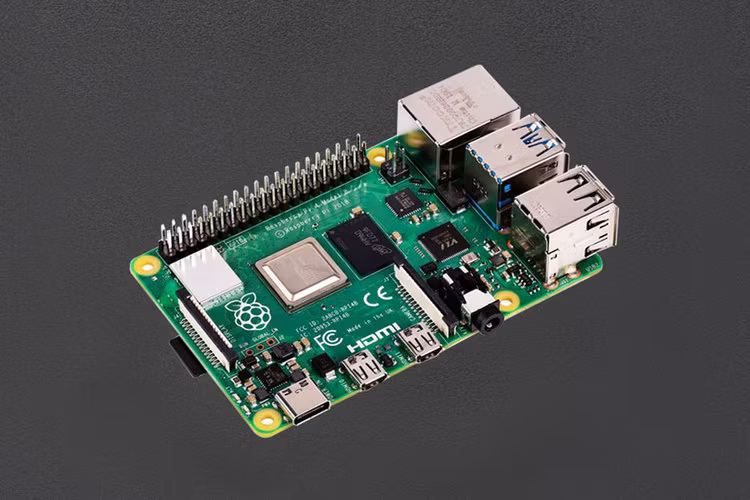

Here comes the 4th generation Raspberry Pi model B of the popular Raspberry Pi family! Compared to the prior-generation Raspberry Pi 3 Model B+, Pi 4B offers significantly increases in processor speed, multimedia performance, memory, and connectivity. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems, which could let you enjoy smooth and high-quality experience!

Raspberry Pi 4B includes a high-performance 64-bit quad-core processor, and features dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

OVERVIEW

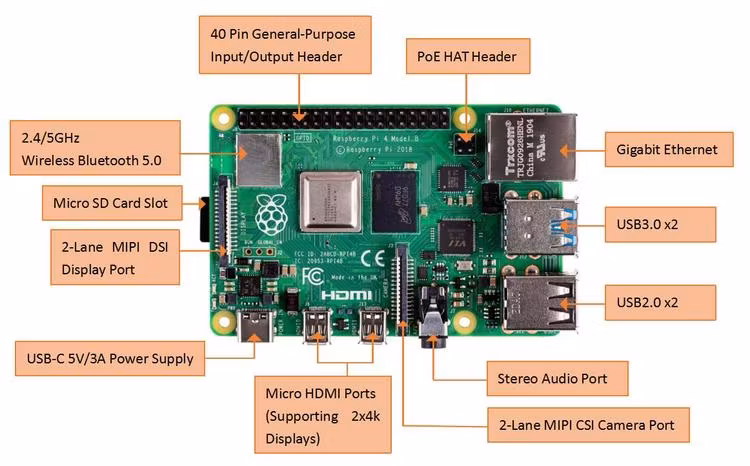

Peripheral Interface

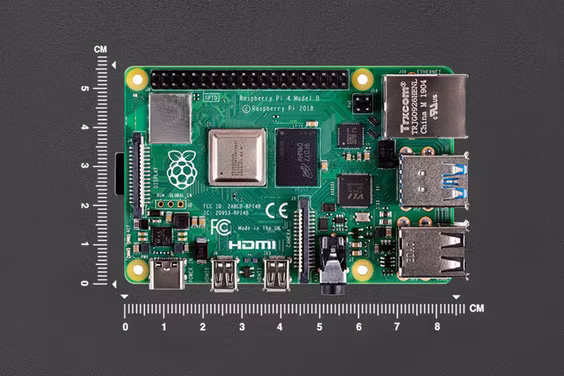

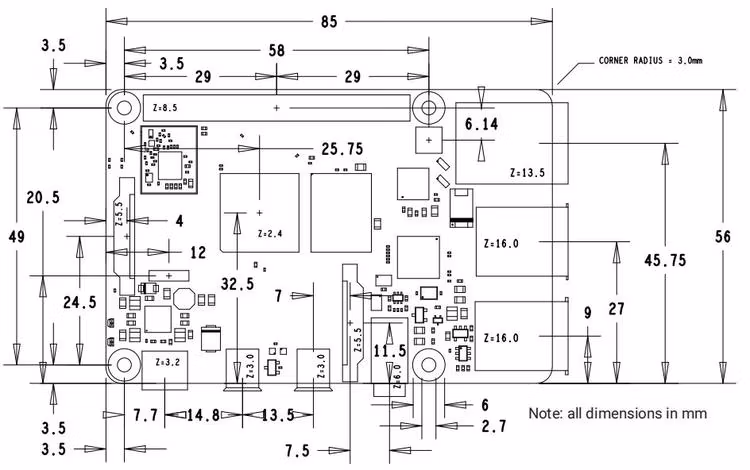

Dimension

Pi 4B vs Pi 3B+


SPECIFICATION

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8)

    64-bit SoC @ 1.5GHz

  • Memory: 1GB, 2GB or 4GB LPDDR4   (depending on model)

  • Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN,

    Bluetooth 5.0, BLE Gigabit Ethernet

    2 × USB 3.0 ports

    2 × USB 2.0 ports.

  • GPIO: Standard 40-pin GPIO header

    (fully backwards-compatible with previous boards)

  • Video & Sound: 2 × micro HDMI ports (up to 4Kp60 supported)

    2-lane MIPI DSI display port

    2-lane MIPI CSI camera port

    4-pole stereo audio and composite video port

  • Multimedia: H.265 (4Kp60 decode);

    H.264 (1080p60 decode, 1080p30 encode);

    OpenGL ES, 3.0 graphics

  • SD card support: Micro SD card slot for loading operating system and data storage

  • Input power: 5V DC via USB-C connector (minimum 3A1)

    5V DC via GPIO header (minimum 3A1)

    Power over Ethernet (PoE)–enabled (requires separate PoE HAT)

  • 5V 3A Power Input

DOCUMENTS


Raspberry Pi 4B Tutorial

Raspberry Pi 4B Product Brief

Raspberry Pi 4B Schematics

Raspberry Pi 4B Mechanical Drawing

SHIPPING LIST
