Raspberry Pi Zero W Package D, with USB HUB HAT

I lager.

665 kr

Raspberry Pi Zero W (built-in WiFi) Development Kit Type D, Micro SD Card, Power Adapter, USB HUB, and Basic Components.

This development kit includes: the Raspberry Pi Zero W (built-in WiFi), 16GB Micro SD Card, 5V 2.5A Power Adapter, a USB HUB HAT that allows you to plug in more USB devices.

The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable, and 2×20-pin 2.54 male/female pinheader strips.

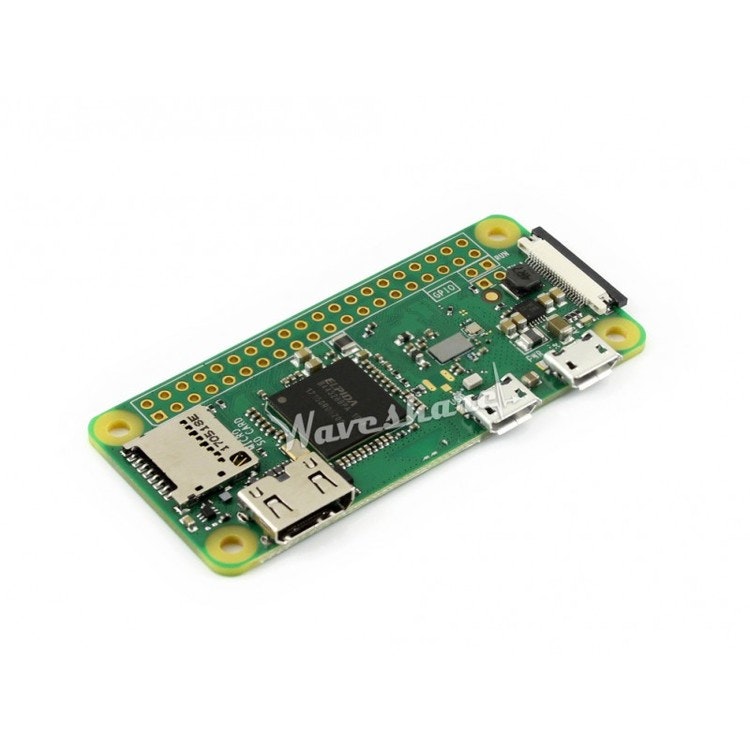

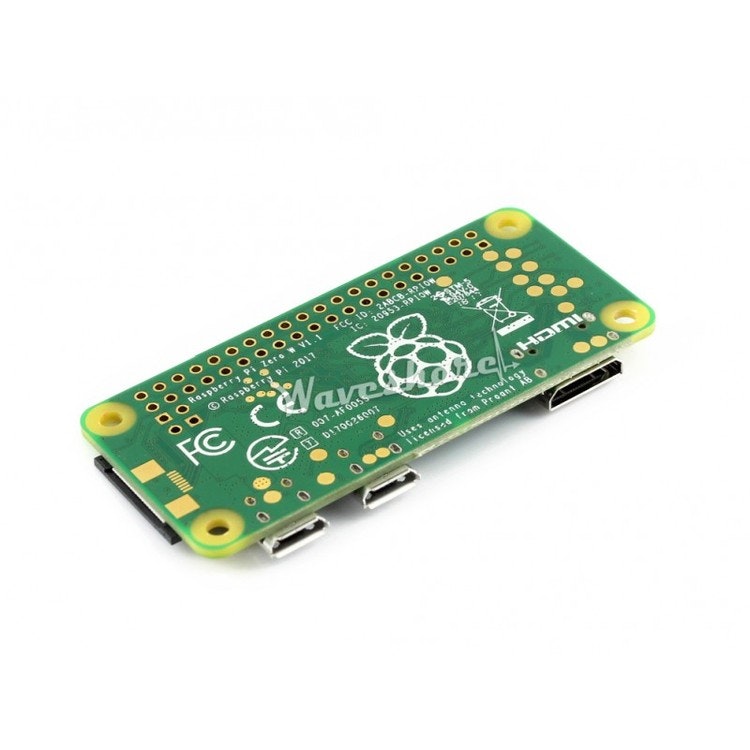

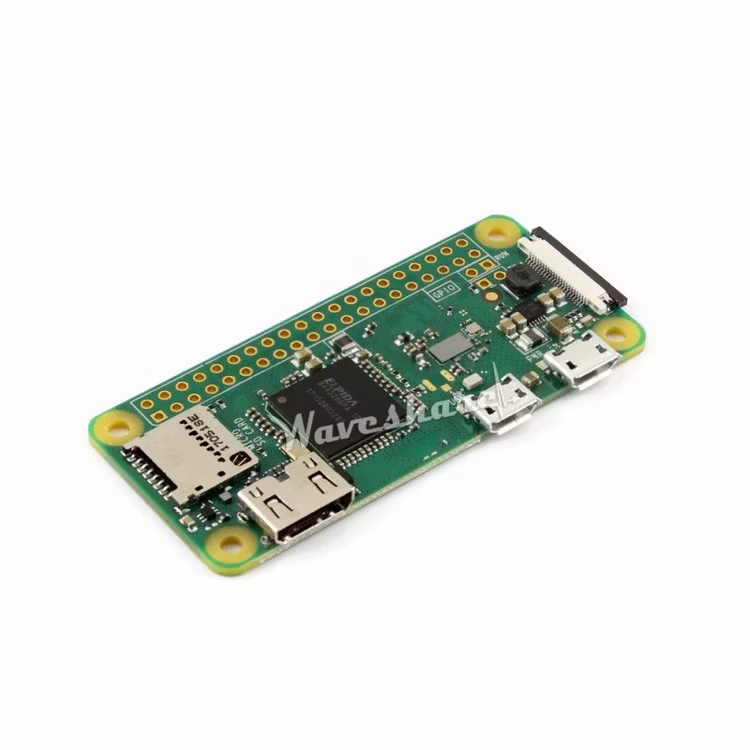

Raspberry Pi Zero W Features

  • Broadcom BCM2835
    • 1GHz ARM11 single-core processor
  • 512MB RAM
  • Added wireless connectivity
    • 802.11 b/g/n wireless LAN
    • Bluetooth 4.1
    • Bluetooth Low Energy (BLE)
  • Micro SD card slot
  • Mini-HDMI port (1080p60 video output)
  • Micro-USB power
  • Micro-USB OTG port
  • 40PIN unpopulated GPIO header (compatible with A+/B+/2B/3B)
  • CSI camera connector
  • Composite video header
  • Composite reset header
  • Dimension: 65mm x 30mm x 5mm

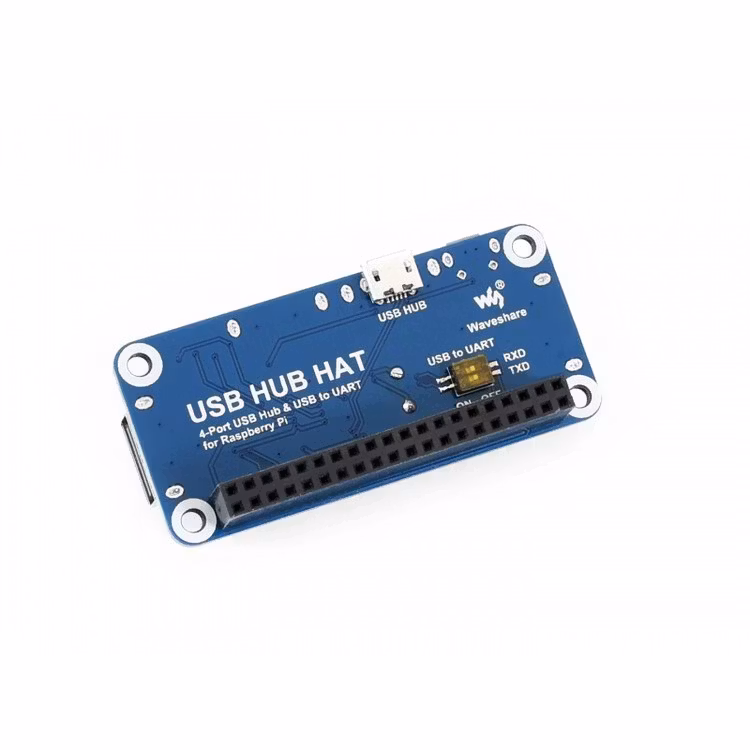

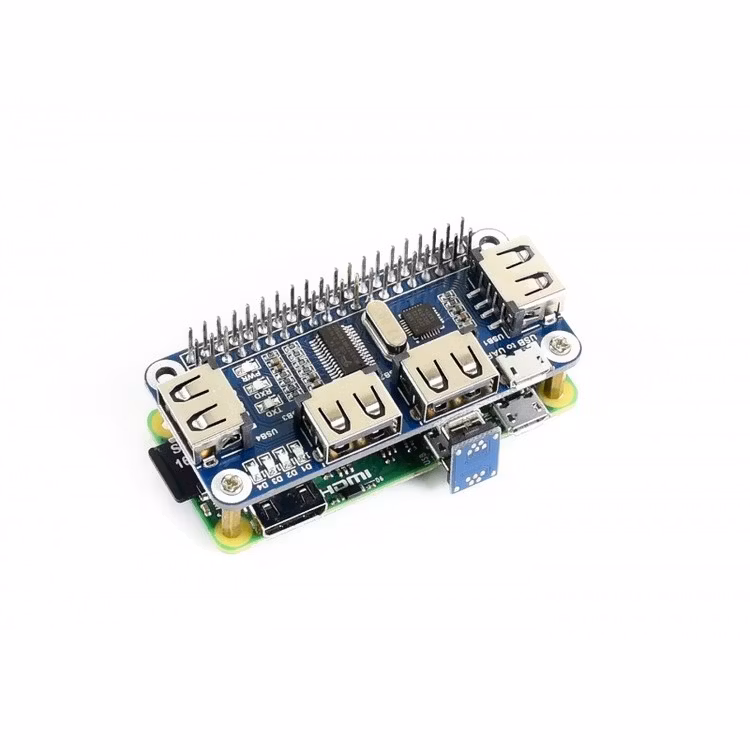

USB HUB HAT Features

  • 4 USB Ports, compatible with USB2.0/1.1
  • Onboard USB to UART, with enable / disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
  • Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

What's on the USB HUB HA

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB to UART: for controlling the Raspberry Pi via serial terminal
  3. USB HUB interface (bottom):for connecting the HUB to the Raspberry Pi USB port
    • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
    • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
  4. USB extended ports: USB1~USB4
  5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
  6. Power indicator
  7. USB to UART indicator
  8. FE1.1S: USB HUB chip
  9. 12MHz crystal
  10. CP2102: USB to UART converter

Weight: 0.192 kg

  1. Raspberry Pi Zero W x1
  2. Mini HDMI to HDMI Adapter x1
  3. Micro USB OTG Cable x1
  4. 2x20-pin 2.54 male pinheader strip x1
  5. 2x20-pin 2.54 female pinheader strip x1
  6. Micro SD Card 16GB x1
  7. Power adapter US standard 5V/3A micro x1
  8. USB type A plug to micro B plug cable x1
  9. USB HUB HAT x1
  10. Micro USB connector x1
  11. RPi screws pack (2pcs) x1

Shipping list

Weight: 0.192 kg

  1. Raspberry Pi Zero W x1
  2. Mini HDMI to HDMI Adapter x1
  3. Micro USB OTG Cable x1
  4. 2x20-pin 2.54 male pinheader strip x1
  5. 2x20-pin 2.54 female pinheader strip x1
  6. Micro SD Card 16GB x1
  7. Power adapter US standard 5V/3A micro x1
  8. USB type A plug to micro B plug cable x1
  9. USB HUB HAT x1
  10. Micro USB connector x1
  11. RPi screws pack (2pcs) x1
