Raspberry Pi Zero WH Package E, with 2.13inch e-Paper HAT

  • 999 kr

Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers) Development Kit Type E, Micro SD Card, Power Adapter, 2.13inch e-Paper HAT, and Basic Components.This

Produkten är tyvärr slut i lager. :(

Artikelnummer: 611
Dela

Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers) Development Kit Type E, Micro SD Card, Power Adapter, 2.13inch e-Paper HAT, and Basic Components.

This development kit includes the Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers), 16GB Micro SD Card, 5V 2.5A Power Adapter, 2.13inch e-Paper HAT (B) which is a three-color e-ink display.

The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable.

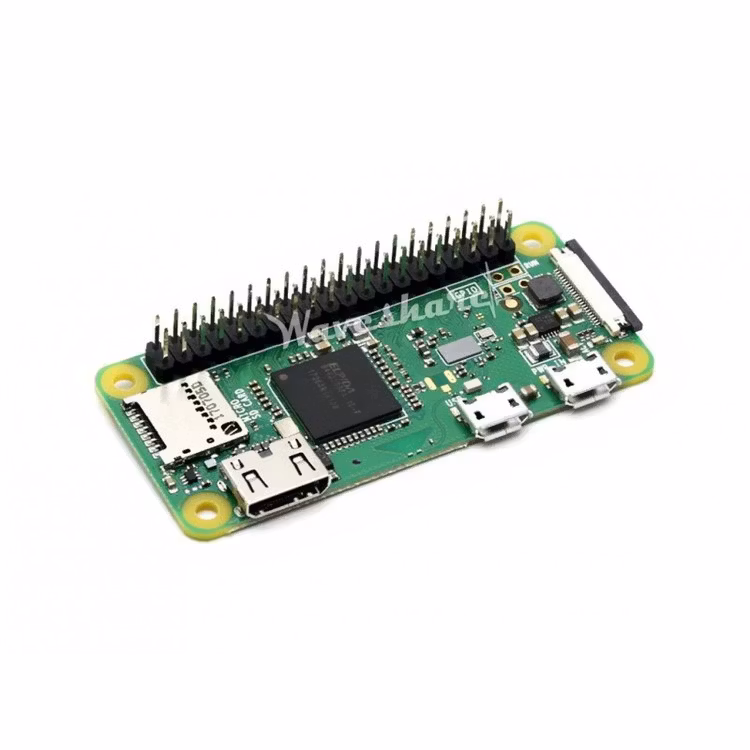

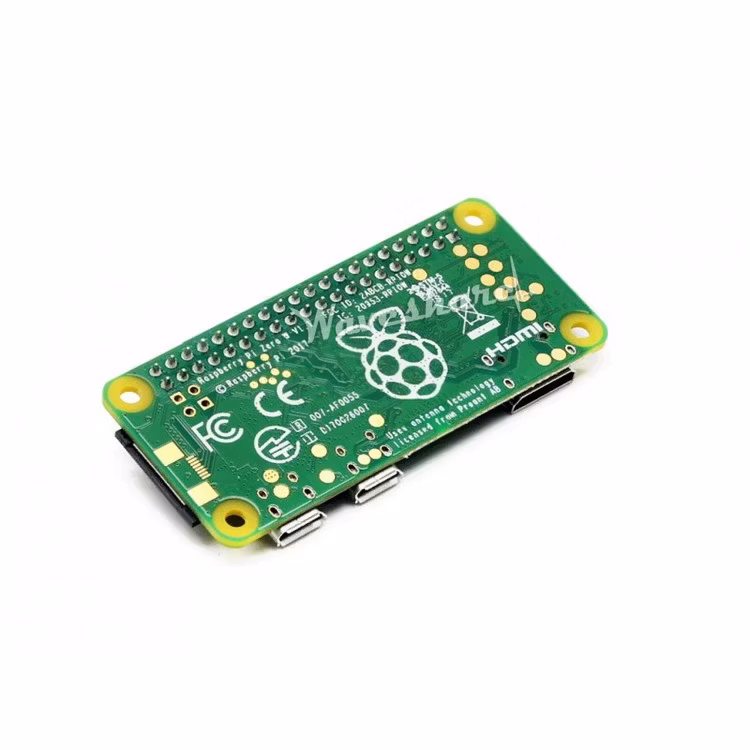

Raspberry Pi Zero WH Features

  • Broadcom BCM2835
    • 1GHz ARM11 single-core processor
  • 512MB RAM
  • Added wireless connectivity
    • 802.11 b/g/n wireless LAN
    • Bluetooth 4.1
    • Bluetooth Low Energy (BLE)
  • 40PIN pre-soldered GPIO headers
  • Micro SD card slot
  • Mini-HDMI port (1080p60 video output)
  • Micro-USB power
  • Micro-USB OTG port
  • CSI camera connector
  • Composite video header
  • Composite reset header
  • Dimension: 65mm x 30mm x 11.6mm

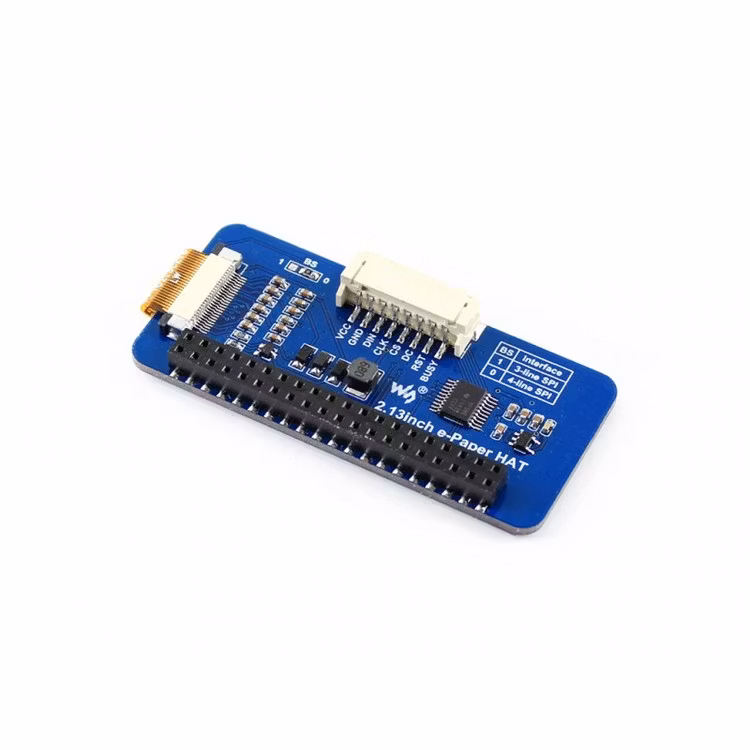

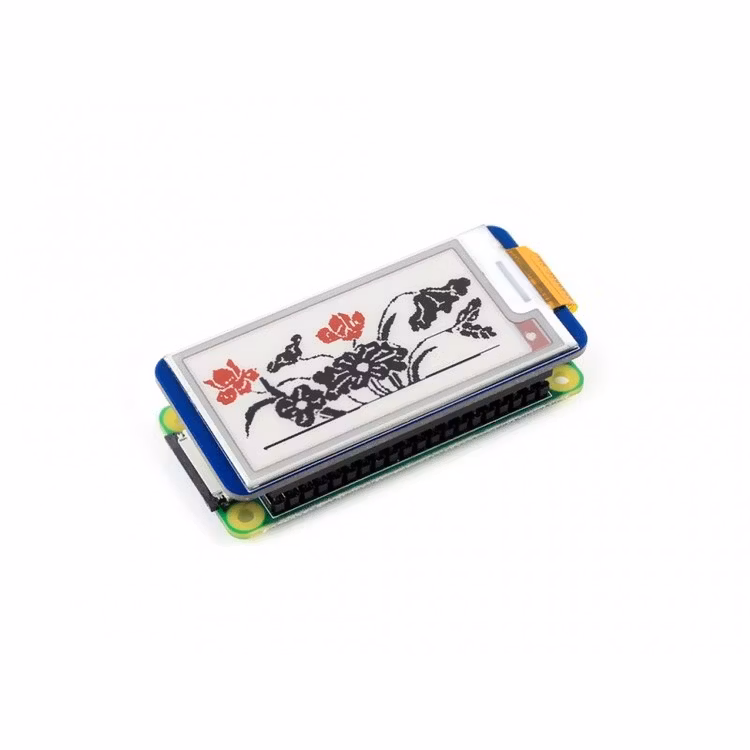

2.13inch e-Paper HAT (B) Features

  • No backlight keeps displaying last content for a long time even when power down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

2.13inch e-Paper HAT (B) Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.229 × 0.228
  • Resolution: 212 × 104
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

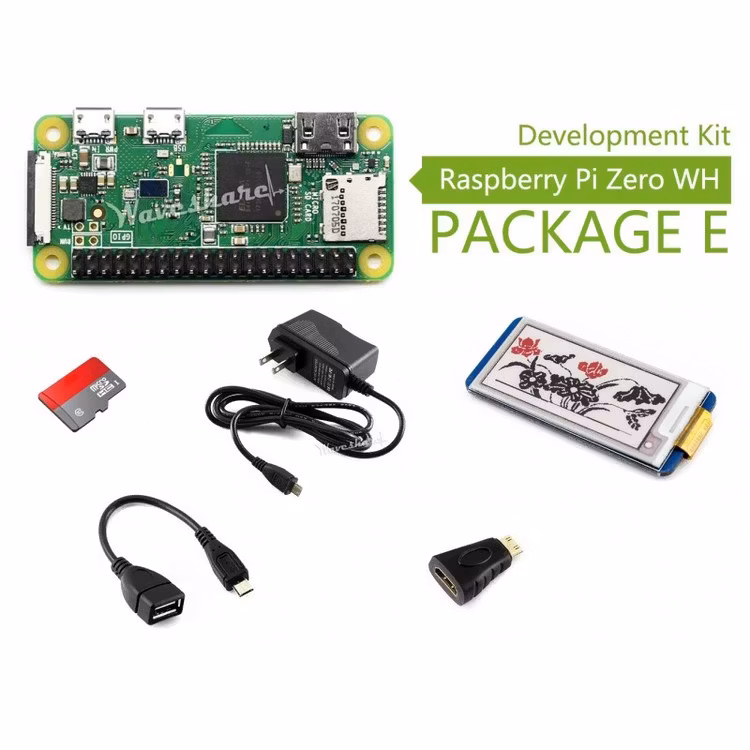

Shipping list

Weight: 0.151 kg

  1. Raspberry Pi Zero WH x1
  2. Mini HDMI to HDMI Adapter x1
  3. Micro USB OTG Cable x1
  4. Micro SD Card 16GB x1
  5. Power adapter EU standard 5V/3A micro x1
  6. 2.13inch e-Paper HAT (B) x1
  7. RPi screws pack (2pcs) x1
  8. PH2.0 20cm 8Pin x1
