2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI

  • 249 kr

2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320×240 Pixels, SPI Interface2.8" Touch Display Module For PicoResistive Touch Controller XPT20

I lager.
Lagersaldo: 2
Artikelnummer: 1182
Dela
  • Information

2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320×240 Pixels, SPI Interface

2.8" Touch Display Module For Pico

Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo



Size 2.8"

Resolution 320×240

Display Color 262K Colors

Display Panel IPS

Touch Type Resistive

Interface SPI



Driver/Controller ST7789/XPT2046

Features At A Glance

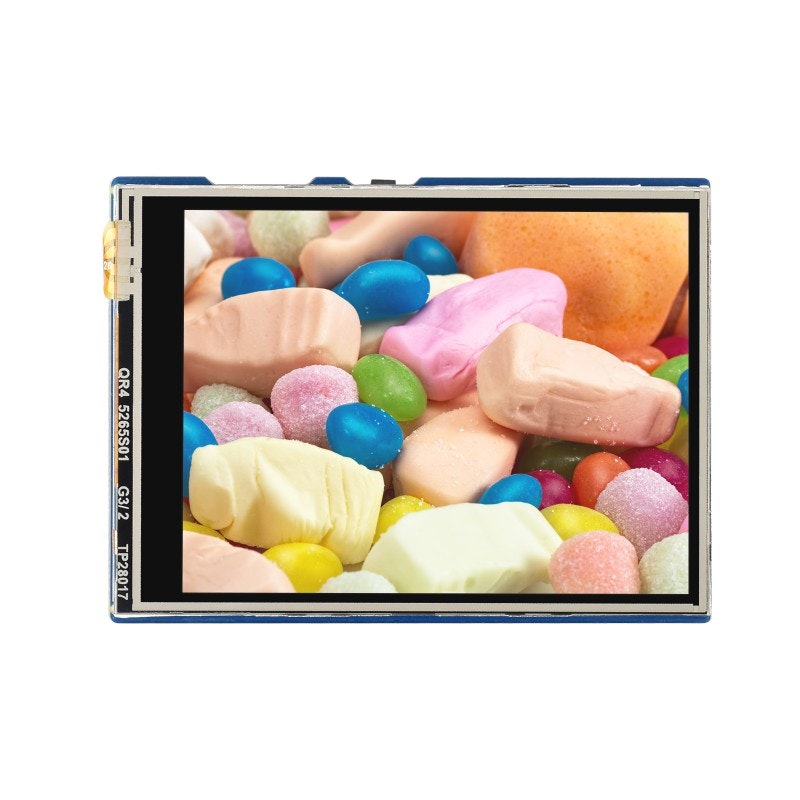

  • 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
  • MicroSD card slot for storing images and direct displaying them easily
  • Programmable backlight control, power saving
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE
5V
RESOLUTION
320×240 pixels
COMMUNICATION INTERFACE
SPI
DISPLAY SIZE
57.60 × 43.20 mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.18 × 0.18 mm
DRIVER
ST7789
DIMENSIONS
70.20 × 50.20 mm
TOUCH CONTROLLER
XPT2046

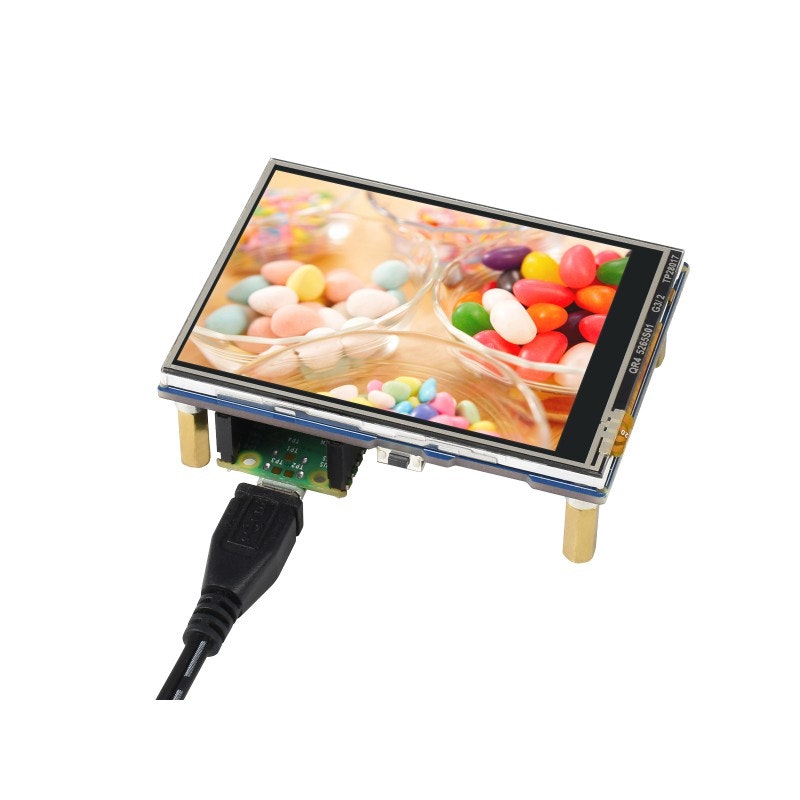

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

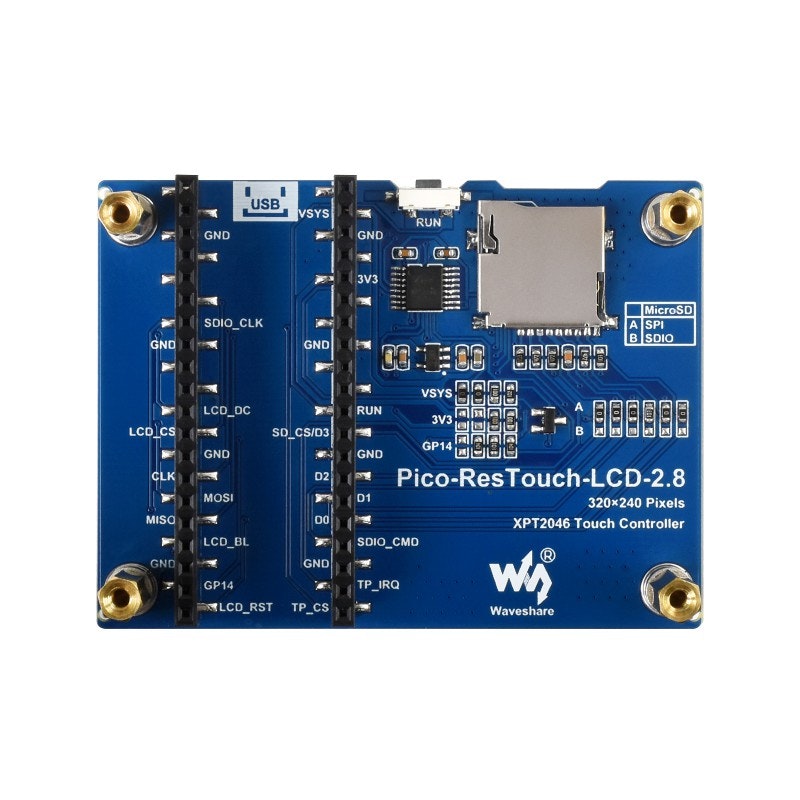

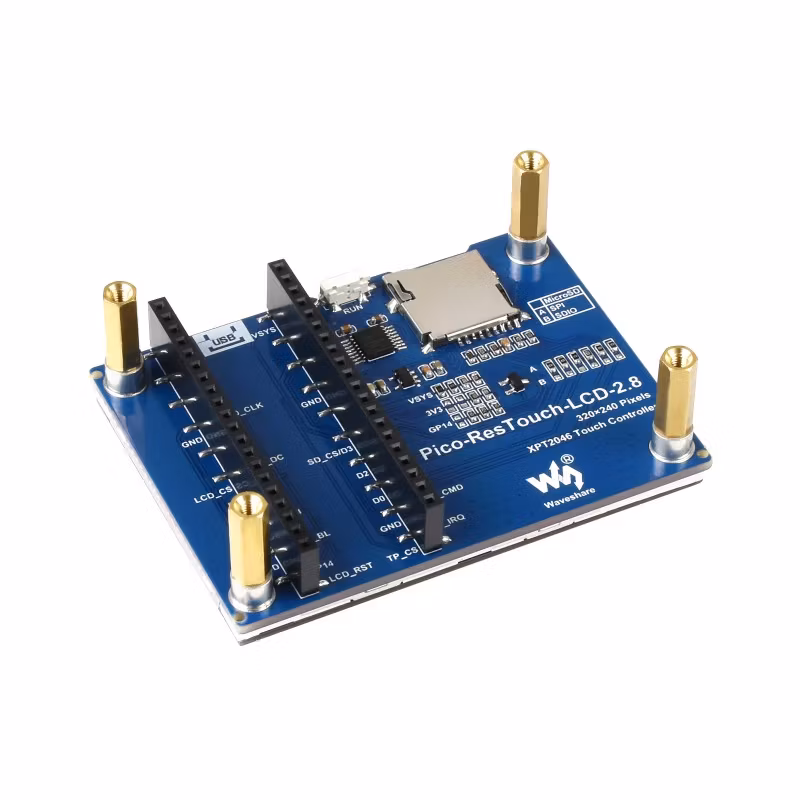

What's On Board

  1. Rapsberry Pi Pico header
  2. MicroSD card slot



  1. XPT2046
    resistive touch controller
  2. RT9193-33
    3.3V linear voltage regulator
  3. Pico reset button

Pinout Definition

Outline Dimensions


WIKI: Pico-ResTouch-LCD-2.8

Shipping list

Weight: 0.051 kg

  1. Pico-ResTouch-LCD-2.8 x1
  2. Standoffs pack x1
