2D Codes Scanner Module, Supports 4mil High-density Barcode Scanning, Barcode/QR

  • 499 kr
  • 449 kr

The Barcode Scanner Module (B) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on pa

I lager.
Lagersaldo: 2
Artikelnummer: 1245
Dela
  • Information

The Barcode Scanner Module (B) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and 4mil high-density barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.


Comparison

The Barcode Scanner Module (B) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and 4mil high-density barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Comparison

MODEL
Barcode Scanner Module
Barcode Scanner Module (B)
RESOLUTION648 × 488640 × 480
SCAN ANGELSpitch ±60°, skew ±65°, roll 360°pitch ±65°, skew ±65°, roll 360°
SCAN MODESensing, Continuous, Command trigger, Manual (default)Sensing, Continuous, Manual (default)
ACCURACY-≥4mil
COMMUNICATION INTERFACEUSB keyboard mode (default), USB virtual port, UART port
LIGHT SOURCEWhite (Lighting) + Red (Aiming), both are visible light
POWER SUPPLY5V5V / 3.3V
CURRENTOPERATING135mA262mA
STANDBY58mA75mA
BOOT-108mA
TEMPERATUREOPERATING-20 ~ +60°C
STORAGE-30 ~ +70°C

Decoding Capability

BARCODEREADABLEDEFAULT READABLEREADABLEDEFAULT READABLE
MODELBARCODE SCANNER MODULEBARCODE SCANNER MODULE (B)
Aztec

√
BPO

√
Codabar√√√
Codablock

√
Code 11√
√
Code 39/Code 93√√√
UPC/EAN√√√
Code 128/EAN 128√√√√
DataMatrix√√√
EAN.UCC Composite

√
Interleaved 2 of 5√
√
Matrix 2 of 5√
√
MaxiCode

√
MicroPDF417

√
MSI Code√
√
PDF417√√√
Planet

√
Plessey Code√
√
QR Code√√√√
RSS√√√
Standard 2 of 5√
√
Telepen

√
TLC 39

√

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

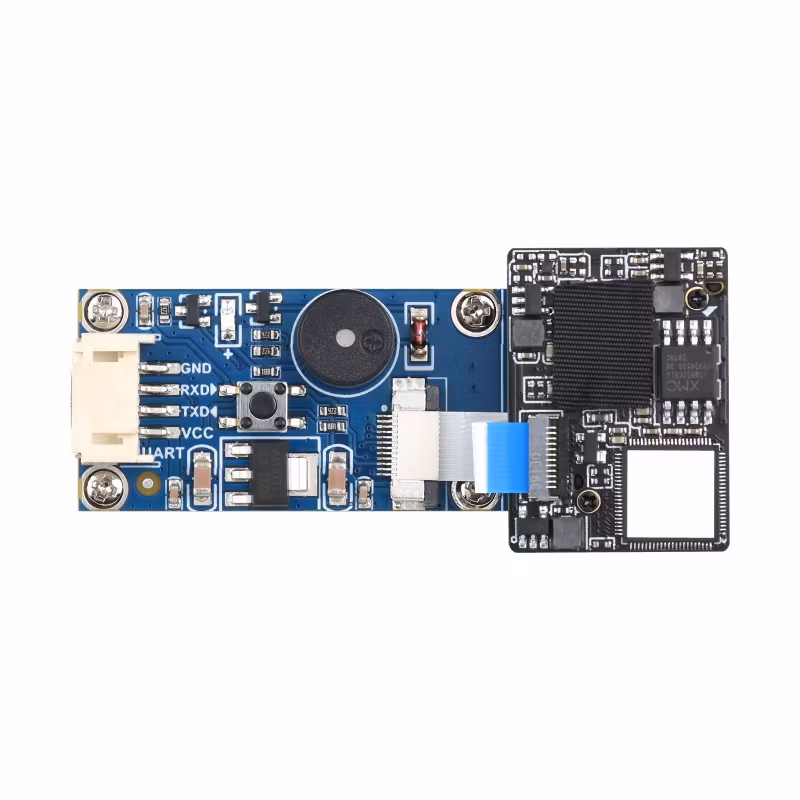

Onboard Resource

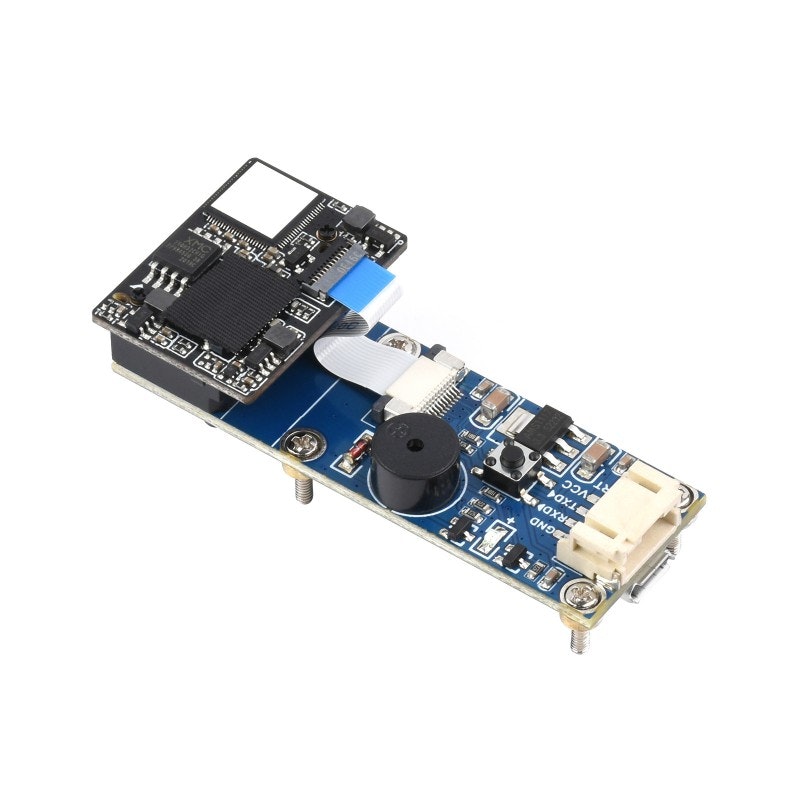

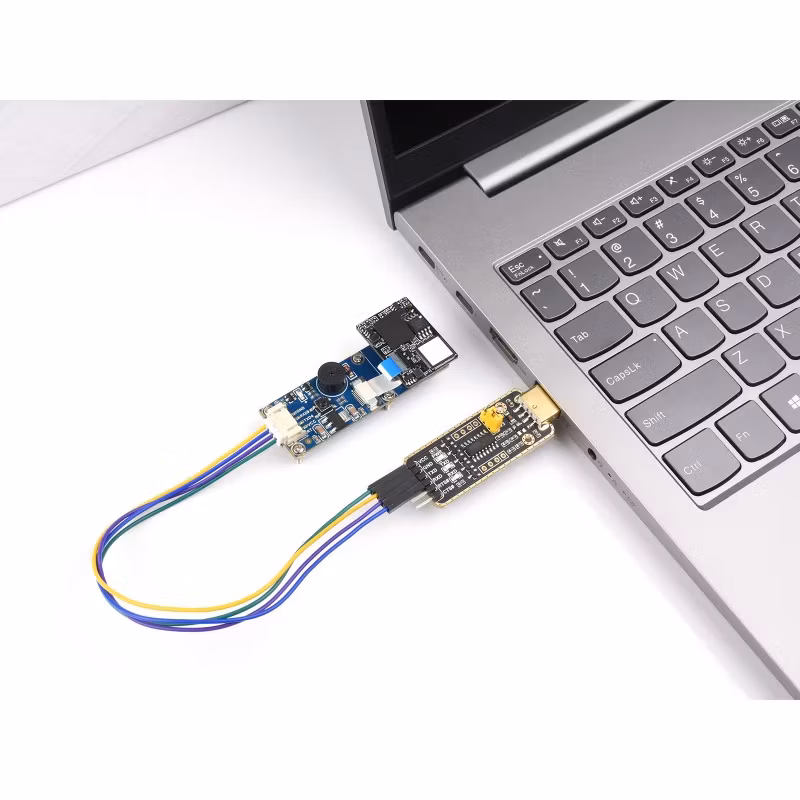

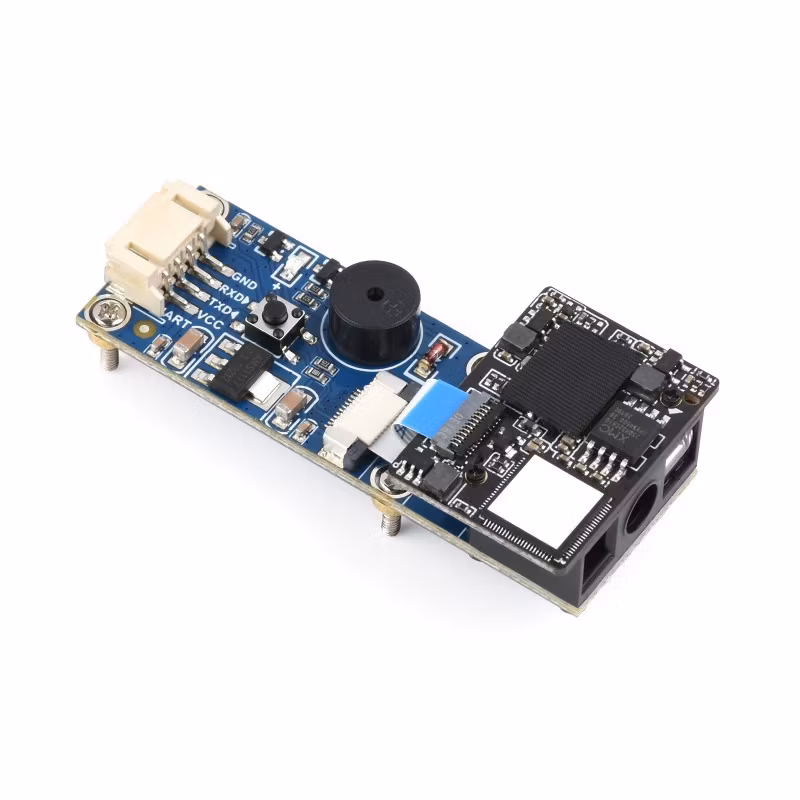

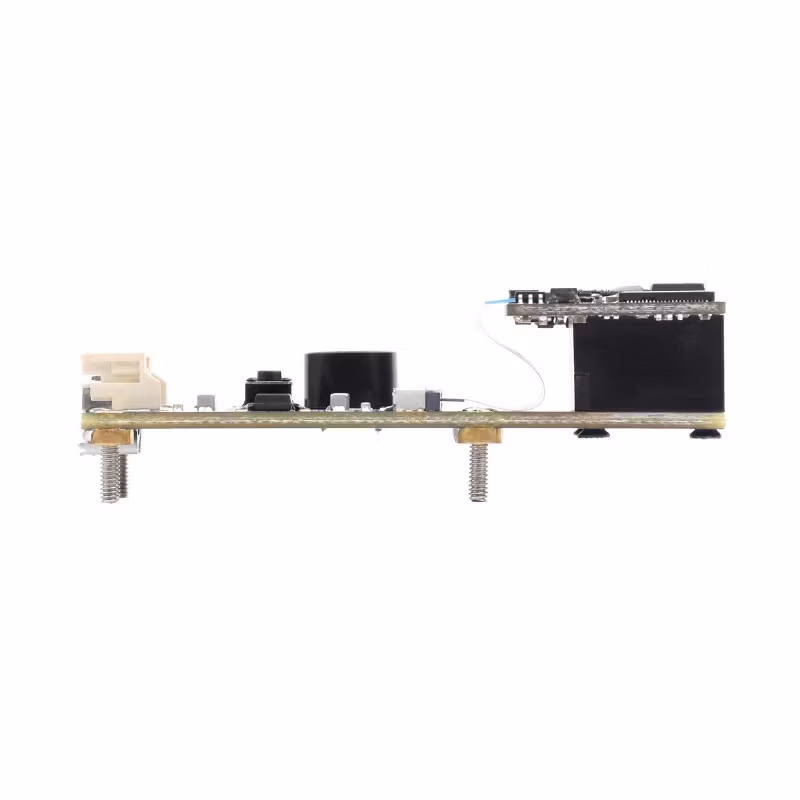

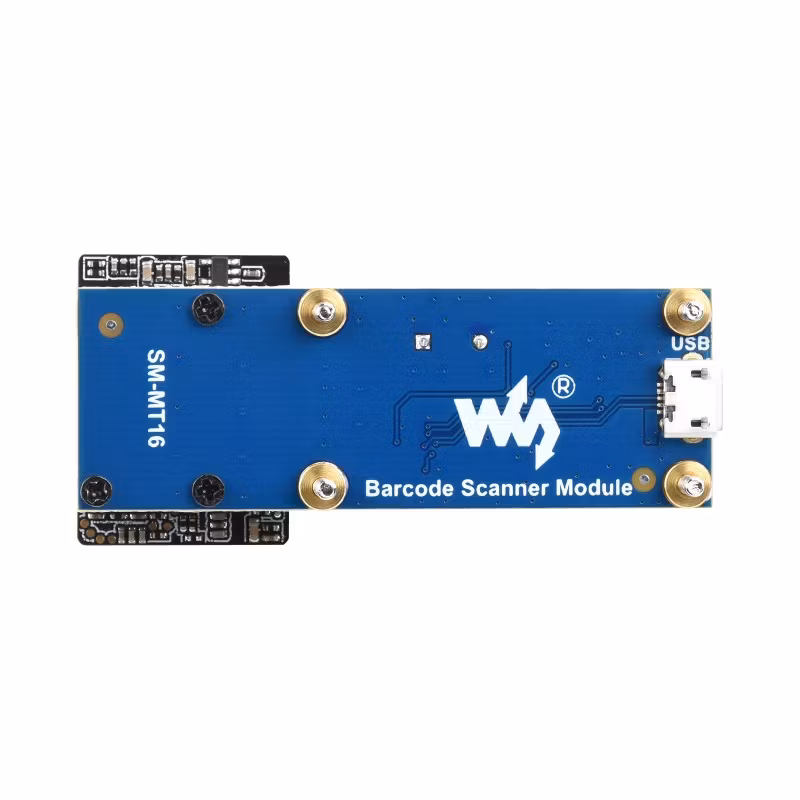

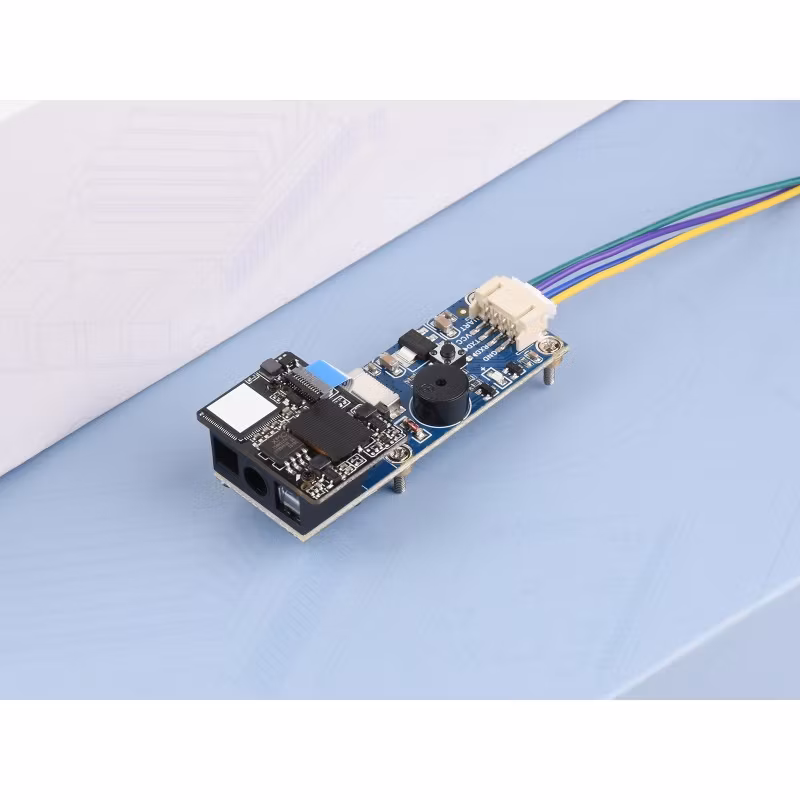

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Barcode_Scanner_Module_(B)

Shipping list

Weight: 0.061 kg

  1. Barcode Scanner Module (B) x1
  2. USB type A plug to micro B plug cable x1
  3. PH2.0 4Pin cable x1
