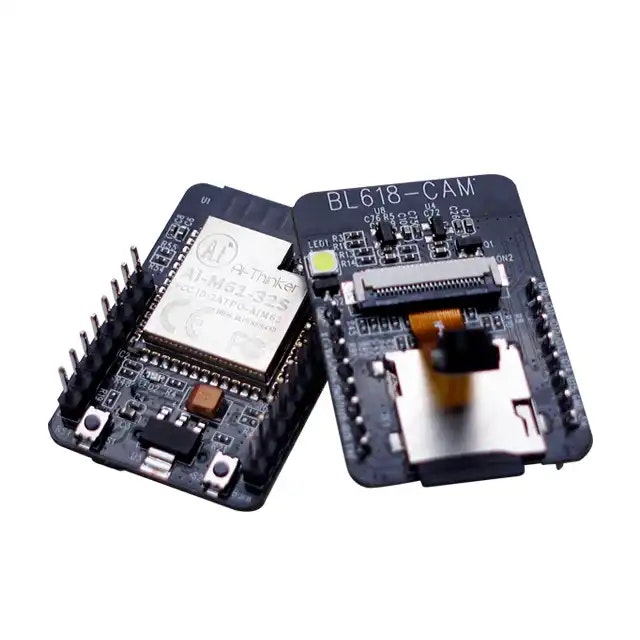

AiPi-Cam-D2 WiFi6 camera development board support TF card photo storage

  • 299 kr

AiPi-Cam-D200 is a development board compatible with 200W cameras developed by Ai-Thinker based on the AiPi-Cam-D development board. It is equivalent to an upgr

I lager.
Lagersaldo: 10
Artikelnummer: AiPi1306
Dela
  • Information

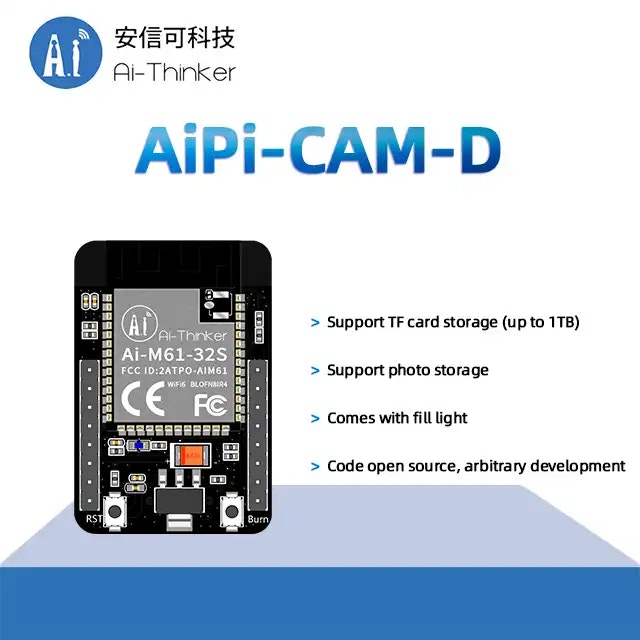

AiPi-Cam-D200 is a development board compatible with 200W cameras developed by Ai-Thinker based on the AiPi-Cam-D development board. It is equivalent to an upgrade and iteration of AiPi-Cam-D.

Camera parameters

  • Camera model: GC2145
  • Camera size: 13*13*21.57 mm (excluding cables)
  • Pixel size: 1600*1200
  • Viewing angle:140°
  • Focal length: 2 meters
  • Power consumption: 180mA(<200uA)
  • Interface: DVP (24Pin pitch 0.5mm)

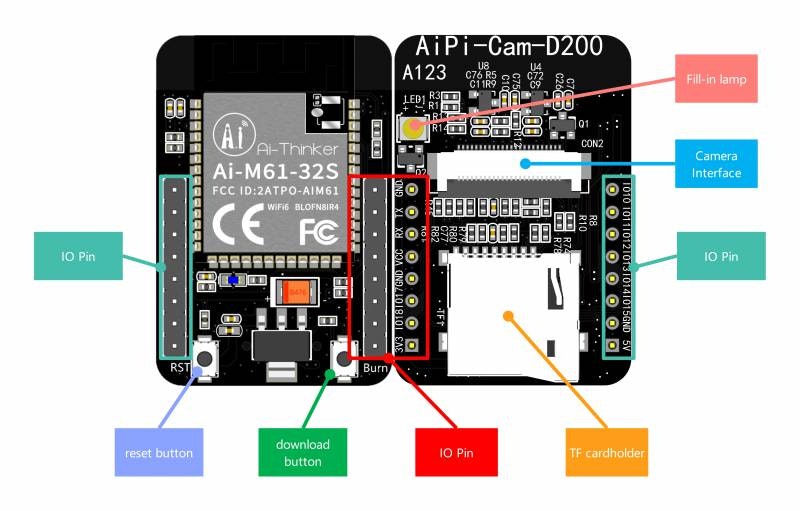

Instructions

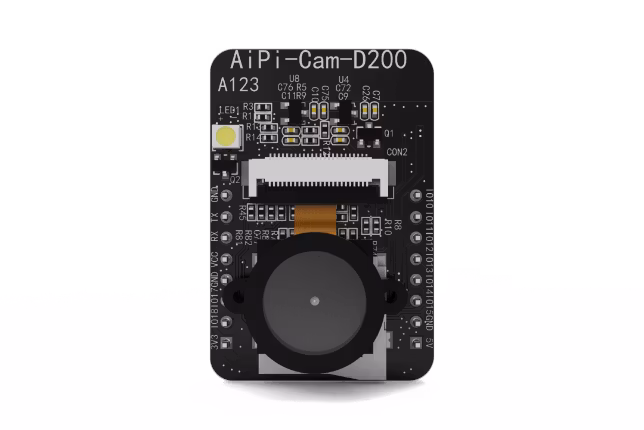

Connecting the Camera

Sock the camera cable into the AiPi-Cam-D200 24Pin cable holder.



Steps

Power on, use your mobile phone or computer to connect to the hotspot: ai_pi_cam, password: 12345678, open the webpage and input the website 192.168.169.1, click Start Stream to see if there is a camera image, as shown below:


Summary of information

● DOCS

●[Completely open source] AiPi-Cam-D200 development board
