Arducam IMX519 autofocus camera module 16MB for Raspberry Pi

  • 375 kr

Arducam High-Resolutions Autofocus camera is an exclusive camera board that takes what Raspberry Pi V1, V2 and HQ have to offer, and excels in every single aspec

I lager.
Lagersaldo: 1
Artikelnummer: 1127
Dela

Arducam High-Resolutions Autofocus camera is an exclusive camera board that takes what Raspberry Pi V1, V2 and HQ have to offer, and excels in every single aspect.

It takes zero compromise in specs. With a resolution at 16 megapixels (compared to 8MP and 12MP), an autofocus lens, a V2-like form factor, and boatloads of improvements, the camera provides a better choice for a whole world of industrial/consumer/etc. applications, it’s compatible with any existing Pi models, works with the latest software from the foundation, and leverages the same tuning algorithms used in the official camera modules.

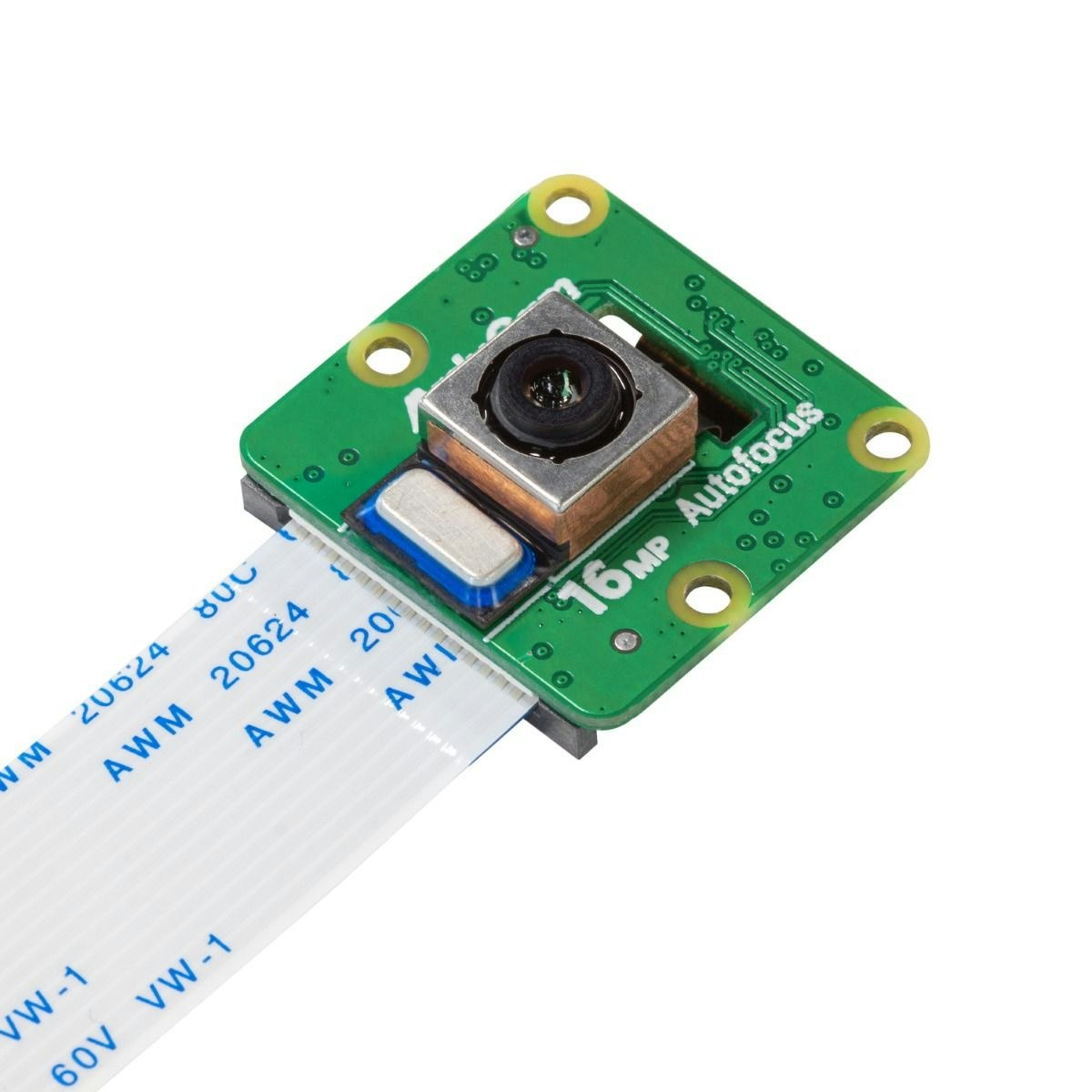

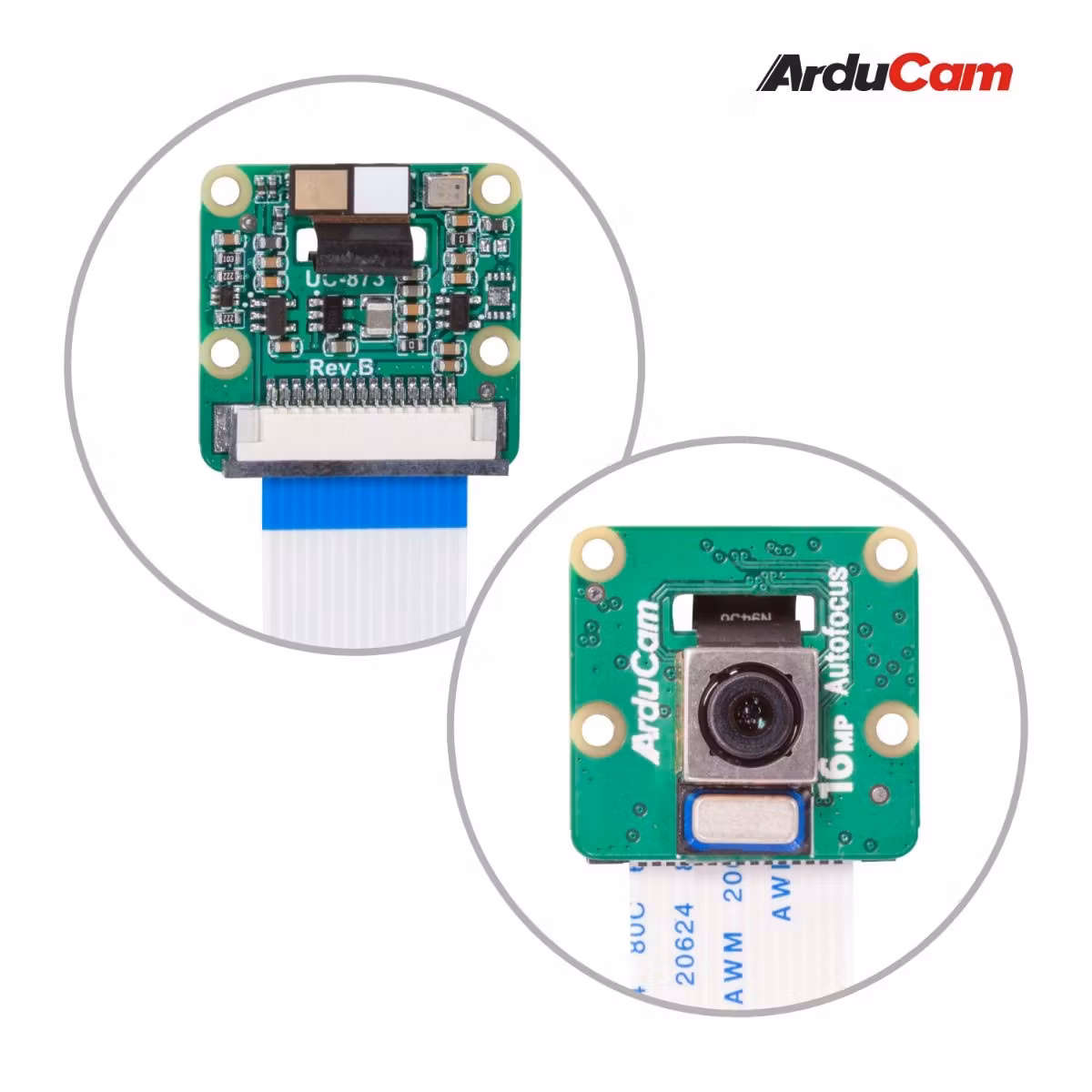

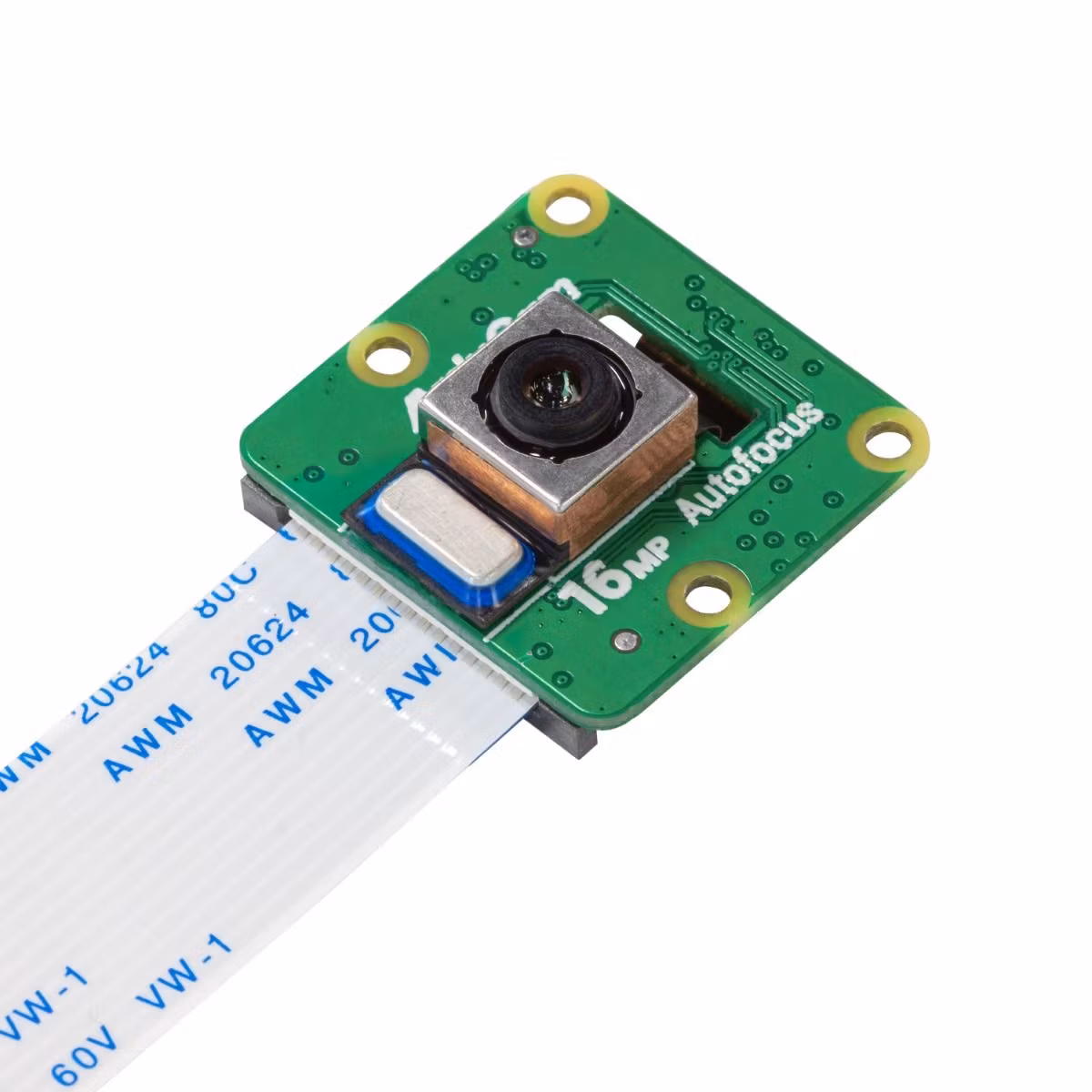

The package contains a camera board with a Sony IMX519 sensor and an autofocus lens, an FPC cable, a camera enclosure which also works with the V1 and V2 board, and just like the HQ module, it has an inte-grated tripod mount too.

Specfication & Comparison Chart

  • Sensor: Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534)
  • Output: RAW10/8, COMP8
  • Lens: Autofocus;  f/1.75; EFL: 4.28; FoV: 80°; Focus Range: 10 cm ~ infinite
  • IR cut Filter: Integrated
  • Tripod mount: 1/4”-20

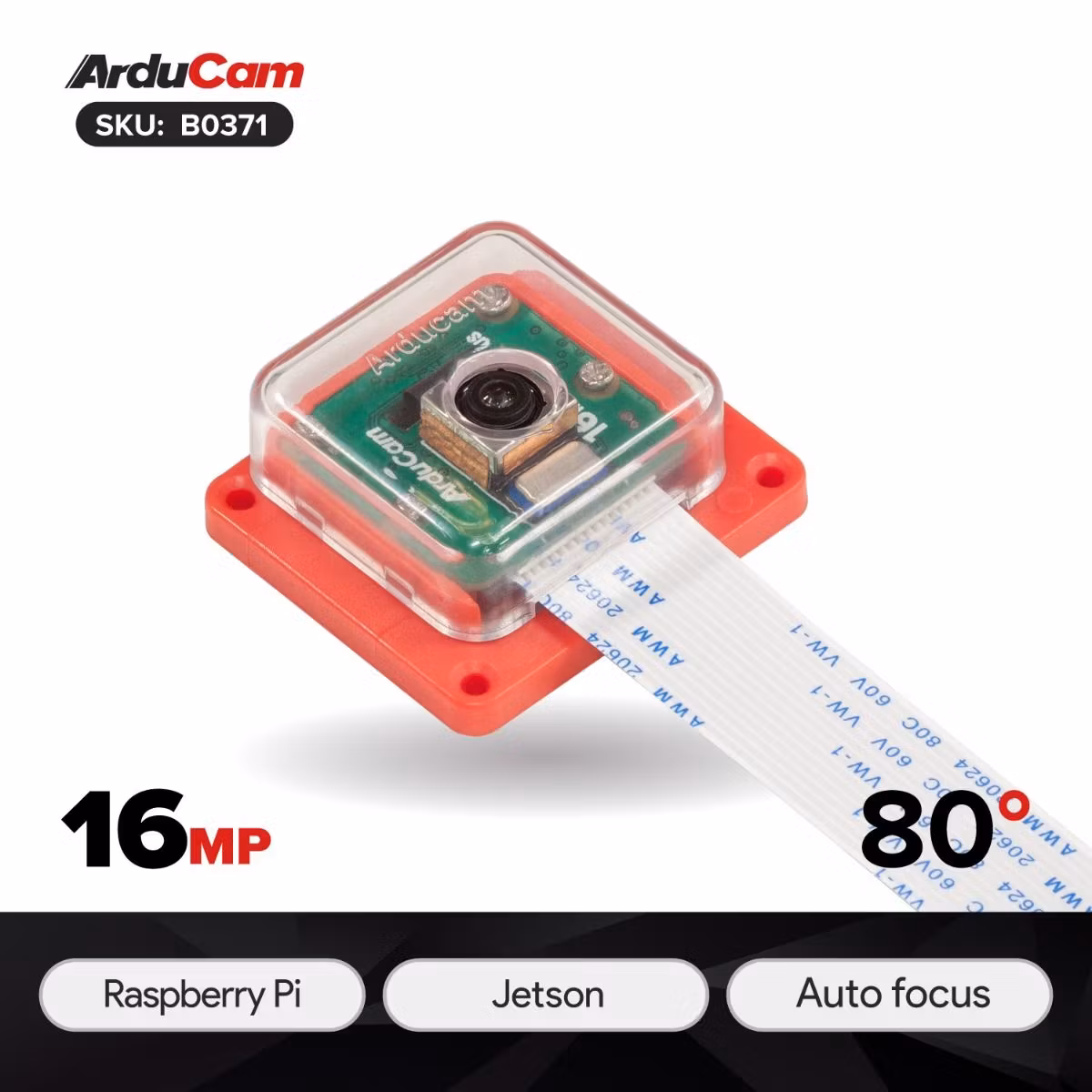

  • Enclosure: ABS, also compatible w/ camera module v1 & v2.
  • Ribbon Cable Length: 150mm

Safety instructions

  • Before connecting, you should always power the Raspberry Pi off and remove the power supply first.
  • Make sure the cable on the camera board is locked in place.
  • Make sure the cable is correctly inserted in the Raspberry Pi board’s MIPI CSI-2 connector.
  • Avoid high temperatures.
  • Avoid water, moisture, or conductive surfaces while in operation.
  • Avoid folding, or straining the flex cable.
  • Avoid cross-threading with tripods.
  • Gently push/pull the connector to avoid damaging the printed circuit board.
  • Avoid moving or handling the printed circuit board excessively while it’s in operation.
  • Handle by the edges to avoid damages from electrostatic discharge.
  • Where the camera board is stored should be cool and as dry as possible.
  • Sudden temperature/humidity changes can cause dampness in the lens and affect the image/video quality.

Documentation

3D Drawing


Comparison


Arducam Autofocus Camera
Camera Module V2
HQ Camera
Sensor
Sony IMX519
Sony IMX219
Sony IMX477
Optical Size
Type 1/2.53″
Type 1/4″
Type 1/2.3″
Sensor Resolution
4656×3496 pixels
3280 × 2464 pixels
4056 x 3040 pixels
Still Resolution
16 Megapixels
8 Megapixels
12.3 Megapixels
Camera Case
Yes
No
No
Focus
Auto
Fixed
Manual
Video Modes
1080p30, 720p60
1080p30, 720p60 and 640 × 480p60/90
1080p30, 720p60 and 640 × 480p60/90
Linux integration
V4L2 driver available
V4L2 driver available
V4L2 driver available
Focal ratio (F-Stop)
1.75
2.0
Depends on lens
Focal length
4.28 mm
3.04 mm
Depends on lens


Product Description



16MP

16MP Autofocus Camera for Raspberry Pi

Arducam High-Resolutions Autofocus camera is an exclusive camera board that takes what Raspberry Pi V1, V2, and HQ have to offer, and excels in every single aspect.

It takes zero compromise in specs. With a resolution at 16 megapixels (compared to 8MP and 12MP), an autofocus lens, a V2-like form factor, and boatloads of improvements, the camera provide a better choice for a whole world of industrial/consumer/etc. applications, it’s compatible with any existing Pi models, work with the latest software from the foundation, and leverages the same tuning algorithms used in the official camera modules.

The package contains a camera board with a Sony IMX519 sensor and an autofocus lens, an FPC cable, a camera enclosure that also works with the V1 and V2 board.

High resolution and autofocus



ABS shell
16MP
Autofocus






High resolution Camera

Feature

  • 【16MP for All Pis】The new Raspberry Pi camera features a 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera; it is compatible with any Raspberry Pi board with a MIPI/CSI interface and runs directly on the Raspberry Pi OS without much configuration.
  • 【Autofocus Camera Moudle】Built-in autofocus motor allows you to get focus quickly so that you can focus to infinity no matter where you place your camera. The minimum focus distance is 10cm, and the longest allowed exposure time is 200 seconds.
  • 【Crisper Images/Videos】The 16 megapixel camera can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and also provides an effective 80-degree field of view.

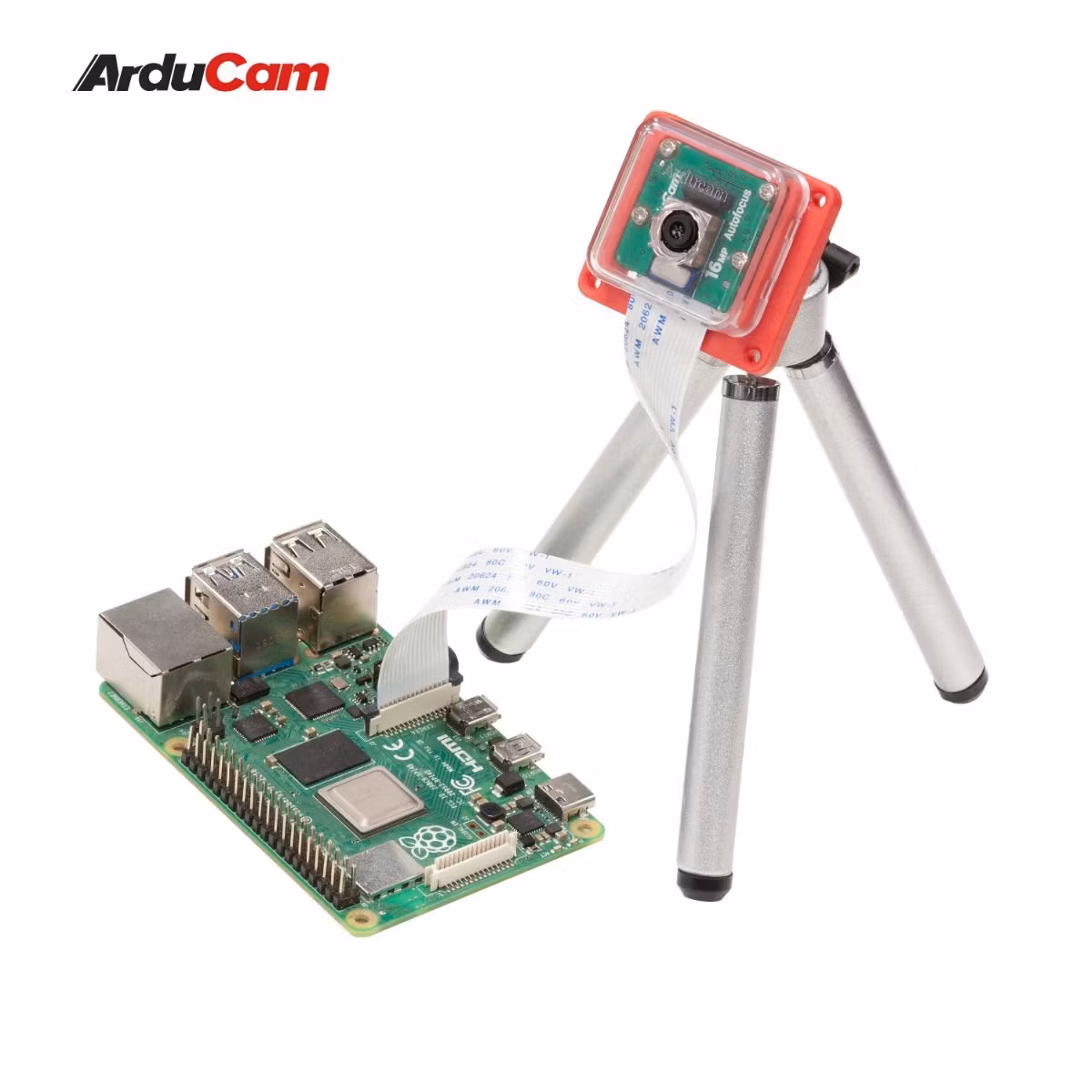

  • 【V1/V2 Size】The autofocus camera module has the same size as the pi camera V2, it can be installed with plastic housing, which is also suitable for V1 and V2 boards. And the housing also has an integrated tripod mounting hole, which you can install on any 1/4 hole distance tripod.
  • 【Package Contents】The package includes a camera board with Sony IMX519 sensor and an autofocus lens, an FPC cable.



Specification

Sensor
Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534)
Output
RAW10/8, COMP8
Lens: Autofocus
Autofocus; f/1.75; EFL: 4.28; FoV: 80°; Focus Range: 10 cm ~ infinite
IR cut Filter
Integrated
Video Modes
[email protected], [email protected]
Linux integration
V4L2 driver available
Ribbon Cable Length
150mm
Tripod mount
1/4”-20
