Dedicated All-in-one 3007 Cooling Fan For Raspberry Pi Compute Module 5

  • 299 kr

Dedicated All-in-one 3007 Cooling Fan For Raspberry Pi Compute Module 5, 5V Power Supply, Speed Adjustable, With Thermal Tapes 3007 Cooling Fan For CM5All-in-on

I lager.
Lagersaldo: 1
Artikelnummer: 29833
Dela
  • Information

Dedicated All-in-one 3007 Cooling Fan For Raspberry Pi Compute Module 5, 5V Power Supply, Speed Adjustable, With Thermal Tapes 3007 Cooling Fan For CM5

All-in-one, More convenient, Space efficient

Low Noise, More Practical, With Thermal Tapes

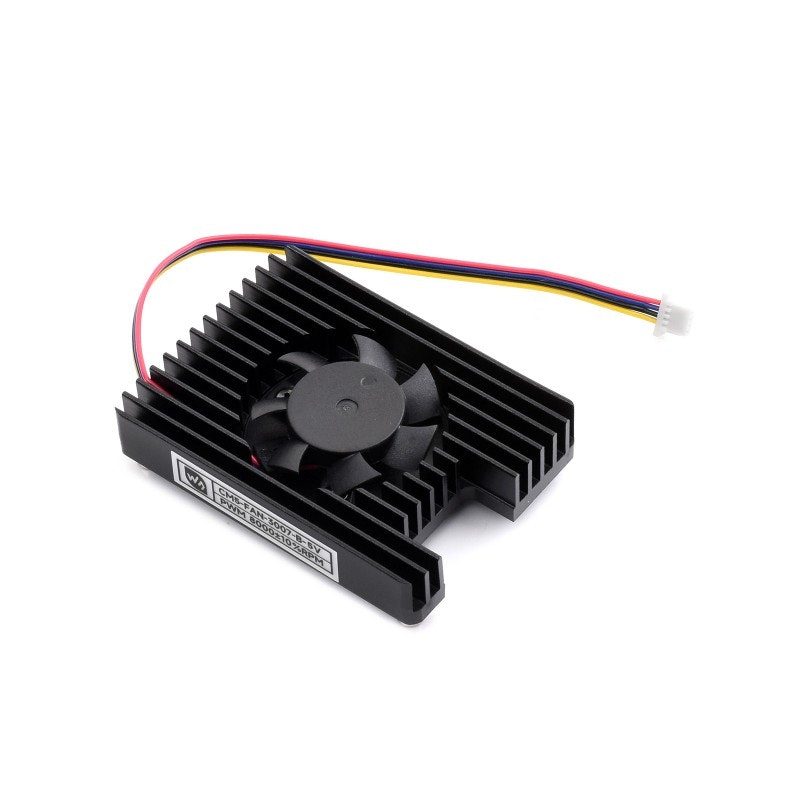

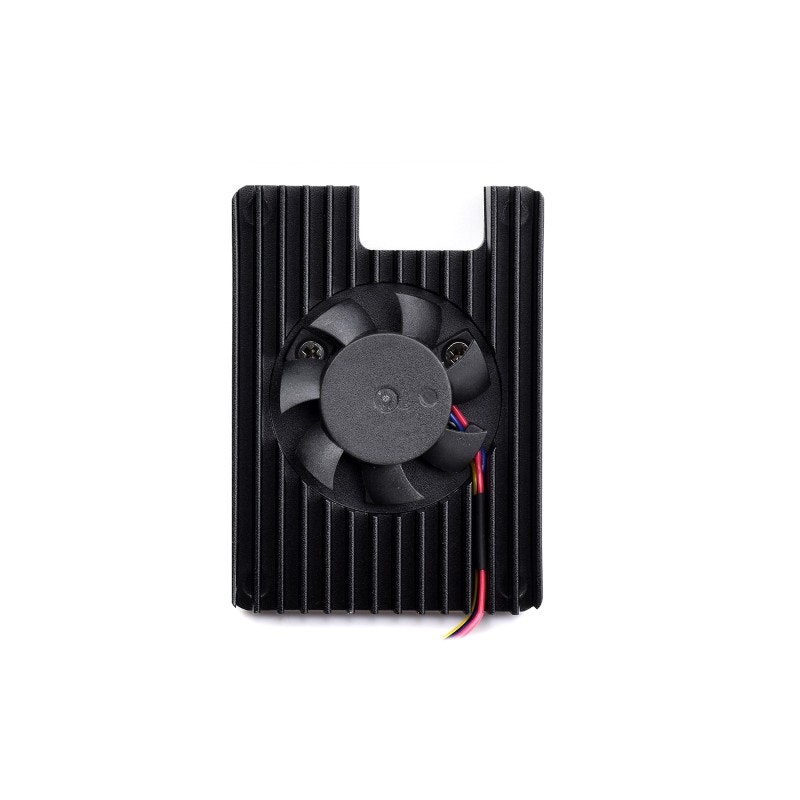

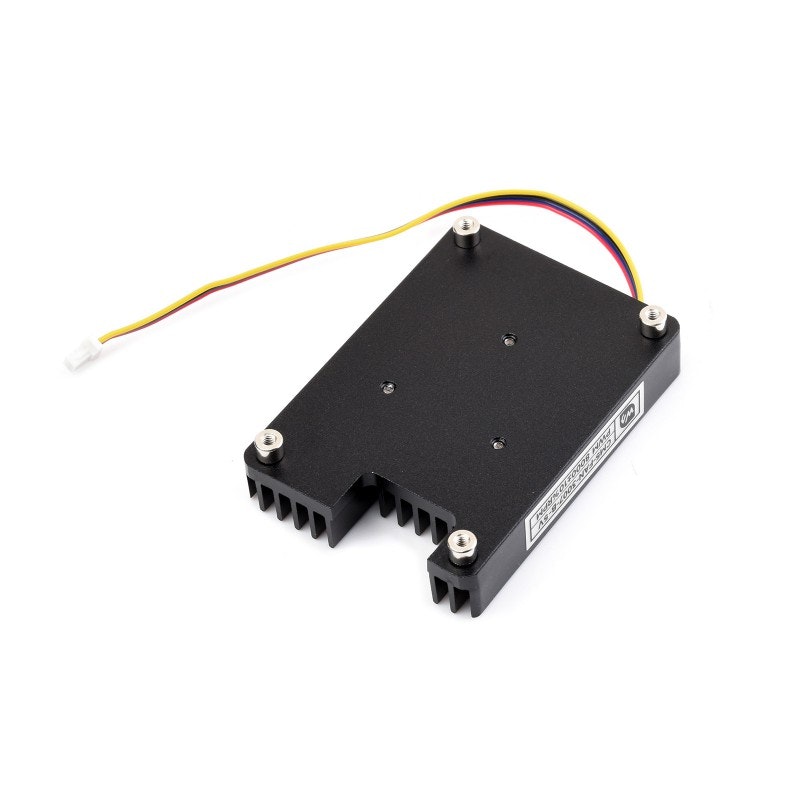

3007 Cooling Fan For CM5, front view

Specifications

GeneralLow-profile, PWM speed adjustment
Interface4-wire PWM speed-adjustable fan header
Rated speed8000±10%RPM
power supply5V
Cable Length125±10mm

Tailored For Raspberry Pi CM5

Matching With The CM5 On Size And Mounting Holes, Fast Heat Dissipation

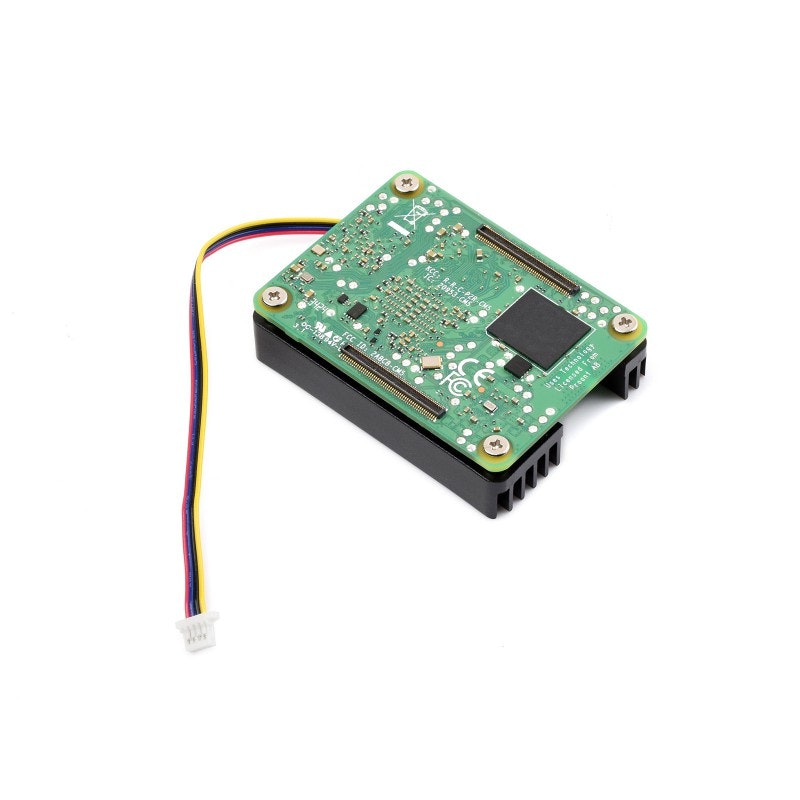

3007 Cooling Fan For CM5, connecting with CM5

Proper Space For Antenna Section

3007 Cooling Fan For CM5, connecting with CM5 and antenna

for reference only, the antenna is NOT included

Using With CM5 Base Board

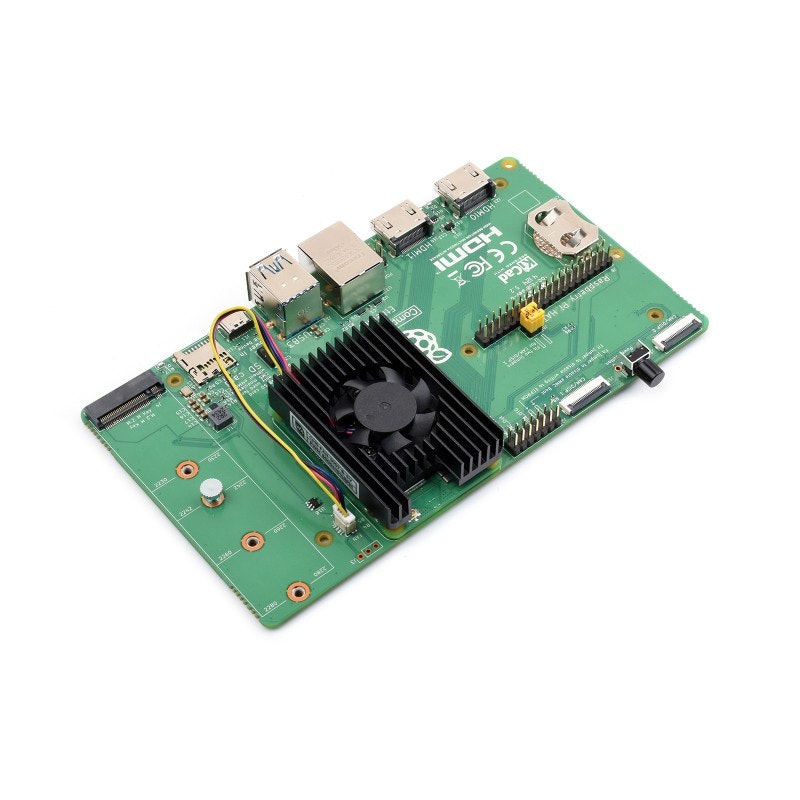

3007 Cooling Fan For CM5, using with CM5 base board

for reference only, the Compute Module 5, Compute Module 5 IO Board and CM5-PoE-BASE-A are NOT included.


comparing CM5 Cooling Solutions

3007 Cooling Fan For CM5, comparing CM5 cooling solutions

Outline dimensions

3007 Cooling Fan For CM5, outline dimensions

Install FAN to CM5

3007 Cooling Fan For CM5, install FAN to CM5

Install FAN to CM5 + Base Board

3007 Cooling Fan For CM5, install FAN to CM5 + Base Board

Shipping list

Weight: 0.067 kg

  1. CM5-FAN-3007-B-5V x1
  2. Screws and thermal tapes x1

1CM5-FAN-3007-B-5V

2
