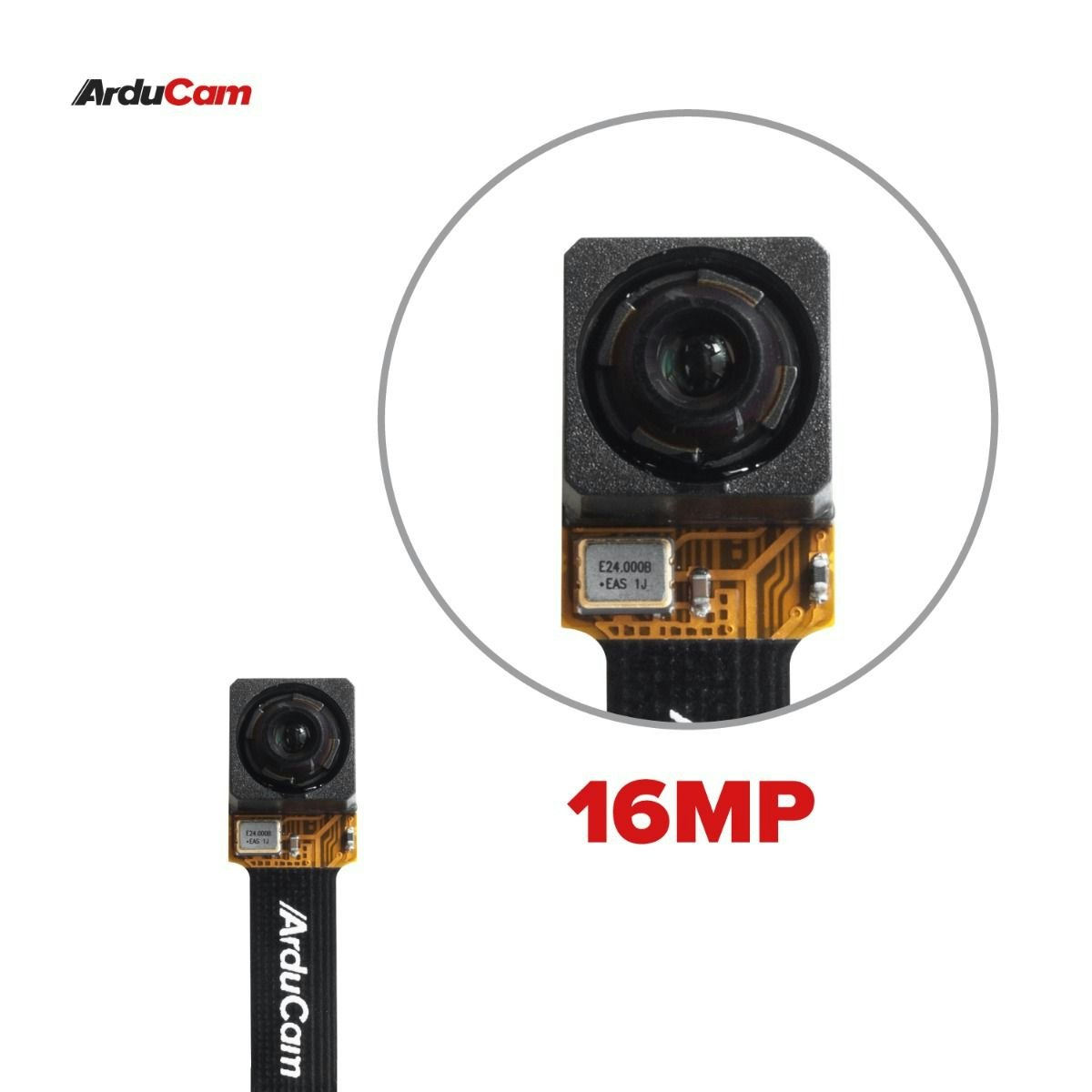

Arducam Mini 16MP IMX519 NoIR Camera Module for Raspberry Pi Zero

  • 499 kr

In order to meet the increasing need for Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on mini camera module that is fu

I lager.
Lagersaldo: 2
Artikelnummer: 1277
Dela
  • Information

In order to meet the increasing need for Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on mini camera module that is fully compatible with Raspberry Pi Zero.

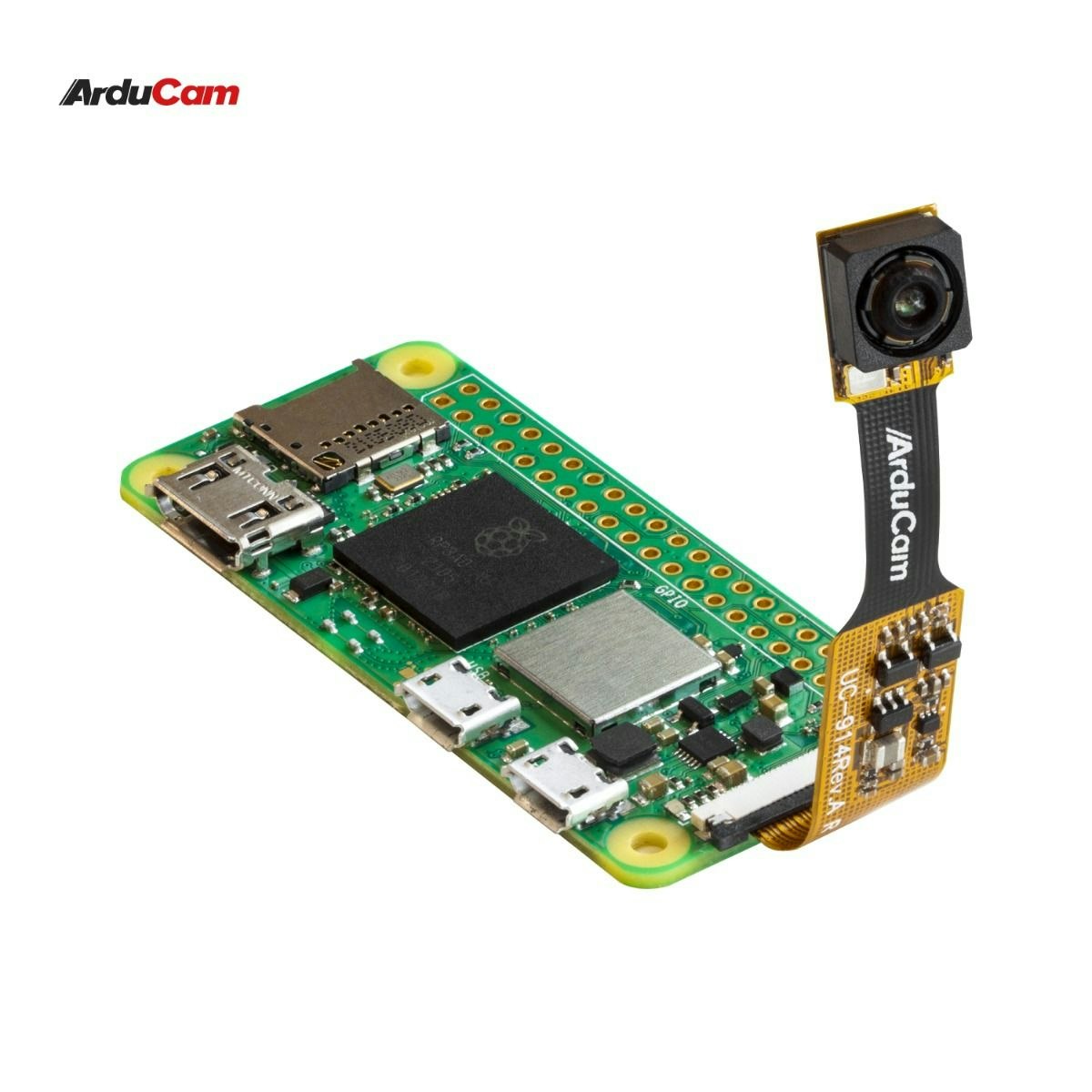

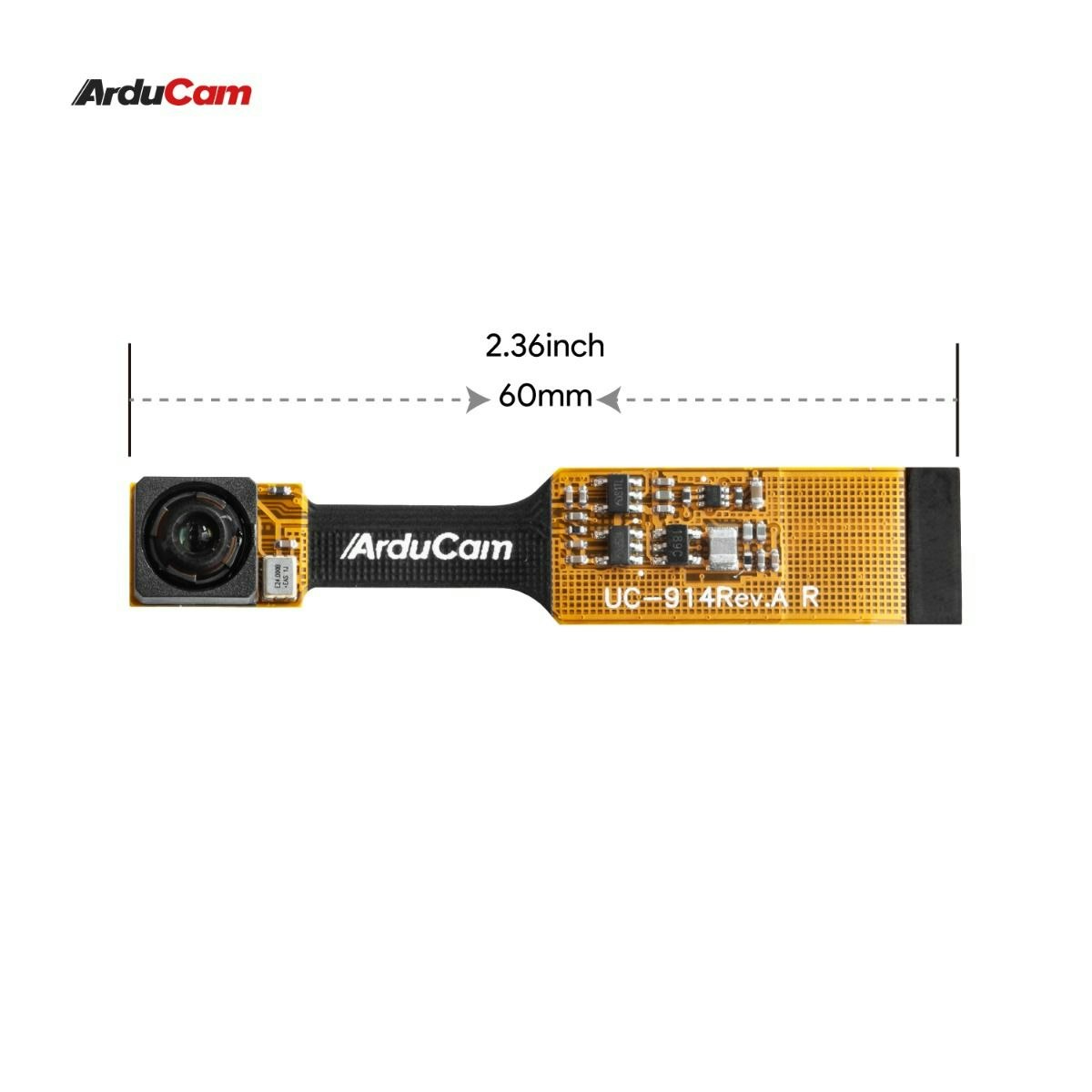

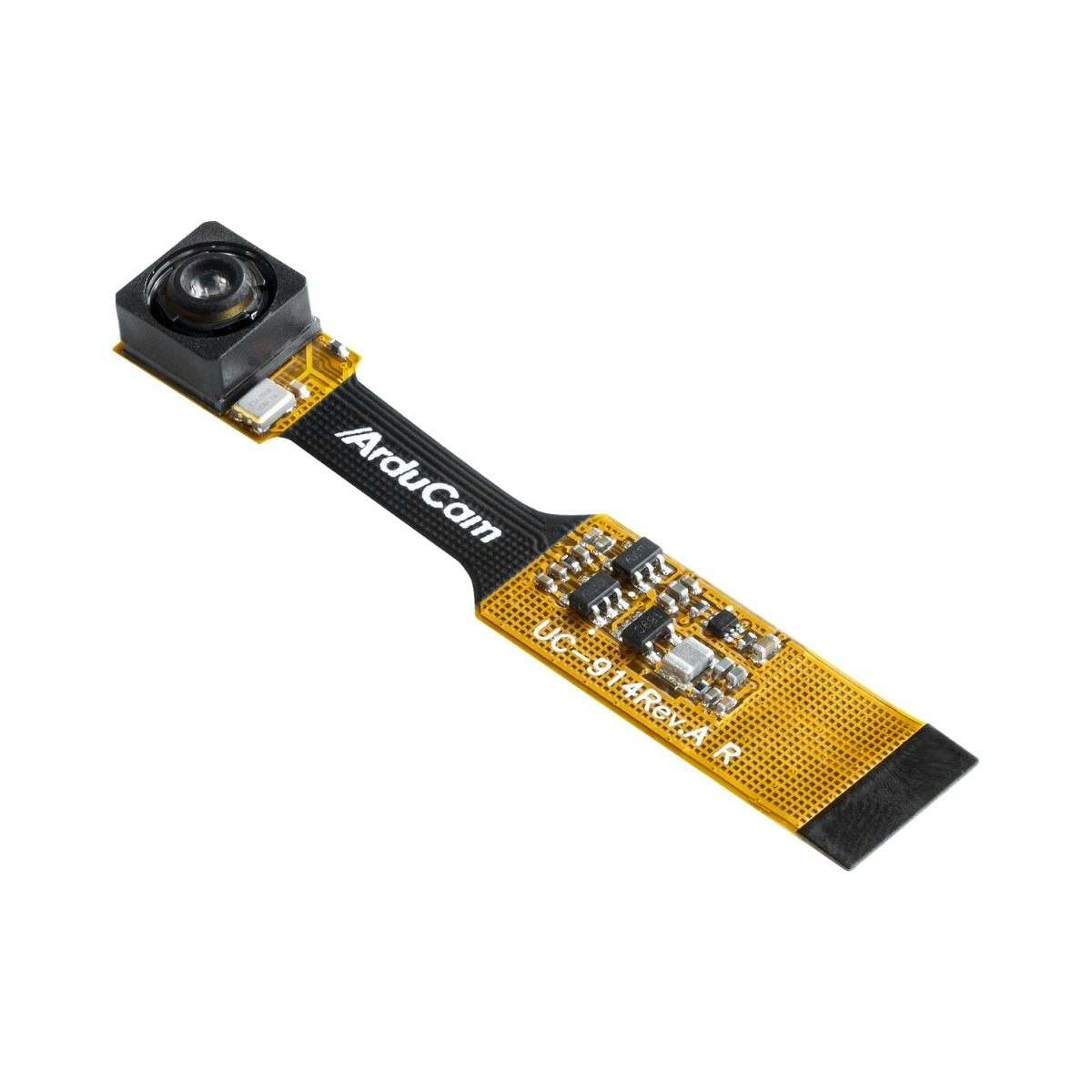

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance, or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor.



Application:

  • Cellular phones
  • PDAs
  • Toys
  • Other battery-powered products
  • Can be used in Raspberry Pi Zero

SPEC

SensorSony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534)
OutputRAW10/8, COMP8
Lens: f/1.75; EFL: 4.28; FoV: 80°
IR FilterWithout IR-cut filter, sensitive to infrared light
Video Modes
1080p@30fps, 720p@60fps
Linux integration
V4L2 driver available
Ribbon Cable Length
60mm



Documentation

How to Use 16MP IMX519 Camera Module on Raspberry Pi 3D Drawing
