Expansion Board for Raspberry Pi Pico

  • 175 kr

This Gravity Expansion Board, specifically designed for Raspberry Pi Pico, is compatible with a variety of Gravity sensors and modules.With all pins l

I lager.
Lagersaldo: 5
Artikelnummer: 1171
Dela

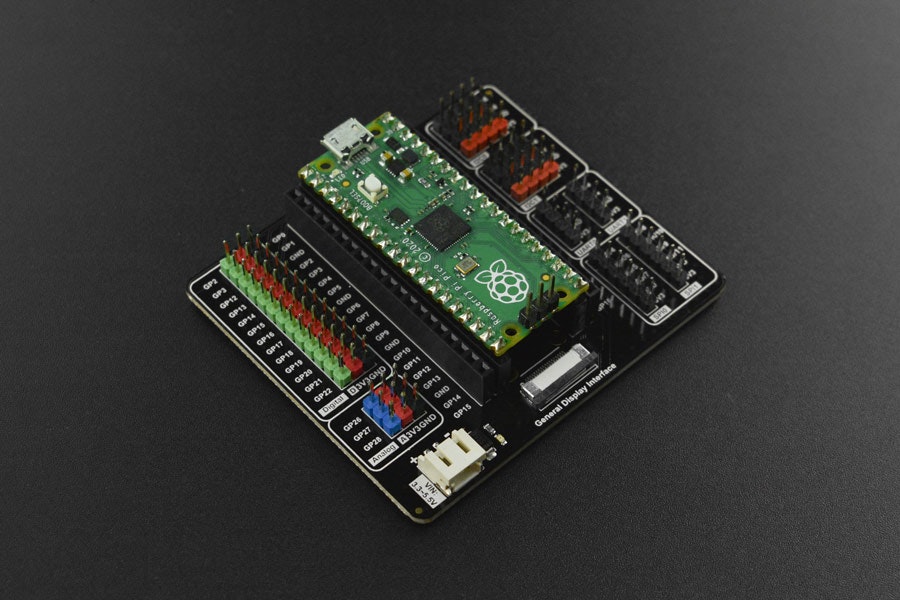

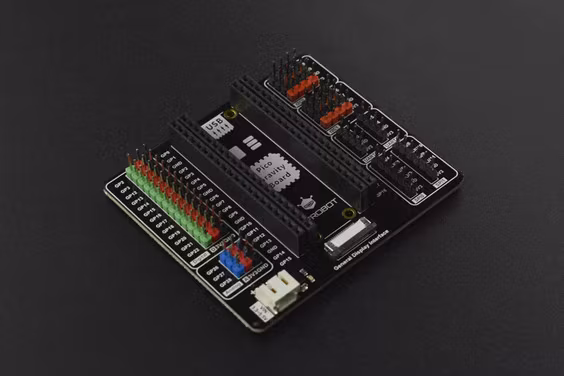

This Gravity Expansion Board, specifically designed for Raspberry Pi Pico, is compatible with a variety of Gravity sensors and modules.

With all pins led out, you can directly use it without soldering. Additionally, the board offers various communication ports including, 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs and 13 x digital IOs as well as a 3.3~5.5V power connector and GDI port, which provides you with an easier way to prototype.

Gravity Expansion Board for Raspberry Pi Pico

Gravity Expansion Board for Raspberry Pi Pico

Gravity Expansion Board for Pico

All pins brought out, no soldering required

Additional Communication Ports: Digital IO, Analog IO, I2C, SPI, UART, GDI

FEATURES

  • No need to weld, plug-and-play
  • Support all kinds of Gravity sensors and modules
  • Comes with 3.3~5.5 V PH2.0 power interface, applicable to mobile projects
  • Onboard GDI port, compatible with DFRobot - GDI series display

SPECIFICATION

  • All pins brought out onto female pin headers

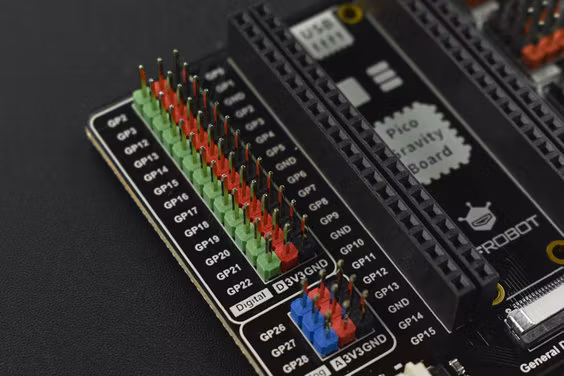

  • Digital IO x 13: GP2, GP3, GP12-22
  • Analog IO x 3: GP26-GP28
  • UART x 2
  • I2C x 2
  • SPI x 2
  • PH2.0 Power Connector: 3.3 V - 5.5 V
  • Display Screen Interface: GDI

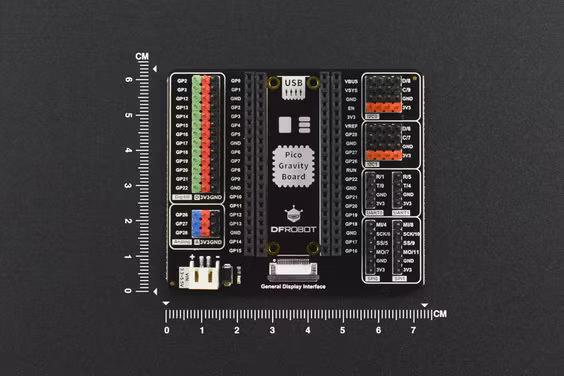

  • Dimension: 73.00x63.00 mm/28.74x24.8 inch

DOCUMENTS

SHIPPING LIST

  • Gravity: Expansion Board for Raspberry Pi Pico x 1
