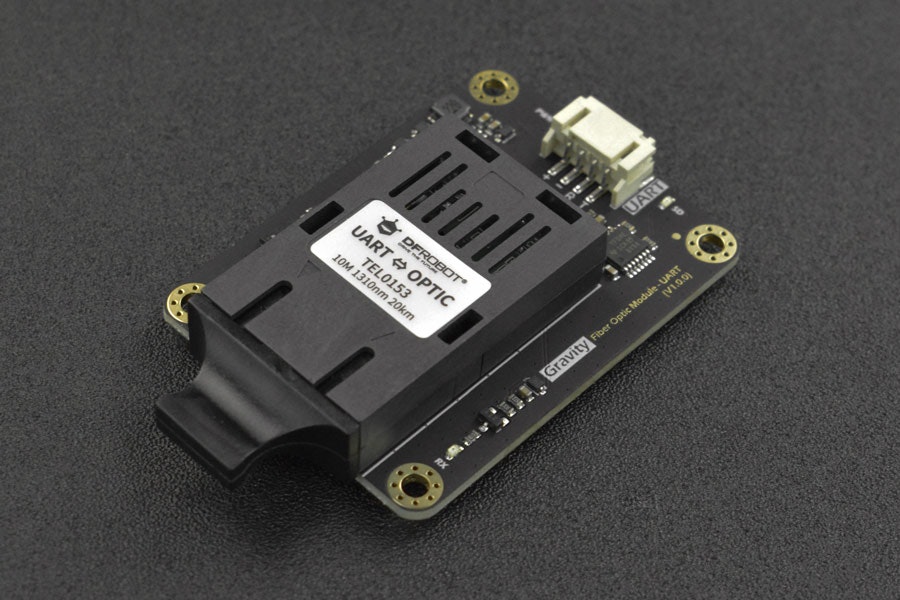

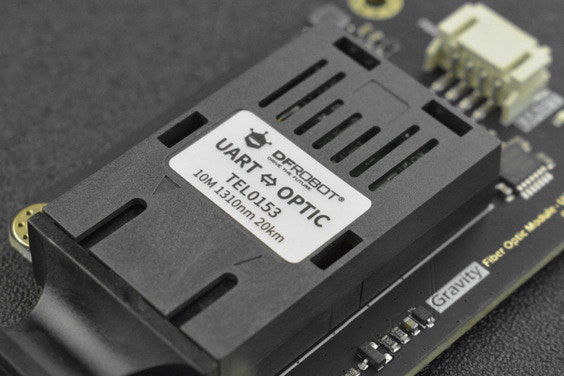

Gravity: UART Fiber Optic Transceiver Module

  • 385 kr

Still make do with the hard and thick shielded twisted pair for remote signal-transmitting? And even drop the baud rate again and again just for transmission st

I lager.
Artikelnummer: 1184
Dela
  • Information

Still make do with the hard and thick shielded twisted pair for remote signal-transmitting? And even drop the baud rate again and again just for transmission stability? Now get rid of these problems by using this Gravity: UART Fiber Optic Transceiver Module from DFRobot! With complete electrical isolation for preventing electromagnetic interference, this module runs at 2000000 baud at any time within a distance of up to 10km. Besides, it features lightning protection and can share cable trunking with strong power. Also, users can use it with a passive optical splitter to realize one-to-many star networking. Two transceiver modules for only half the price of shielded twisted pair can provide users with long-distance & interference-free fiber optic communication, good value for money!

New product contact us.

FEATURES

  • With complete electrical isolation
  • Lightning protection

APPLICATIONS

  • Fiber-optic communication
  • One-to-many star networking

Specification

  • Supply Voltage: 3.3V ~ 5V
  • Signal Voltage: 3.3V ~ 5V
  • Maximum Speed: 2000000 baud
  • Communication Distance: 10km
  • Operating Wavelength: 1310nm
  • Fiber Optic Type: Single Mode
  • Fiber Optic Interface: SC
  • Operating Temperature: 0~70℃

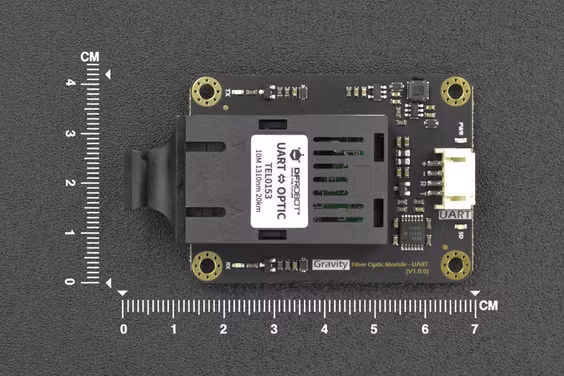

Interface & Pin

Pinout

NameDescription
Gravity: UARTUART interface, connect to MCU or sensor
PWR LEDPower indicator, turns ON when powered on
SD LEDIndicator for optical fiber disconnection, which lights up when the fiber optic disconnection is detected
TX LEDIndicator for fiber optic transmitting, which blinks when transmitting signal
RX LEDIndicator for fiber optic receiving, which blinks when receiving signal
SC Fiber Optic InterfaceConnect to SC fiber optic interface

SD LED can not show all the fiber disconnections or unstable transmissions. Please use a red pen, optical power meter and other tools to check error when a connection problem occurs.

Tutorial

Hardware Preparation

To build a fiber optic communication system, the following hardwares are required

  • TEL0153 Gravity: UART Fiber Optic Transceiver Module x 2
  • Single-mode dual-core fiber optic with SC interface

Wiring Instructions

For example, connect the MCU to a long-range sensor using the fiber optic module.

DOCUMENTS

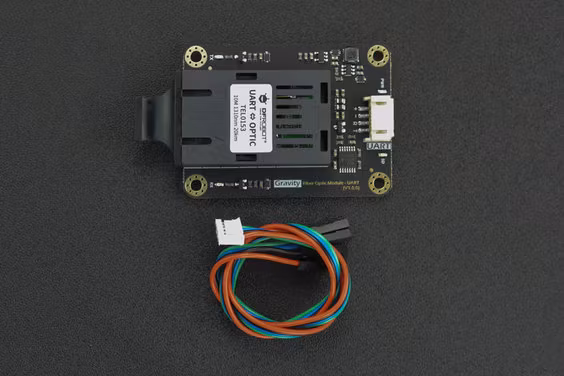

SHIPPING LIST

  • Gravity: UART Fiber Optic Transceiver Module x1
  • Gravity 4P Connector x1
