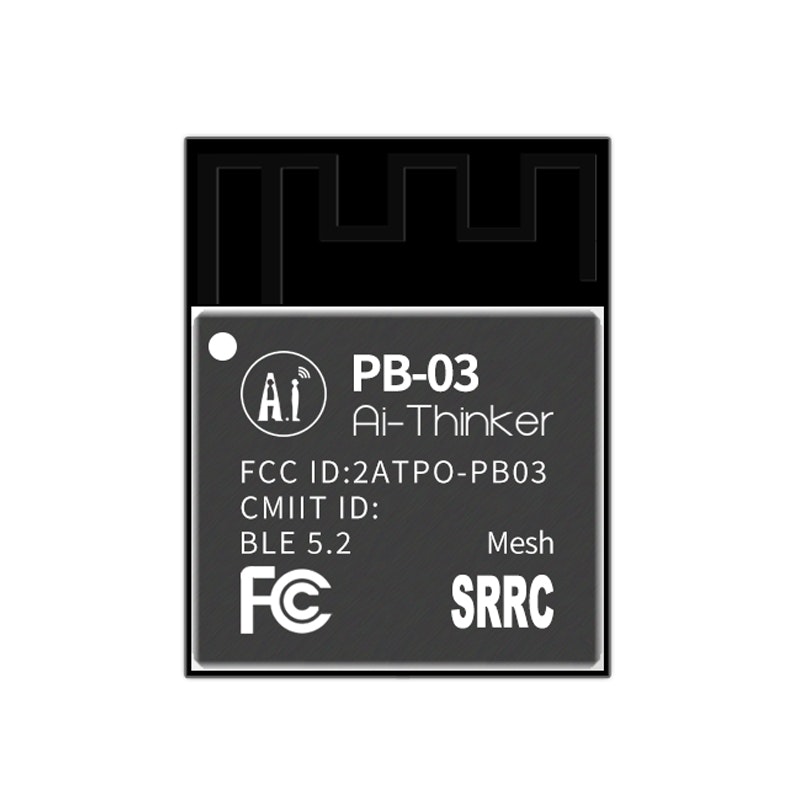

Ai-Thinker PB-03F Module BLE 5.2 with low power consumption

  • 99 kr

The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption,which is specially designed for various appli

I lager.
Lagersaldo: 10
Artikelnummer: 1140
Dela

The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low
power consumption,which is specially designed for various applications such as IoT,mobile
devices,wearable electronic devices and smart homes.

PB-03F module provide rich peripheral interfaces,including UART,PWM,ADC,I2C,SPI,PDM,DMA and up to 19 IOs.
PB-03F module has many unique hardware security mechanisms.Hardware encryption accelerator supports AES algorithm.
PB-03F module supports BLE with low power consumption:BLE 5.2 and BLE mesh.Bluetooth rate support:125Kbps,500Kbps,1Mbps,2Mbps.Support broadcast expansion,multi-broadcast,channel selection.

Specification

Model
PB-03F
Package
SMD-22
Size
24.0*16.0*3.1(±0.2)mm
Antenna
On-board antenna
Frequency Range
2400 ~ 2483.5MHz
Operating temperature
-40℃~85℃
Storage environment
-40 ℃ ~ 125 ℃,< 90%RH
Power supply range
Voltage 2.7V~3.6V,Current>200mA
Support Interface
UART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMA
IO
19
UART Rate
Default 115200 bps
BlE
BLE 5.2
Security
AES-128
Flash
256KB
