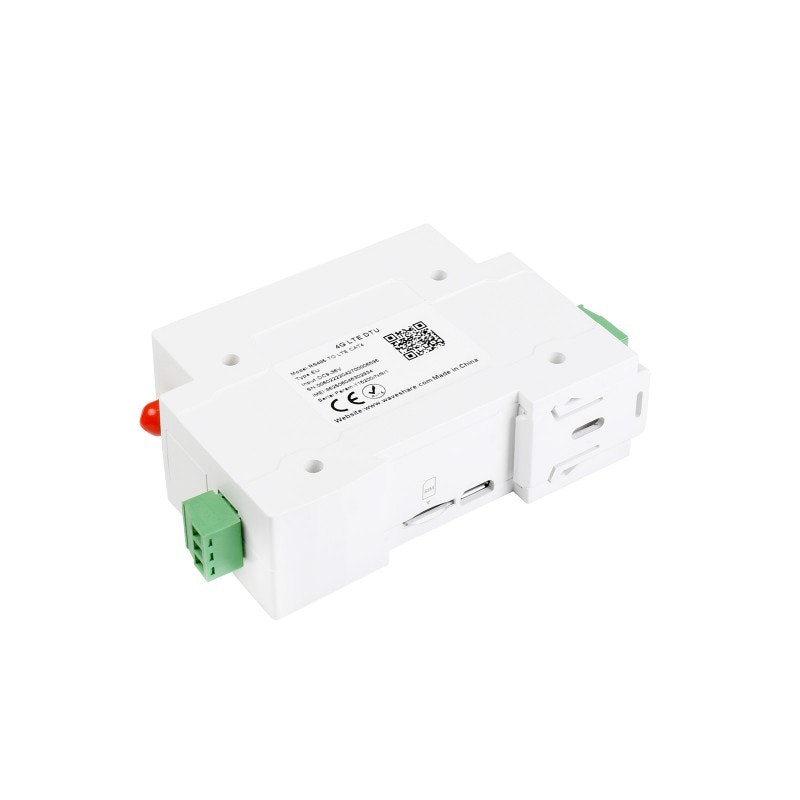

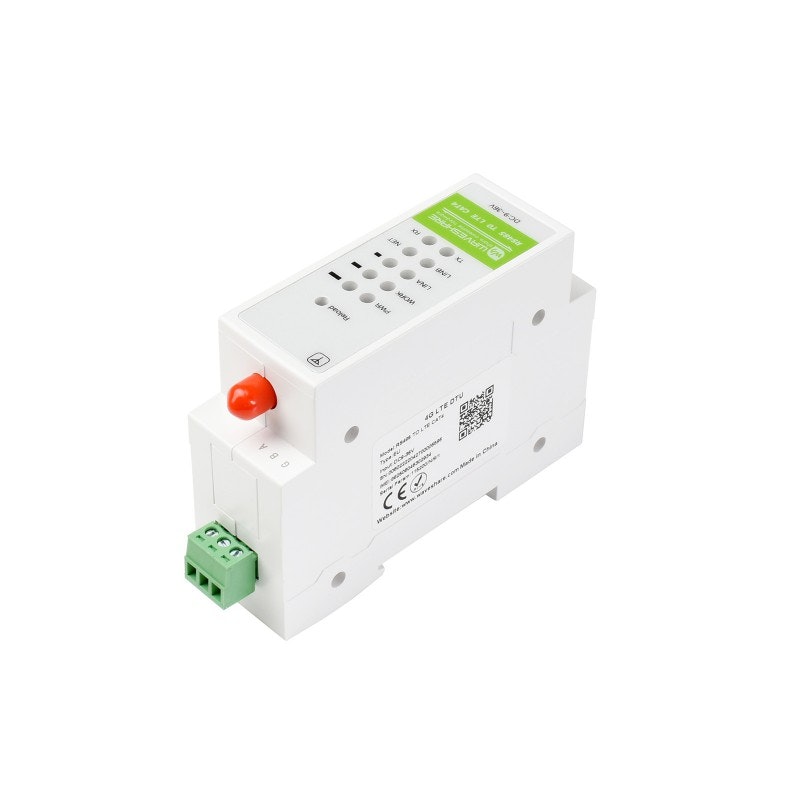

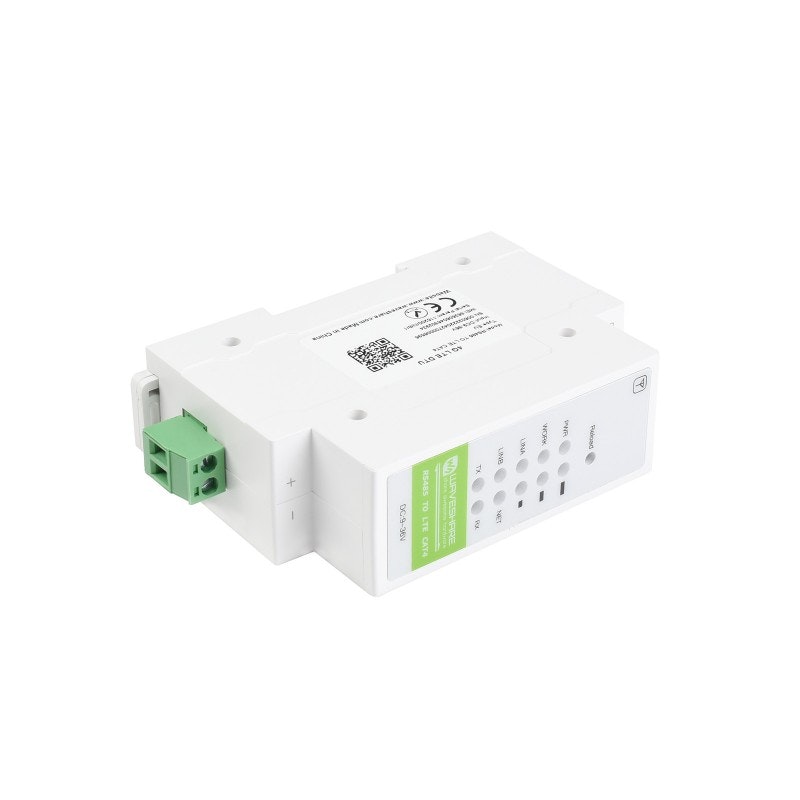

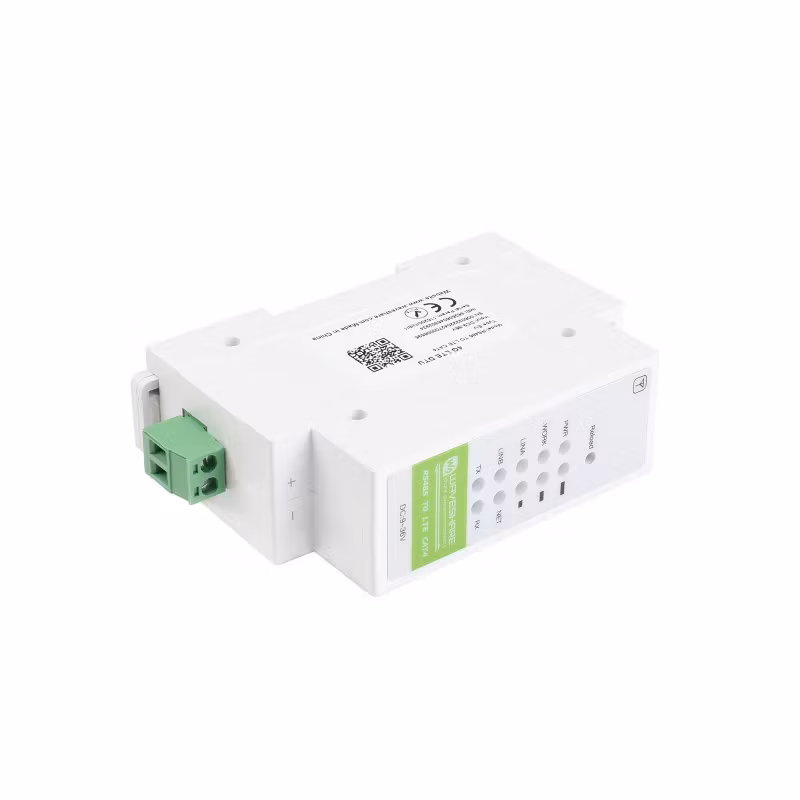

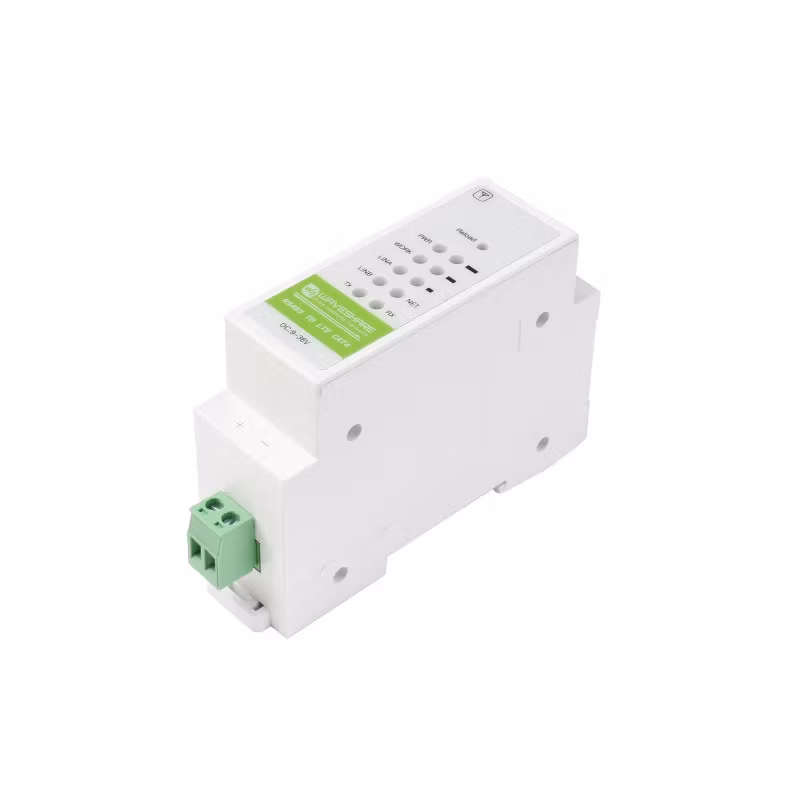

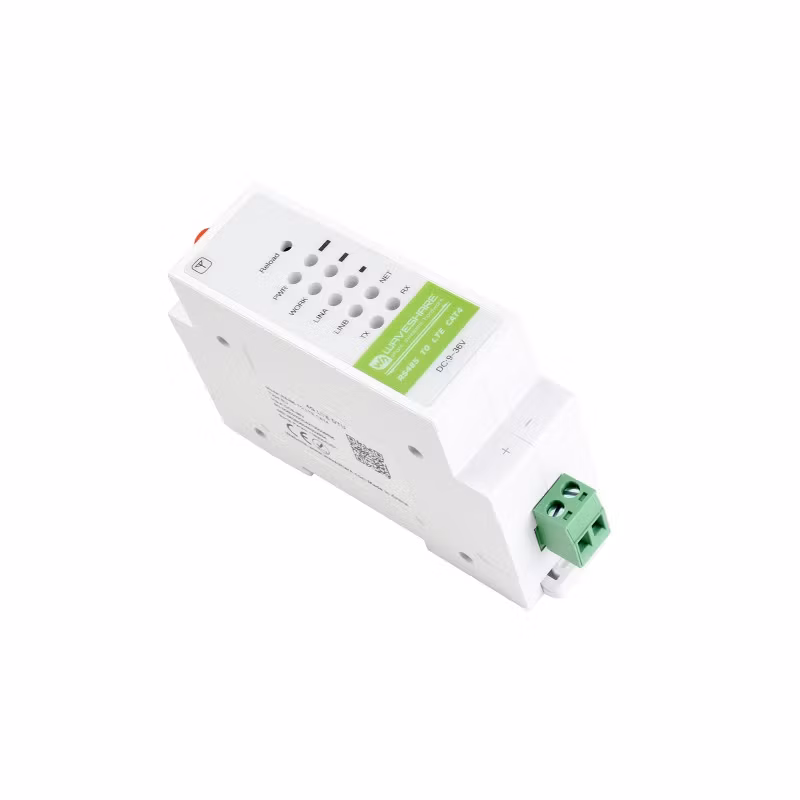

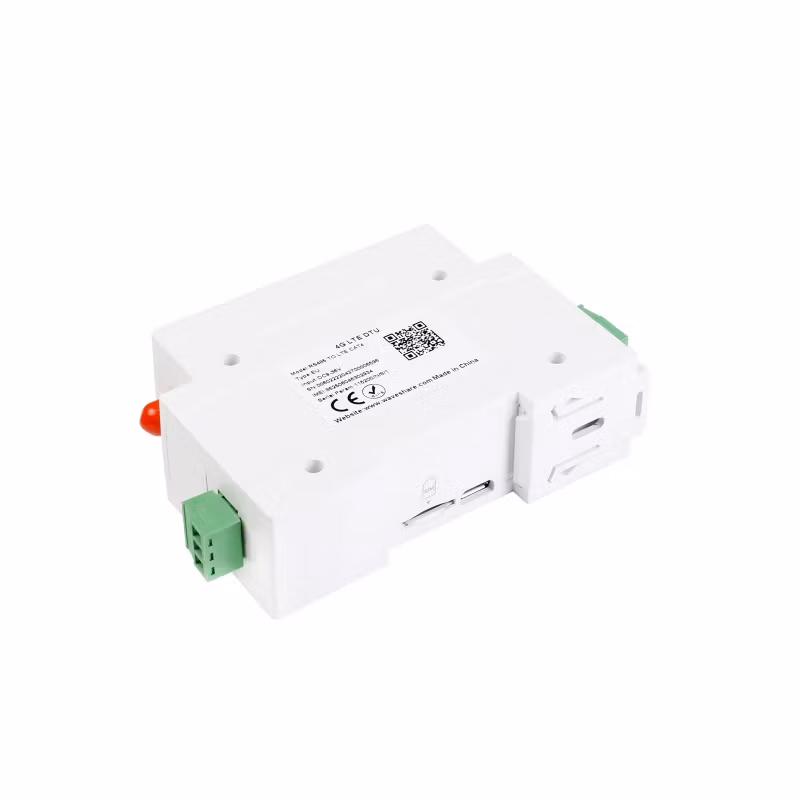

Industrial 4G DTU, RS485 TO LTE CAT4, DIN Rail-Mount, for EMEA

  • 999 kr

Industrial 4G DTU, RS485 TO LTE CAT4, DIN Rail-Mount SupportRS485 TO LTE CAT4, Industrial Rail-Mount 4G DTU follow with  12V 2A Industrial DIN-Rail Power S

I lager.
Artikelnummer: 21967
Dela

Industrial 4G DTU, RS485 TO LTE CAT4, DIN Rail-Mount Support

RS485 TO LTE CAT4, Industrial Rail-Mount 4G DTU follow with  12V 2A Industrial DIN-Rail Power Supply, AC/DC Converter.



Features At A Glance

The RS485 TO LTE CAT4 (EU) is a DIN Rail mounted RS485 cellular modem with European bands, which can realize the data transmission between RS485 and 4G Network. Reliable Serial to 4G Cellular Communication. With RS485 interfaces, full network coverage, wide temperature and wide voltage, multi center transmission. Provides wireless data communications between field serial devices and the central control system to enable remote control of industrial field sites. It is ideal for M2M and IoT applications including distribution automation, smart metering, water & wastewater, heating, street light monitoring and etc.

Specifications

Models
RS485 TO LTE CAT4 (EU)
Applicable regions
EMEA, Korea, Thailand, India, Southeast Asia
LTE Category
LTE Cat.4
Frequency Bands
LTE FDD
B1/B3/B7/B8/B20/B28A
LTE TDD
B38/B40/B41
WCDMA
B1/B8
GSM
B3/B8
Transmission Speed
LTE-FDD
150Mbps(DL)/50Mbps(UL)
LTE-TDD
130Mbps(DL)/30Mbps(UL)
DC-HSDPA
42Mbps (DL)
HSUPA
5.76Mbps (UL)
WCDMA
384Kbps(DL)/384Kbps(UL)
GSM(EDGE)
296Kbps (DL)/236.8Kbps (UL)
GSM (GPRS)
107Kbps (DL)/85.6Kbps (UL)
Serial Parameters
Interface form
RS485(Terminal)*1
Data Bits
8
Stop Bits
1,2
Parity Bits
NONE,ODD,EVEN
Baud Rate
2400~230400
Physical Interfaces
SIM/USIM card
1.8V/3V

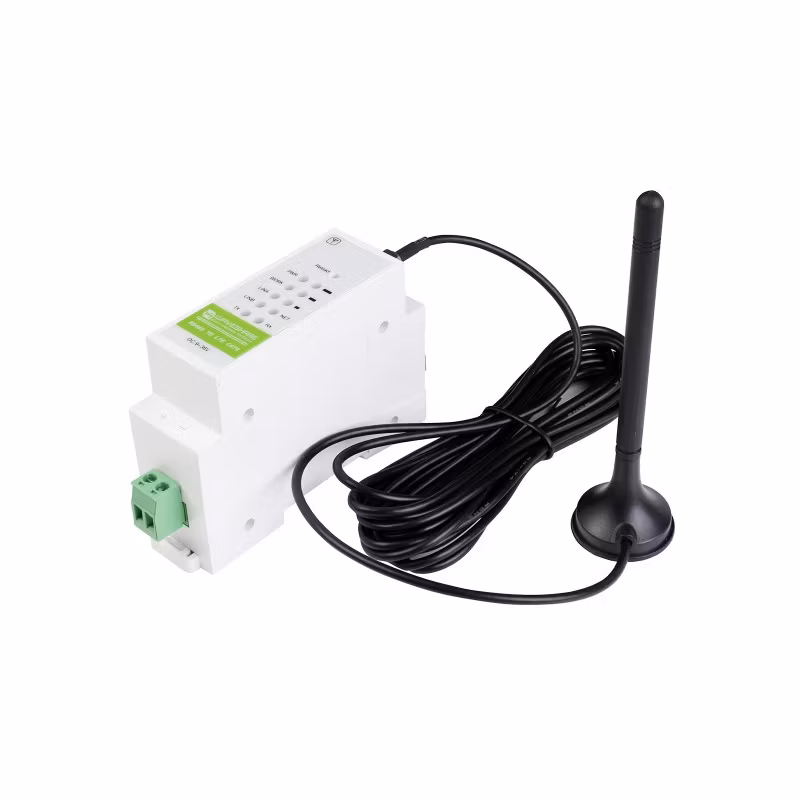

Antenna
SMA Female
USB
USB 2.0
Indicators
POWER,WORK,NET,LINK,RSSI
Reload
Button
Hardware Characteristics
Input Voltage
9V~36V
Connector
Terminal
Housing material
ABS Plastic
Dimensions(mm)
L × W × H: 109.66 × 28 × 64.71 mm
Operating temperature
-30℃~+75℃
Storage Temperature
-40℃~+85℃
Operating humidity
5%~95%
Storage humidity
5%~95%

Primary Function

RS485 Port, Realizing Data Transmission Between RS485 And 4G Network

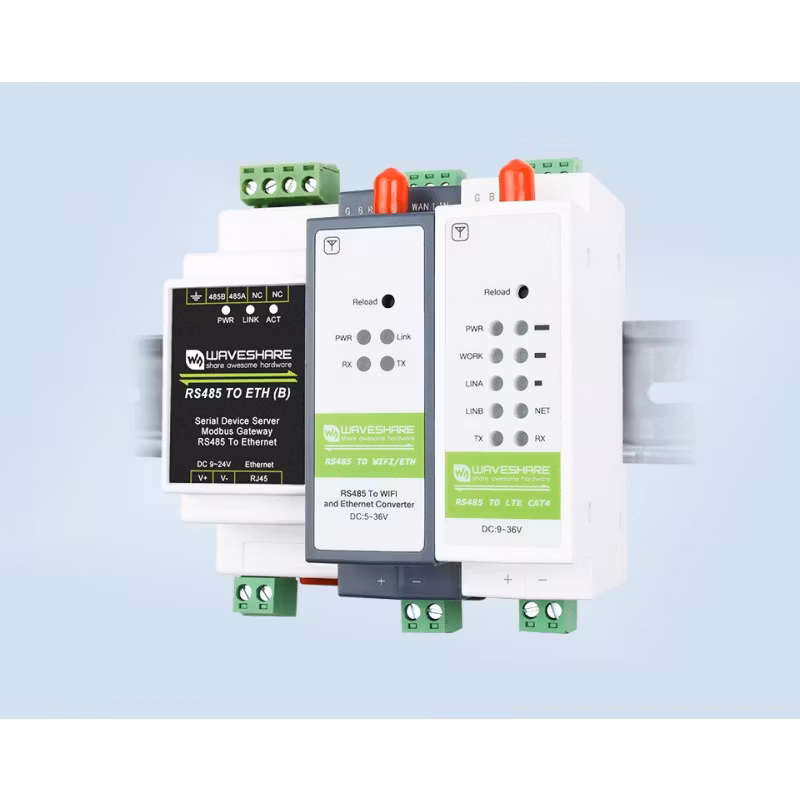

Rail-Mount Serial Server

DIN Rail-Mount Support, Tiny Size, Easy Installation, Cost Effective

Function Block Diagram

Multi Working Modes



Feature Functions


Multi Configuration Ways
Support configuration via host computer, webpage, and serial port

Socket Distribution
On transparent transmission mode, the serial device can send data to specified Socket connection, and network data of each Socket connection can be sent to serial device via serial port

Hardware Protection
Level 4 ESD protection, Level 3 surge protection, Level3 EFT protection

User-defined Hartbeat/Registration Packet
Registration packet can be used to register the device on server, make it easy for the server to identify the device

Outline Dimensions

Wiki: www.waveshare.com/wiki/RS485_TO_LTE_CAT4_(EU)

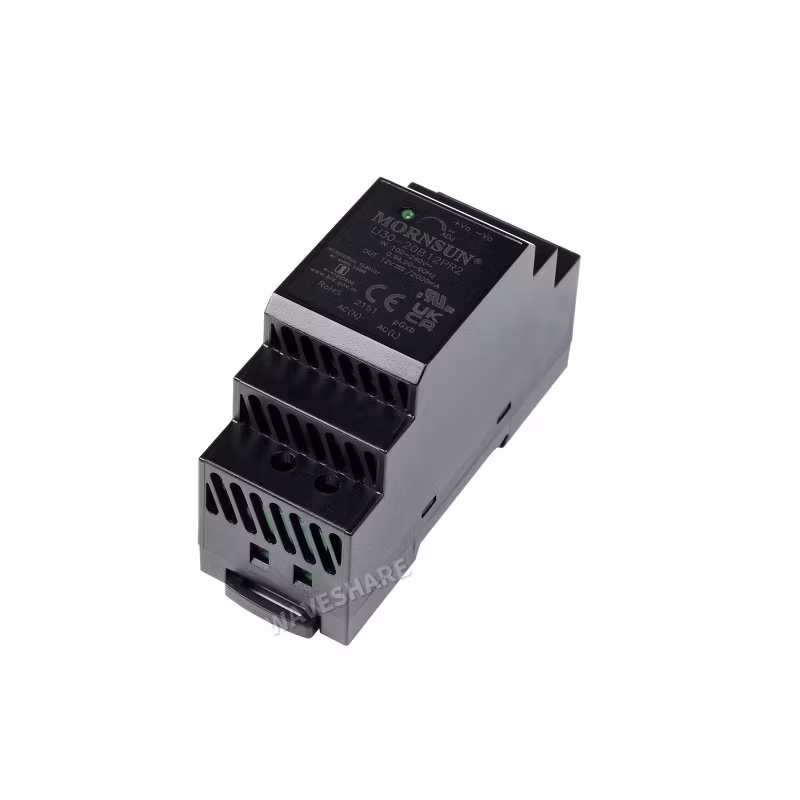

12V 2A Industrial DIN-Rail Power Supply, AC/DC Converter


OUTPUT POWER24 W
INPUT VOLTAGEAC 85 ~ 264 V
DC 120 ~ 370 V
OUTPUT VOLTAGEDC 12 V
OUTPUT CURRENT2 A
ISOLATION VOLTAGEAC 4000 V
PROTECTIONoutput short circuit, over-current, over-voltage protection
DIN-RAIL STANDARDTS35X7.5/TS35X15 mountable
PACKAGE DIMENSIONS92.66*35.00*58.00 (mm)
CERTIFICATIONcompliant with international standards IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC62368
OPERATING TEMPERATURE-40℃ ~ +70℃


Wiki: LI30-20B12PR2


Shipping list

  1. LI30-20B12PR2 x1
  2. RS485 TO LTE CAT4 (EU) x1
