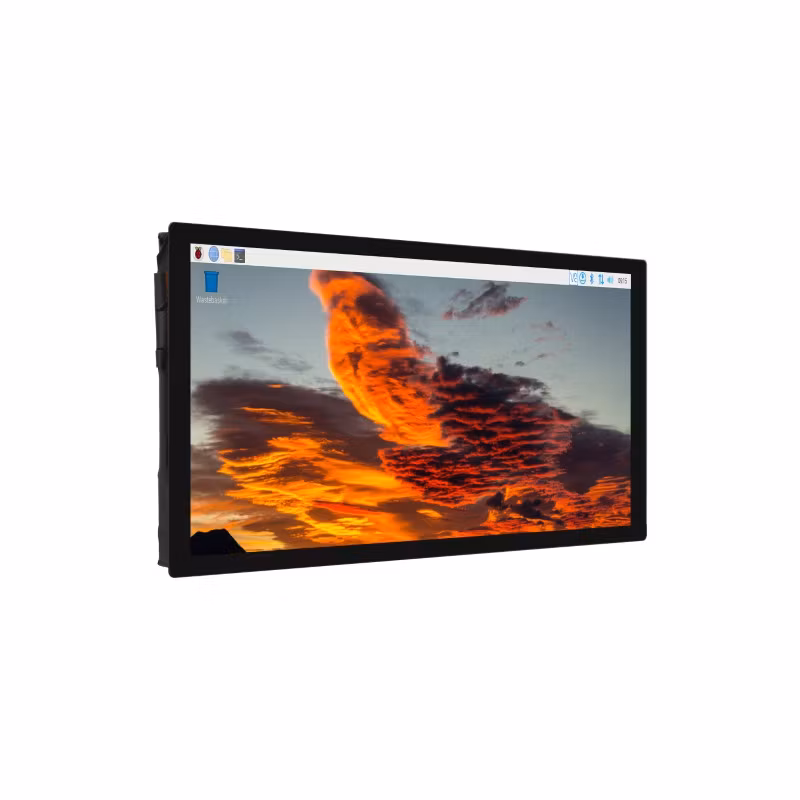

9.3inch Capacitive Touch Display, High Brightness, 1600×600, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS

  • 1 199 kr

 9.3-tums kapacitiv touch-LCD (1600x600) är en kompakt IPS-skärm med hög ljusstyrka (800 cd/m²), HDMI-ingång och 10-punkts-touch för Raspberry Pi, Windows

I lager.
Artikelnummer: 24644
Dela
  • Information

 9.3-tums kapacitiv touch-LCD (1600x600) är en kompakt IPS-skärm med hög ljusstyrka (800 cd/m²), HDMI-ingång och 10-punkts-touch för Raspberry Pi, Windows och liknande.9.3″ Touch Display. High Resolution | Multi-Point Touch | Full Color



  • Size9.3″
  • Resolution1600×600
  • Display InterfaceHDMI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PortUSB Type-C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • OSD MenuBrightness/Contrast
  • BrightnessSupports DDC/CI control
  • Brightness800cd/m²
  • Audio Output 13.5mm Jack
  • Audio Output 24PIN Header

Device & System Support




Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working with Raspberry Pi 4B


Working with Raspberry Pi 3B+


Working with Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable


Working with Jetson Nano


Working with PC


for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


Capacitive 10-Point Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Supports DDC/CI brightness adjustment


Interface Introduction



Product Show



Dimensions



Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display


* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/9.3inch_1600x600_LCD

Shiping list

Weight: 0.712 kg

  1. 9.3inch 1600x600 LCD ×1
  2. HDMI flat cable ~1m ×1
  3. USB-A to USB-C cable ~1m ×1
  4. HDMI adapter ×1
  5. USB to Type-C adapter (B) ×1
  6. HDMI to Micro HDMI adapter ×1
  7. USB to Type-C adapter (C) ×1
  8. Button board ×1
  9. Button board cable ×1
  10. OPTIONS 5V 3A Type C Power supply ×1
  11. Screws pack ×1
