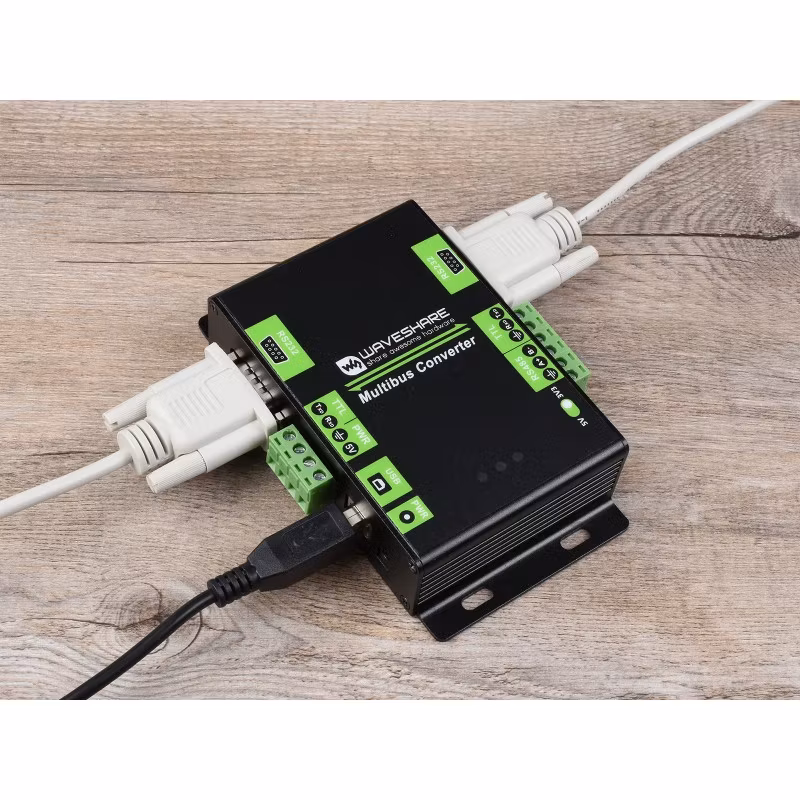

Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication
- 399 kr
Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication. The Multibus Converter is an industrial-grade isolated converter that sup
Produkten är tyvärr slut i lager. :(
Artikelnummer:
21411
Industrial Isolated Multi-Bus Converter, USB / RS232 / RS485 / TTL Communication.
The Multibus Converter is an industrial-grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipment and/or applications with high communication requirements.
Features At A Glance
The Multibus Converter is an industrial grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and/or applications with high communication requirement.
- Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility
- Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)
- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
- Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal
- Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable
Specifications
| PRODUCT TYPE | Industrial Isolated Multi-bus USB/RS232/RS485/TTL Converter | ||
|---|---|---|---|
| DATA RATE | 300 ~ 921600bps 300 ~ 600000bps (RS232 to RS232) | ||
| GROUP A | USB | Operating voltage | 5V |
| Connector | USB-B | ||
| Protection | 200mA resettable fuse, isolated output | ||
| RS232 | Connector | DB9 male | |
| Protection | TVS protection, surge-suppress, ESD protection | ||
| Transmission mode | point-to-point | ||
| TTL (UART) | Operating voltage | 5V | |
| Connector | screw terminal | ||
| Pinout | TXD, RXD, GND, 5V | ||
| Protection | clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jamproof | ||
| GROUP B | RS485 | Connector | screw terminal |
| Pinout | A+, B-, GND | ||
| Direction control | hardware auto control | ||
| Protection | lightningproof, surge-suppress, ESD protection | ||
| Transmission mode | point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | ||
| RS232 | Connector | DB9 male | |
| Protection | TVS protection, surge-suppress, ESD protection | ||
| Transmission mode | point-to-point | ||
| TTL (UART) | Operating voltage | 3.3/5V | |
| Connector | screw terminal | ||
| Pinout | TXD, RXD, GND | ||
| Protection | clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jamproof | ||
| OPERATING ENVIRONMENT | Temperature | -25℃ ~ 85℃ | |
| Humidity | 5%RH ~ 95%RH | ||
| OS SUPPORT | Windows 11 / 10 / 8.1 / 8 / 7 / XP | ||
| NOTE | only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time | ||

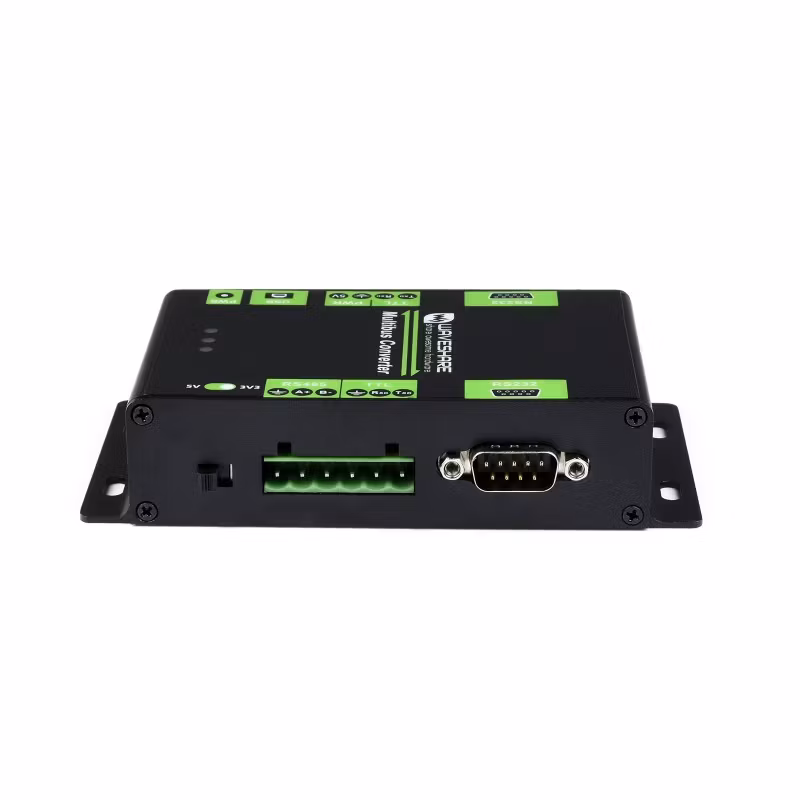

Interface Introduction
Multi-Protocol Multi-Bus Conversion
Transmitting data from Group A terminals to Group B
Transmitting data from Group B terminals to Group A
- Terminals in the same group cannot communicate with each other.
- Terminals in the same group cannot send data at the same time, while concurrently receiving is allowed.

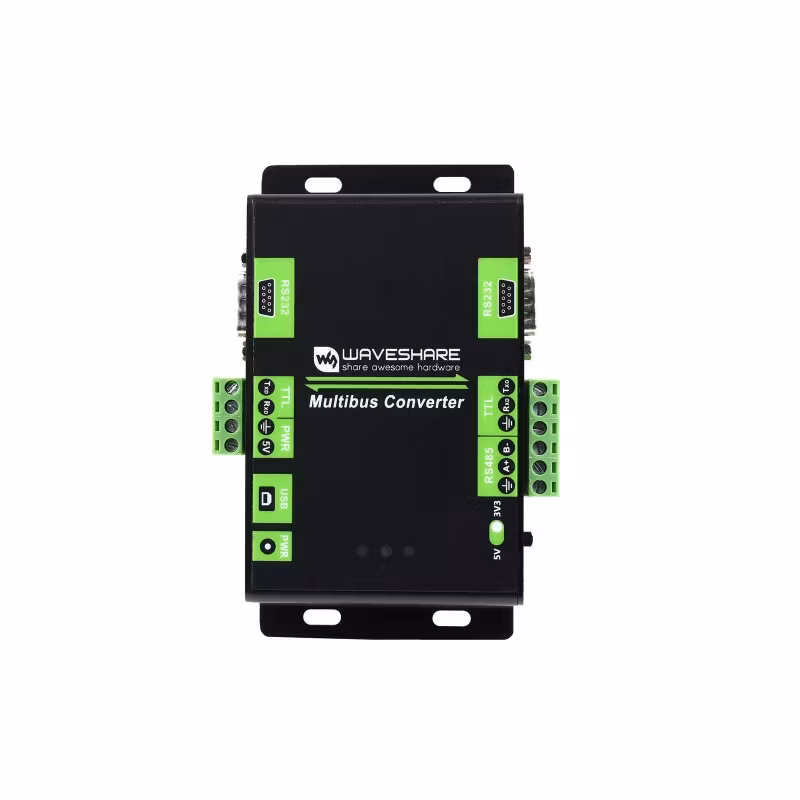

Pinout Definition
Operating Status Indicators
3x LED Indicators For Easily Checking Power Connection And Signal TX/RX Statuses

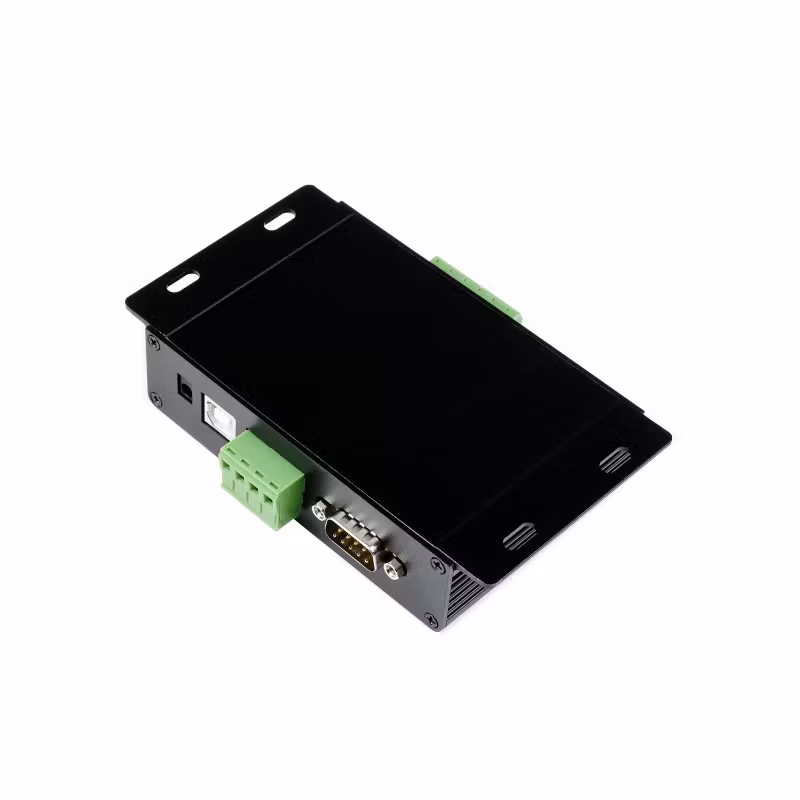

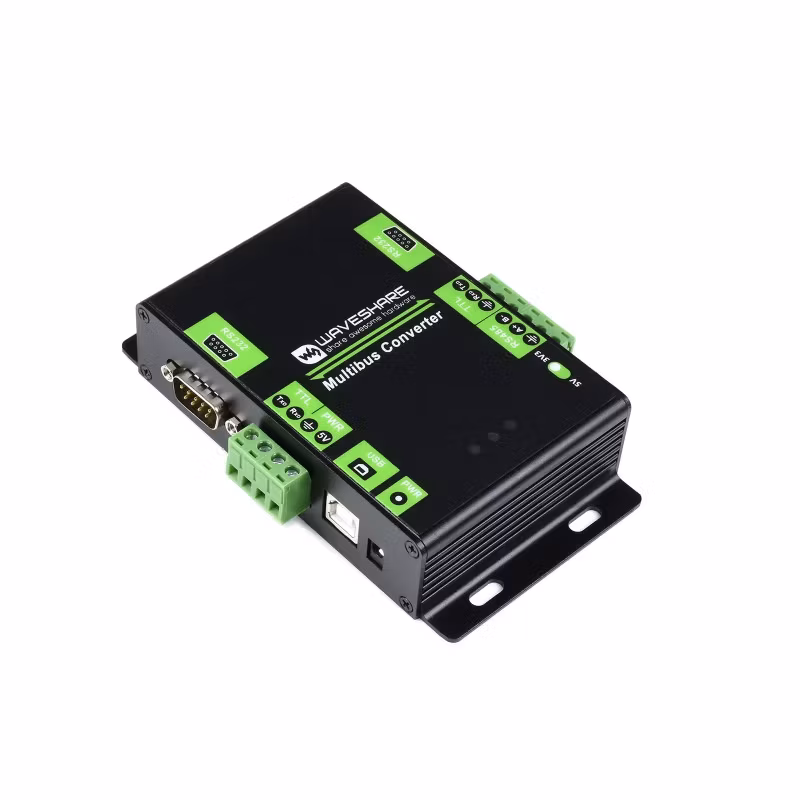

Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Oxidation Dull-Polish Surface,
Solid And Durable, Nice Looking
Outline Dimensions
Wiki: Multibus_Converter
Shipping list
Weight: 0.245 kg
- Multibus Converter x1
- USB cable (~1.2m) x1
