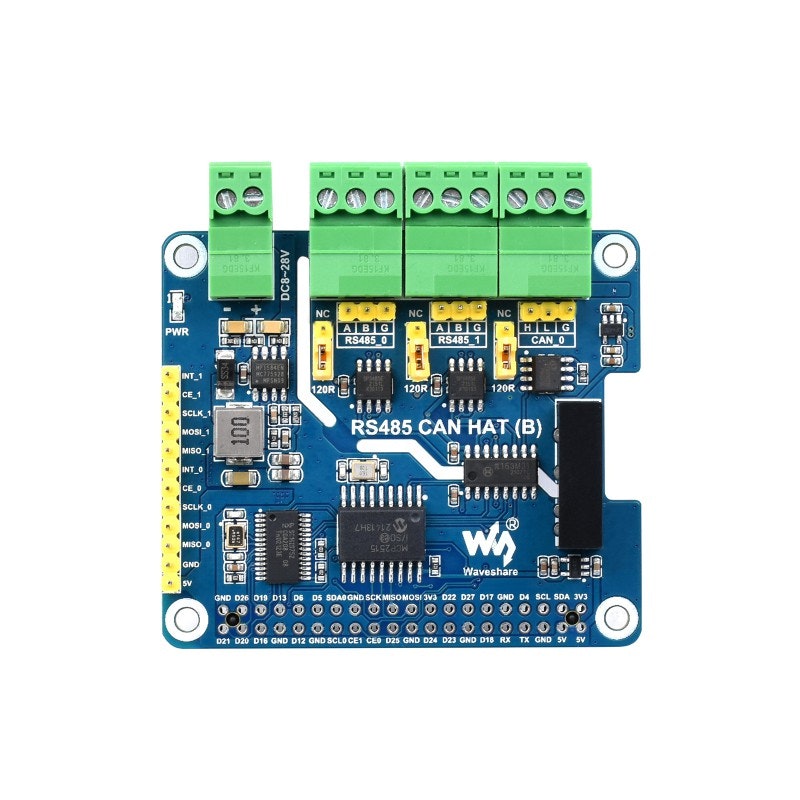

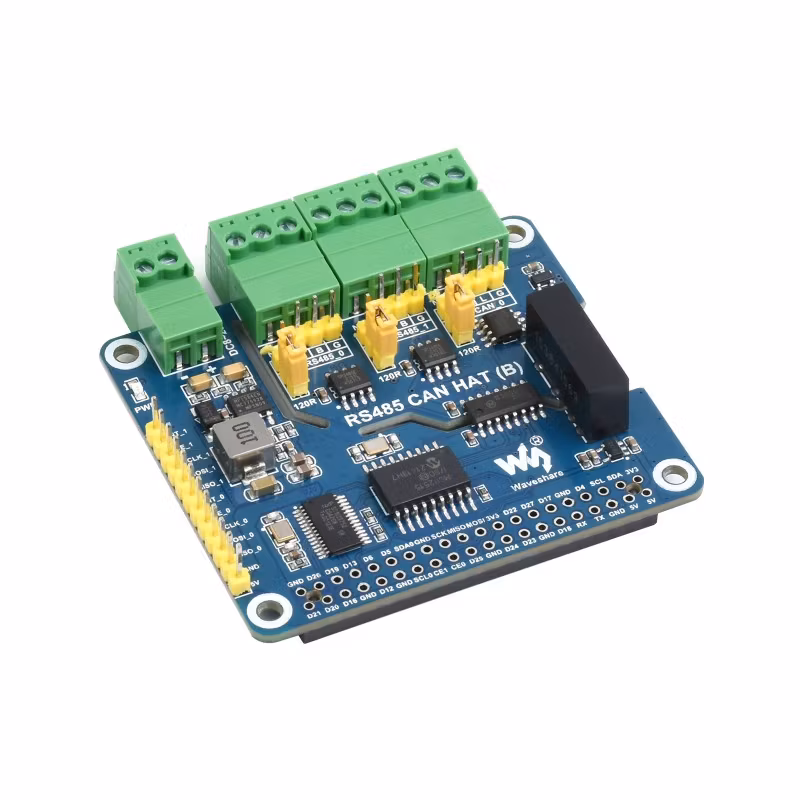

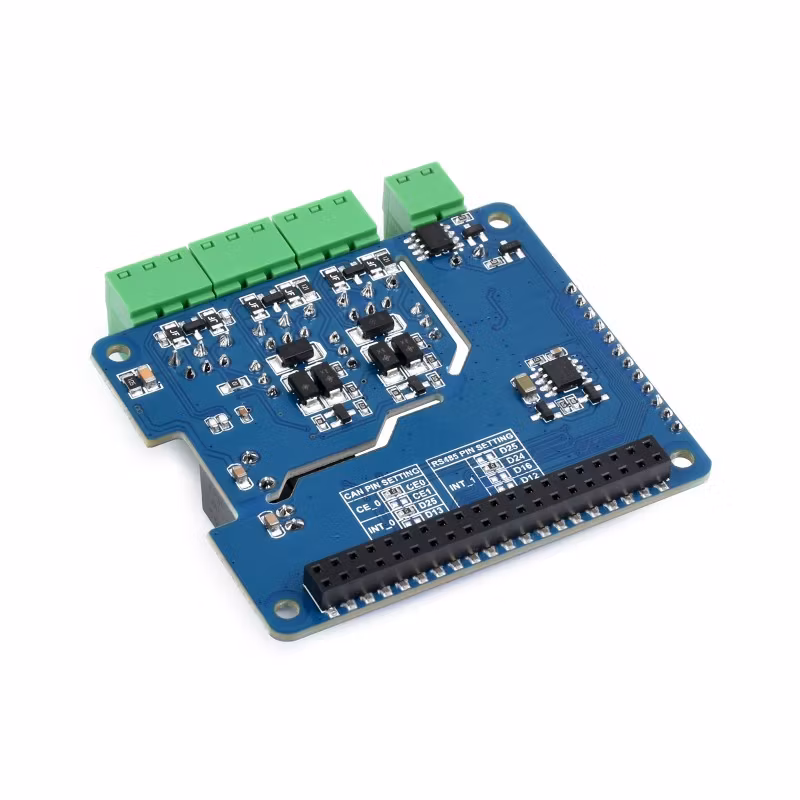

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 And 1-Ch CAN, Multi Protections

  • 399 kr

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 And 1-Ch CAN, Multi Protections. Isolated RS485 CAN HAT (B) For Raspberry Pi. 2-Ch RS485 and 1-Ch C

I lager.
Lagersaldo: 8
Artikelnummer: 23227
Dela

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 And 1-Ch CAN, Multi Protections. Isolated RS485 CAN HAT (B) For Raspberry Pi. 2-Ch RS485 and 1-Ch CAN, SPI communication. Bulit-In Power Supply Isolation, ADI Magnetical Isolation, And TVS Diode, Etc.

Features At A Glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
  • 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
  • Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
  • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
  • Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Onboard 120Ω terminal resistor, configured by jumper
  • Onboard terminals and pin headers, more convenient connection
  • Breakout SPI control pins, for connecting with host control boards

Specifications

EXPANDED INTERFACE2-Ch RS485 + 1-Ch CAN
COMMUNICATION INTERFACESPI
CAN CONTROLLERMCP2515
CAN TRANSCEIVERSIT65HVD230DR/SN65HVD23D
CAN BAUD RATE≦1Mbps
UART EXPANSION CHIPSC16IS752
RS485 TRANSCEIVERSP3485
RS485 BAUD RATE300~921600 bps
POWER SUPPLYExternal power supply terminal OR Raspberry Pi
EXTERNAL POWER SUPPLY RANGEDC 8~28V
OPERATING VOLTAGE3.3V
DIMENSIONS65 × 56.5 mm

What Can It Do?

Enable Isolated And Stable RS485 And CAN Capability For Your Raspberry Pi

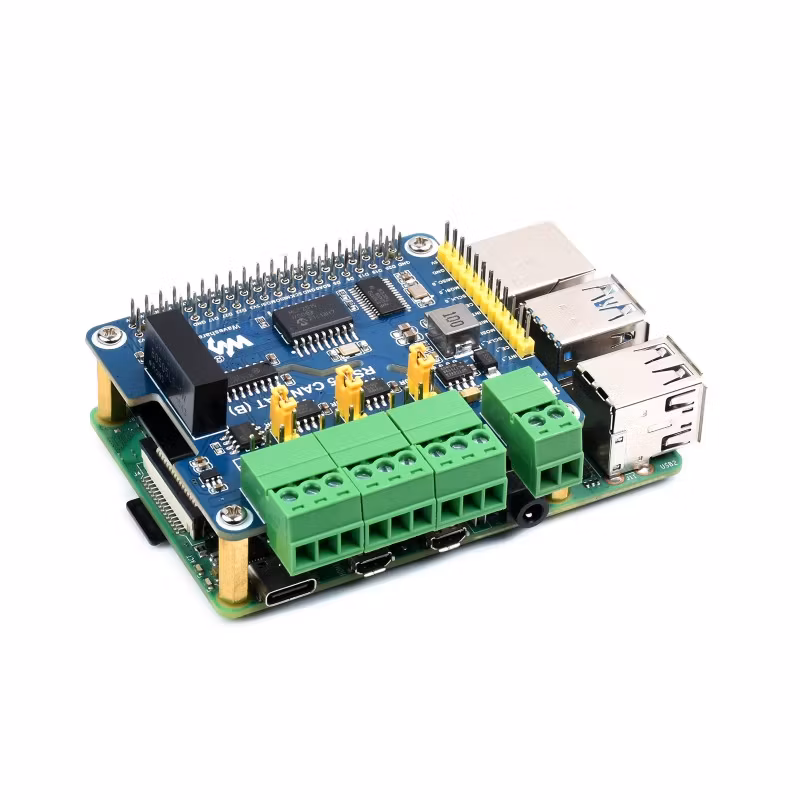

Connect To Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

Expand 1-Ch CAN And 2-Ch RS485

CAN: Adopts Controller MCP2515 With CAN Transceiver
RS485: Adopts SC16IS752 And SP3485 Dual-Chip Combination

Industrial Grade Isolation Protection

  • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
  • Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption

What's On Board

Chip Features

  1. MCP2515
    CAN controller
  2. SIT65HVD230DR/SN65HVD23D
    CAN transceiver
  3. SP3485
    RS485 transceiver
  4. SC16IS752
    UART expansion
  5. π163M31
    digital isolator
  6. B0505LS-1W
    Power supply isolation



Others

  1. Power supply interface
    DC 8~28V, can power the HAT and Raspberry Pi
  2. RS485 bus interface
    Connect via screw terminals/pin header
  3. CAN bus interface
    Connect via screw terminals/pin header
  4. Raspberry Pi GPIO header
  5. SPI control header
    for connecting with host boards like STM32/Arduino
  6. CAN terminal resistor jumper
    Switch to 120Ω by default
  7. RS485 Terminal resistor jumper
    Switch to 120Ω by default
  8. Power Indicator

Pin Definition

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/RS485_CAN_HAT_(B)

Shipping list

Weight: 0.05 kg

  1. RS485 CAN HAT (B) x1
  2. 2x20PIN female header x1
  3. Screws pack x1
