Luckfox Pico Mini RV1103 Linux Micro Development Board

  • 249 kr

Luckfox Pico Mini RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors SpecificationsProcessorCortex [email protected]

I lager.
Lagersaldo: 1
Artikelnummer: 1300

Luckfox Pico Mini RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors



ProcessorCortex [email protected] + RISC-V
NPU0.5TOPS, supports int4, int8 and int16
ISPInput 4M @30fps (Max)
Memory64MB DDR2
USBUSB 2.0 Host/Device
CameraMIPI CSI 2-lane
GPIO17 × GPIO pins
Default StorageMini A: TF card (Not included)

Version And Pinheader Options

Exquisite Appearance, Compact Size

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
  • Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY

Easier To Develop

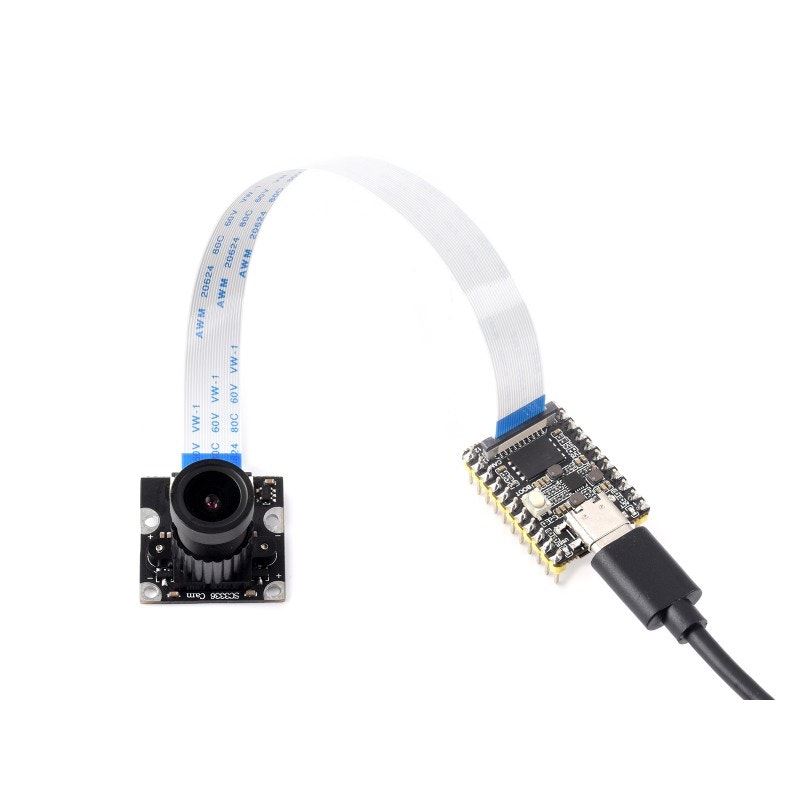

Integrates TF Card Slot And Camera Interface


For A Better User Experience

Application Example

Suitable For More Application Scenarios

Pin Definition

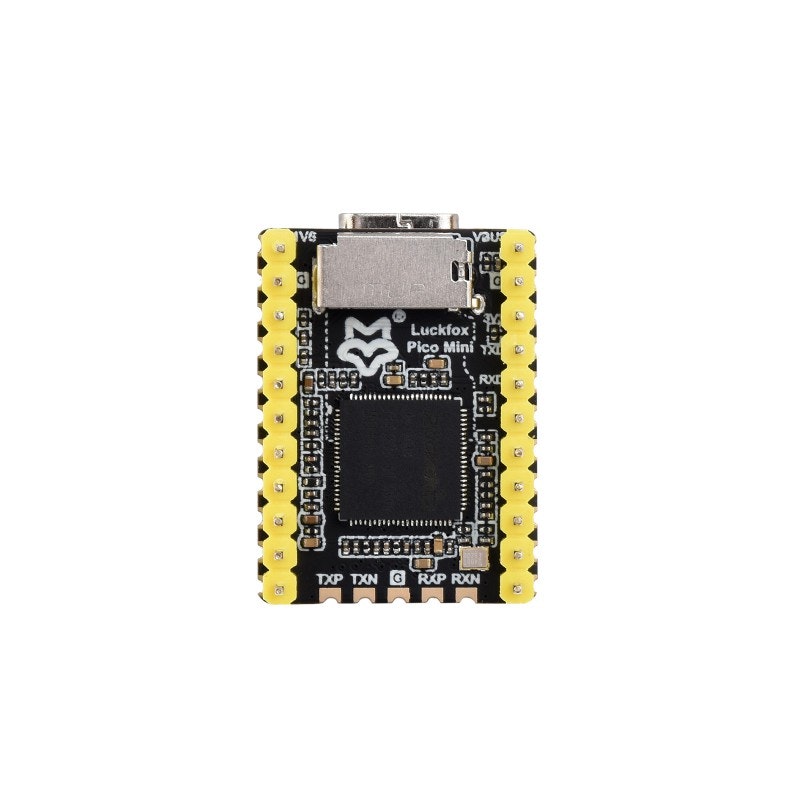

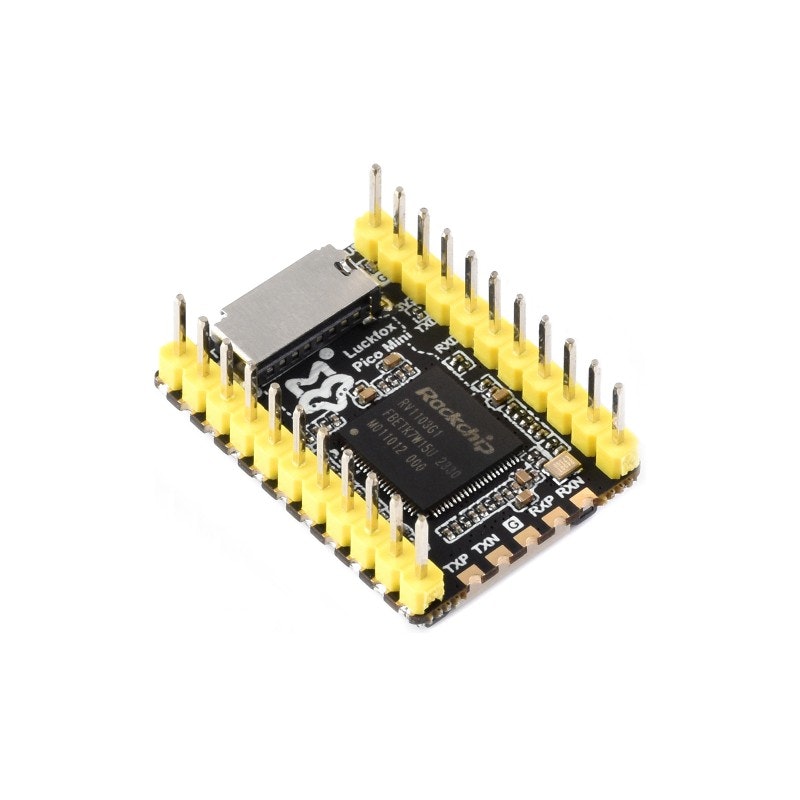

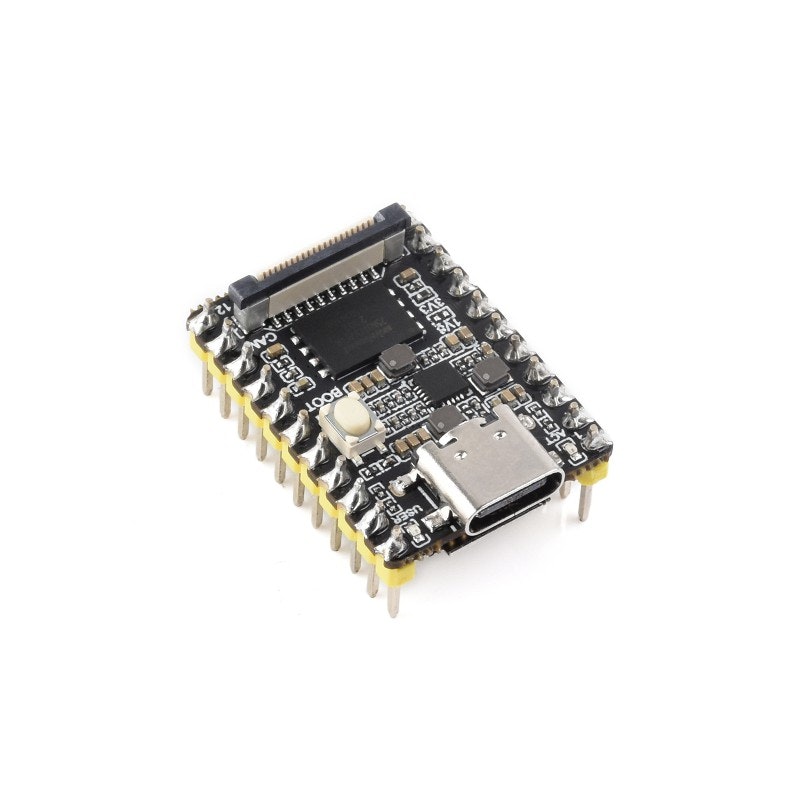

What's On Board

  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
    system operation status indicator (in the default system)
  4. BOOT button
    Press it when powering on to enter download mode


    Only available on the B version, and reserved pads for A version
  2. CSI camera interface
    MIPI CSI 2-lane
  3. TF card slot
  4. RV1106
    Vision processor SoC with built-in ARM Cortex-A7 core

Product Show

Outline Dimensions


Shipping list

Luckfox Pico Mini B M

Luckfox Pico Mini B with pre-soldered header x1
