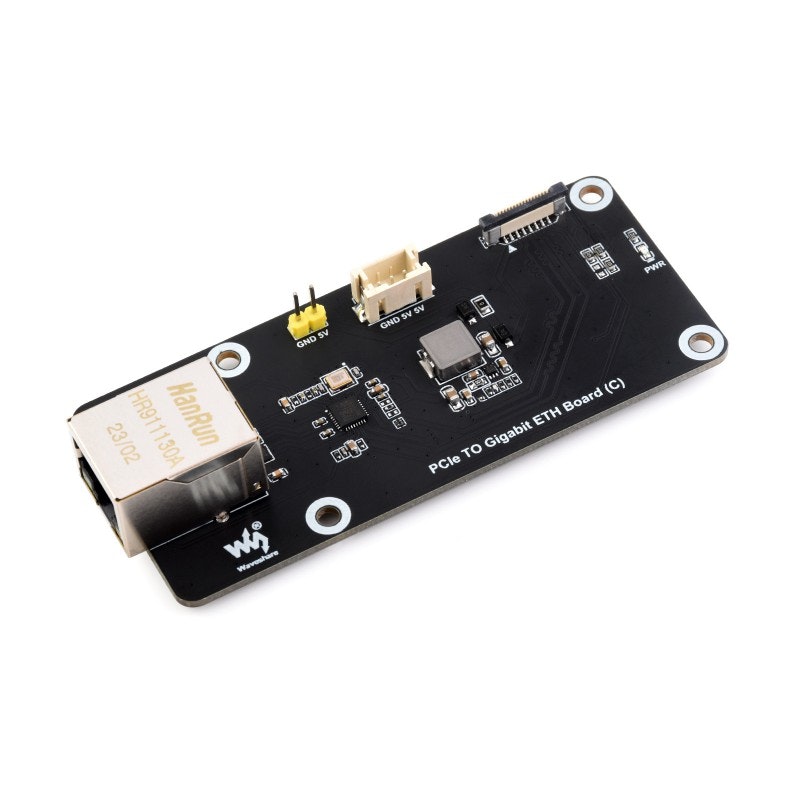

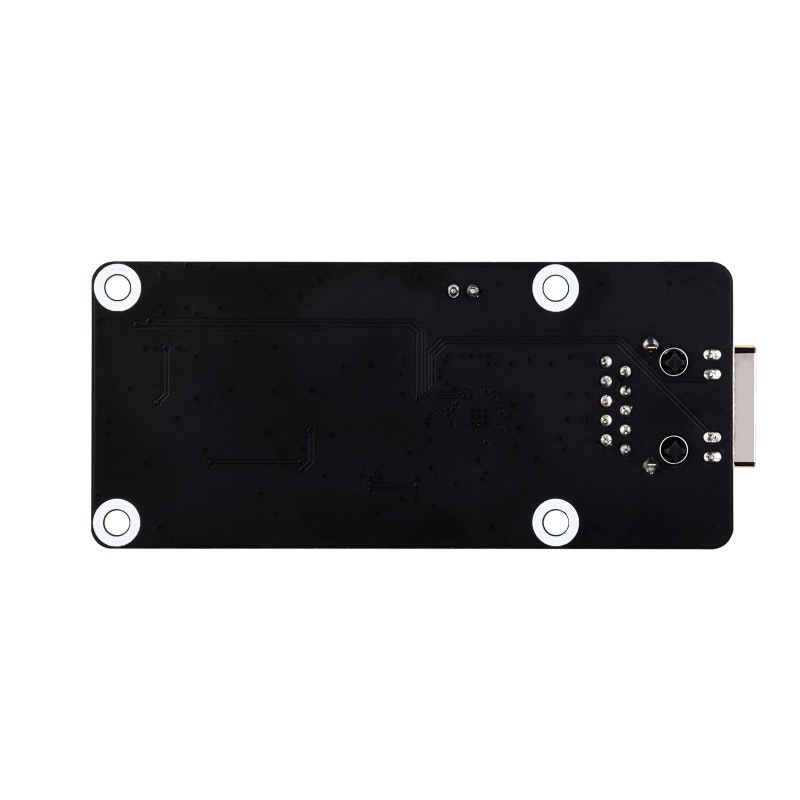

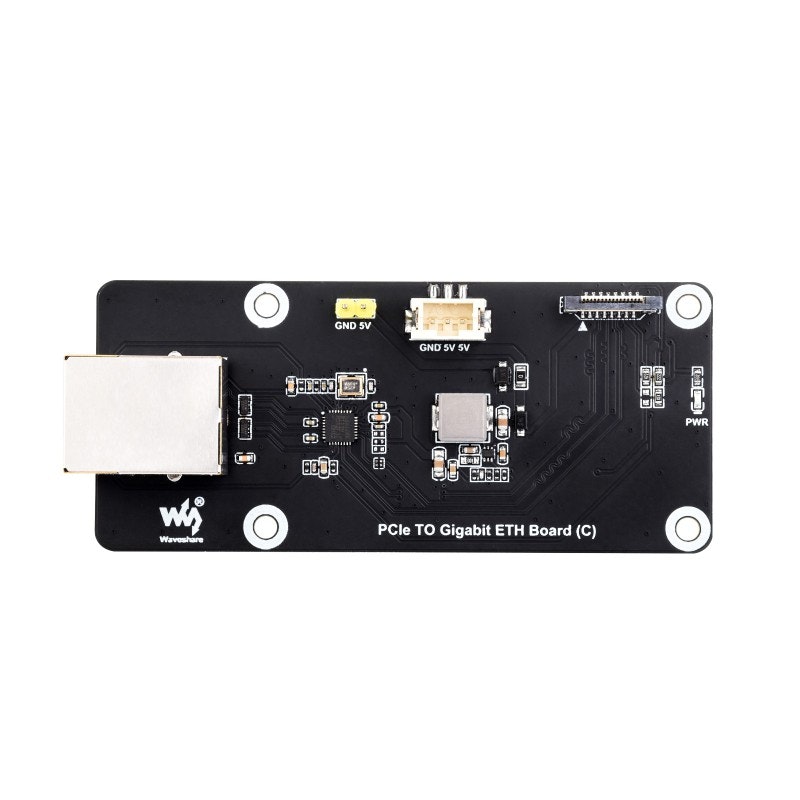

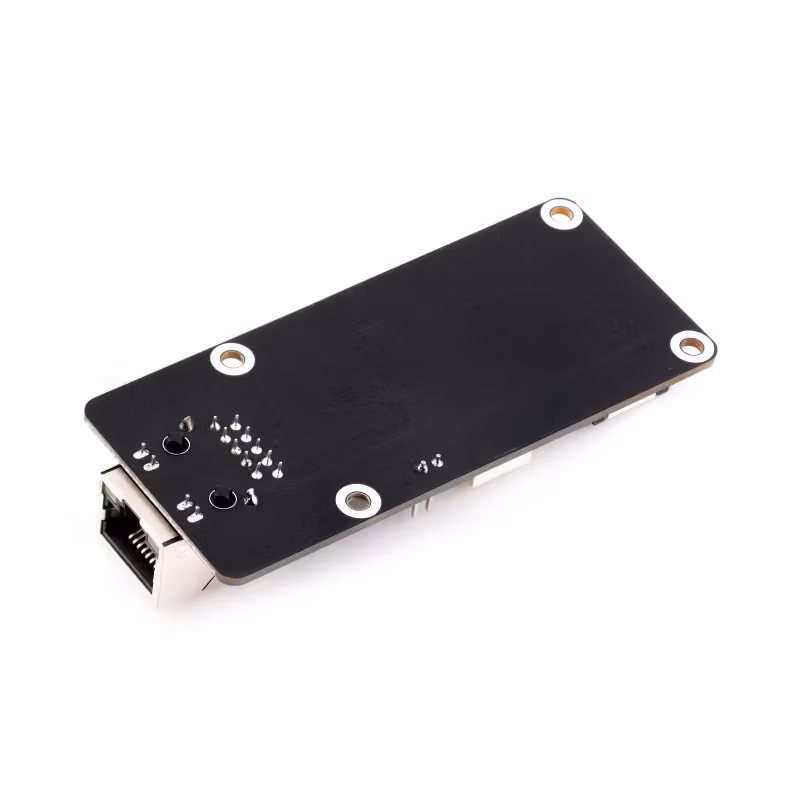

PCIe TO Gigabit ETH Board (C) For Raspberry Pi 5

  • 245 kr

PCIe TO Gigabit ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter, With Transparent Acrylic Mo

I lager.
Artikelnummer: 1329
Dela
  • Information

PCIe TO Gigabit ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter, With Transparent Acrylic Mounting Plate, Side-Mounting Solution, PCIe TO Gigabit ETH Board (C), Designed for Raspberry Pi 5. Supports Raspberry Pi OS, Driver-Free, Plug And Play

Specifications

CONTROLLERRTL8111H
ETHERNET PORTRJ45 Gigabit Ethernet
PICE INTERFACEPICe x1 GEN2
POWER SUPPLY5V
NETWORK STANDARD10/100/1000Mbps
INDICATOR STATUSaccessing 1000M network: the green indicator keeps blinking
accessing 100M network: the yellow indicator keeps blinking

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list


High-Performance Controller

Onboard Original High-Performance RTL8111H Chip
Supports Raspberry Pi OS, Driver-Free, Plug And Play

Comes With Transparent Acrylic
Mounting Plate

Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

Supports Power Supply Via PCIe Cable

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_Gigabit_ETH_Board_(C)

Shipping list

Weight: 0.021 kg

  1. PCIe TO Gigabit ETH Board (C) x1
  2. Transparent acrylic mounting plate x1
  3. PH2.0 3PIN cable ~5cm x1
  4. PCIe-Cable-50mm x1
  5. Standoff pack x1
