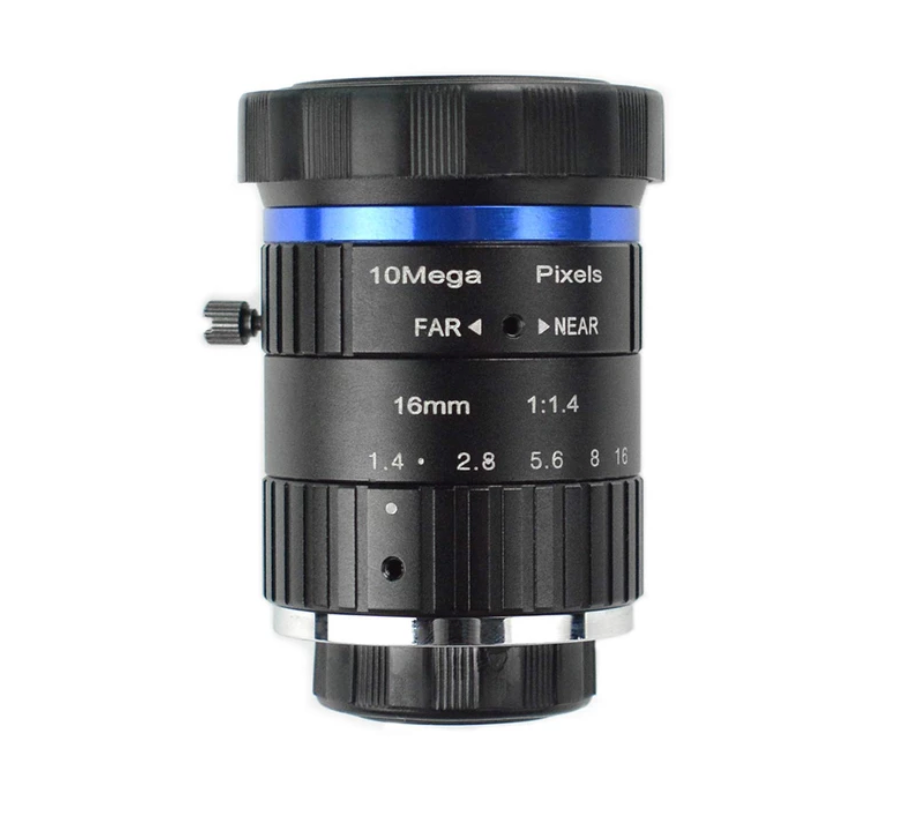

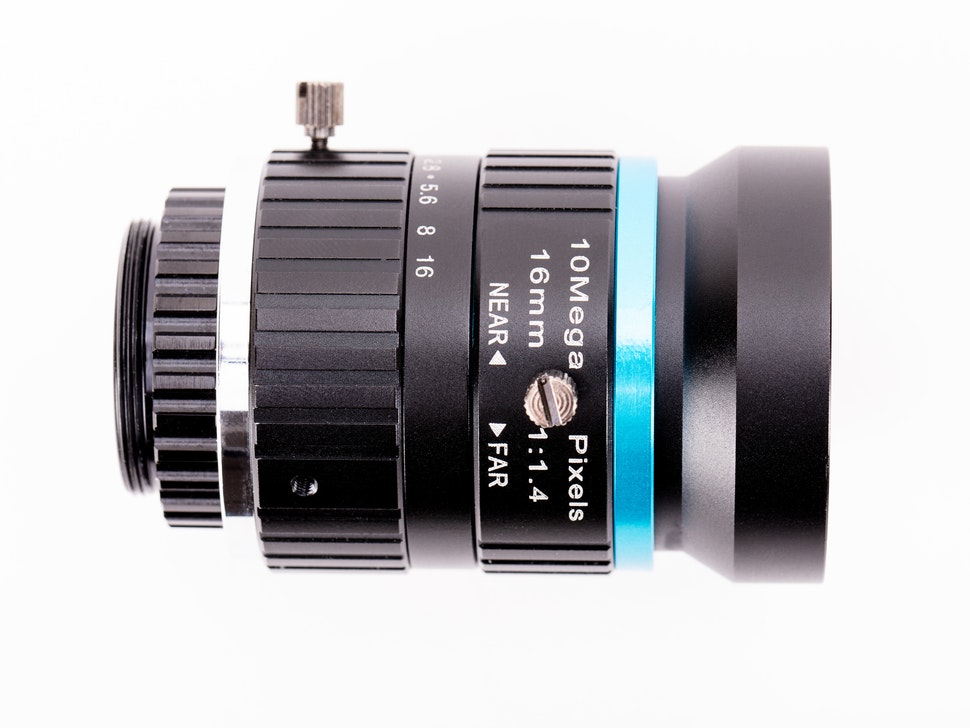

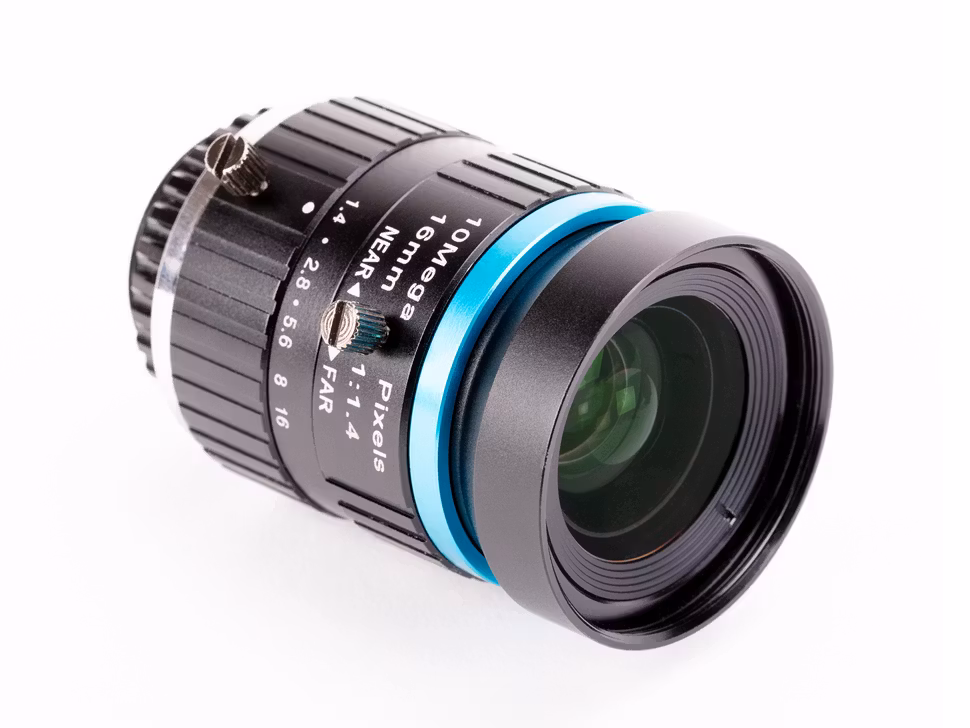

16mm 10MP Telephoto Lens for Raspberry Pi & Jetson Nano Camera Module

This is a 16mm 10MP Telephoto Lens which is suitable to use with the Raspberry Pi High Quality Camera and Jetson Nano 12.3MP camera. It has a high level of zoom and can be used to target specific subjects located far away. The lens can be easily screwed into the Raspberry Pi High Quality Camera. Also, it comes with front and back covers for protection when it's not in use.

16mm Telephoto Lens for Raspberry Pi HQ Camera (10MP Rated)

Capture crisp, detailed images from a distance with this 16mm telephoto lens, designed specifically for the Raspberry Pi High Quality Camera. With its narrow field of view, it's ideal for long-range photography—perfect for security systems, wildlife observation, or even snapping those elusive cat photos from afar.

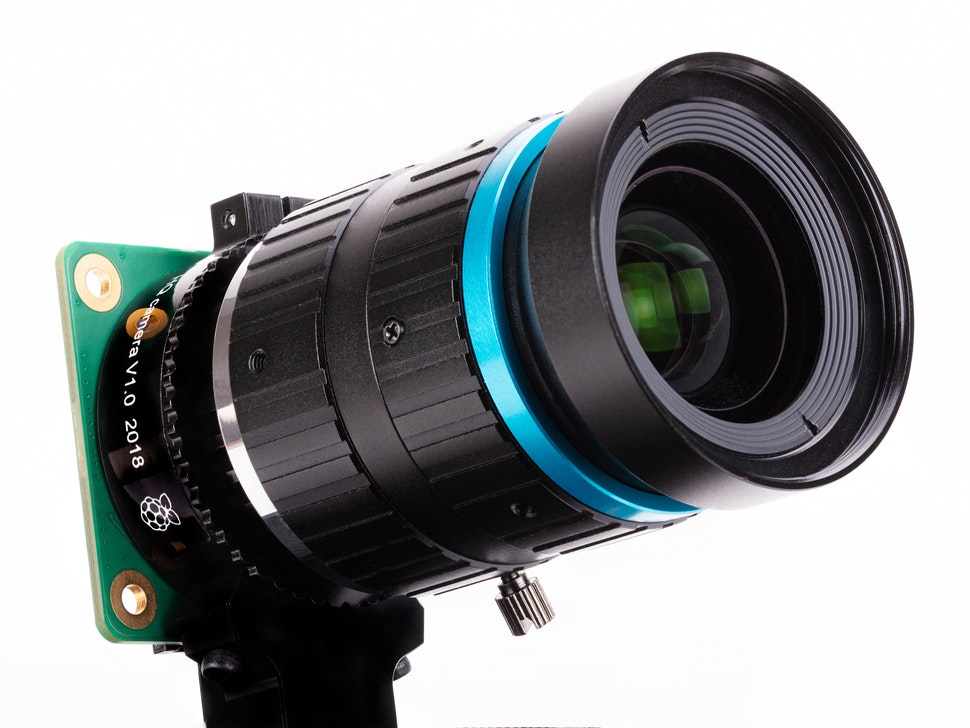

The lens comes with a convenient thumbscrew for easy mounting to the Raspberry Pi HQ Camera Board.

⚠️ Note: Although labeled as "10MP", this refers to the lens's rating, not the resolution of the camera. The Raspberry Pi HQ Camera still captures at 12 megapixels.

🔧 Compatible with Raspberry Pi HQ 12MP Camera and Jetson Nano Camera Module.

Features

Narrow angle of view suitable for viewing distant subjects

Adjustable aperture from F1.4 to F16

Front and back cover for protection

Specification

Resolution: 10Mega Pixel

Image format: 1" (Φ16, 12.8x9.6)

Focal length: 16mm / 0.63 inches

Aperture : F1.4-16

Mount: C

Angle of View (H×V):

     1": 44.6°x 33.6°

     2/3": 30.0°x 23.2°

     1/1.8": 24.7°x 18.6°

     1/2": 21.8°x 16.4°

Distortion: 1"(-0.7%) 1/2"(-0.5%)

M.O.D: 0.2m

Flange back focal length: 17.53mm

Dimensions: Φ39x50mm

Optical total length: 69.53mm

Weight: 135.3g

Lens structur: 9G

Filter size: UV M37.0x0.75P

Method of operation:

     Zoom: ——

     Aperture: Manual iris

     Focus: Manual focus

Operating Temperature: -20℃~80℃

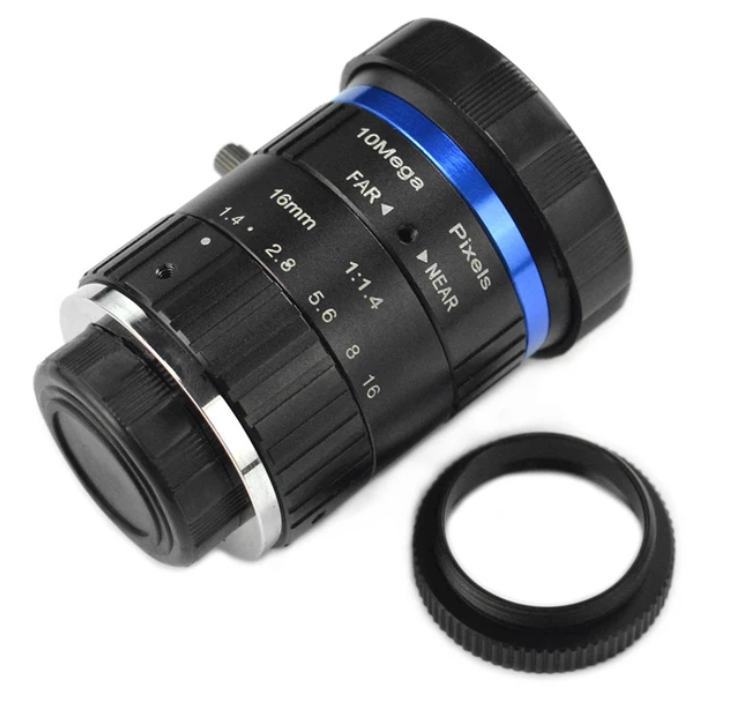

Shipping List

16mm Telephoto Lens x1

C/CS Connecting Ring x1
