Power over Ethernet HAT (E) for Raspberry Pi 3B+/4B 802.3af compliant

  • 299 kr

Power Over Ethernet HAT (E) For Raspberry Pi 3B+/4B, 802.3af Compliant. MINI POE HAT FOR RASPBERRY PI. Power Over Ethernet HAT For Raspberry Pi 3B+/4B, IEE

I lager.
Lagersaldo: 2
Artikelnummer: 23285
Dela
  • Information

Power Over Ethernet HAT (E) For Raspberry Pi 3B+/4B, 802.3af Compliant. MINI POE HAT FOR RASPBERRY PI. Power Over Ethernet HAT For Raspberry Pi 3B+/4B, IEEE 802.3af-Compliant

Mini Body, More Space-Saving

Features At A Glance

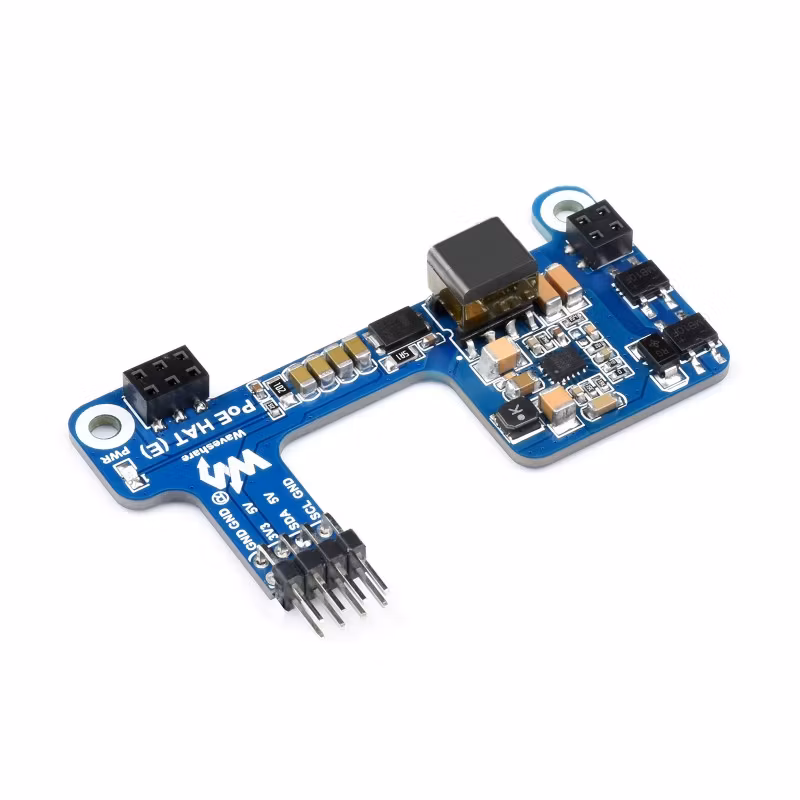

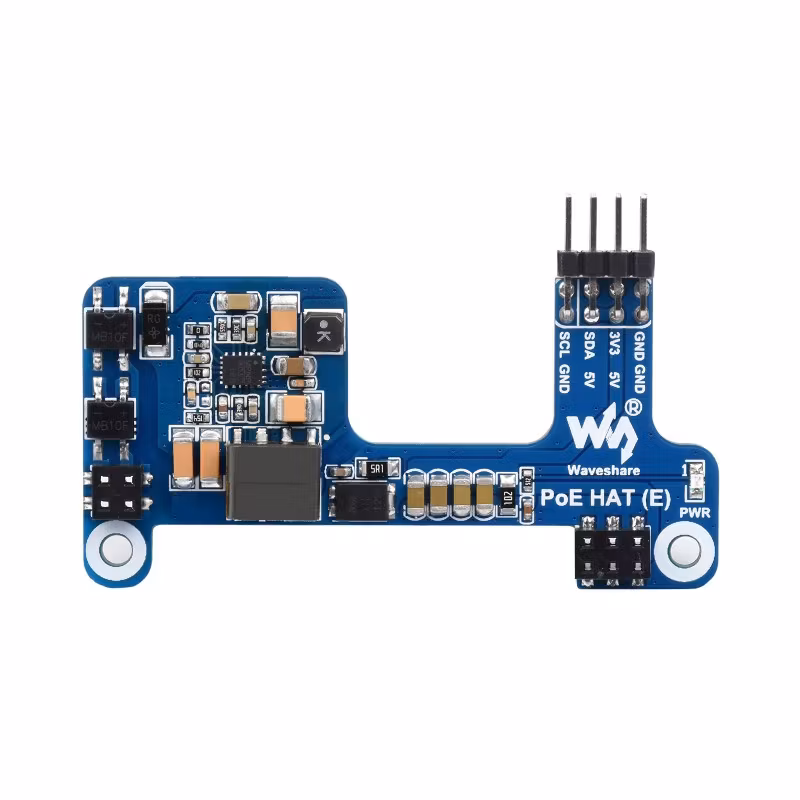

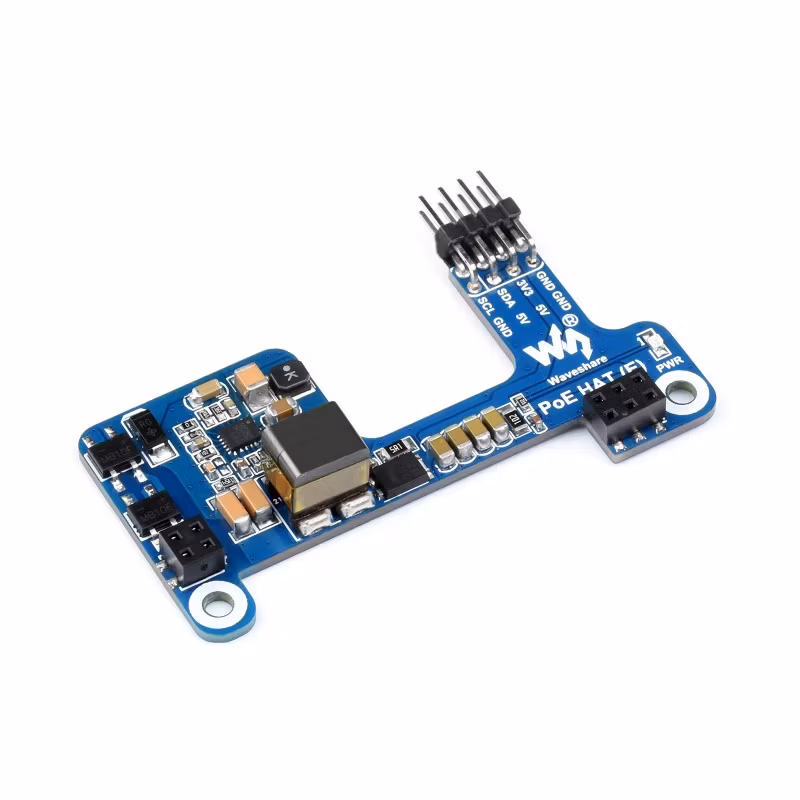

The PoE HAT (E) is a mini 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
  • PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • Smaller and more flexible with a more compact component layout

Specifications

POE POWER INPUT37V ~ 57V DC in
POWER OUTPUT5V 2.5A DC out
NETWORK STANDARDIEEE 802.3af PoE
DIMENSIONS65.00 × 32.00mm

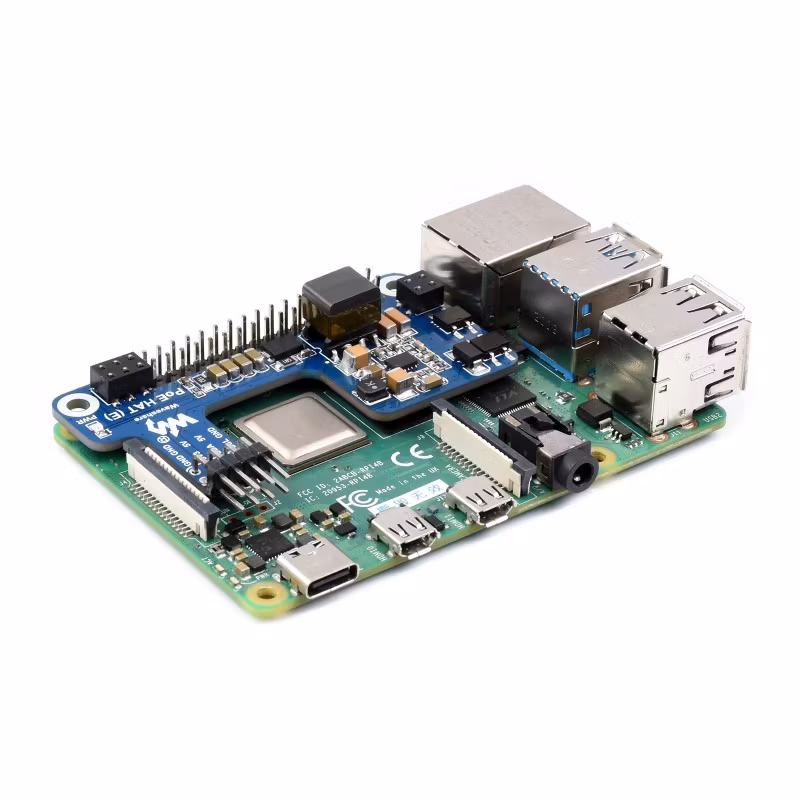

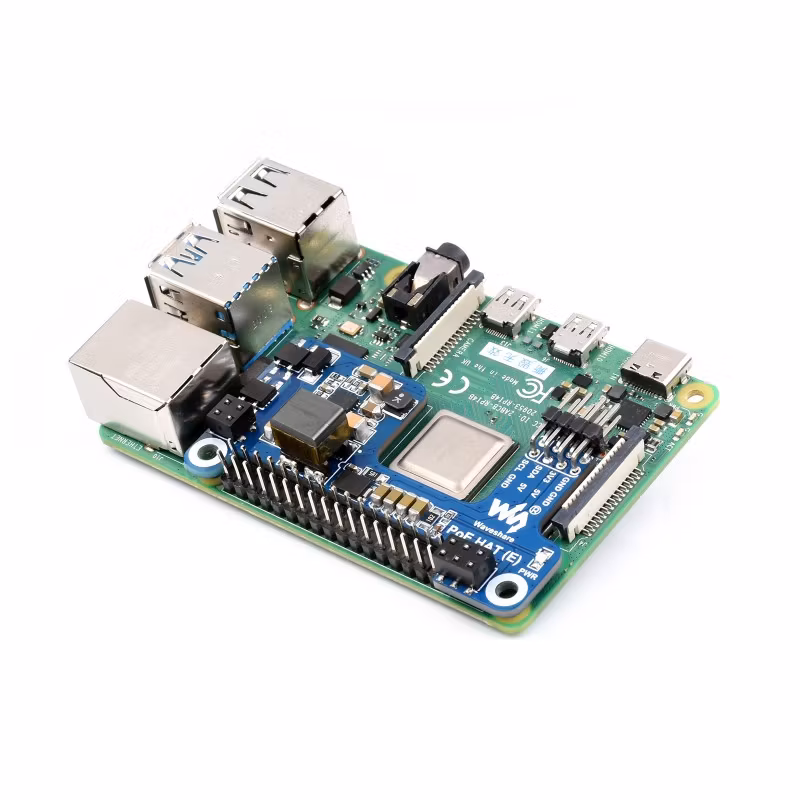

For Use With Raspberry Pi 3B+/4B

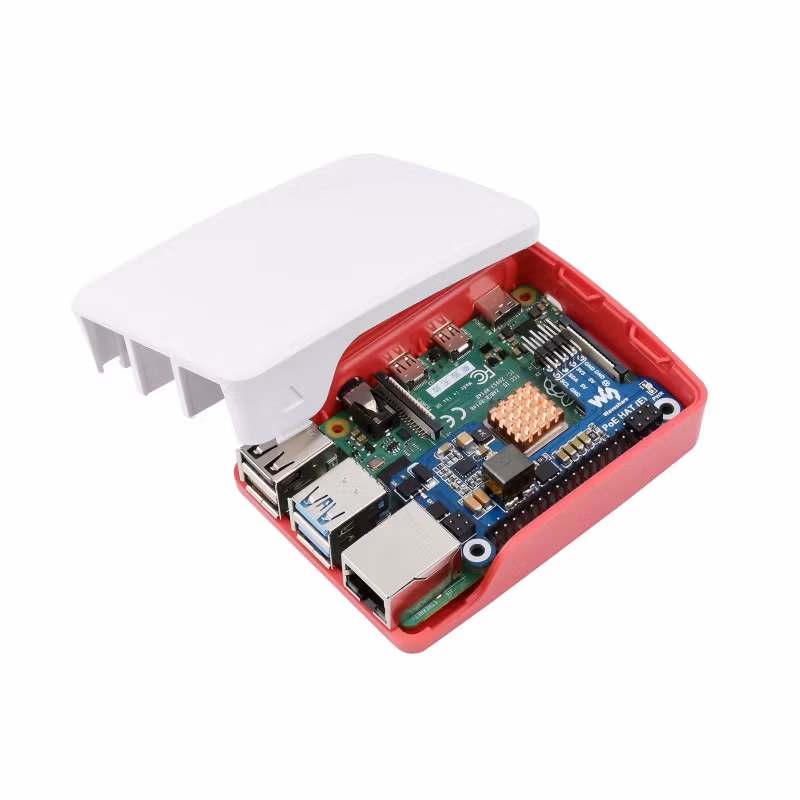

Compatible With Official Case

Support Connecting Cooling Fan

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

Raspberry Pi, official case, heatsink, cooling fan and PoE equipment are NOT included.

Onboard Resources


Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/PoE_HAT_(E)

Shipping list

Weight: 0.009 kg

PoE HAT (E) x1
