RP2040 MCU Board, With 1.28inch Round LCD, accelerometer and gyroscope Sensor

  • 325 kr

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor. RP2040 MCU Board With LCD. Based on Raspberry Pi RP2040. Support(allows rech

I lager.
Lagersaldo: 11
Artikelnummer: 1203
Dela

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor. RP2040 MCU Board With LCD. Based on Raspberry Pi RP2040. Support(allows recharging the battery and powering the board at the same time).



Features

RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use

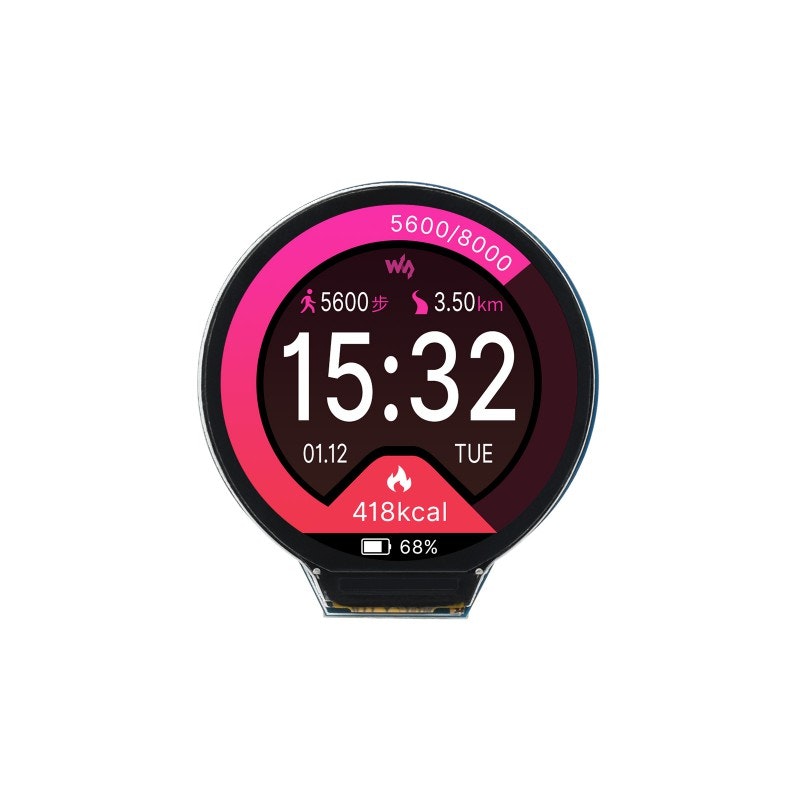

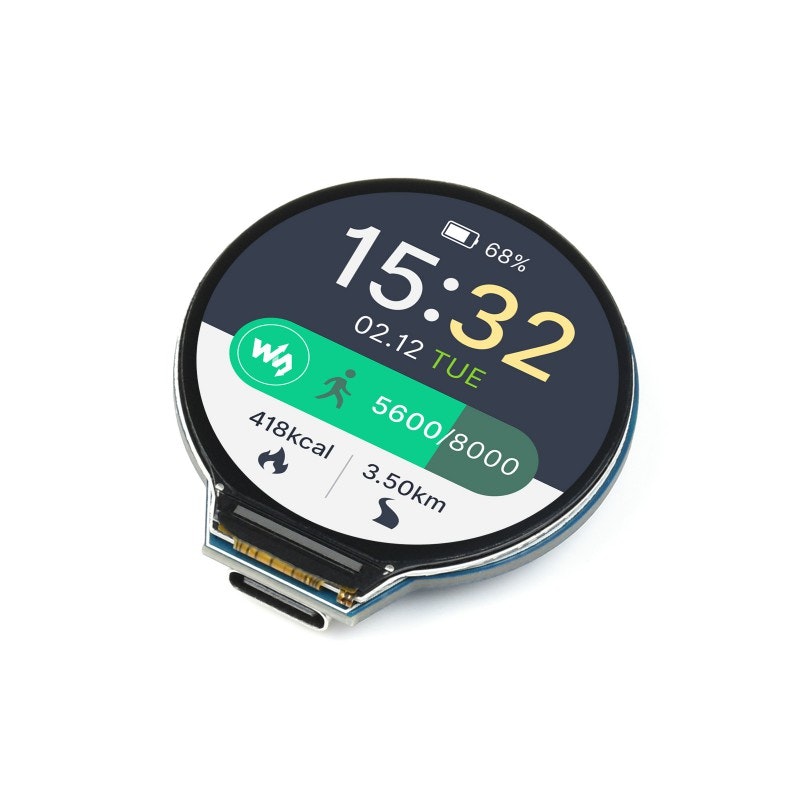

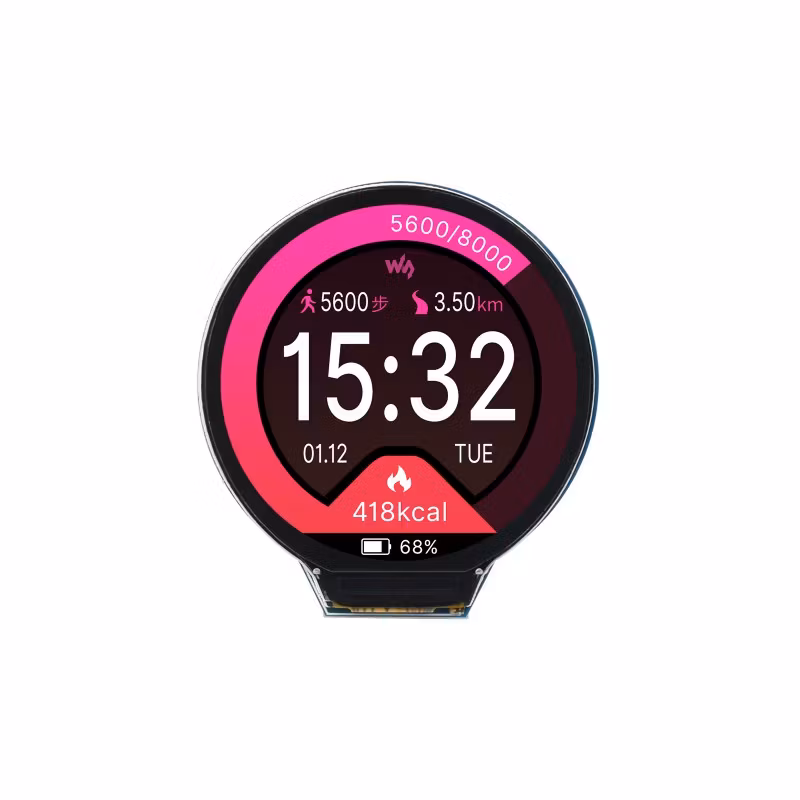

  • Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++, MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

30 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

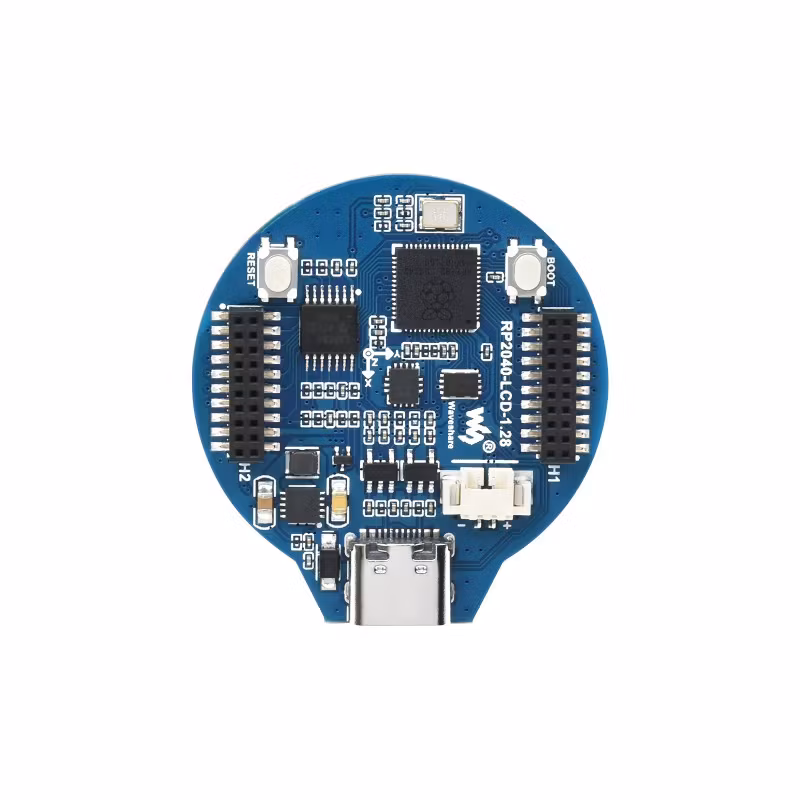

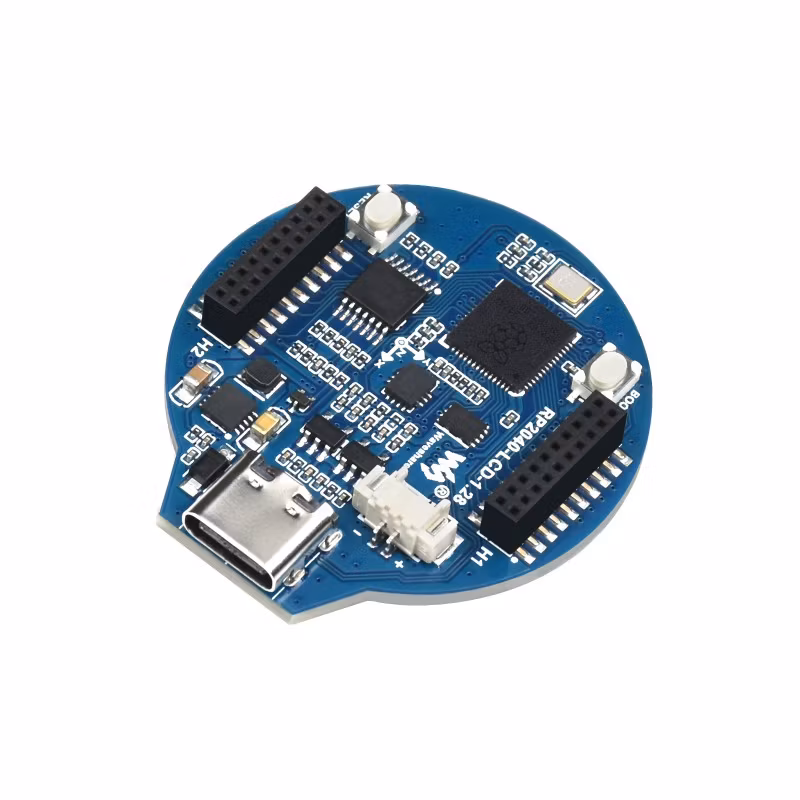

What's On Board

  1. USB Type-C connector
    USB 1.1 with device and host support
  2. ETA6096
    high efficiency Lithium battery recharge manager
  3. Battery Header
    MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
  4. QMI8658C
    IMU, includes a 3-axis gyroscope and a 3-axis accelerometer



  1. 1.27mm pitch headers
    Adapting all GPIO and Debug pins
  2. W25Q16JVUXIQ
    2MB NOR-Flash
  3. RP2040
    Dual-core processor, up to 133MHz operating frequency
  4. RESET Button
  5. BOOT Button
    press it when resetting to enter download mode

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2040-LCD-1.28

Shipping list

Weight: 0.009 kg

RP2040-LCD-1.28 x1
