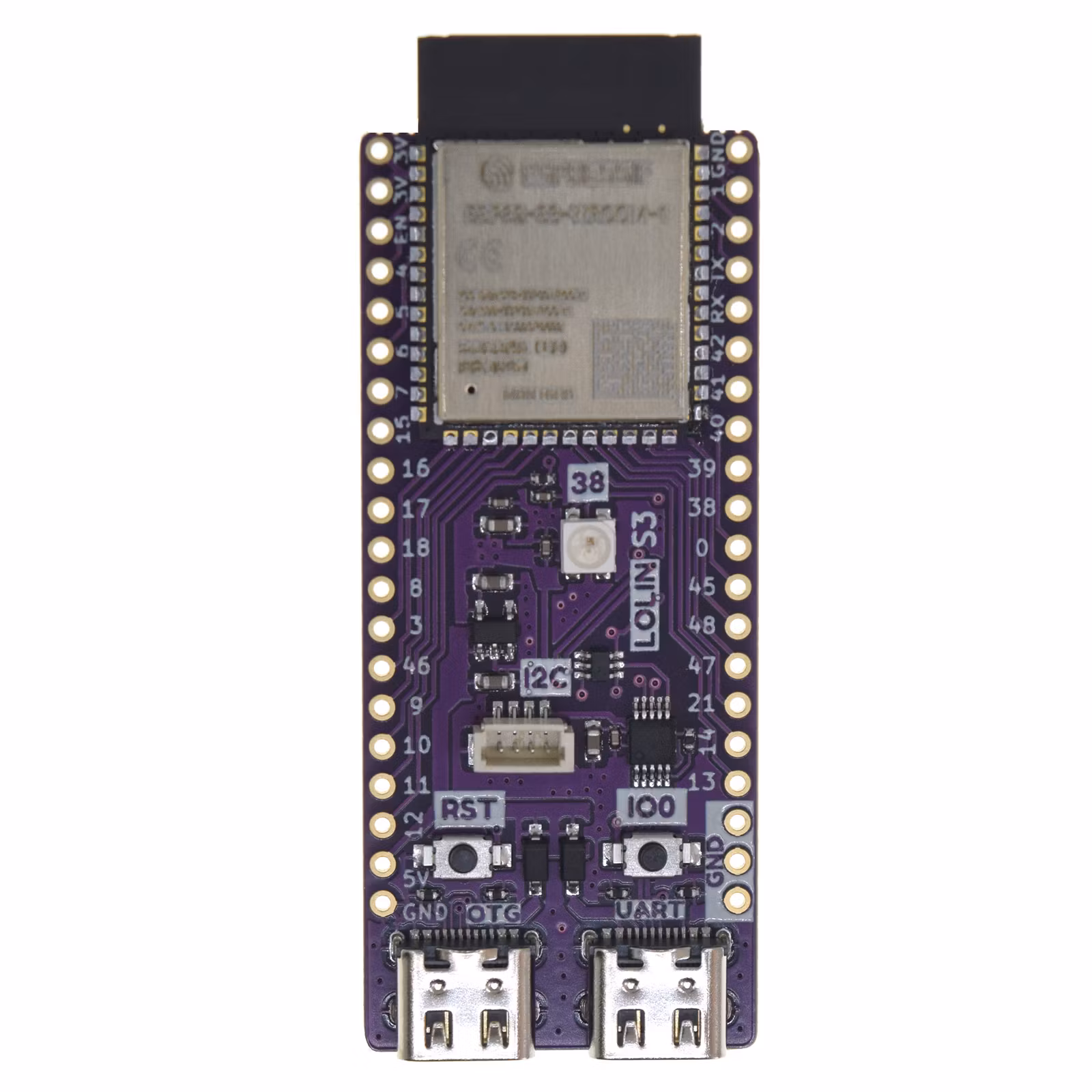

Lolin S3 V1.0.0 - LOLIN WIFI BLE IOT Board based ESP32-S3-WROOM-1 16MB

  • 299 kr

WiFi & Bluetooth 5 (LE) boards based ESP32-S3-WROOM-1. ESP32-S3-WROOM-1 and ESP32-S3-WROOM-1U are two powerful, generic Wi-Fi + Bluetooth LE MCU modules tha

I lager.
Lagersaldo: 8
Artikelnummer: 1198
Dela
  • Information

WiFi & Bluetooth 5 (LE) boards based ESP32-S3-WROOM-1. ESP32-S3-WROOM-1 and ESP32-S3-WROOM-1U are two powerful, generic Wi-Fi + Bluetooth LE MCU modules that are built around the ESP32-S3 series of SoCs. More can read more i datasheet.

Features

  • based ESP32-S3-WROOM-1
  • 2x Type-C USB (OTG, UART)
  • 16MB Flash (Quad SPI)
  • 8MB PSRAM (Octal SPI)
  • 31x IO
  • 1x LOLIN I2C Port
  • ADC, DAC, I2C, SPI, UART, USB OTG
  • Compatible with MicroPython, Arduino and ESP-IDF
  • Default firmware: MicroPython

Tutorials

Documentation

Technical specs

Operating Voltage
3.3V
Digital I/O Pins
31
Clock Speed
240MHz
Flash
16M Bytes
PSRAM
8M Bytes
Size
65.3*25.4mm
Weight
9.0g

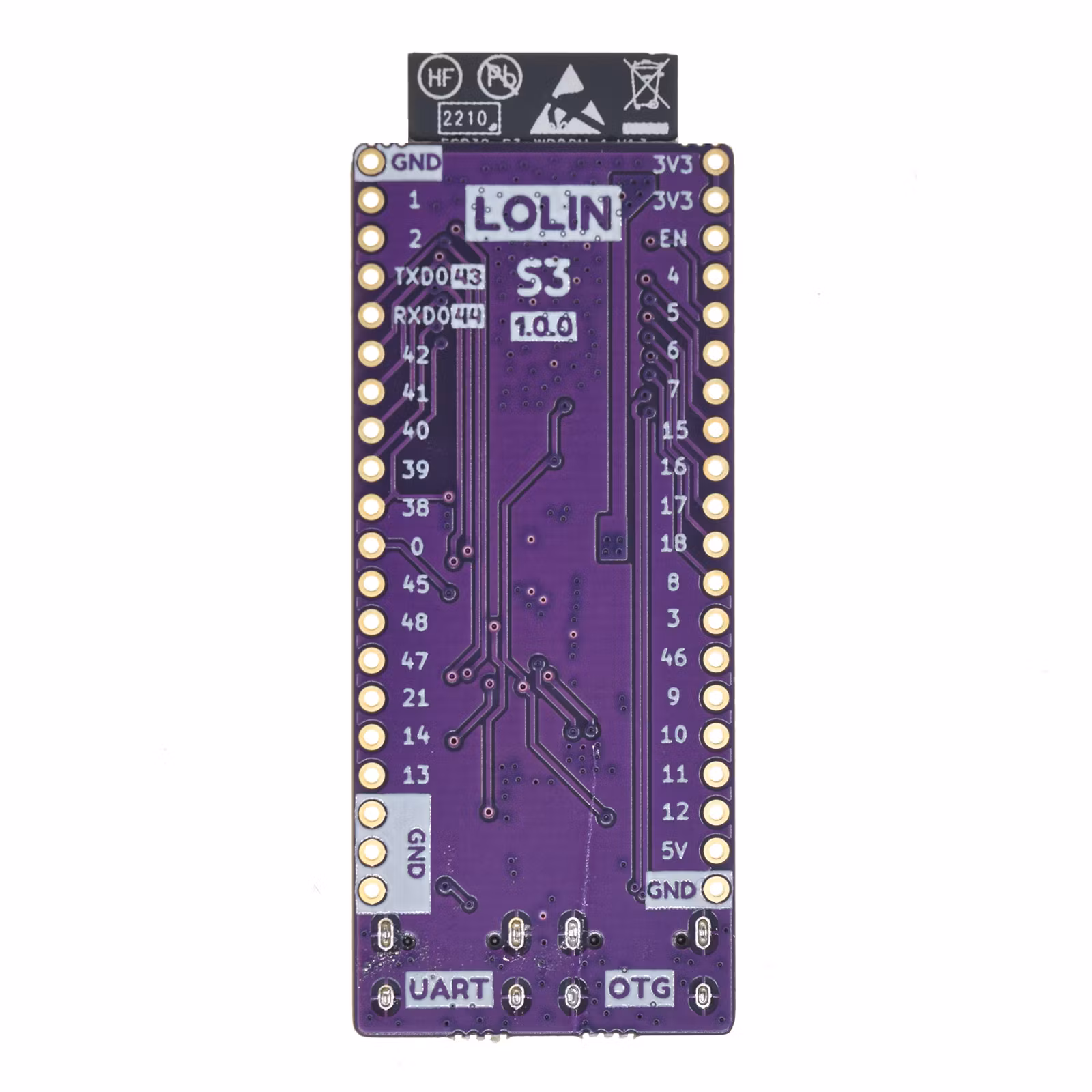

Pin

../_images/s3_v1.0.0_4_16x9.jpg

Shipping List

1. pins x2pcs

2. S3 x1pcs
