S3 Pro V1.0.0 - LOLIN WIFI BLE IOT Board based ESP32-S3 16MB

  • 289 kr

S3 Pro V1.0.0 - LOLIN WIFI BLE IOT Board based ESP32-S3 16MB FLASH 8MB PSRAM I2C TF Display MicroPython Arduino Compatible.Featuresbased ESP32-S3-WROOM-116

I lager.
Lagersaldo: 7
Artikelnummer: 1229
Dela
  • Information

S3 Pro V1.0.0 - LOLIN WIFI BLE IOT Board based ESP32-S3 16MB FLASH 8MB PSRAM I2C TF Display MicroPython Arduino Compatible.

Features

  • based ESP32-S3-WROOM-1

  • 16MB Flash (Quad SPI)

  • 8MB PSRAM (Octal SPI)

  • 25x GPIO

  • 1x LOLIN I2C Port

  • 1x LOLIN DISPLAY Port (TFT, EPD)

  • 1x MicroSD(TF) card slot

  • 1x Battery port with 500mA charging

  • ADC, DAC, I2C, SPI, UART, USB OTG

  • Compatible with MicroPython, Arduino

  • Default firmware: MicroPython

Tutorials

Documentation

Technical specs

Operating Voltage
3.3V
Digital I/O Pins
25
Clock Speed
240MHz
Flash
16M Bytes
PSRAM
8M Bytes
Size
65.3*25.4mm
Weight
7.2g

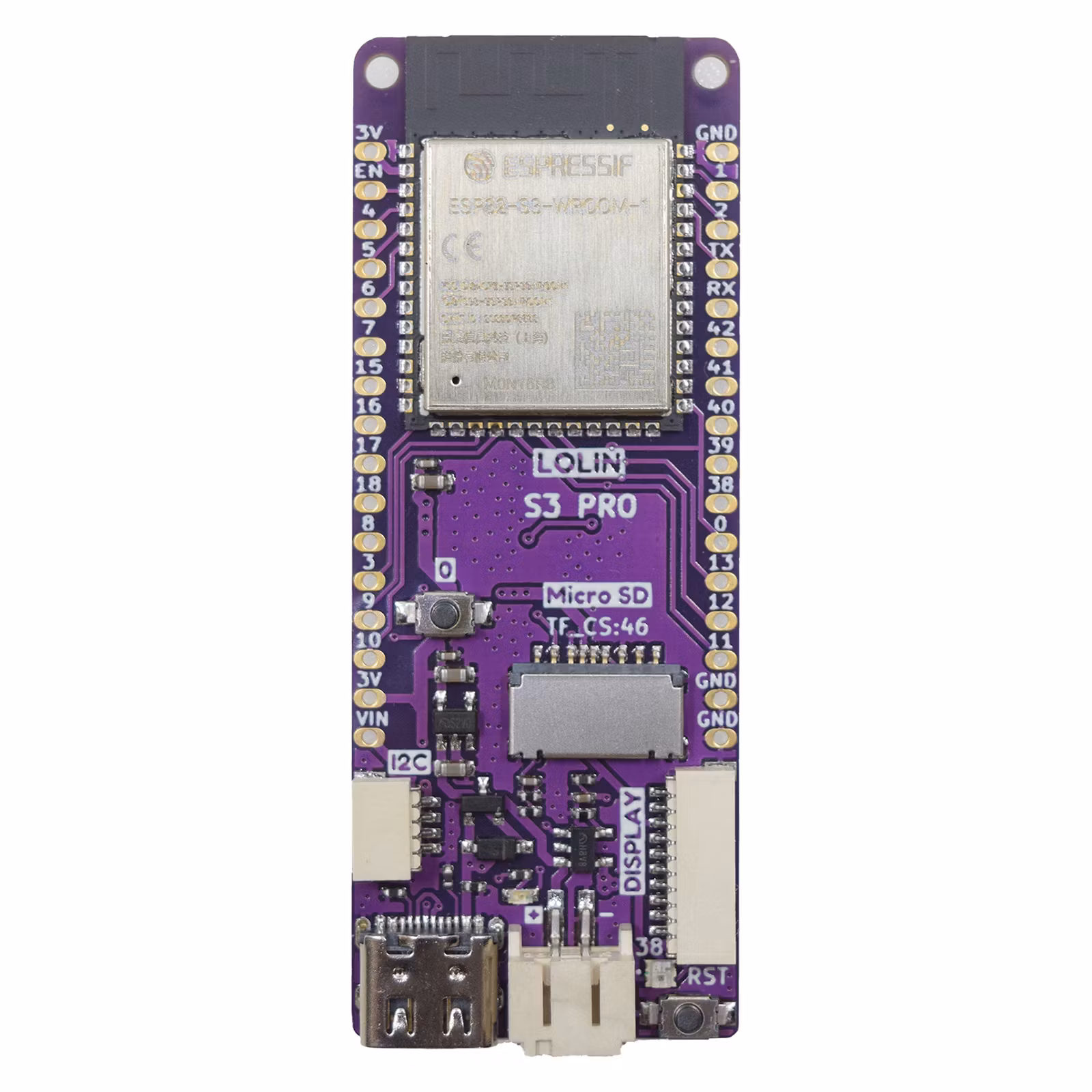

TOP

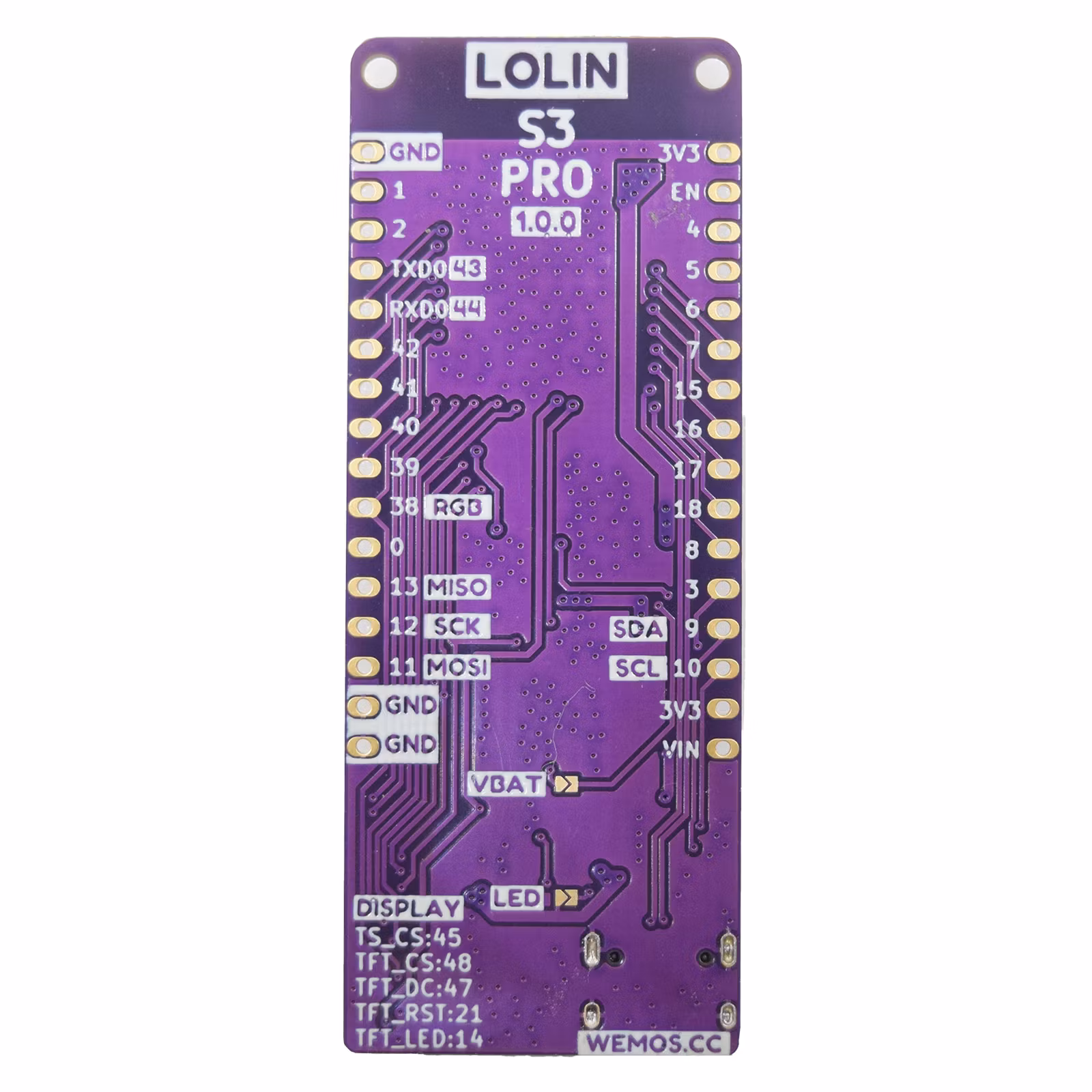

Bottom



Pin






Shipping List



1. pins x2pcs

2. S3 PRO x1pcs
