VisionFive2 RISC-V Single Board Computer

  • 2 499 kr

VisionFive 2 is the world’s first high-performance RISC-V single board computer (SBC) with an integrated GPU. Compared with its last generation, VisionFive 2 ha


I lager.
Artikelnummer: 1230
Dela
  • Information

VisionFive 2 is the world’s first high-performance RISC-V single board computer (SBC) with an integrated GPU. Compared with its last generation, VisionFive 2 has been fully upgraded with significant improvements in the processor work frequency, multimedia processing capabilities, scalability, etc. Its superior performance and reasonable price make VisionFive 2 the best affordable RISC-V development board ever.

VisionFive2 RISC-V Single Board Computer Integrated 3D GPU | Base On Linux

Onboard RV64GC ISA Quad-Core 64-Bit SoC, Operating Frequency Up To 1.5GHz

Version Options

MODELMEMORYWIFI MODULE
VISIONFIVE2 4GB4GB
VISIONFIVE2 4GB WIFI4GB√
VISIONFIVE2 8GB8GB
VISIONFIVE2 8GB WIFI8GB√

Features At A Glance

  • Onboard RV64GC ISA Quad-core 64-bit SoC, operating frequency up to 1.5GHz
  • Supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2
  • Available in 4GB/8GB LPDDR4 RAM options, and optional wireless module
  • Multiple onboard interfaces, including M.2 / CSI / DSI / HDMI / eMMC / USB 3.0 / 40PIN GPIO / RJ45 Gigabit Ethernet port / TF card slot, etc
  • Supports 4K@60fps and H264/H265 multi-stream video decoding, 1080p@30fps and H265 multi-stream video encoding
  • Onboard 40PIN GPIO header, compatible with Raspberry Pi series boards
  • Provides wide software compatibility including support for Debian


Specifications

PROCESSORStarFive JH7110
CPURISC-V U74 Quad-core 64-bit RV64GC ISA SoC
With 2MB L2 cache and S7 core, operating frequency up to 1.5GHz
GPUIMG BXE-4-32 MC1, operating frequency up to 600MHz
MEMORYOptional 4G/8G Byte LPDDR4
STORAGETF card (Not included)
CAMERAMIPI CSI 2lane 1080p@30fps
DISPLAY1 × 2-lane MIPI DSI 1080p@30fps
1 × 4-lane MIPI DSI 2K@30fps
(Only one DSI port can be used for display at the same time)
1 × HDMI 2.0 4K@30fps, 2K@60fps
USB HOST4 × USB 3.0 Type-A port
USB DEVICE1 × USB Device (multiplexed with the USB Type-C port)
NETWORKING1 × Gigabit Ethernet port (main Ethernet port)
1 × 100/10M Ethernet port
RESET BUTTONPress the reset button to reboot when in the U-boot mode;
Press and hold the reset button for three seconds to reboot after the system boots
BOOT MODE SWITCHRGPIO_1RGPIO_0Boot Mode
00flash
01TF Card
10eMMC
11UART
DEBUG PIN HEADERSMultiplex pin 8 and pin 10 (physical address) on the 40PIN header, for UART TX and UART RX functions
USB TYPE-C POWER PORTSupports Quick Charge input 5V DC (minimum 3A) (up to 30 W)
Supports 5~20V fixed voltage input
Supports USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A
Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A
OTHER POWER SUPPLY5V input via 40PIN GPIO header
PoE port power input, requires external PoE module
OTHER INTERFACES40PIN GPIO
M.2 M-Key Solid State Drive socket
eMMC socket
2PIN Fan header
3.5mm Audio Jack, 4-pole stereo audio jack
DIMENSIONS100 × 74 × 21mm
COMPLIANCERoHS, FCC, CE
RECOMMENDED OPERATING AMBIENT TEMPERATURE0~50℃ (If the operating temperature of the chip exceeds 85°C, the frequency and voltage of the CPU will be automatically reduced for cooling)

OperatingSystem

Multi-Function

Powerful Performance, Open Source Application Environment, And Rich Software Ecology
More Possibilities For VisonFive 2

Application Examples

Quake 3D



GLMark2



MANE emulator



Run multiple programs simultaneously

40PIN GPIO Header

* All GPIO pins can be multiplexed to support different functions including
SDIO, Audio, DMIC, SPI, I2C, UART, PWM, CAN

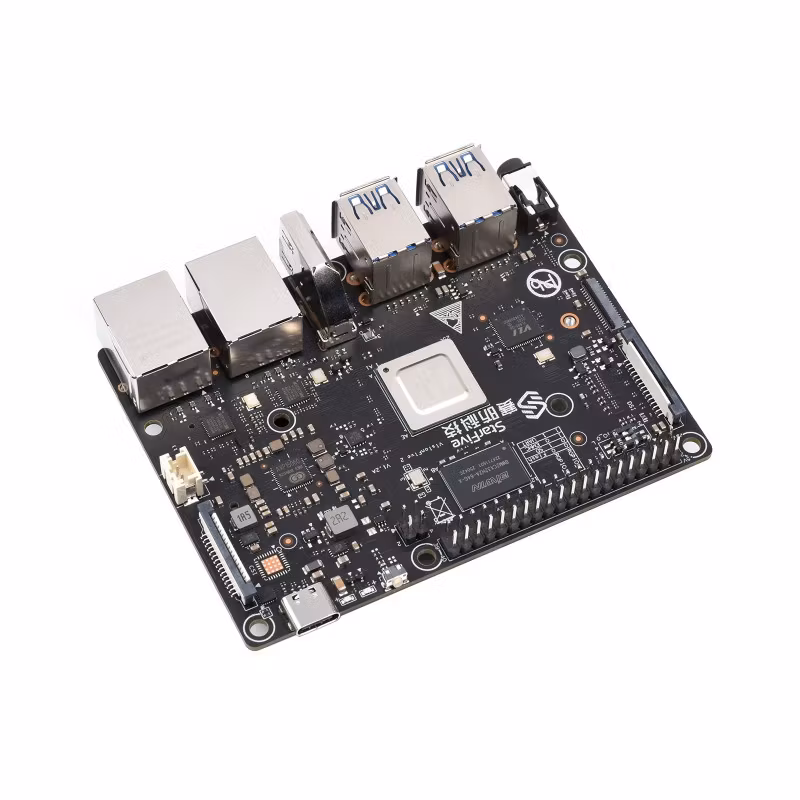

Onboard Resources

  1. JH7110
  2. PoE port
  3. Boot mode selection
  4. 40Pin GPIO
  5. 4GB/8GB LPDDR4 SDRAM
  6. Reboot button
  7. EEPROM
  8. Type-C power port
  9. 2-lane MIPI CSI
  10. PMIC
  11. 2PIN FAN header

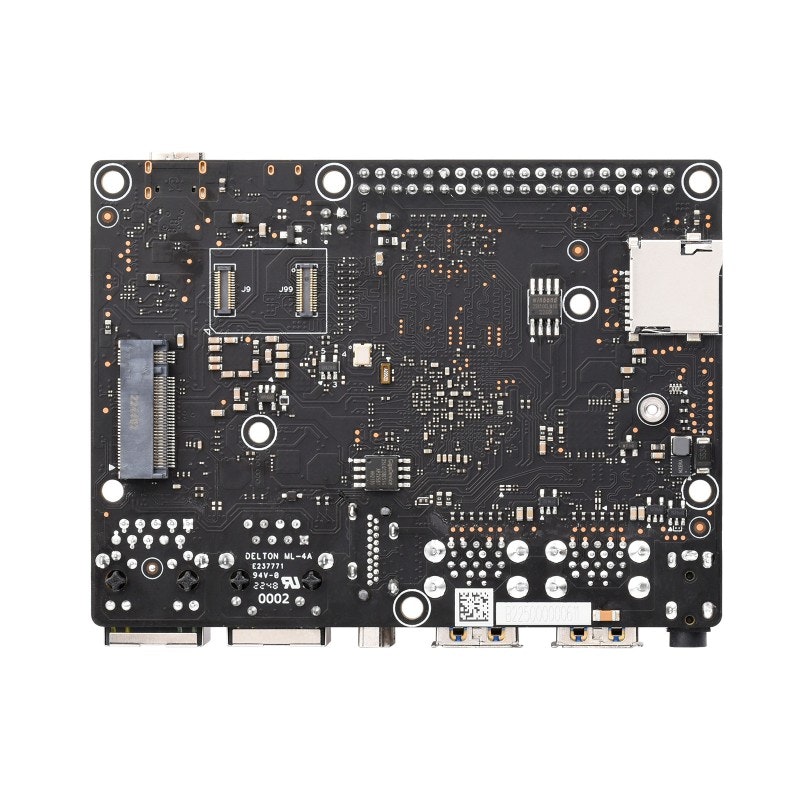

  12. Gigabit Ethernet Chip



  1. Gigabit Ethernet port (main Ethernet port)
  2. 100/10M Ethernet port
  3. HDMI 2.0 port
  4. 3.5mm Audio Jack
  5. USB 3.0 Ports
  6. 4-lane MIPI DSI
  7. USB 3.0 Host chip
  8. 2-lane MIPI DSI
  9. eMMC socket
  10. TF card slot
  11. QSPI Flash
  12. M.2 M-Key

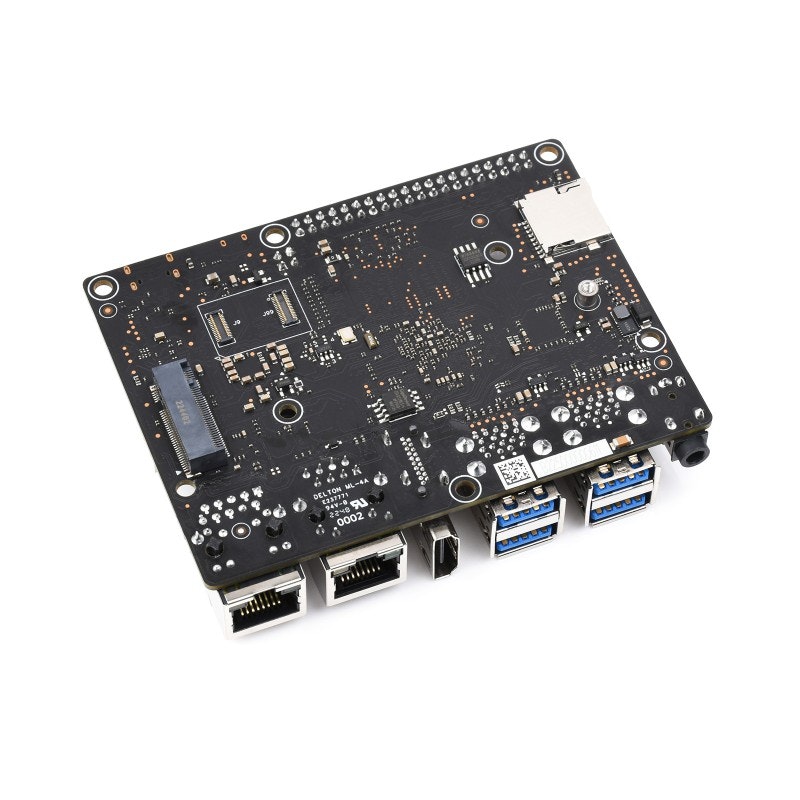

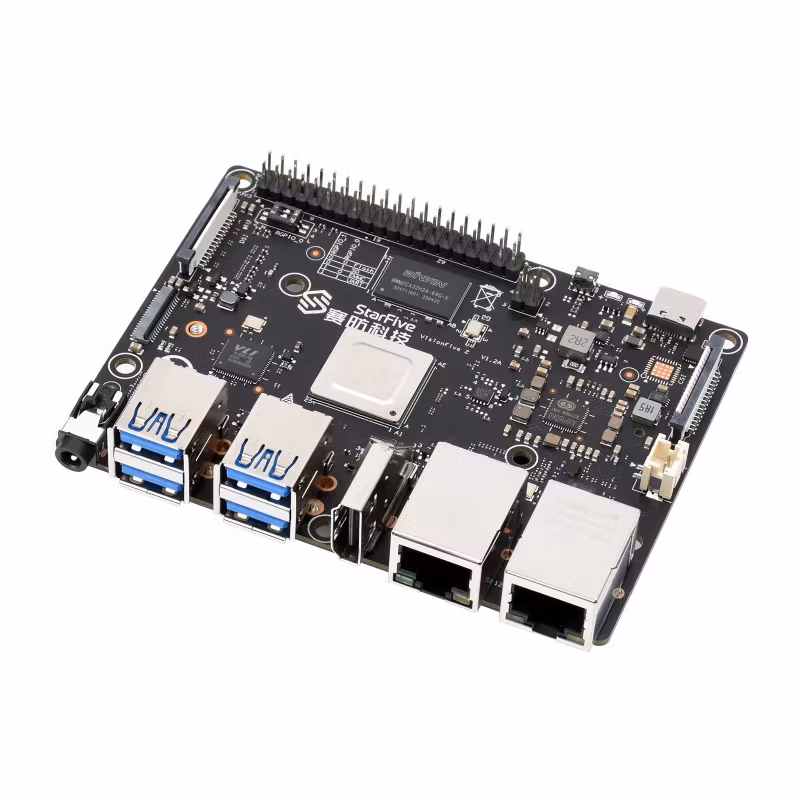

Product Show





Dimensions

WIKI: www.waveshare.com/wiki/VisionFive2

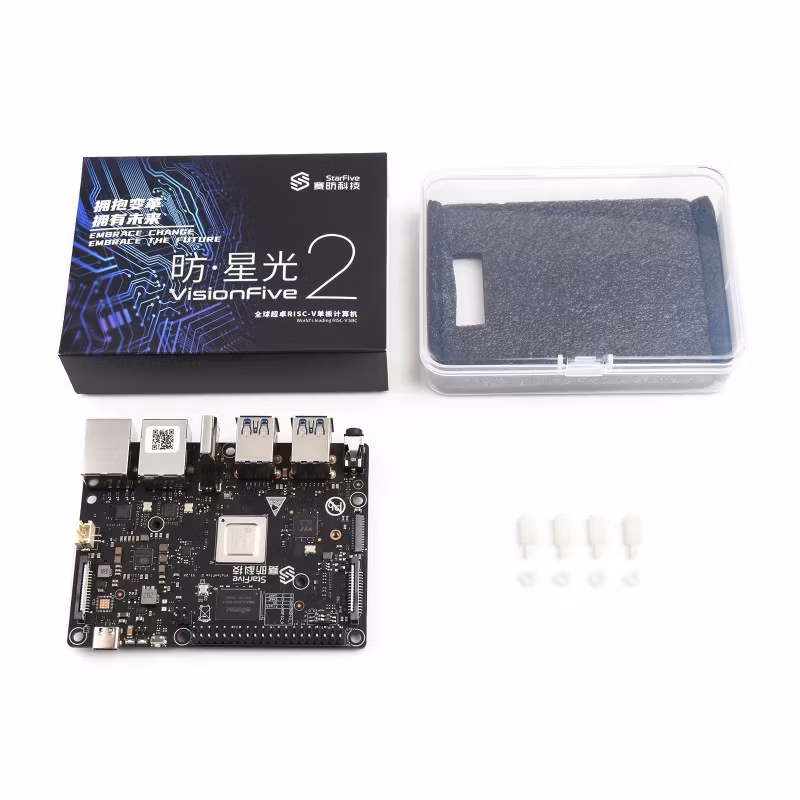

Shipping list

Alternativ 1

VisionFive2

  1. Packing and protective case x1
  2. OPTIONS VisionFive2 ×1
  3. OPTIONS WIFI module x1
  4. Screws pack ×1


Alternative 2

VisionFive2 Starter Kit

  1. VisionFive2 basic kit:
    VisionFive2 ×1
    Screws pack ×1
    Packing and protective case x1
  2. WIFI module x1
  3. UART Module ×1
  4. 32GB TF Card ×1
  5. Card Reader ×1
  6. 3PIN Cable ×1
  7.  5V 3A Type-C Power Supply x1



Mer info

High-performance quad-core RISC-V single board computer (SBC) with an integrated 3D GPU

StarFive´s VisionFive 2 is the worlds first high-performance RISC-V single board computer with an integrated GPU.

This new generation has been fully upgraded with significant improvements in processor work frequency, multimedia processing capabilities and scalability. It glances with a quad-core 64bit SoC with RV64GC ISA with a clock rate of up to 1.5GHz. The integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2 VisionFive2 provides as well a rich set of interfaces like M.2 connector, eMMC socket and many more.  ! Please note the expected delivery time for both variants at the bottom of this page. !

Technical Details:

Processor

  • StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz
  • IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)



Memory

  • 2GB, 4GB, 8GB LPDDR4 (up to 2800Mbps)

Storage

  • Onboard TF card slot
  • Flash

Wireless Connectivity

  • WiFi dongle (only for WiFi board variants)

Video Output

  • 1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps
  • 1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes
  • 1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps

Camera

  • 1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps

Encoder/Decoder

  • Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265
  • Video encoder supports up to 1080p@30fps and multi-stream for H265
  • JPEG encoder/decoder

Peripherals

  • 2 x USB 3.0 ports
  • 2 x USB 2.0 ports
  • 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
  • 2x RJ45 Ethernet Connector
  • 3.5 mm Audio jack (4-pole stereo audio output)
  • M.2 Connector
  • eMMC Socket
  • 2 pin fan header
  • Micro-SD card slot for system boot and data storage
  • Reset and Power Button

Power Supply

  • Power 5V DC with PD, up to 30W

Power Connector

  • USB Type-C port or 40-pin GPIO header

 Dimension

  • 100mm x 72 mm

 Compliance

  • RoHS, FCC, CE
