Waveshare RP2350-GEEK Development Board, Based On RP2350 Microcontroller, USB Debugging Downloader

  • 249 kr

Waveshare RP2350-GEEK Development Board             Featuring the RP2350 Microcontroller, a 1.14-inch 65K color LCD, and USB

I lager.
Lagersaldo: 2
Artikelnummer: 29330
Dela
  • Information
Waveshare RP2350-GEEK Development Board
Featuring the RP2350 Microcontroller, a 1.14-inch 65K color LCD, and USB debugging/downloading support for versatile development.                                                                 RP2350-GEEK is a geeks development board designed by Waveshare, onboard USB Type-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.

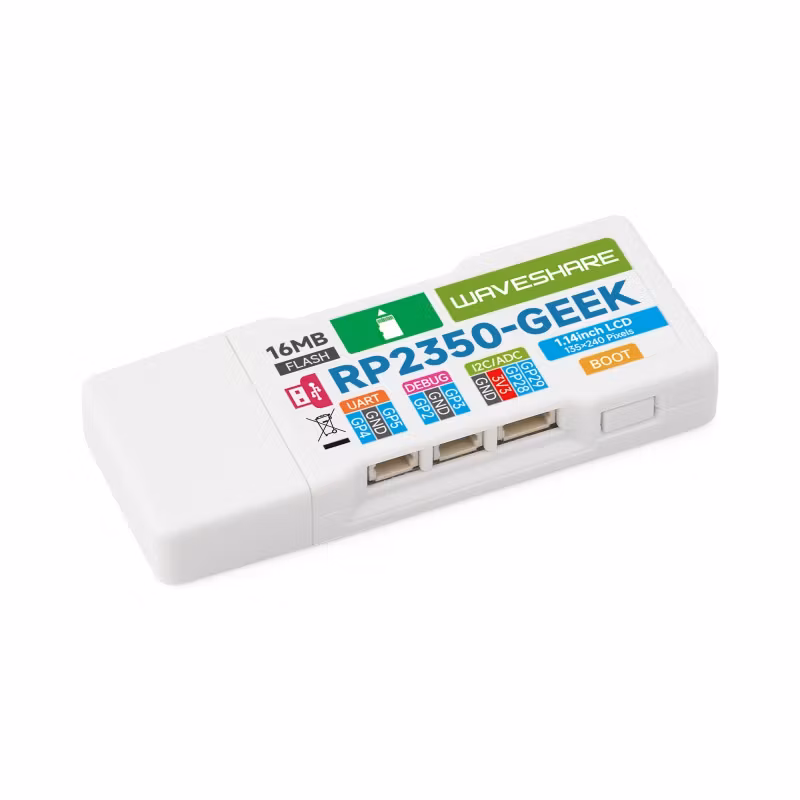

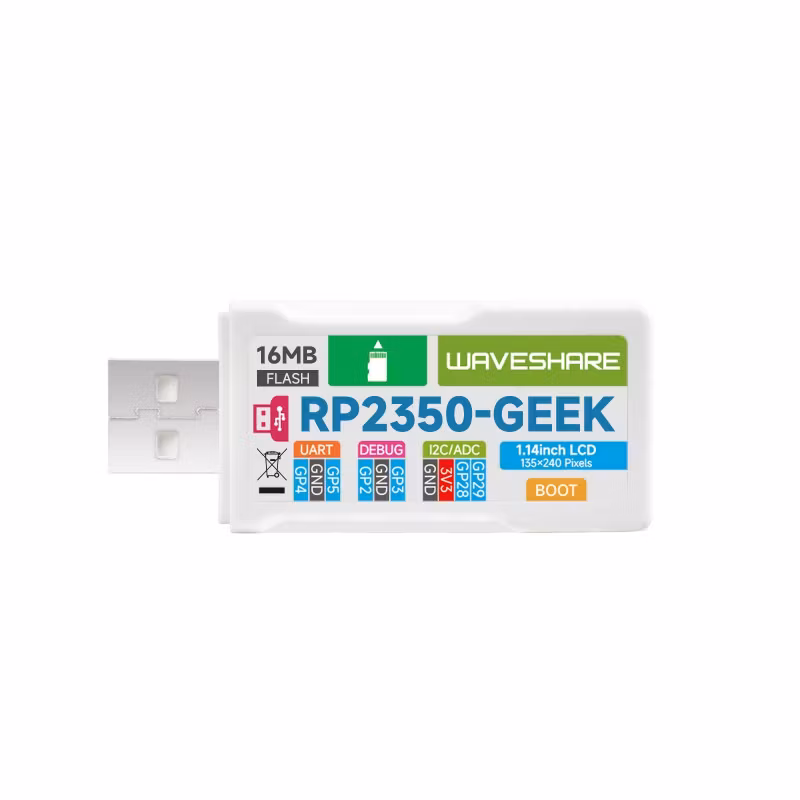

RP2350-GEEK Development Board, front view RP2350-GEEK Development Board, ffeatures

Board specifications

RP2350-GEEK is a geeks development board designed by Waveshare, onboard USB Type-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.

Key features include:

  • RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Onboard 3PIN SWD port for connecting the debugged target board
    • Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers
    • Works with OpenOCD and other tools supporting CMSIS-DAP
    • Adopts the Raspberry Pi 3PIN Debug Connector Specification
  • Onboard 3PIN USB to UART bridge
  • Onboard 4PIN I2C port for the testing target board
  • Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
  • Equipped with plastic case and cables
  • Open-source firmware, more convenient to upgrade

Combines multiple functions in one

Onboard multiple interfaces and 1.14inch LCD display, compatible with multiple
debugging methods

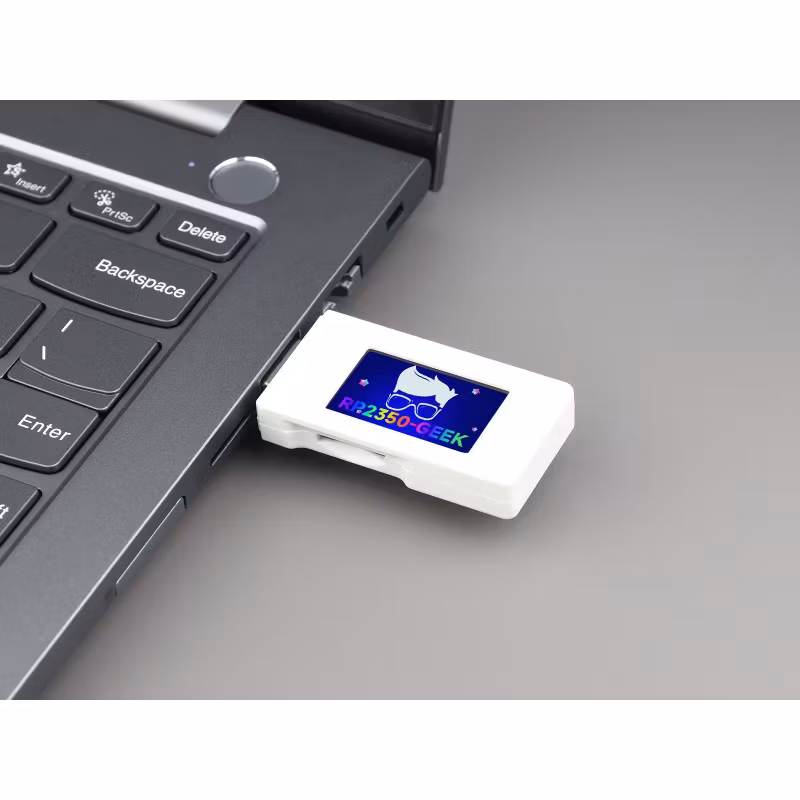

RP2350-GEEK Development Board, combines multiple functions

Application Example

Connect to the debugging interface of Pico via the 3PIN SWD cable

RP2350-GEEK Development Board, application example

* for reference only, the Raspberry Pi Pico 2 is NOT included.


Onboard Resources

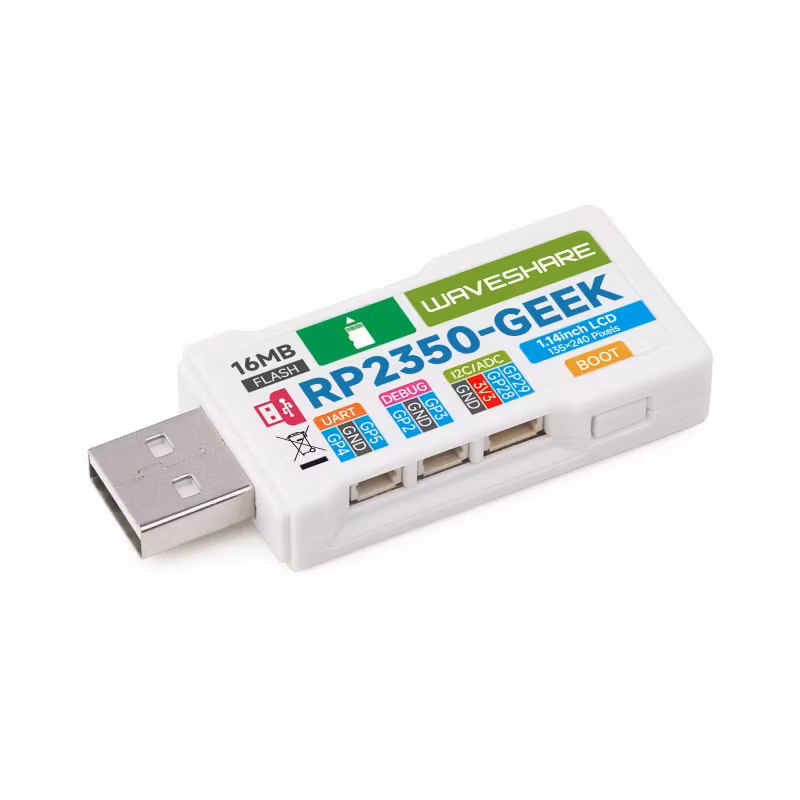

RP2350-GEEK Development Board, onboard resources
  1. USB Type-A interface
  2. UART port
  3. SWD port
  4. I2C port

  1. TF card slot
    Supports SDIO interface and SPI interface communication
  2. W25Q128JVSIQ
    16MB NOR-Flash
  3. RP2350
  4. BOOT button

Product show

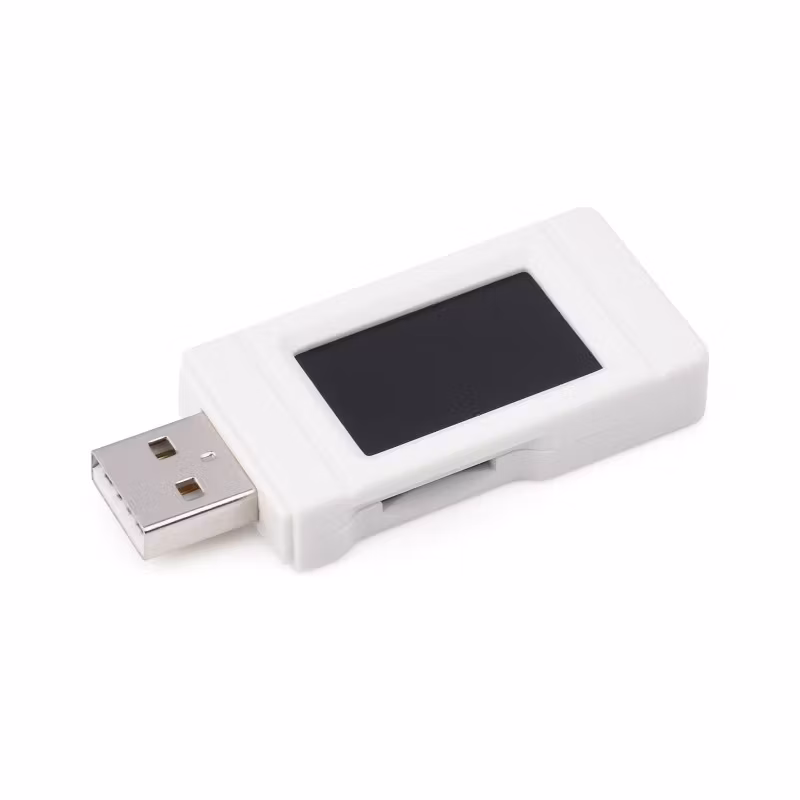

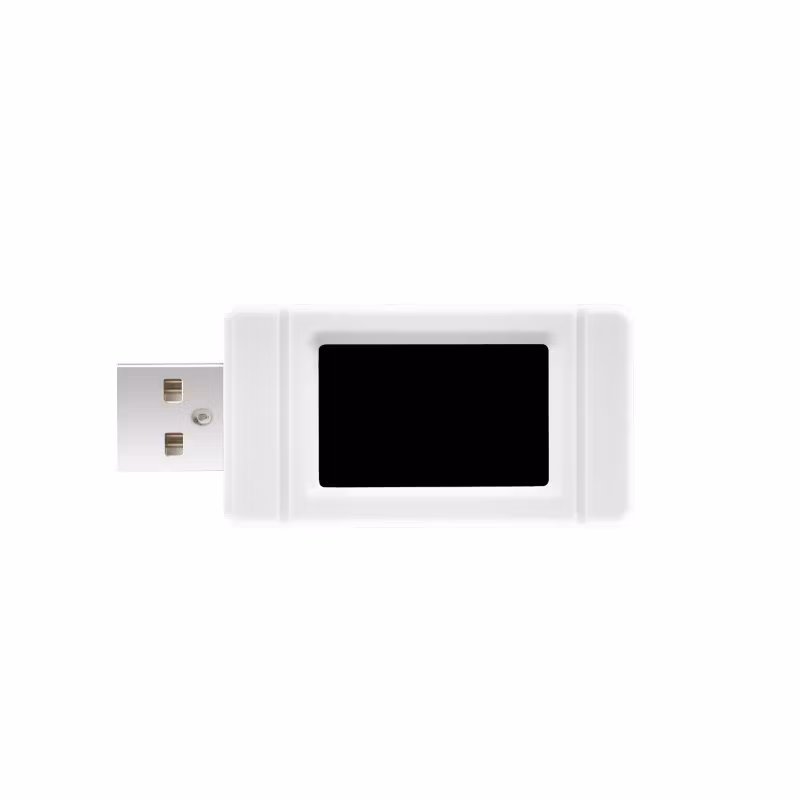

RP2350-GEEK Development Board, product show

outline dimensions

RP2350-GEEK Development Board, outline dimensions


Wiki: www.waveshare.com/wiki/RP2350-GEEK

Shipping list

Weight: 0.016 kg

RP2350-GEEK and cables x1

RP2350-GEEK
