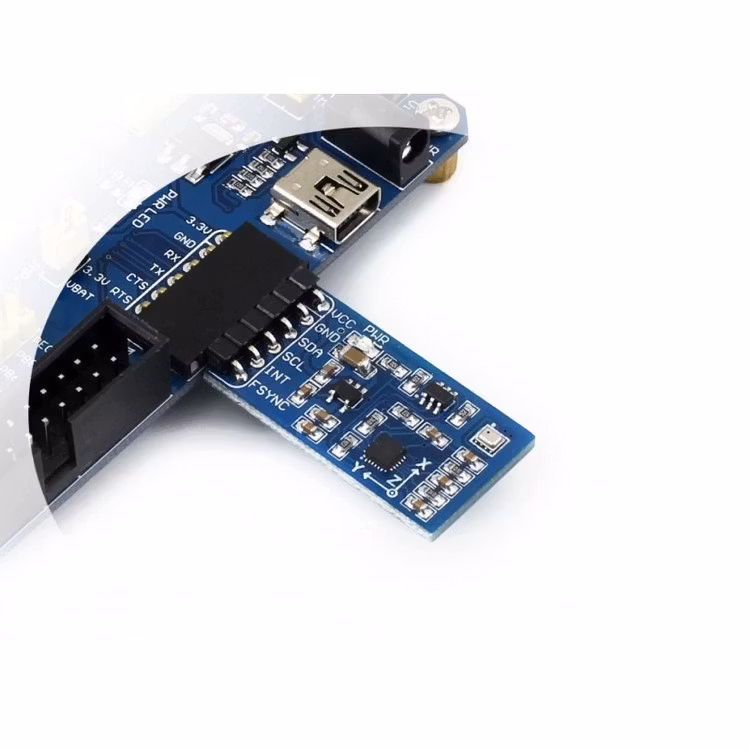

10 DOF IMU Sensor, Low Power

  • 399 kr

10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your


I lager.
Artikelnummer: 332
Dela

10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your own copter or balancing robot, provides great man-machine interaction.

Features

  • MPU9250: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
    • Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
    • Comparing with MPU6050, it is lower power consumption, and more suitable for wearable devices
  • BMP280: barometric pressure sensor
    • Embedded temperature sensor for temperature compensation
    • Comparing with BMP180, it is lower power consumption, and higher performance
  • You can get the 10 DOF data through I2C interface

Specifications

  • Power: 3.3V~5.5V (internal voltage regulation with low dropout)
  • Accelerometer
    • Resolution: 16 bit
    • Measurement range (configurable): ±2, ±4, ±8, ±16g
    • Operating current: 450uA
  • Gyroscope
    • Resolution: 16 bit
    • Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
    • Operating current: 3.2mA
  • Compass/Magnetometer
    • Resolution: 14bit
    • Measurement range: ±4800µT
    • Operating current: 280uA
  • Barometric pressure sensor
    • Barometric resolution: 0.0016hPa
    • Temperature resolution: 0.01°C
    • Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
    • Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
    • Operating current (1Hz update rate, ultra-low power mode): 2.8uA

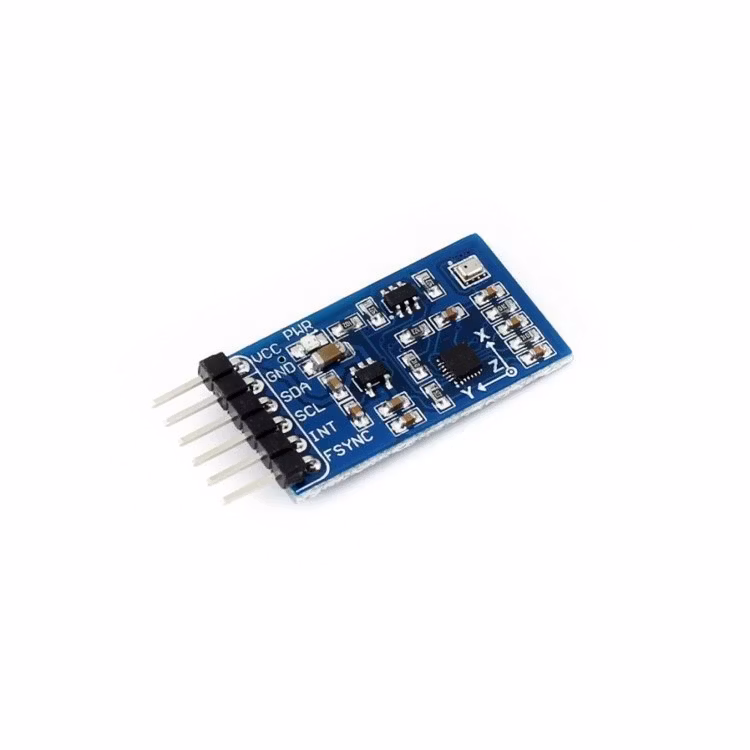

Interface

PIN NO.SYMBOLDESCRIPTION
1VCC3.3V~5.5V power supply
2GNDpower ground
3SDAI2C data pin
4SCLI2C clock pin
5INTMPU9250 digital interrupt output
6FSYNCMPU9250 frame sync signal

Dimension

Development Resources

Wiki: www.waveshare.com/wiki/10_DOF_IMU_Sensor_(C)

Shipping list

Weight: 0.003 kg

  1. 10 DOF IMU Sensor (C) × 1


10 DOF IMU Sensor (D), Inertial Measurement Unit, ICM20948 Onboard, Lower Power Consumption, High Precision

Overview

10 DOF IMU Sensor (D) features the low power ICM20948 onboard, it is good at motion monitoring, as well as detecting/measuring the position, height, and temperature.

This tiny module would be helpful for making your own copter or balancing robot, provides great man-machine interaction.

Features

  • ICM20948: low power 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
    • Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
    • Comparing with MPU9250, it is higher precision, lower power consumption, and more suitable for wearable devices
  • BMP280: barometric pressure sensor
    • Embedded temperature sensor for temperature compensation
    • Comparing with BMP180, it is lower power consumption, and higher performance
  • You can get the 10 DOF data through I2C interface

Specifications

  • Power: 3.3V~5V (internal voltage regulation with low dropout)
  • Accelerometer
    • Resolution: 16 bit
    • Measurement range (configurable): ±2, ±4, ±8, ±16g
    • Operating current: 68.9uA
  • Gyroscope
    • Resolution: 16 bit
    • Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
    • Operating current: 1.23mA
  • Compass/Magnetometer
    • Resolution: 16 bit
    • Measurement range: ±4900µT
    • Operating current: 90uA
  • Barometric pressure sensor
    • Barometric resolution: 0.0016hPa
    • Temperature resolution: 0.01°C
    • Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
    • Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
    • Operating current (1Hz update rate, ultra-low power mode): 2.8uA

Interface

PIN NO.SYMBOLDESCRIPTION
1VCC3.3V~5.5V power supply
2GNDpower ground
3SDAI2C data pin
4SCLI2C clock pin
5INTICM20948 digital interrupt output
6FSYNCICM20948 frame sync signal

Dimension

Development Resources

Wiki: www.waveshare.com/wiki/10_DOF_IMU_Sensor_(D)

Shipping list

Weight: 0.003 kg

  1. 10 DOF IMU Sensor (D) x1
