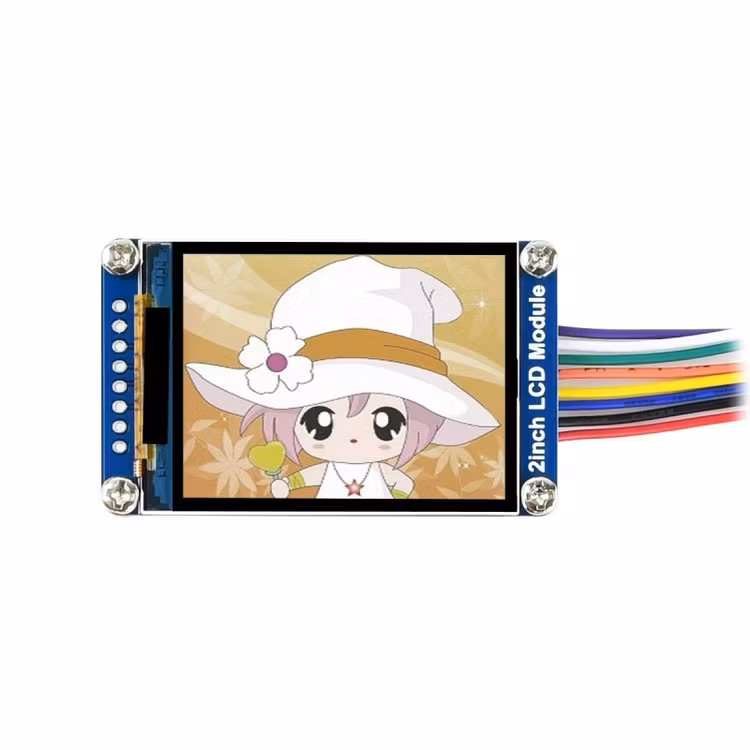

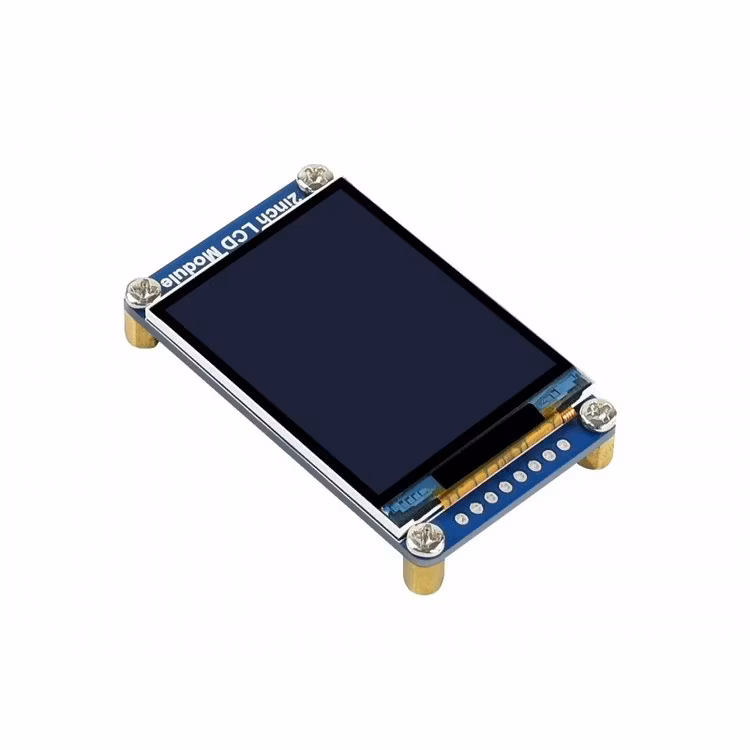

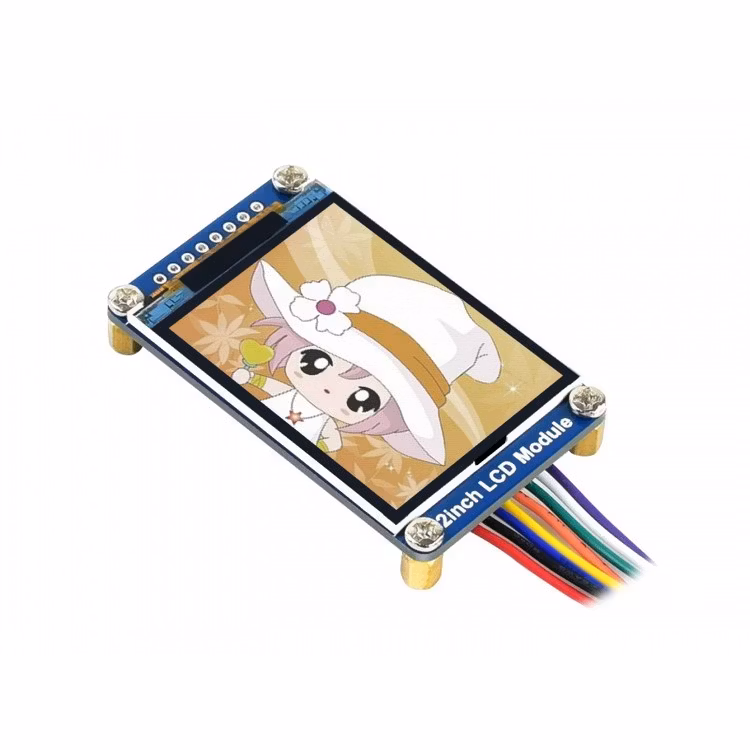

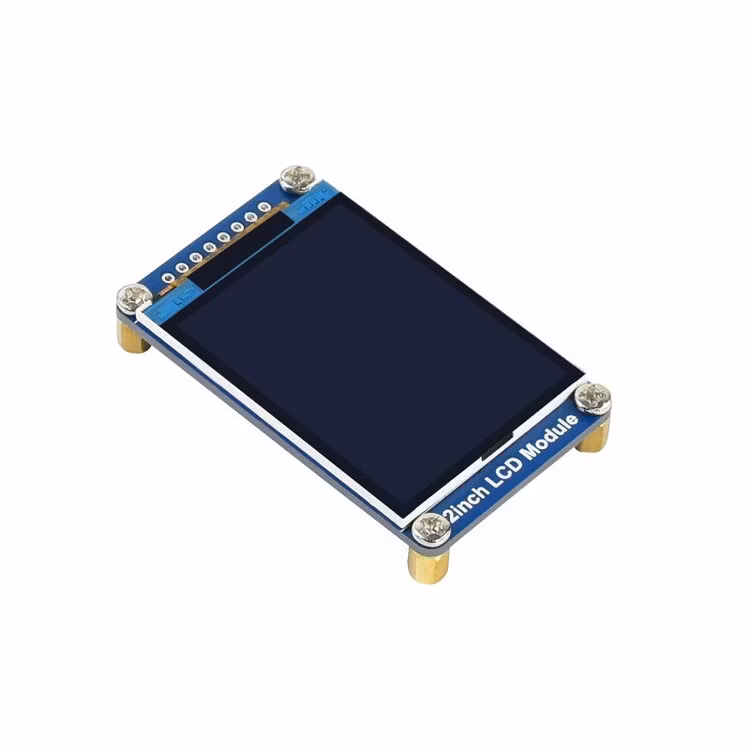

240×320, General 2inch IPS LCD Display Module

I lager.

175 kr

2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface

Overview

This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface.

Features

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 262K color
  • Resolution: 240×320
  • Backlight: LED
  • Operating voltage: 3.3V

Interface

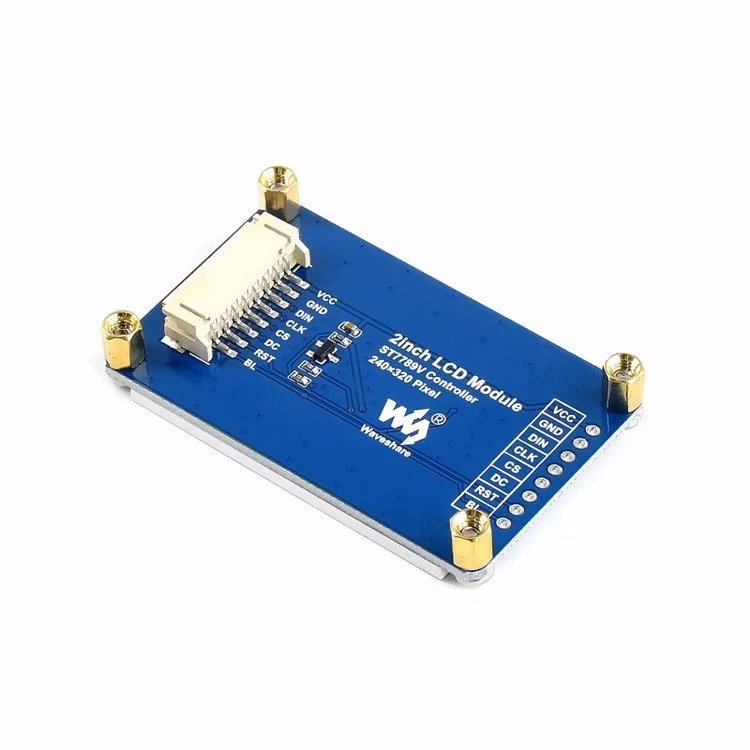

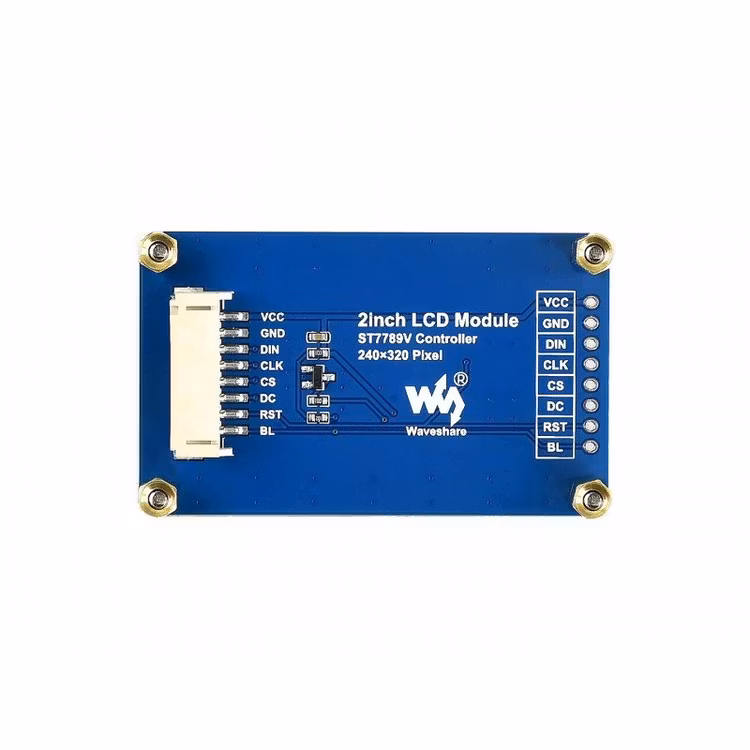

SYMBOLDESCRIPTION
VCCPower (3.3V input)
GNDGround
DINSPI data input
CLKSPI clock input
CSChip selection, low active
DCData/Command selection (high for data, low for command)
RSTReset, low active
BLBacklight

Dimensions

2inch LCD Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2inch_LCD_Module

Package

Weight: 0.024 kg

  1. 2inch LCD Module x1
  2. PH2.0 20cm 8Pin x1
