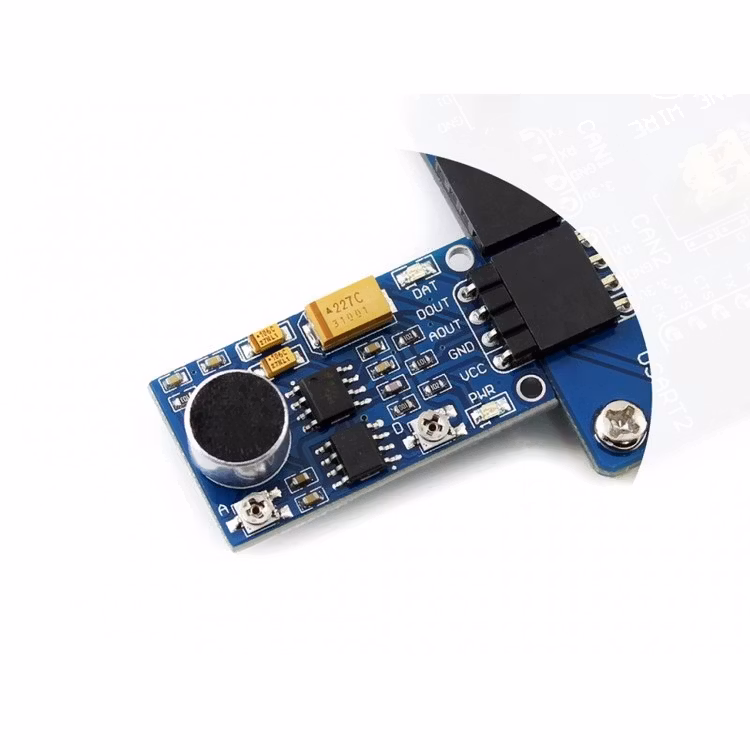

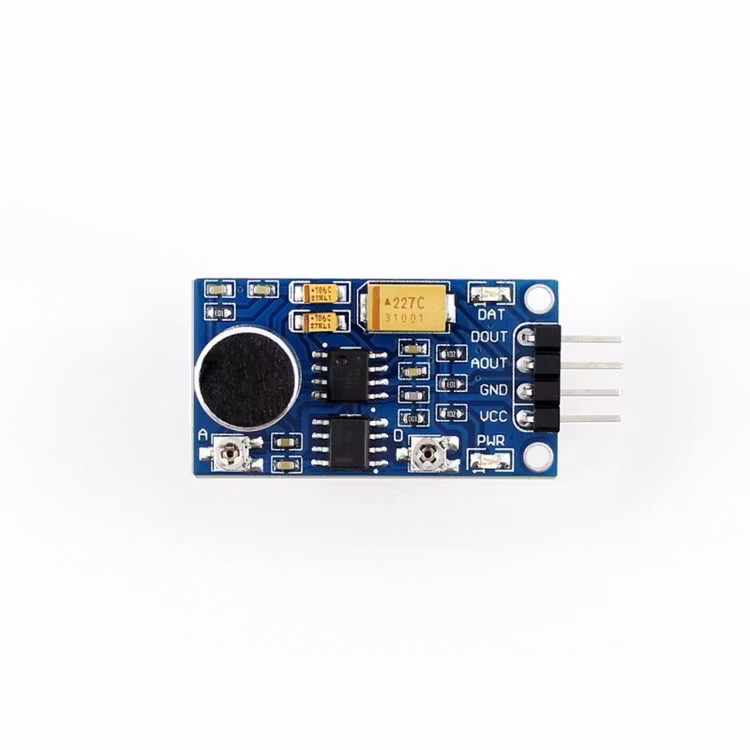

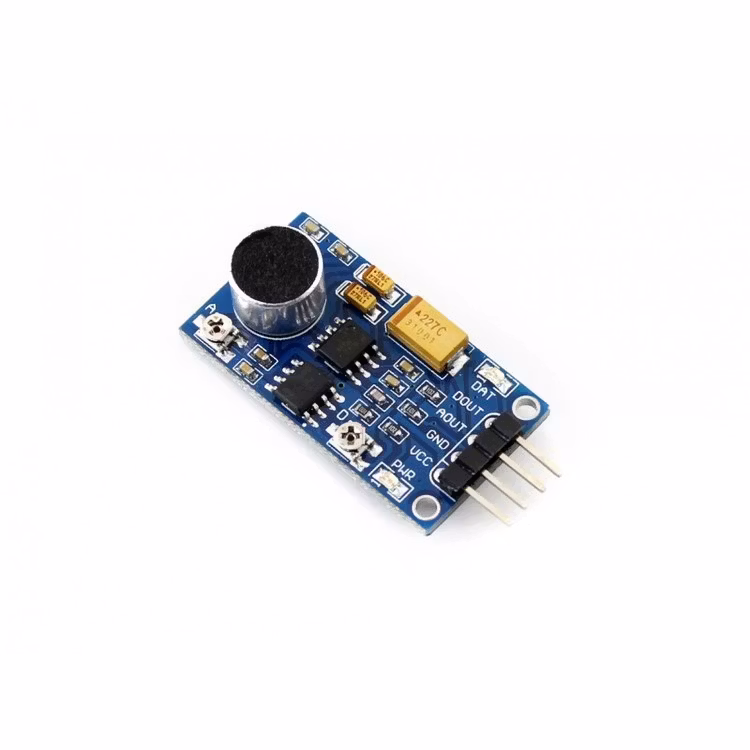

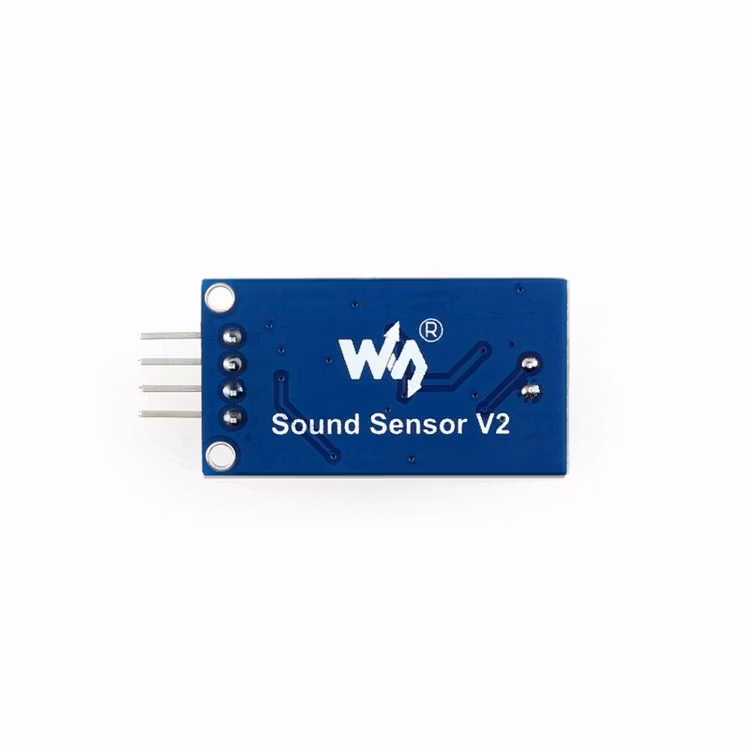

Sound Sensor

  • 75 kr

Onboard audio power amplifier LM386Audio signal gain up to 200Adjustable accuracySignal output indicatorSpecificationsMic sensitivity : 52dBFrequency range : 50

I lager.
Artikelnummer: 563
Dela
  • Information
  • Onboard audio power amplifier LM386
  • Audio signal gain up to 200
  • Adjustable accuracy
  • Signal output indicator

Specifications

  • Mic sensitivity : 52dB
  • Frequency range : 50Hz ~ 20KHz
  • Power: 3.3V ~ 5.3V
  • Mounting holes size: 2.0mm

Applications

  • Audio amplifier
  • Ambient sound detection
  • Sound level detection (unable to get exact dB value)

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/Sound_Sensor
