Pixhawk4 mini Flight Control

I lager.

2 875 kr

Förbeställning. Beräknad tillgänglighet Datum: efter 21 juni 2019

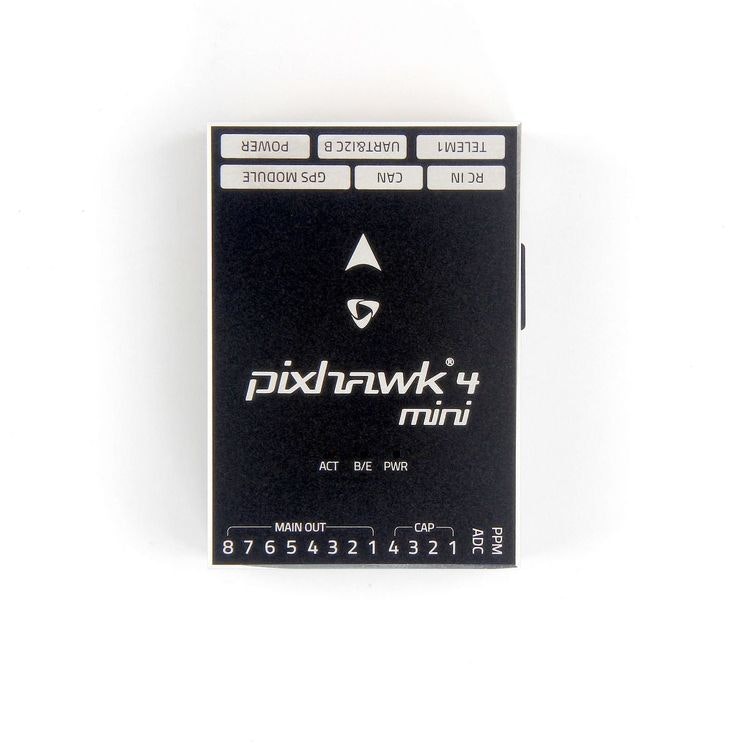

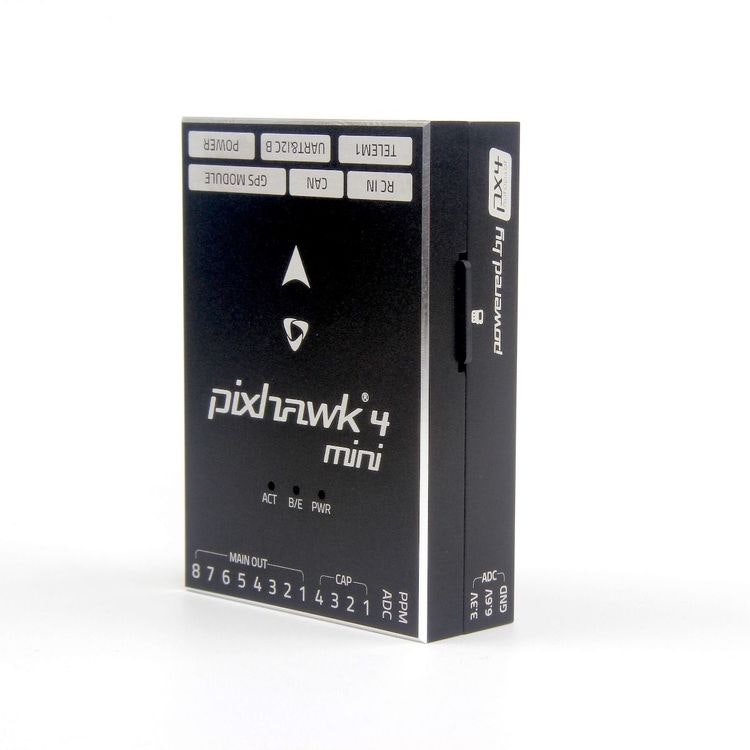

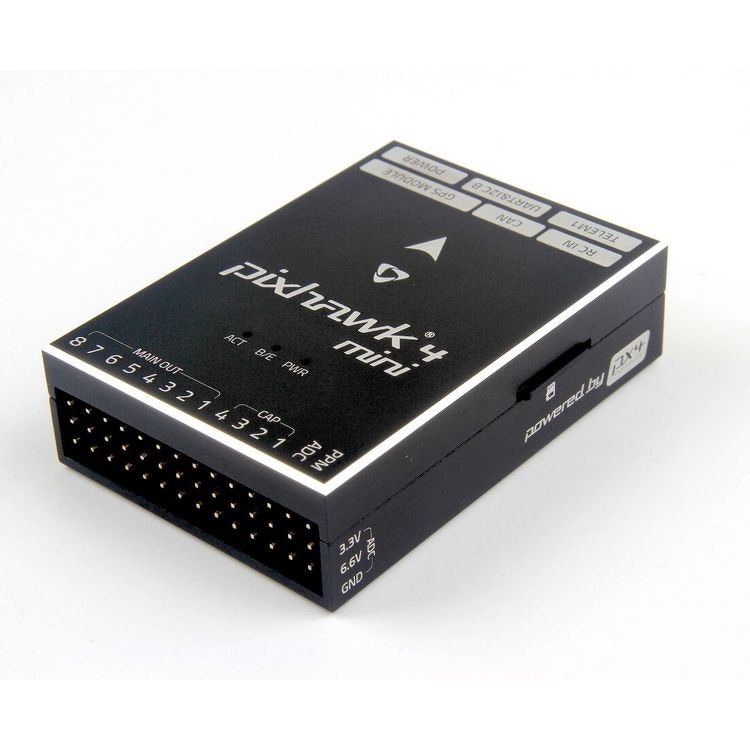

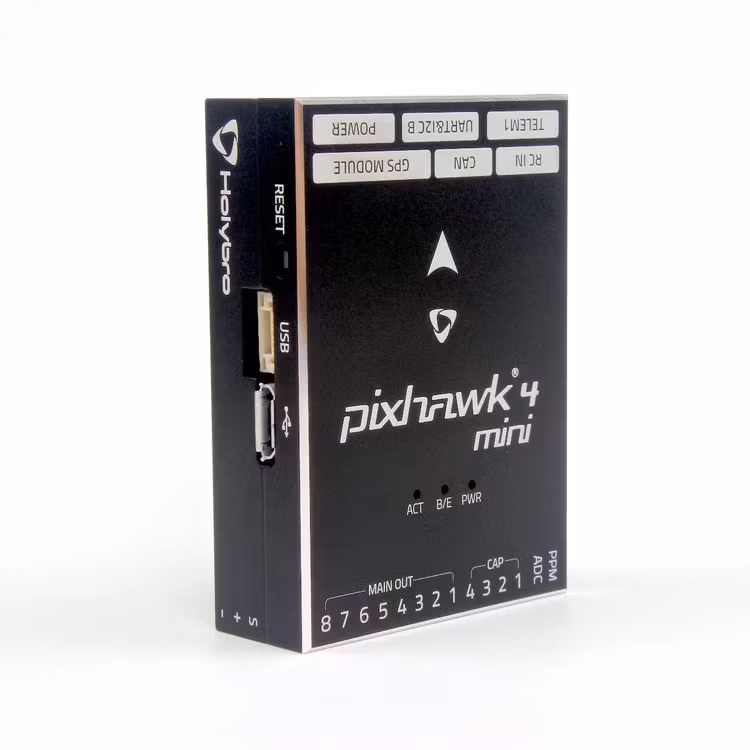

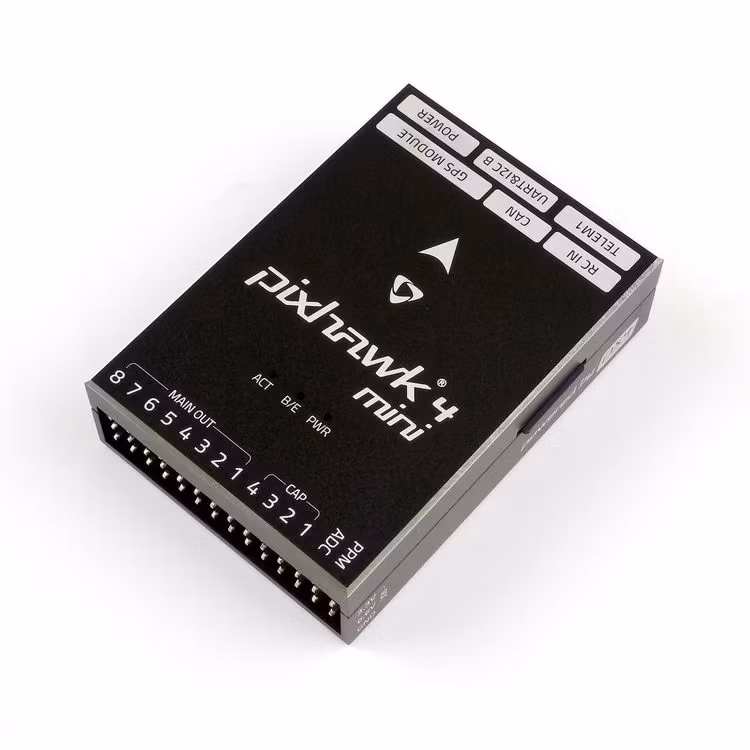

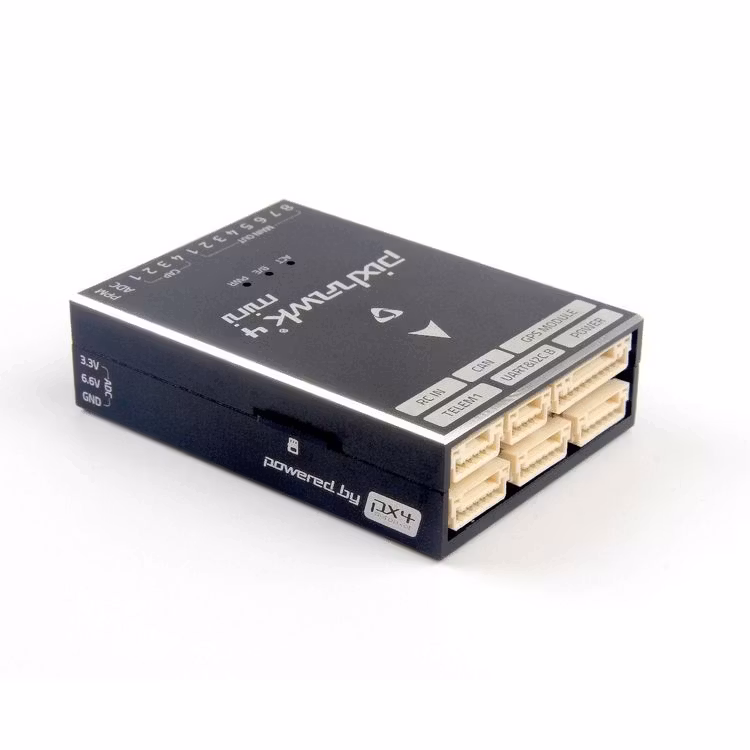

The Pixhawk® 4 Mini autopilots is designed for engineers and hobbyists who are looking to tap into the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while eliminating interfaces that are normally unused. This allows the Pixhawk 4 Mini to be small enough to fit in a 250mm racer drone.

Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.

Pixhawk4 mini firmware version:1.8.0 dev

Quick Summary

  • Main FMU Processor: STM32F765
    • 32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
    • On-Board Sensors
      • Accel/Gyro: ICM-20689
      • Accel/Gyro: BMI055
      • Magnetometer: IST8310Barometer: MS5611
    • GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310
    • Interfaces:
      • 8 PWM outputs
      • 4 dedicated PWM/Capture inputs on FMU
      • Dedicated R/C input for CPPM
      • Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
      • 3 general purpose serial ports
      • 2 I2C ports
      • 3 SPI buses
      • 1 CANBuses for CAN ESC
      • Analog inputs for voltage / current of battery
      • 2 additional analog input
    • Power System:
      • ower Brick Input: 4.75~5.5V
      • USB Power Input: 4.75~5.25V
      • Servo Rail Input: 0~24V
      • Max current sensing: 120A
    • Weight and Dimensions:
      • Dimensions: 38x55x15.5mm
    • Other Characteristics:
      • Operating temperature: -40 ~ 85°c

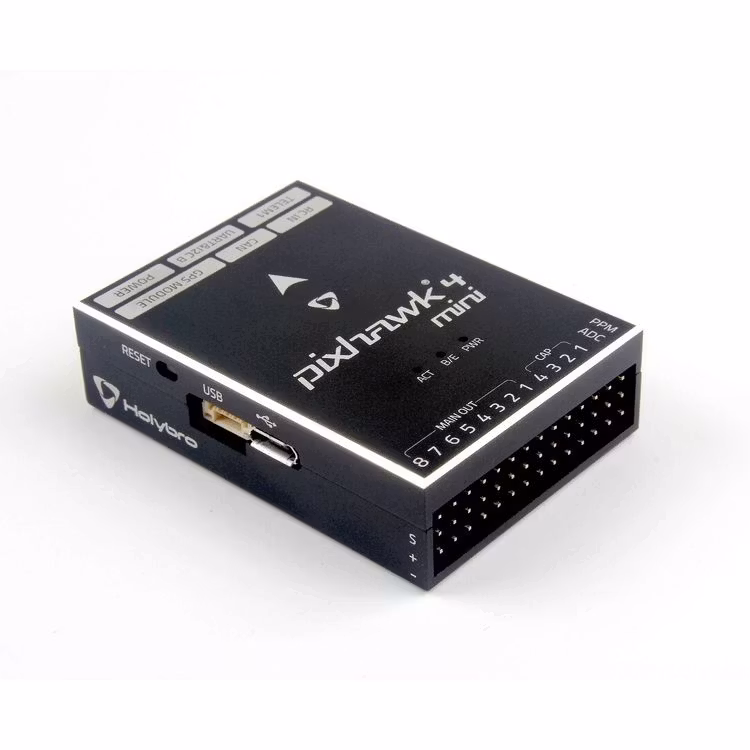

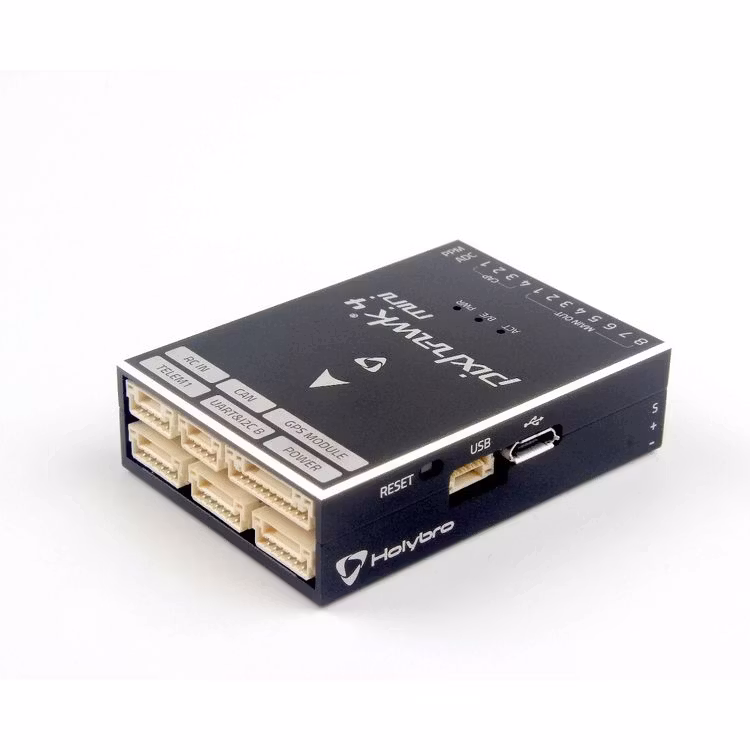

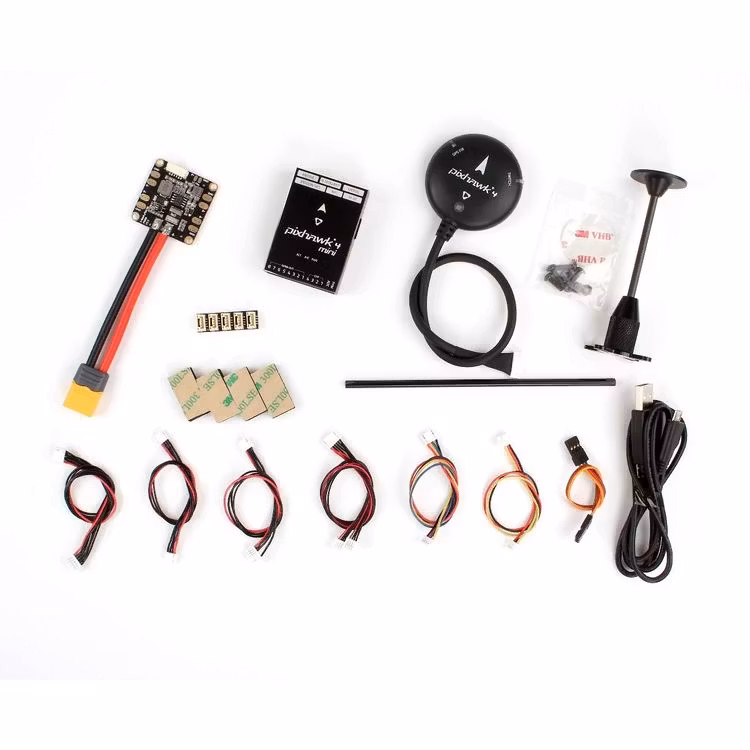

Package Included

Part List

  • 1 x Pixhawk4 mini
  • 1 x Pixhawk4 GPS MODULE
  • 1 x PM06 V2 Power Management Board
  • 1 x I2C splitter Board
  • 1 x 6 to 6 pin cable (power)
  • 1 x 4 to 4 pin cable (CAN)
  • 1 x 6 to 4 pin cable (Data)
  • 1 x 6 to 4 pin and 4 pin "Y"cable
  • 1 x 6 to 6 pin cable(Debug)
  • 1 x PPM/SBUS out cable
  • 1 x XSR receiver cable
  • 1 x DSMX receiver cable
  • 1 x SBUS receiver cable
  • 1 x USB cable
  • 1 x 'X'type folding pedestal mount
  • 2 x 70mm & 140mm carbon rod stand off
  • 1 x Foam Set
  • 1 x Pixhawk4 mini Quick Start Guide
