Solar Power Manager with Panel (5V 1A)

I lager.

499 kr

Artikelnummer: 275

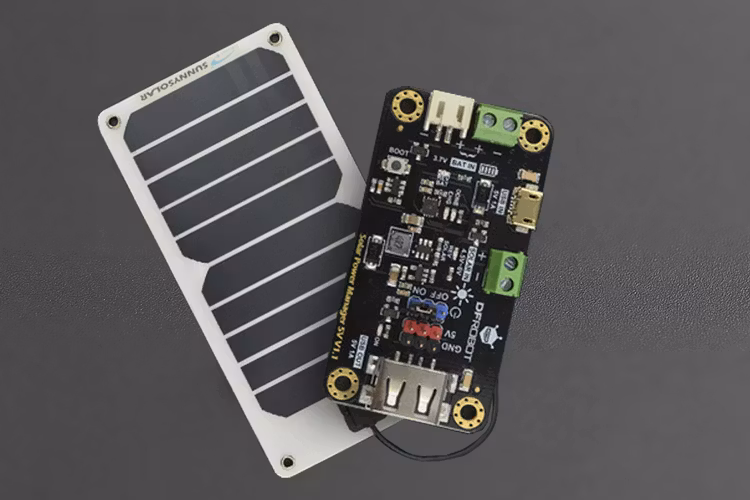

Includes Solar Power Manager 5V and Semi-Flexible Monocrystalline Solar Panel (5V 1A).

The DFRobot Solar Power Manager series are designed for IoT projects and renewable energy projects, providing safe and high-efficiency embedded solar power management modules for makers and application engineers.

Solar Power Manager 5V is a small power and high-efficiency solar power management module designed for 5V solar panel.
It features as MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. The module can provide up to 900mA charging current to 3.7V Li battery with USB charger or solar panel. The ON/OFF controllable DC-DC converters with 5V 1A output satisfies the needs of various solar power projects and low-power applications. The module also employs various protection functions for battery, solar panel and output, which greatly improves the stability and safety of your solar projects.

Check the brief specification for all Solar Power Manager Series Products.

Version History
V1.0: It is highly recommended to use a 3.7V lipo battery with protection circuits to improve battery safety.
V1.1(Newest): Battery (BAT IN) overcurrent and over-discharge protection is added to improve battery safety. It can be used for 3.7 lipo battery no matter it is packed with protection circuits or not.

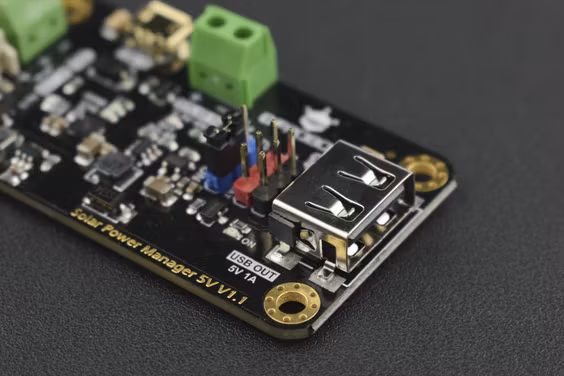

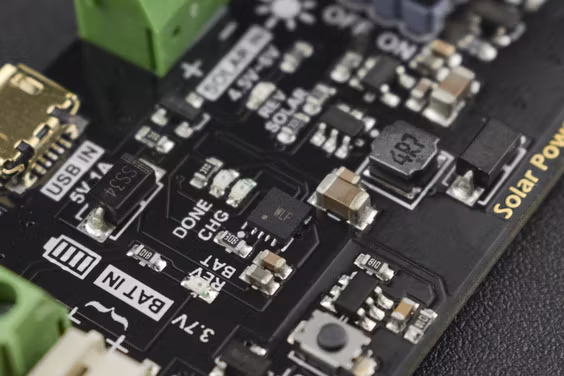

Board Overview


Solar Power Manager 5V Board Overview
Solar Power Manager 5V

Connection Diagram


Solar Power Manager 5V Connection Diagram

Build a solar powered system

Solar Power Manager Series

Solar Power Manager (for 9V/12V/18V solar panel)Solar Power Manager 5VSolar Power Manager Micro (2V 160mA Solar Panel Included)Solar Power Manager For 12V Lead-Acid Battery
NameSolar Power Manager v1.0Solar Power Manager 5v v1.1Solar Power Manager Micro v1.0Solar Power Manager v1.0
SKUDFR0535DFR0559DFR0579DFR0580
Solar Power Management ICLTC3652CN3065SPV1050CN3767
Solar Input Voltage7V-30V4.4V-6V0.5V-4V15V-25V
Maximum Charge Current2A(Solar/USB)900mA(Solar/USB)70mA(Solar)/100mA(USB)4A(Solar)
TopologyDC-DC BuckLinear RegulatorDC-DC BoostDC-DC Buck
Battery3.7V Lithium Battery3.7V Lithium Battery3.7V Lithium Battery12V Lead-Acid Battery
MPPT9V/12V/18V Optional5V Fixed75% Open VoltageFixed 18V
Battery ProtectionsOver Charge/Over Discharge/Over Current/Reverse Connection ProtectionsOver Charge/Over Discharge/Over Current/Reverse Connection ProtectionsOver Charge/Over Discharge/Reverse Connection ProtectionsOver Charge/Over Discharge/Reverse Connection Protections
Output ProtectionsShort Circuit/Over Current/Over Heat ProtectionsShort Circuit/Over Current ProtectionsShort Circuit/Over Current ProtectionsShort Circuit/Over Current/Over Heat Protections
USB Charge INYesYesYesNo
USB OUT5V 1.5A5V 1ANo5V 2.5A x2
Regulated OUTThree Regulated Outputs 3.3V 1A;5V 1.5A;9V/12V 0.5AOne Regulated Output 5V 1AOne Regulated Output 3.3V 90mATwo Outputs 5V 5A; 12V 8A
Dimension78.0mm×68.0mm33.0mm×63.0mm30.0mm×30.0mm68.0mm×68.0mm
FeaturesA complete multifunction solar power management module.
Applications: Small Solar Street Lamp, Solar Powered Robots
For 9V/12V/18V Solar Panels within20w
A small and easy-to-use 5V solar power management module.
Applications: Solar Power Bank, Solar Environment Monitors
For 5V Solar Panels within 10W
A micro power solar power management module for low-power sensors and controllers.
Applications: Wireless Sensor Network, BLE iBecon
For 1V/2V/3V Solar Panels within 0.5W
A medium power solar management module for 12V lead-acid batteries.
Applications: Street lighting, intelligent agriculture, environmental monitoring station, UPS
For 18V Solar Panels within 100W

FEATURES

  • Constant voltage MPPT algorithm, maximizing solar panel efficiency
  • Designed for 5V solar panel
  • Double charging mode: solar/USB charger (900mA max charge current)
  • 5V ON/OFF controllable regulated power supply for low-power applications
  • All-round protection functions
  • USB connector with ESD shell

APPLICATIONS

  • Smart solar environment monitor system
  • Solar-powered robot
  • Small solar street lamp
  • Solar power bank

SPECIFICATION

  • Solar Power Management IC: CN3065
  • Solar Input Voltage (SOLAR IN): 4.5V~6V
  • Battery Input (BAT IN): 3.7V Single cell Li-polymer/Li-ion Battery
  • Charge Current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
  • Charging Cutoff Voltage (USB/SOLAR IN): 4.2V±1%
  • Regulated Power Supply: 5V 1A
  • Regulated Power Supply Efficiency (3.7V BAT IN): 86%@50%Load
  • USB/Solar Charge Efficiency: 73%@3.7V 900mA BAT IN
  • Quiescent Current: <1 mA
  • Operation Temperature: -40℃~85℃

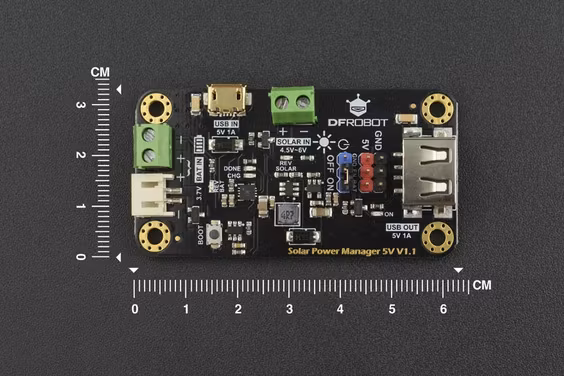

  • Dimension: 33.0mm*63.0mm
  • Protection Functions:
  1. BAT IN: over charge/over-discharge/over current/reverse connection protection
  2. 5V/USB OUT: short circuit/over current/overheat protection
  3. SOLAR IN: reverse connection protection

DOCUMENTS

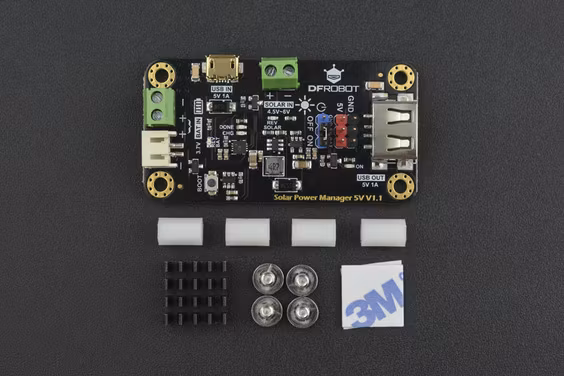

SHIPPING LIST

  • Solar Power Manager 5V x1
  • Semi-Flexible Monocrystalline Solar Panel (5V 1A) x1
  • 2.54mm Black Jumper x1
  • M3*10mm Nylon Pillar x4
  • M3*5mm Stainless Steel Screw x4

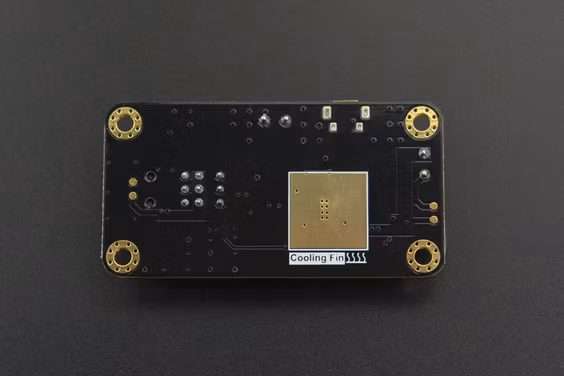

  • 14*14*7mm Black Aluminum Cooling Fin x1
  • 14*14*0.5mm Thermal Conductive Silicone Pad x1
