Ai-Thinker A9G GPS GSM GPRS Development Board GPRS Module GPS Module Wifi

I lager.

249 kr

Artikelnummer: 683

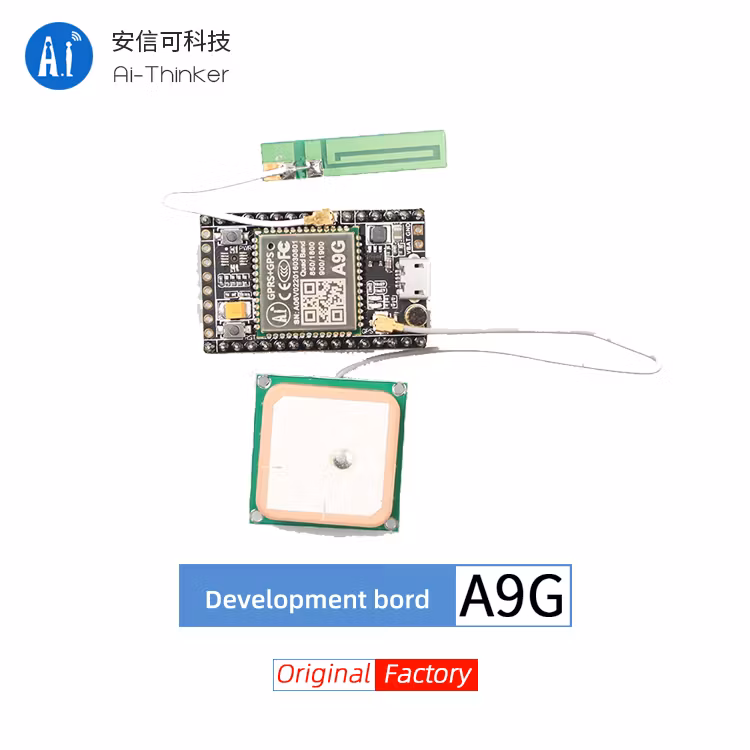

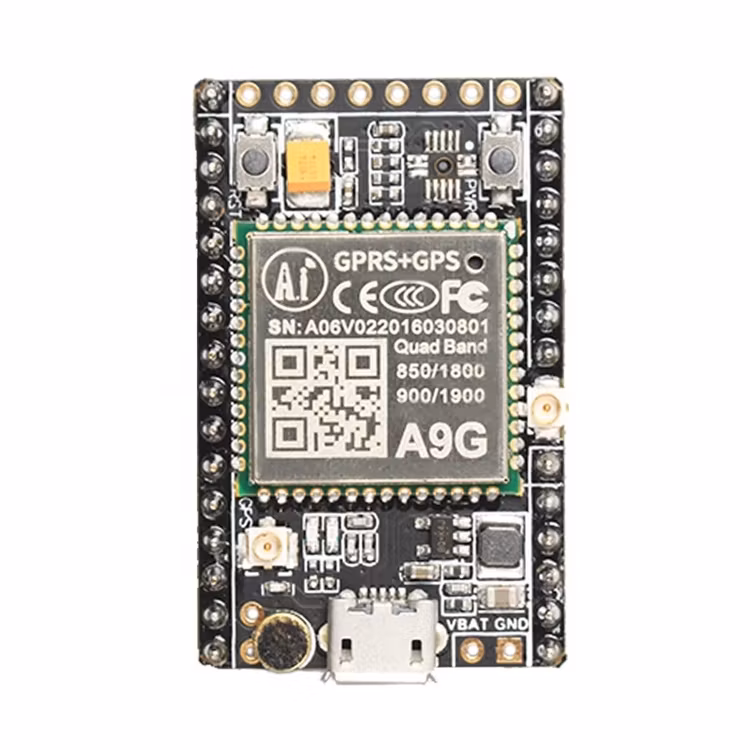

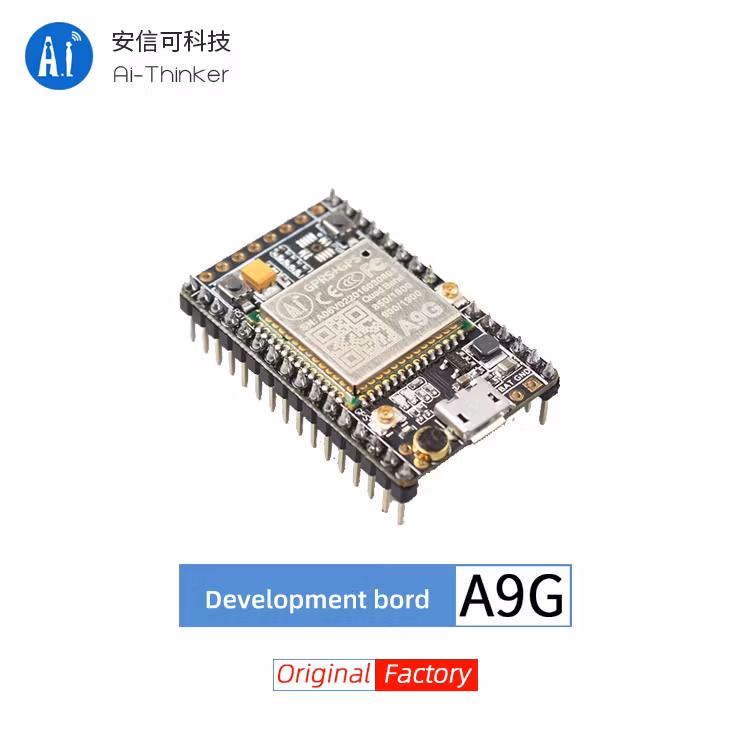

A9G GSM, GPRS + GPS Module Development Board  AI-Thinker

The A9G development board is a multi-functional development board based on A9G GPRS/ GSM module, you can use it to verify the basic communication and peripheral functions of A9 module. It has a basic phone/ SMS, GPRS networking communications.

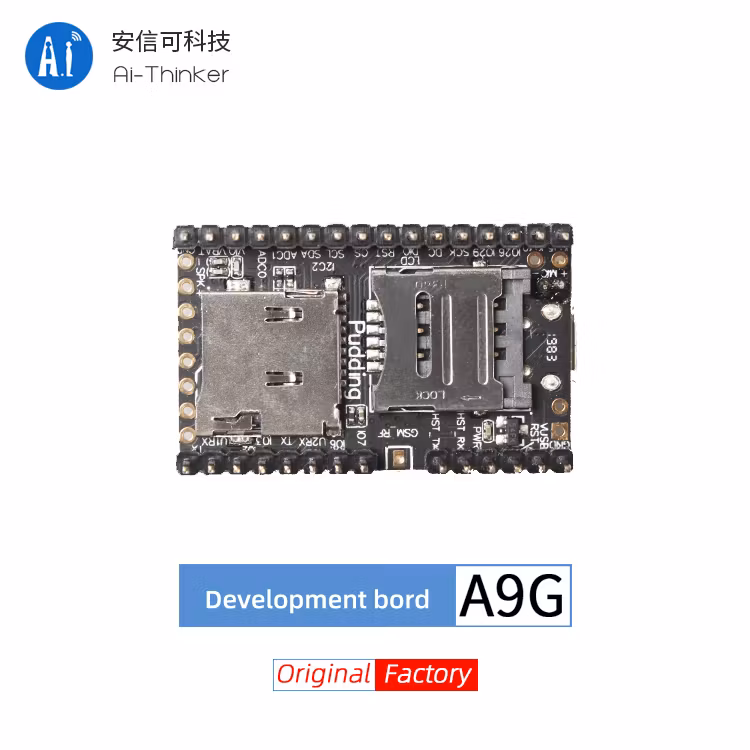

There are lithium battery charge management, microphone, speaker interface, USB communication interface, multiple user keys/ led, TF card slot, acceleration sensor, SPI interface, I2C2 interface, ADC interface on the boards, so you can develop different functions with this board. This board has a camera expansion board, so you can connect an external 30W/ 200W camera. It can add a traditional slot machine for it contains slot machine function.

Ai-Thinker Cheap GPS GSM GPRS Module Wireless Transmission A9G Development Board with USBAi-Thinker Cheap GPS GSM GPRS Module Wireless Transmission A9G Development Board with USB

Features of A9G GSM, GPRS and GPS Module

-Supports voice call and SMS message.

-Supports GSM/ GPRS frequency: 850/ 900/ 1800/ 1900 MHz.

-Supports GPRS data service, the maximum download data rate is 85.6 Kbps, upload data is 42.8 Kbps.

-Supports GSM07.07, 07. 05 AT commands and Ai-Thinker explosion command.

-Supports 3 serial ports, one download serial port, one AT command port.

Specifications

-Size: 19.2mm x 18.8mm x 3mm

-Working temperature: -30 ℃-80℃

-Working voltage: 3.5v – 4.2v (it’s best to power by 4v)

-Power voltage: >3.5 Volts

-Low power consumption:

-Sensitivity GP
