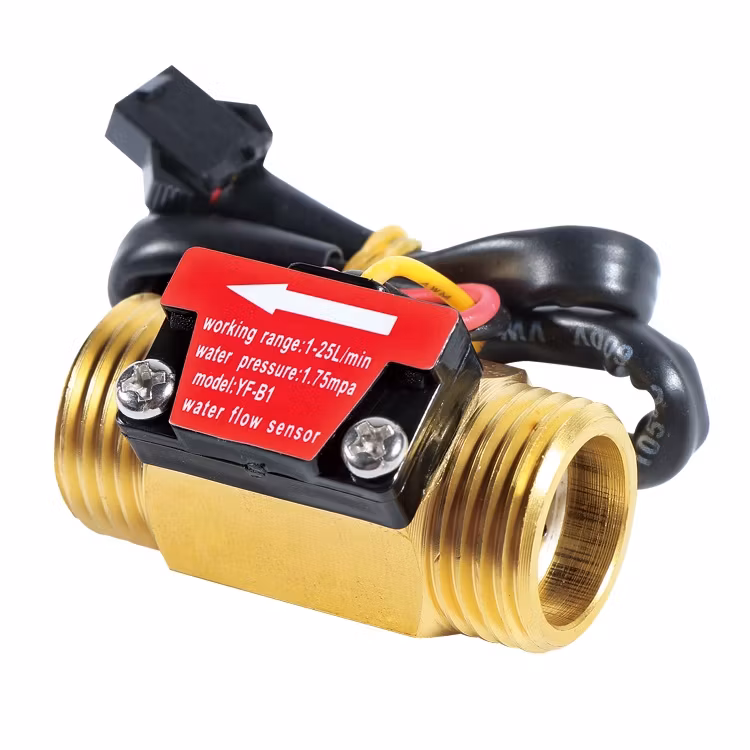

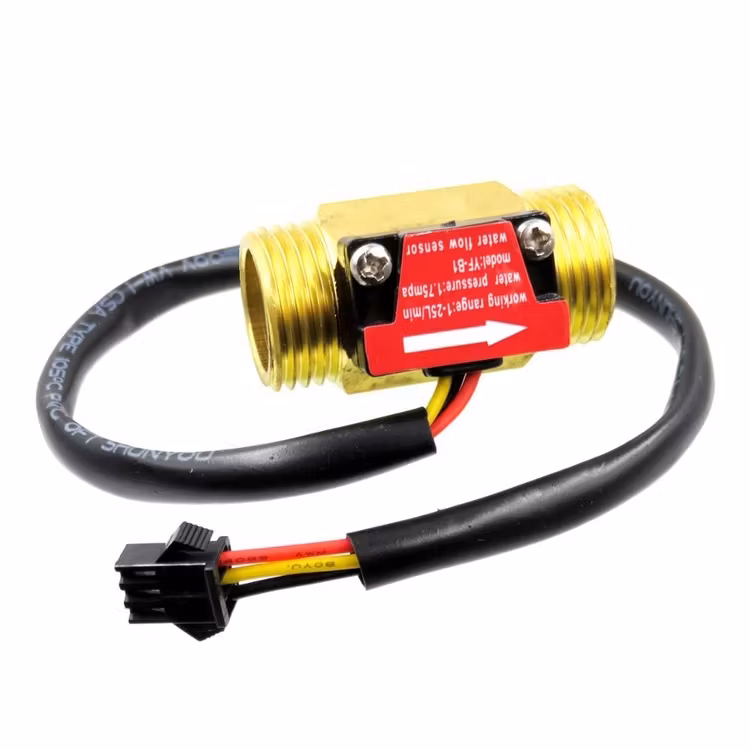

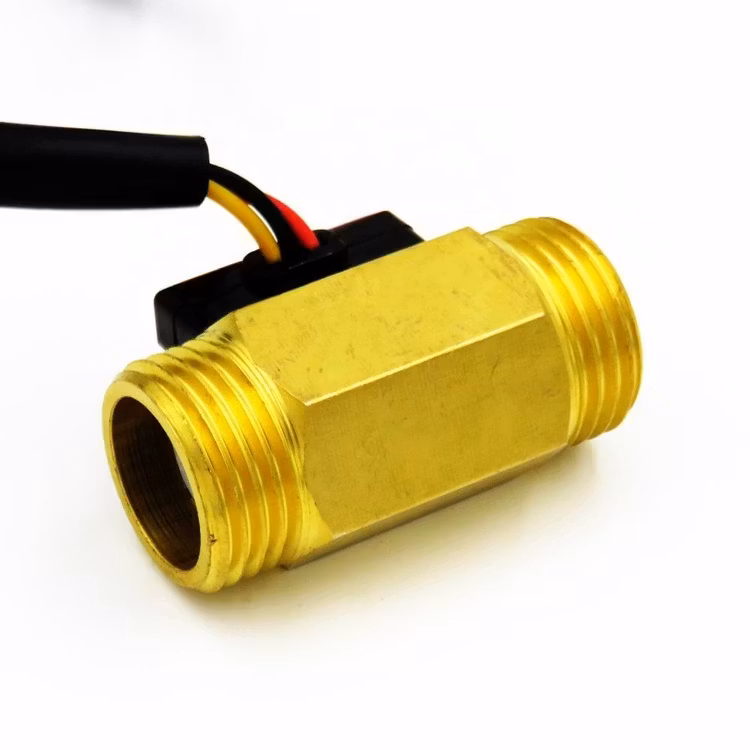

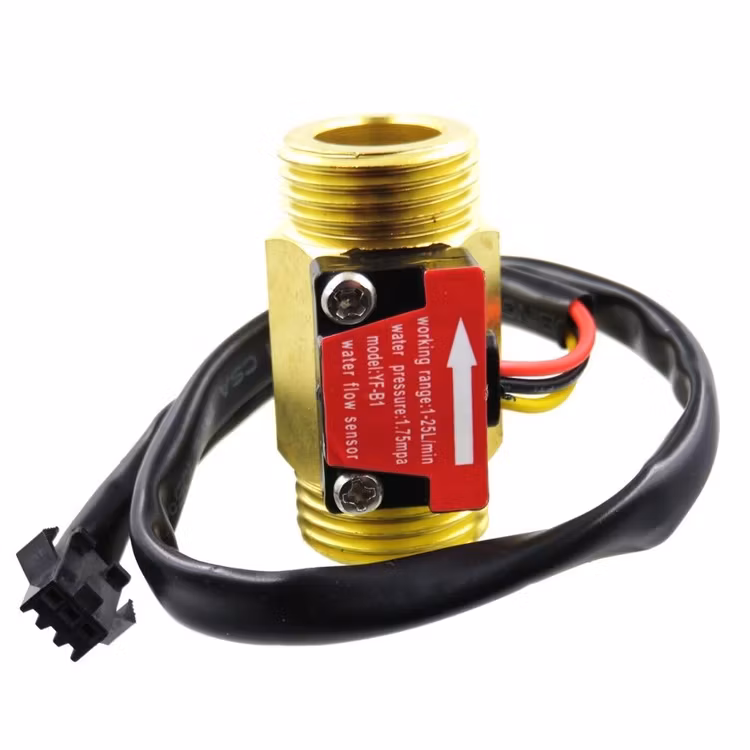

G3/4 Brass Hall Signal Flow Sensor

I lager.

199 kr

SEA NPT THREAD YF-B5 Best Quality Good Price G3/4  Brass Hall Signal Flow Sensor Meter

The water flow sensor is a device used to sense the water flow rate in a tank. There is a Hall element in the flow sensor. When liquid flows by the sensor, it drives the Hall element inside the sensor to rotate. By calculating the rotate speed of the element, the water flow sensor can give a prcise outcome of the water flow rate passed by the pipe.

  • Inlet & Outlet Diameter G3/4''
  • Flow Range 0.5-30L/min
  • Pulse Characteristic F=6.6*Q
  • Pressure Range 1.2MPA

Specifications:

No.
   Inspection item
                                                 Standard Request

1         Sensor                                                        Hall Effect Sensor, Digit Output

2         Product Material                                        Brass

3         Flow Range / Accuracy                             1-30L\min ±10%

4         Rated Voltage                                             DC=5-15V

5         Max Working Current                                10mA

6         Withstand Hydraulic Pressure                  <1.75MPa

7         Working Voltage Range                             DC5-24V

8         Insulation Resistance                                 >100MΩ

9         Pulse Characteristic                                   6.6*Q(L/Min) ±3%

10       Medium Temperature                                 -20°C~+80°C

11       Max Output Pulse                                       >DC 4.7V (Input Voltage DC 5V)

12       Min Output Pulse                                        >DC 0.5V (Input Voltage DC 5V)

13       Output Pulse Duty Ratio                            50%±10%

14       Applicable Medium                                     Water, Tap-Water





Application:

The water flow sensor can be used to monitor liquid flow rate in water machine, water heater, coffee machine, vending machine, water meter, medical testing machine and the like. They are widely applied in industrial equipment, agricultural equipment and household electrical appliances in the future.
