Gravity VEML6075 UV Sensor Module

I lager.

199 kr

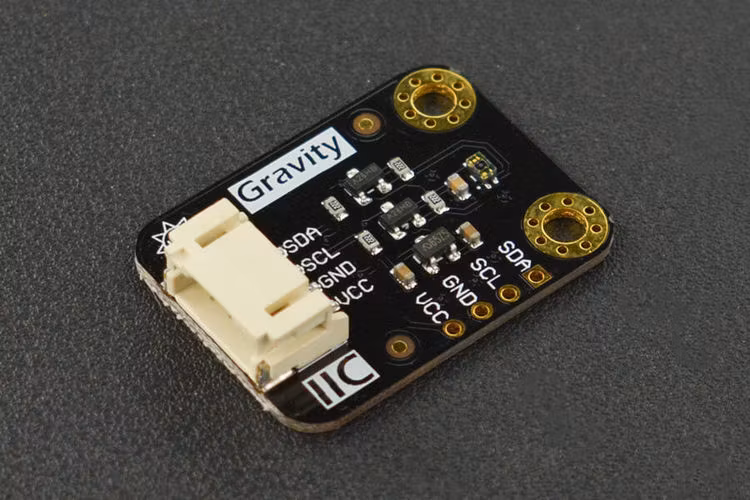

This is a UV sensor module based on Vishay VEML6075 sensor, adopting individual UVA and UVB channel solution with 16-bit resolution. It can convert solar UV light intensity to digital data to provide an accurate measure of the signal strength.
VEML6075 UV sensor can give a reliable performance of UV radiation measurement under long time solar UV exposure. Furthermore, the sensor provides excellent temperature compensation capability within -40℃ to +85℃. VEML6075 features, low power consumption, and its minimum power can be as low as 800nA in shut-down mode. The operating voltage of the sensor ranges from 3.3V to 5V.
Compatible with Arduino and Raspberry Pi, this sensor can be used in portable electronic product, wearable device, weather station, flame detecting and so on. We have related Arduino and Python library for the product.

SPECIFICATION

  • Operating Voltage: 3.3V~5V
  • Chip: VEML6075
  • Output Type: digital output
  • Response Wavelength: UVB (λ0.5) within 315nm to 340nm; UVA (λ0.5) within 350nm to 375nm.
  • Interface: PH2.0-4P
  • IIC Address: 0x10

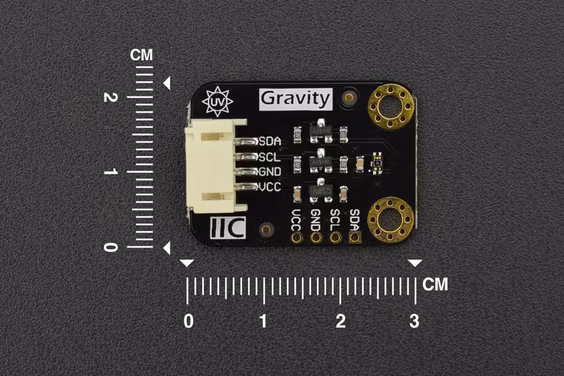

  • Product Size: 22×30mm/0.87×1.18”
  • Mount Hole Size: 3mm
  • Mount Hole Pitch: 15mm
  • Operating Temperature: -40℃~+85℃

DOCUMENTS
