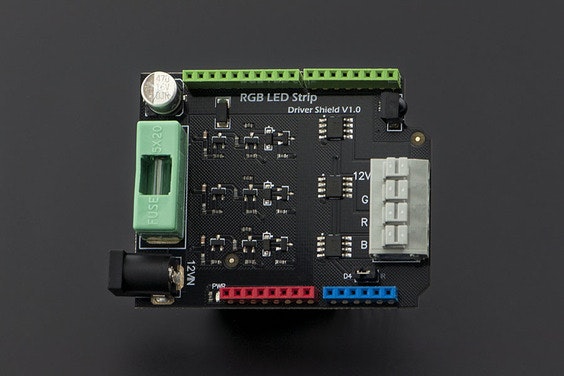

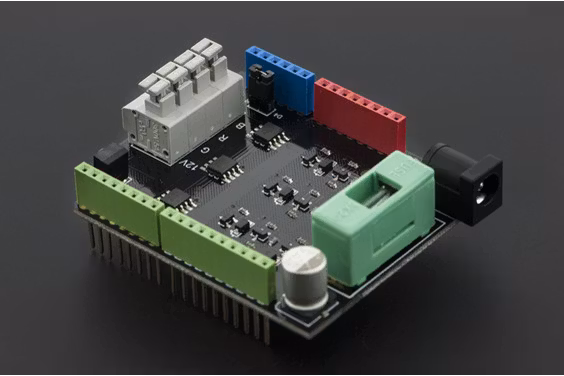

RGB LED Strip Driver Shield v1.0

I lager.

199 kr

Want to program your RGB LED strip to be a bit more "rhythmic" or "unpredictive"? This RGB LED Strip Shield contains all the components you need to build a super cool RGB (or other three-channel) LED project with your Arduino.

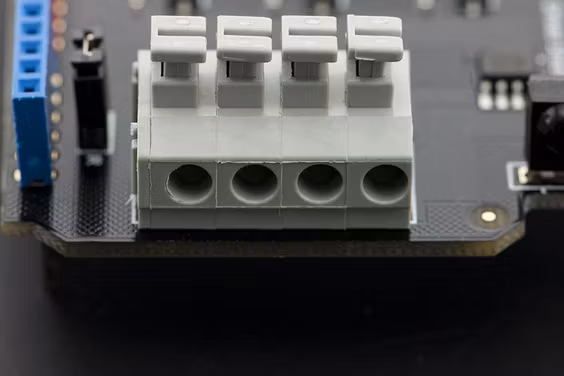

The shield has 3 outputs with pulse width modulation. Each can control any 12V load, at up to 3A. The shield has a built-in IR receiver which allows the LED strip is controlled by an IR remote controller.  A buildin fuse protects the LED strip from over current or any shortage by any reasons. It cares about your hard work.

This shield makes it possible to drive about 10-meter length RGB LED Strip with your Arduino processor, which almost require 10Amps(@12V) driving capability.

Note: Recommend to connect a 12v power source to the DC adapter on the RGB Strip driver shield, which could be powering the Arduino also and protect the system from overcurrent by a fuse.

Compatability

  • Arduino UNO R2/R3 or compatible
  • Arduino Mega 1280/2560

SPECIFICATION

  • Compatible with Arduino Uno,Mega,Romeo, etc
  • Compatible with 12V RGB LED Strip(Common Anode)
  • Recommend working power: 72W (2A per way)
  • Limited driving capability: 10 meter RGB LED Strip with max brightness
  • Support IR remote control
  • RGB LED Strip driving pins:
    • D9    -> Blue output
    • D10  -> Red output
    • D11 -> Green output
  • IR Receiver
    • D4  -> IR receiver pin

DOCUMENTS

SHIPPING LIST

  • RGB LED Strip Driver Sheild   x1
