Keyestudio Passive Buzzer Sound Module For BBC micro:bit

  • 69 kr

This keyestudio passive buzzer is fully compatible with micro:bit control board.It is mainly composed of a passive buzzer without oscillation circuit. It cannot

I lager.
Lagersaldo: 9
Artikelnummer: 513
Dela

This keyestudio passive buzzer is fully compatible with micro:bit control board.

It is mainly composed of a passive buzzer without oscillation circuit. It cannot be actuated by itself, but by external pulse frequencies.

Different frequencies produce different sounds. Even can code the melody of a song.

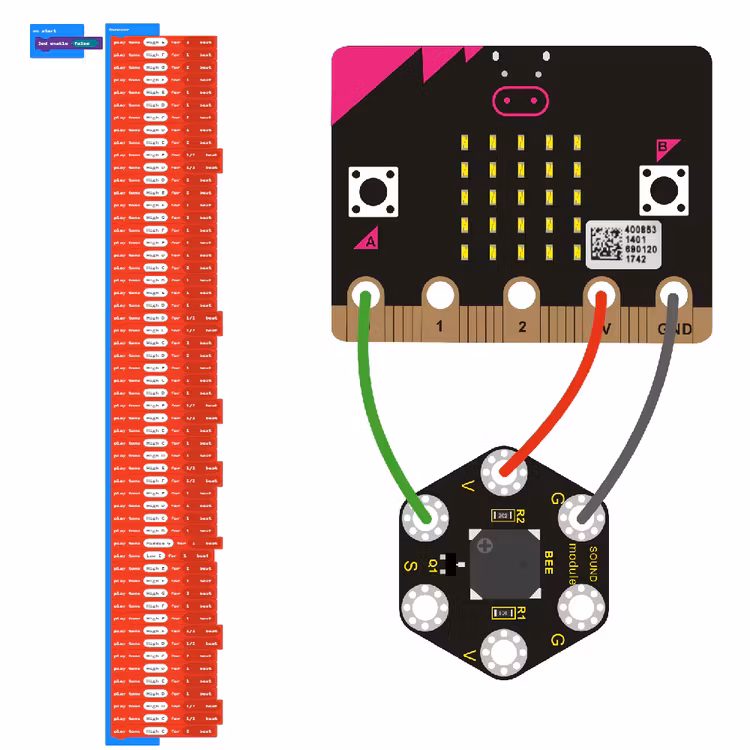

There are total 6 rings on the module. Note that two G rings, two V rings and two S rings are connected. G for ground; V for 3V; S for signal pin(0 1 2).

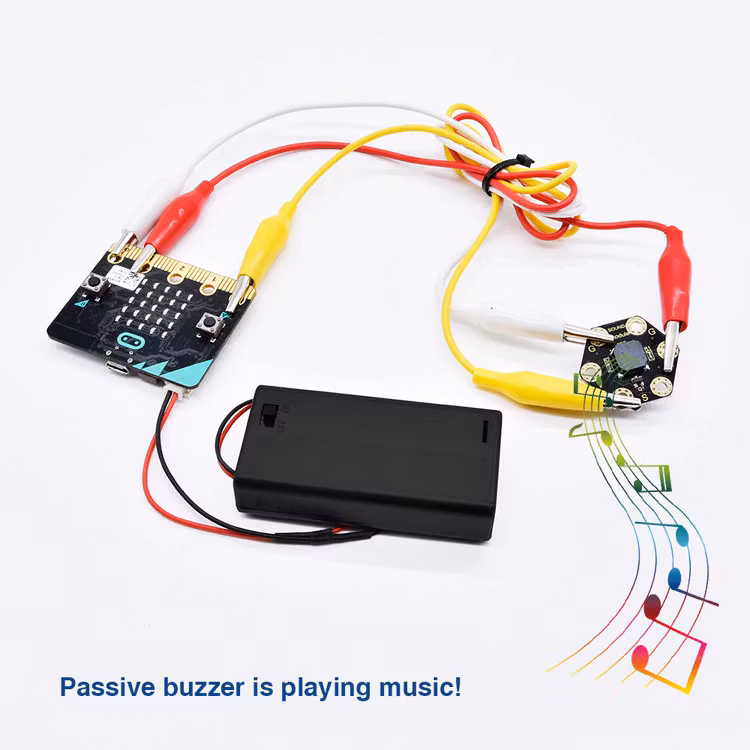

When using, connect the module to micro:bit control board using Crocodile clip line.



Technical Parameters

  • Working voltage: DC 3.0-3.3V

  • Output signal: Digital signal (square wave)

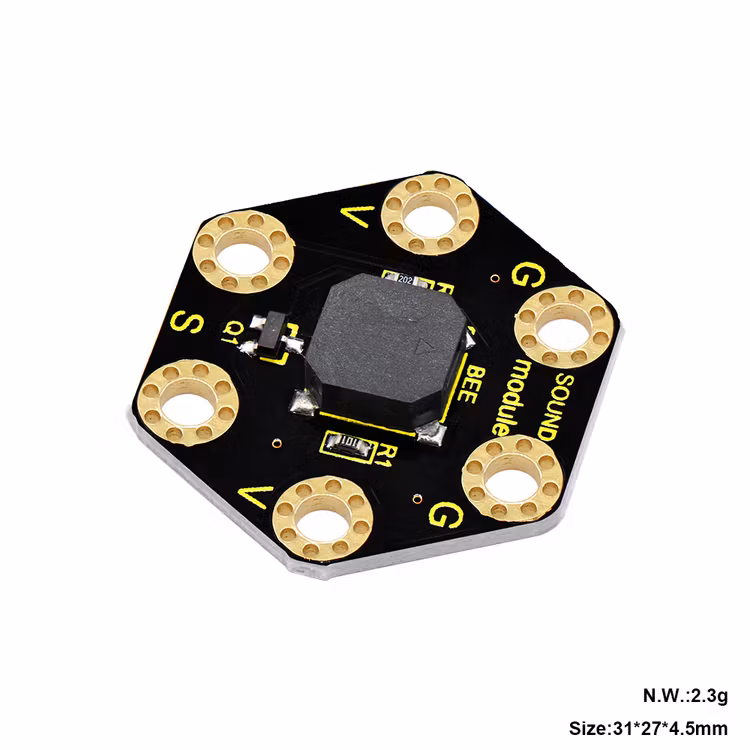

  • Dimensions: 31mm*27mm*4.5mm
  • Weight: 2.3g
  • Environmental attributes: ROHS
