Micro:bit LCD 1.8inch

~~199 kr~~
179 kr

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors.Tired of the 5x5 LED matrix

Artikelnummer: 263

Dela

Information

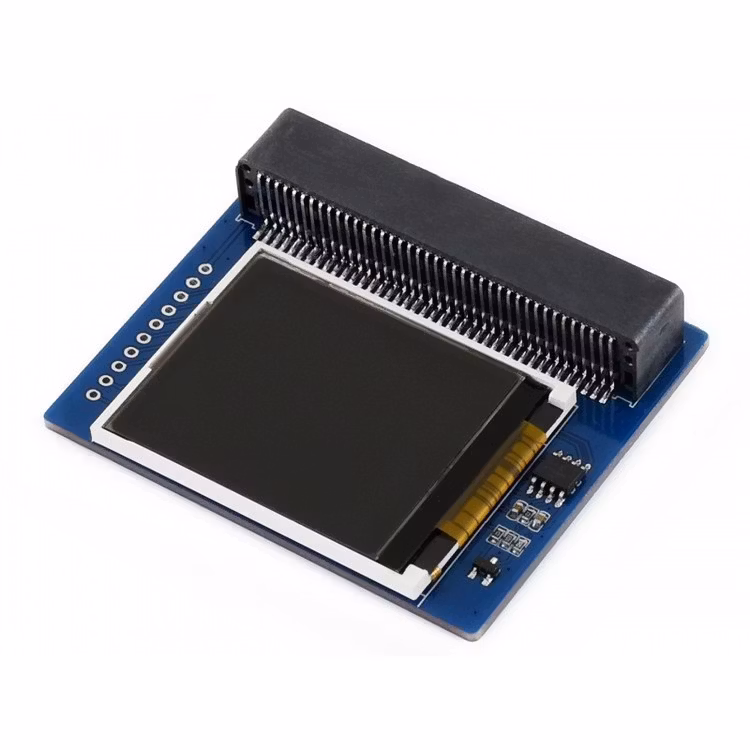

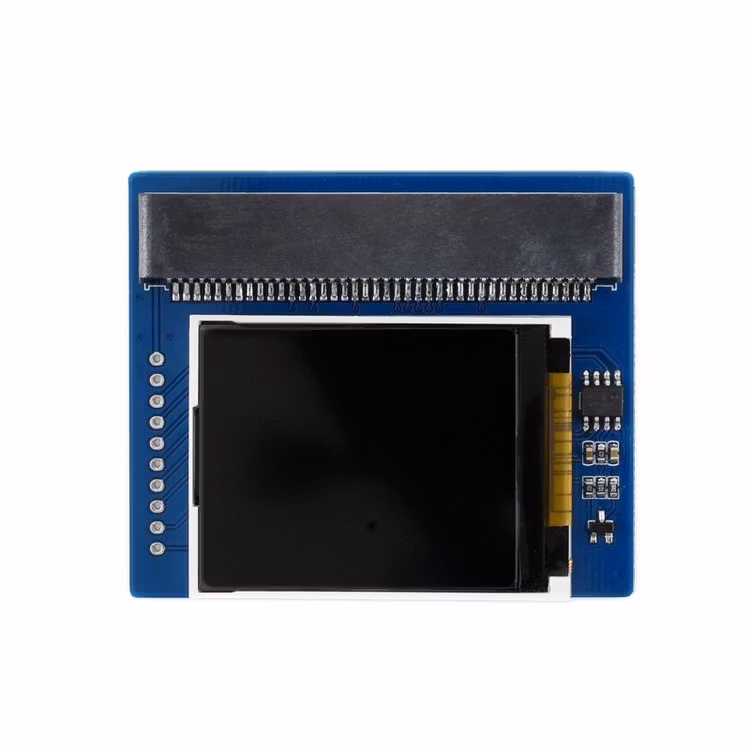

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors.

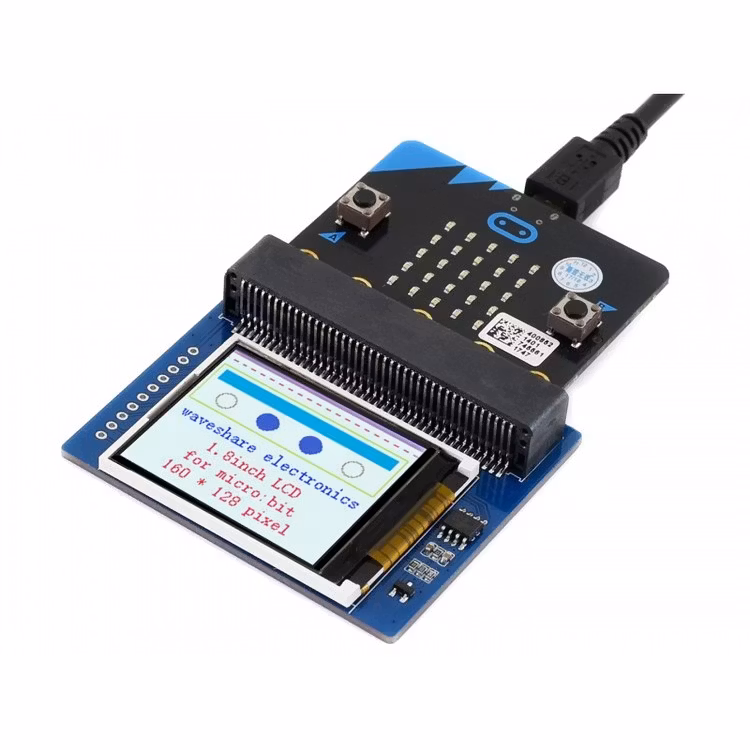

Tired of the 5x5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.

Features

micro:bit edge connector, directly pluggable
Embedded driver ST7735S, supports 65K colors
Onboard SRAM 23LC1024, used as display cache, no more out of memory
SPI interface, takes up only a few IO pins
Backlight adjustment via PWM
Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
Comes with development resources (micro:bit graphical demo/user manual, etc.)

Specifications

Driver: ST7735S
Resolution: 160x128
Display color: RGB, 65K colors
Operating voltage: 3.3V
Dimension: 61mm x 51.5mm

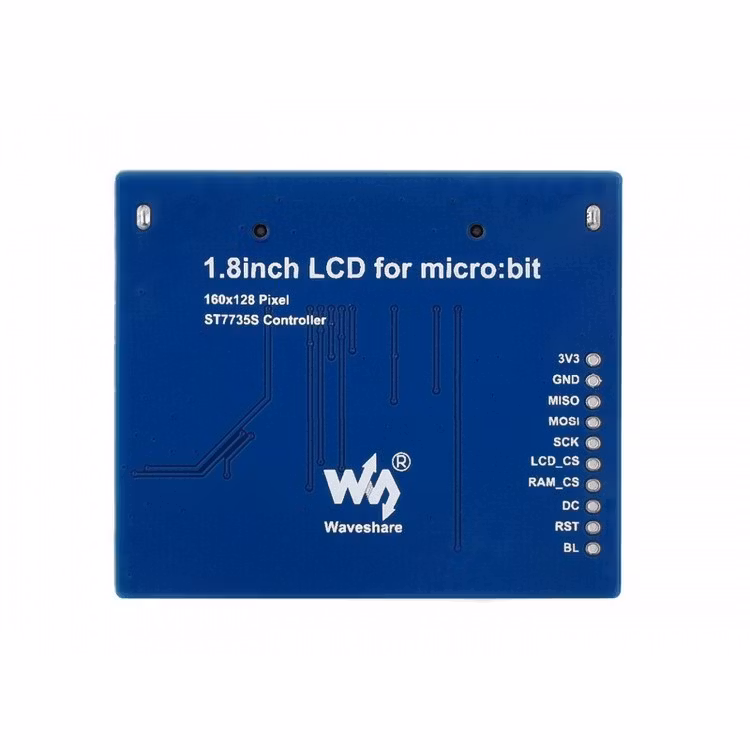

Pinouts

PIN	micro:bit PIN	DESCRIPTION
3V3	3V3	Power
GND	GND	Ground
MISO	P14	SPI data master input/slave output
MOSI	P15	SPI data master output/slave input
SCK	P13	SPI clock input
LCD_CS	P16	LCD chip selection
RAM_CS	P2	SRAM chip selection
DC	P12	LCD data/command
RST	P8	LCD reset
BL	P1	LCD backlight

Development Resources

Wiki : www.waveshare.com/wiki/1.8inch_LCD_for_micro:bit
